KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System
KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System
KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System
KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System
KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System

KC HiLiTES

KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System

$514.99
SKU: 0651
Beam Pattern:

Beam Pattern

KC HiLites 6" Daylighter with Gravity® LED G6 Pair Pack System

Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Overview:

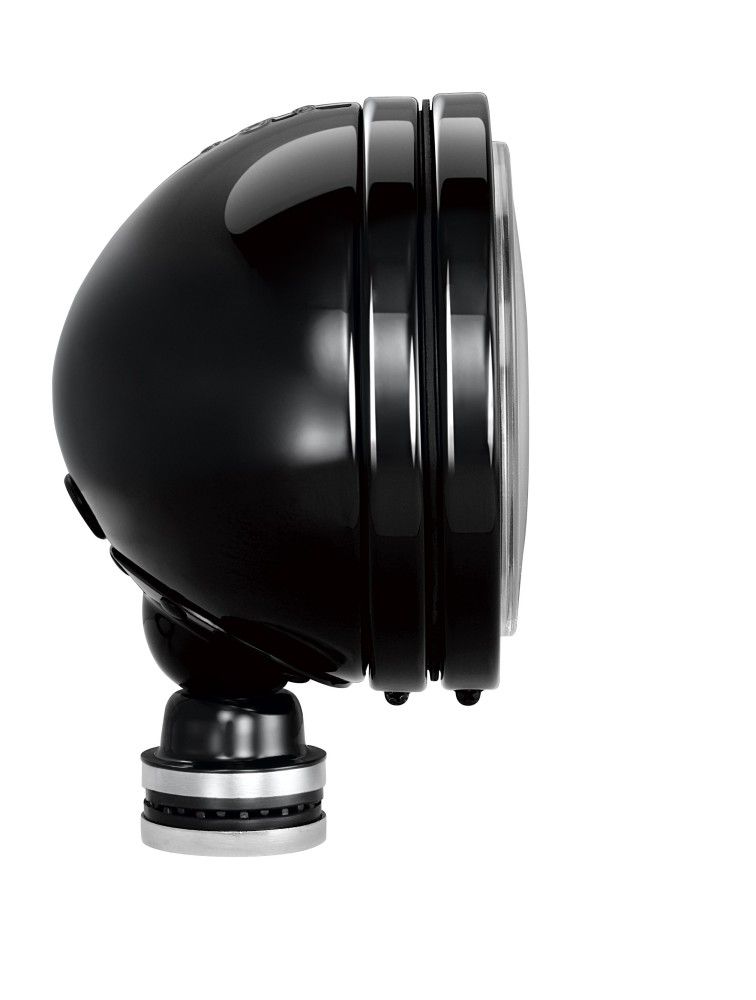

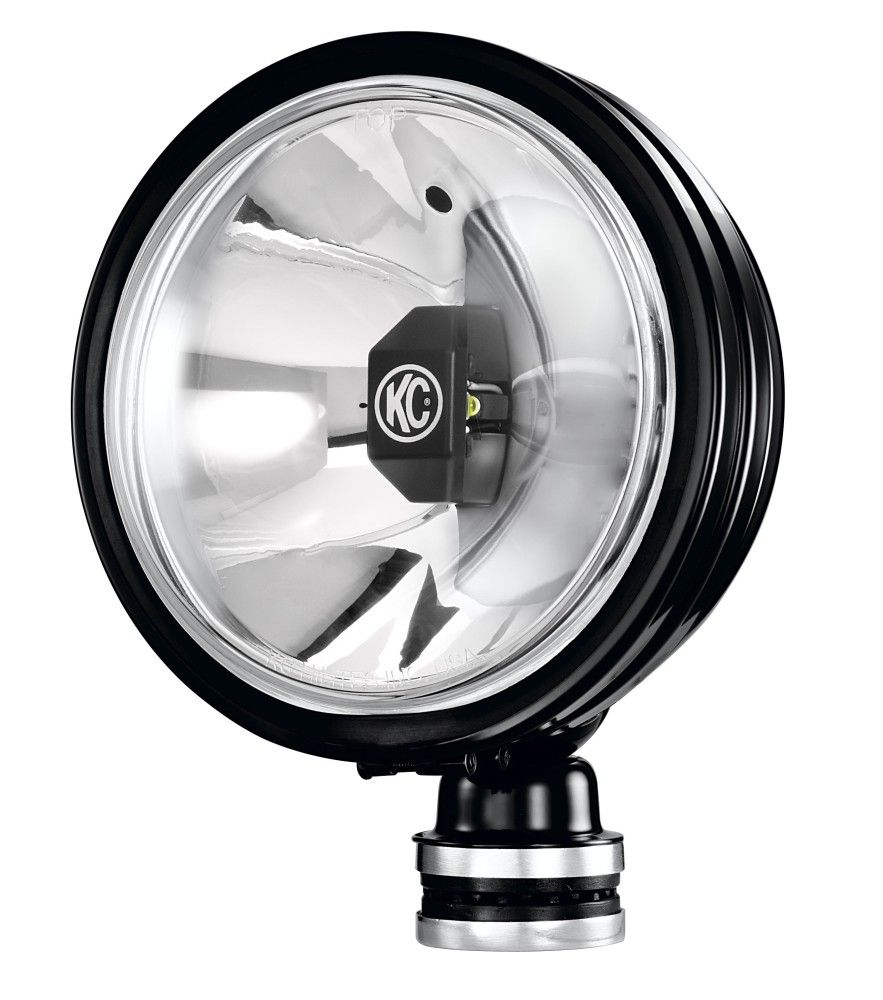

KC HiLiTES 6" Gravity LED Daylighter use bright CREE LEDs in a spot pattern for focused width and distance. Black steel housing, polycarbonate lens and FLEXible base for easy aim. System includes wiring harness, switches, and yellow covers.
Features:
  • 2 x 20W Gravity® LED G6 optical inserts
  • Black Powder Coated Steel housing
  • Hard Coated Polycarbonate Lens
  • Spot Beam Pattern
Light Performance (Per Light):
  • Raw Lumens: 2,300 lm
  • Lux @ 10 Meters: 2,150 lx
  • Candela: 215,000 cd
  • Beam Distance (Meters): 972m
Specifications (Per Light):
  • Wattage: 20W
  • LED Source: CREE XPL HD LED
  • Amp Draw: 1.63A
  • Voltage: 9V-32V
  • IP Rating: IP67
  • Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"
Parts Included:
  • (2) 20W 6" Gravity® LED Daylighter lights
  • Deluxe Wiring Harness w/2-Pin weatherproof connectors
  • (2) Protective KC Daylighter light covers
  • 30 Amp Illuminated Switch w/ Switch Panel
GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 2,150 lx @ 10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES:

Spot Beam- Provides focused bright light for maximum forward distance and high-speed visibility.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION:

Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY:

The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.

Specs:
  • Light Technology: LED
  • Location on Vehicle: A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
  • Lumens: 2,300 lm
  • Beam Distance: 972 m
  • Total Wattage: 40W
  • Voltage: 9V-32V
  • Amp Draw: 3.3 a
  • Beam Pattern: Spot/Driving
  • DOT Compliant: No
  • SAE/ECE:No
  • Lens Color: Clear
  • Light Color: White
  • Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"
  • Material: Stainless Steel
  • Finish: Black
  • Color: Black
  • In The Box: 2 x Gravity LED™ Daylighter(Black Steel) Spot Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6" Protective KC Daylighter light Guards, Mounting Hardware
  • IP rating: IP67
  • Prop 65: No
  • Size: 6"
