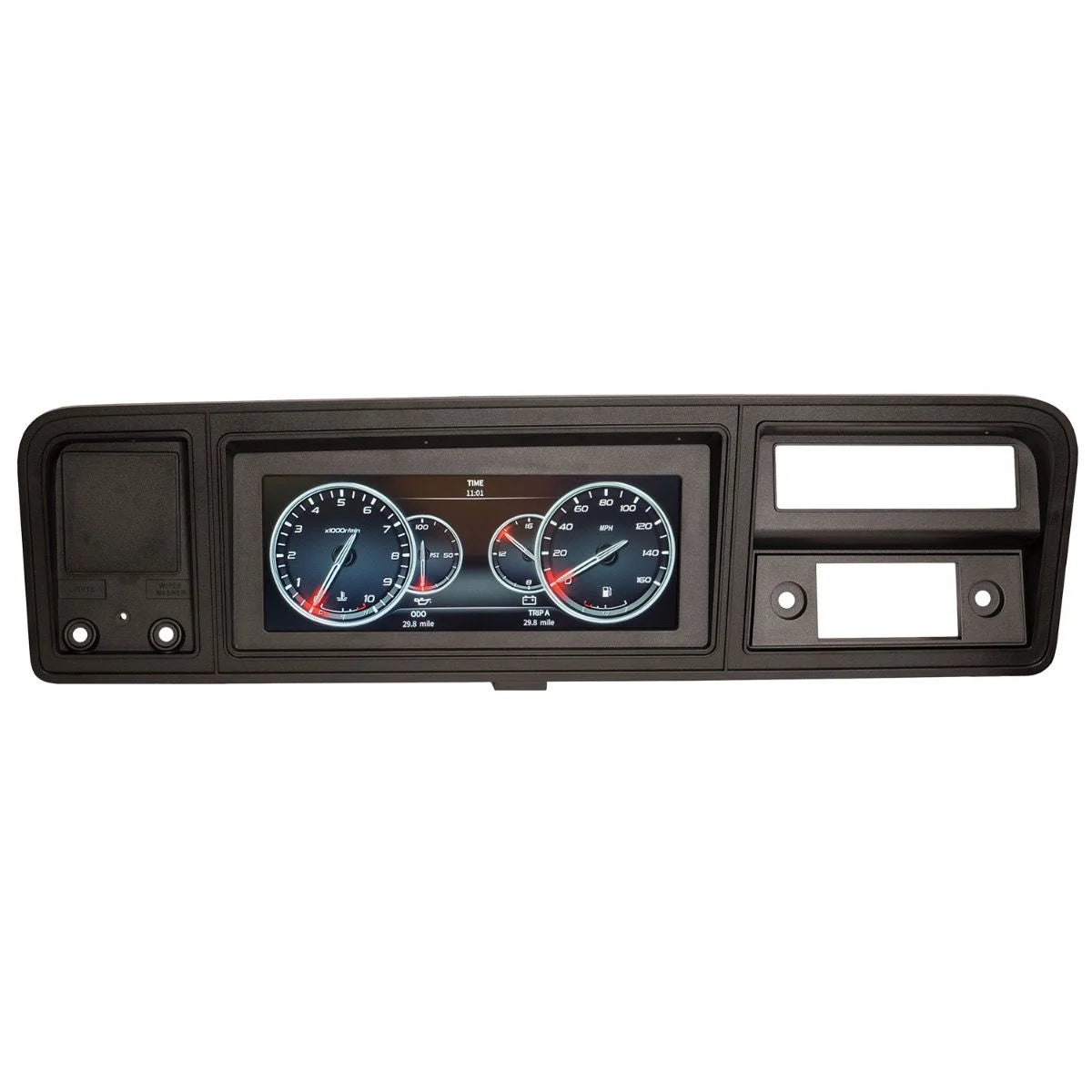

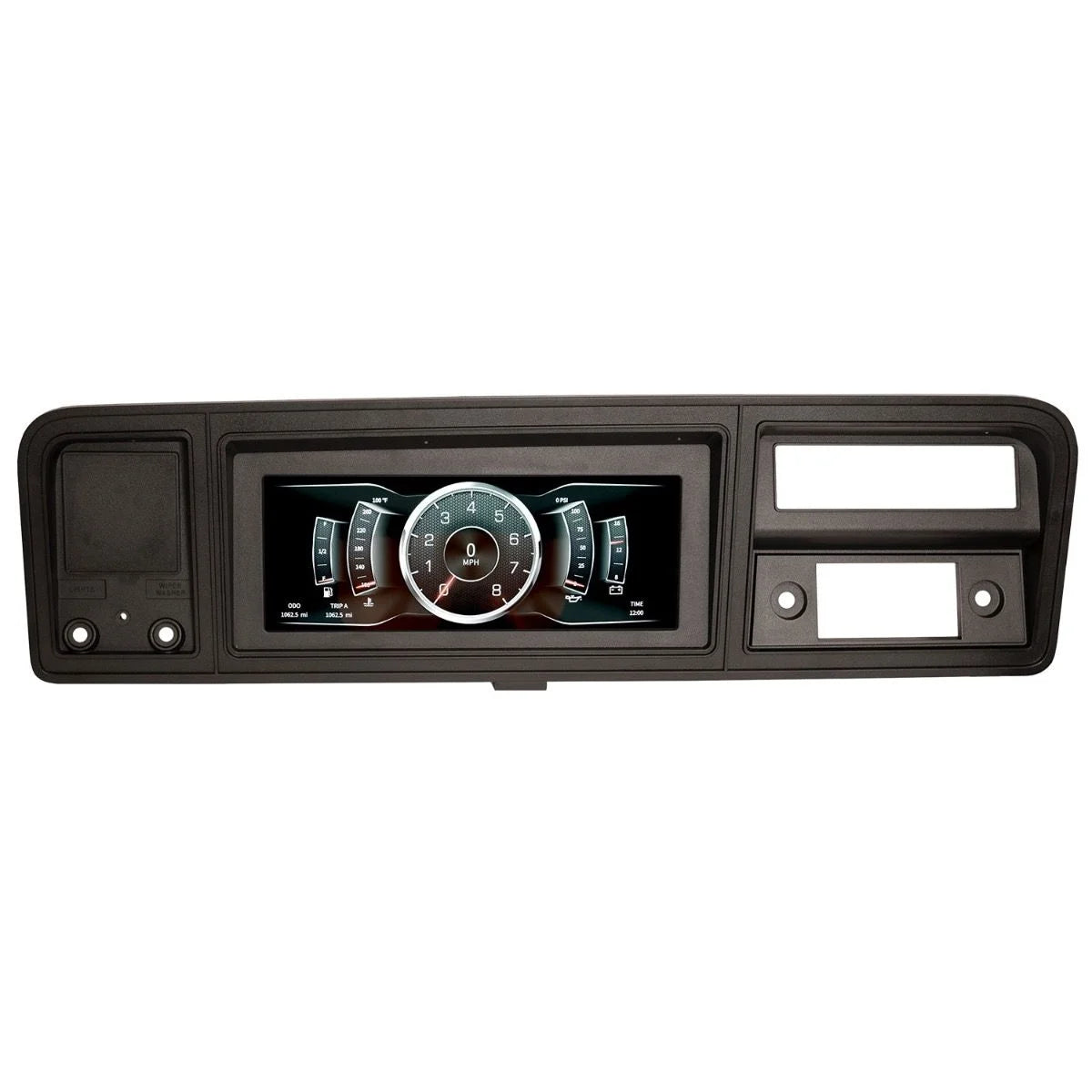

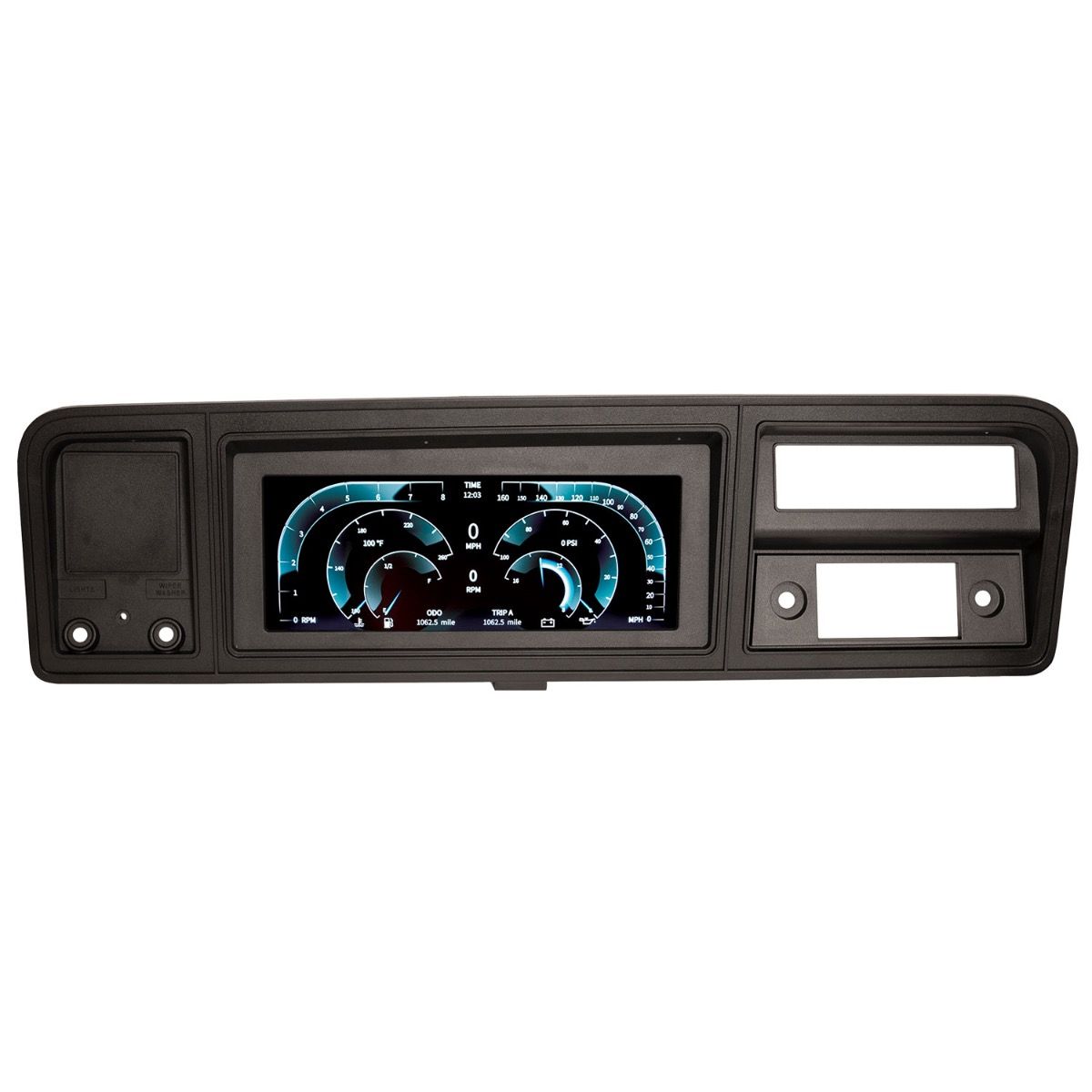

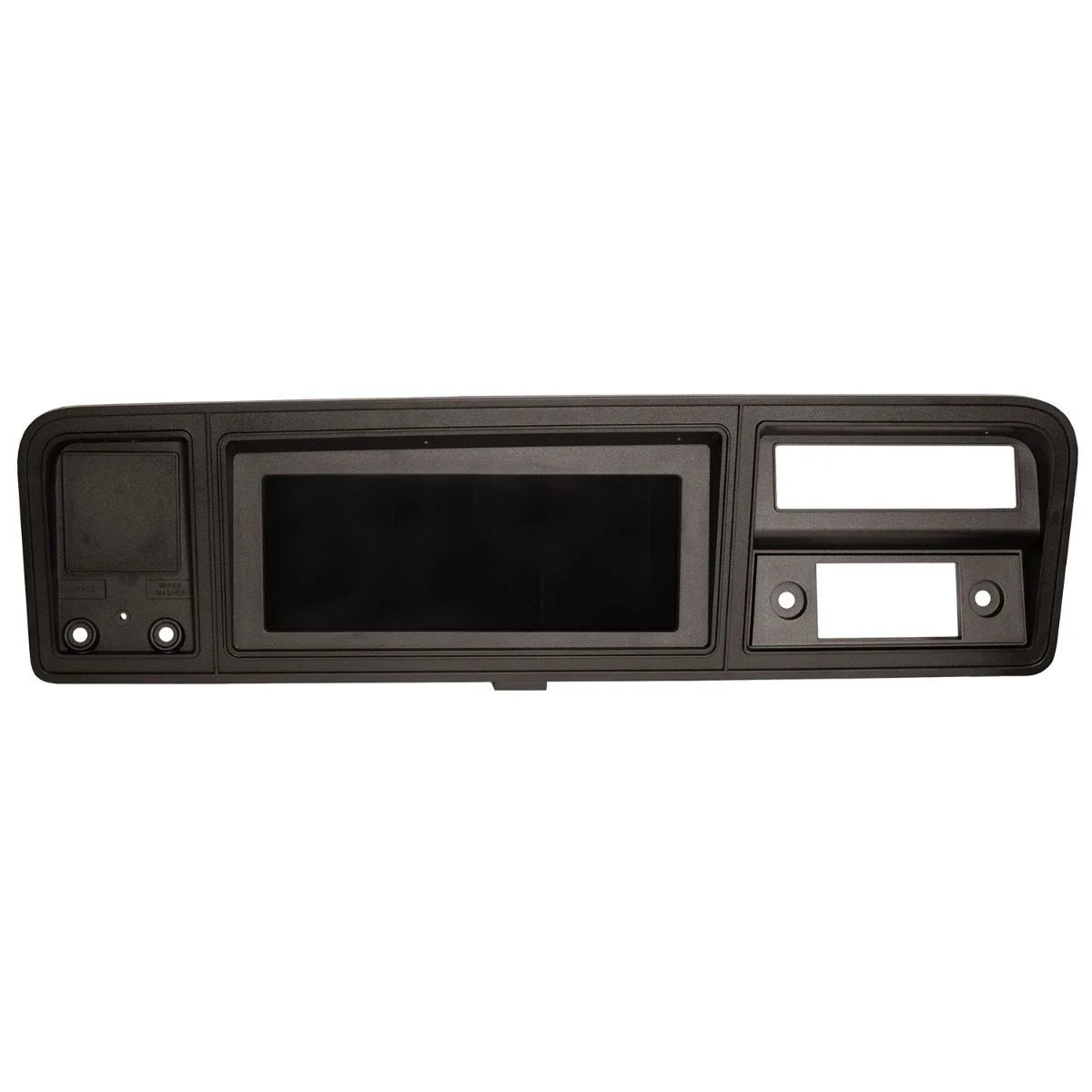

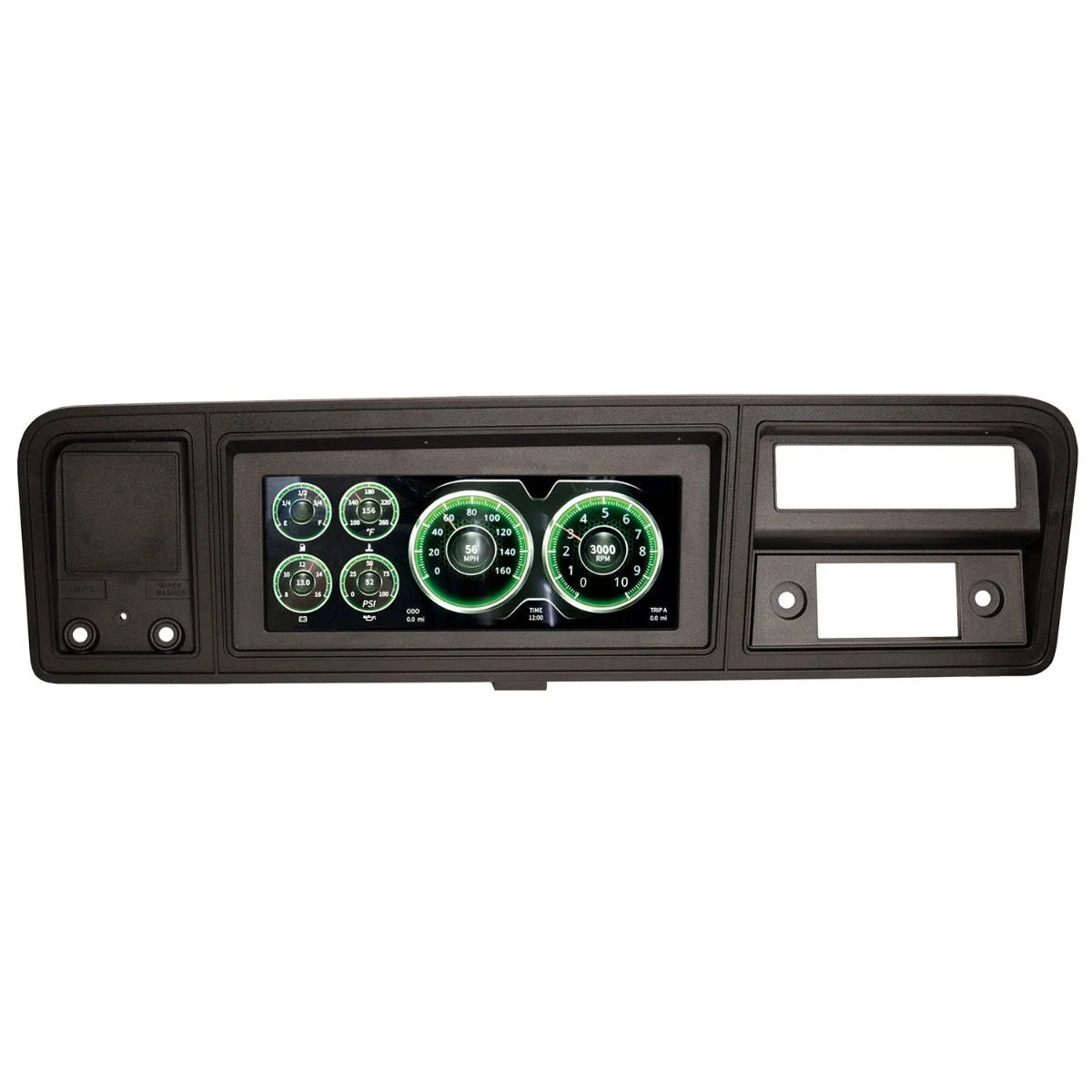

Invision LCD Direct-Fit Digital Dash Kit Close-up Display
Invision LCD Direct-Fit Digital Dash Kit Close-up Display
Invision LCD Direct-Fit Digital Dash Kit Close-up Display
Invision LCD Direct-Fit Digital Dash Kit Close-up Display
Invision LCD Direct-Fit Digital Dash Kit Close-up Display

Autometer

Invision LCD Direct-Fit Digital Dash Kit, 73-79 Ford Truck & 78-79 Bronco

$1,428.37
SKU: ATM-7402
Quantity:

Invision LCD Direct-Fit Digital Dash Kit, 73-79 Ford Truck & 78-79 Bronco

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

DESCRIPTION:
Upgrade your ride and make your truck the envy of all with the revolutionary InVision Digital Dash from AutoMeter! With this complete Direct-Fit Digital Dash System designed specifically for the 1973-1979 Ford Truck and 1978-1979 Ford Bronco, this cutting-edge technology is a one-stop-shop for all your instrumentation needs. Say hello to a sleek, modern 12.3" LCD display that puts everything you need to know in one place. Monitor your speedometer, tachometer, fuel level, oil pressure, water temperature, and volts with ease, all while standing out from the crowd with this exciting dash from AutoMeter. Plus, with integrated notifications for high beams and turn signals, and instrument warnings, you'll never miss a beat on the road again. So what are you waiting for? Upgrade your ride with the latest, most innovative LCD offering on the market today.

Feature Points
  • Direct-fit instrumentation solution for 1973-1979 Ford Truck and 1978-1979 Ford Bronco that monitors speedometer, tachometer, water temperature, oil pressure, fuel level, and volts all in a high resolution and colorful display
  • 12.3” LCD display with four user selectable screens
  • On-screen notifications for high beams and turn signals as well as audible and visual instrument warnings
  • Includes universal wiring harness, and sending units for water temperature and oil pressure as well as a joystick for dash customization
  • Equipped with removable air conditioning vent block-off plate that includes a 2" and 2-5/8" hole cutout template for convenient gauge addition to dash
  • Display output is programmable for imperial or metric measurements
  • Requires no cutting, drilling or modification to factory pieces
  • Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors and the tachometer is capable of calibrating to many engine types (1-12 cylinders)
  • User-selectable fuel level resistance ranges designed for OEM and aftermarket sending units
  • Helps identify potentially serious vehicle issues with visual and audible alarms - low fuel level/oil pressure/voltage and high water temperature
Ships With
  • Includes Sending Unit: 2258, 2242
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Brackets Included
