'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan Display
'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan Display
'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan Display
'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan Comparison Chart
'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan Comparison Chart

Banks Power

'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan

$498.00
SKU: 35148-B
Quantity:

'20-24 Chevy/GMC 2500/3500 Ram-Air Transmission Pan

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

this is a pre-order product, Banks will begin shipping these out in December 2024. Place your order now to secure your transmission pan before the first batch sells out!
overview

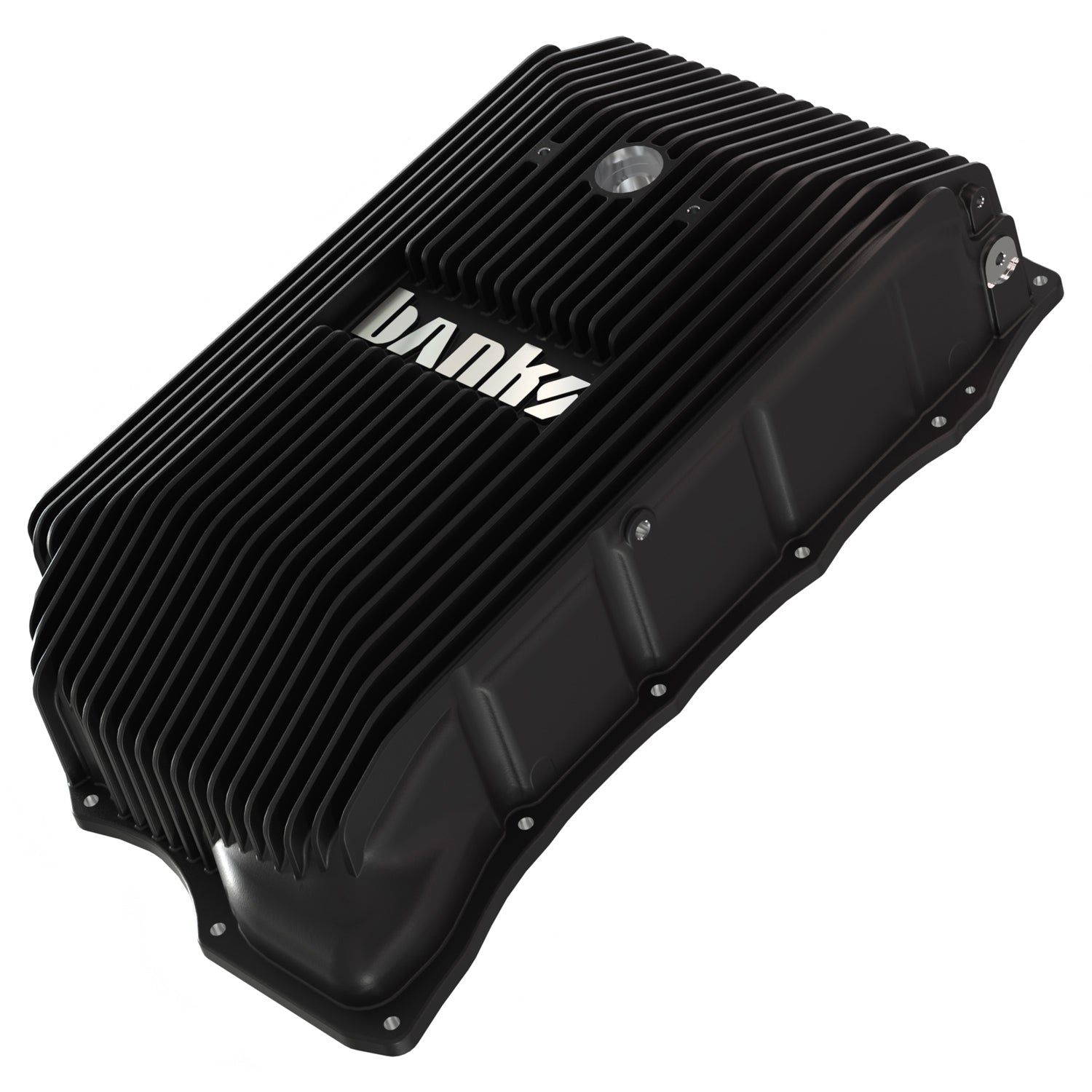

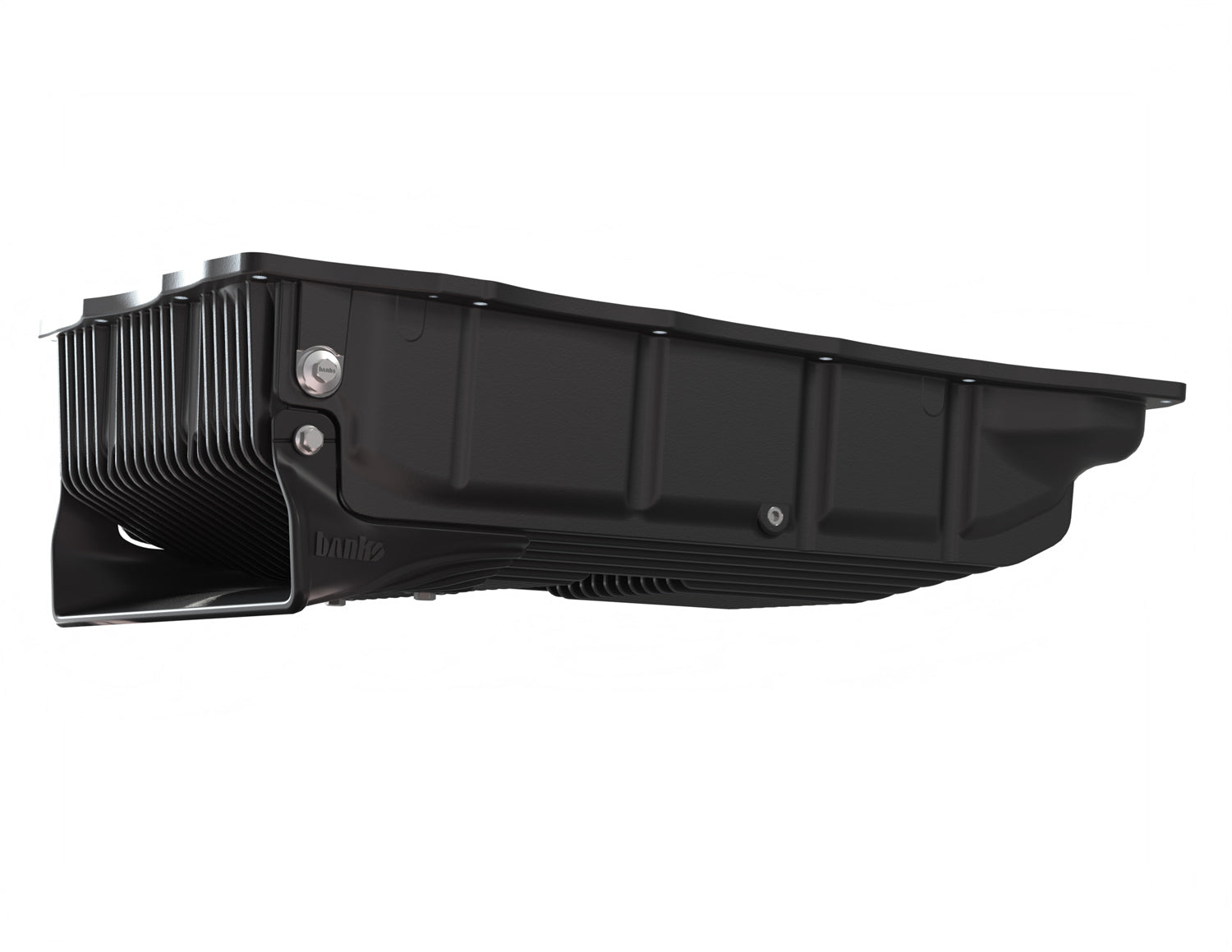

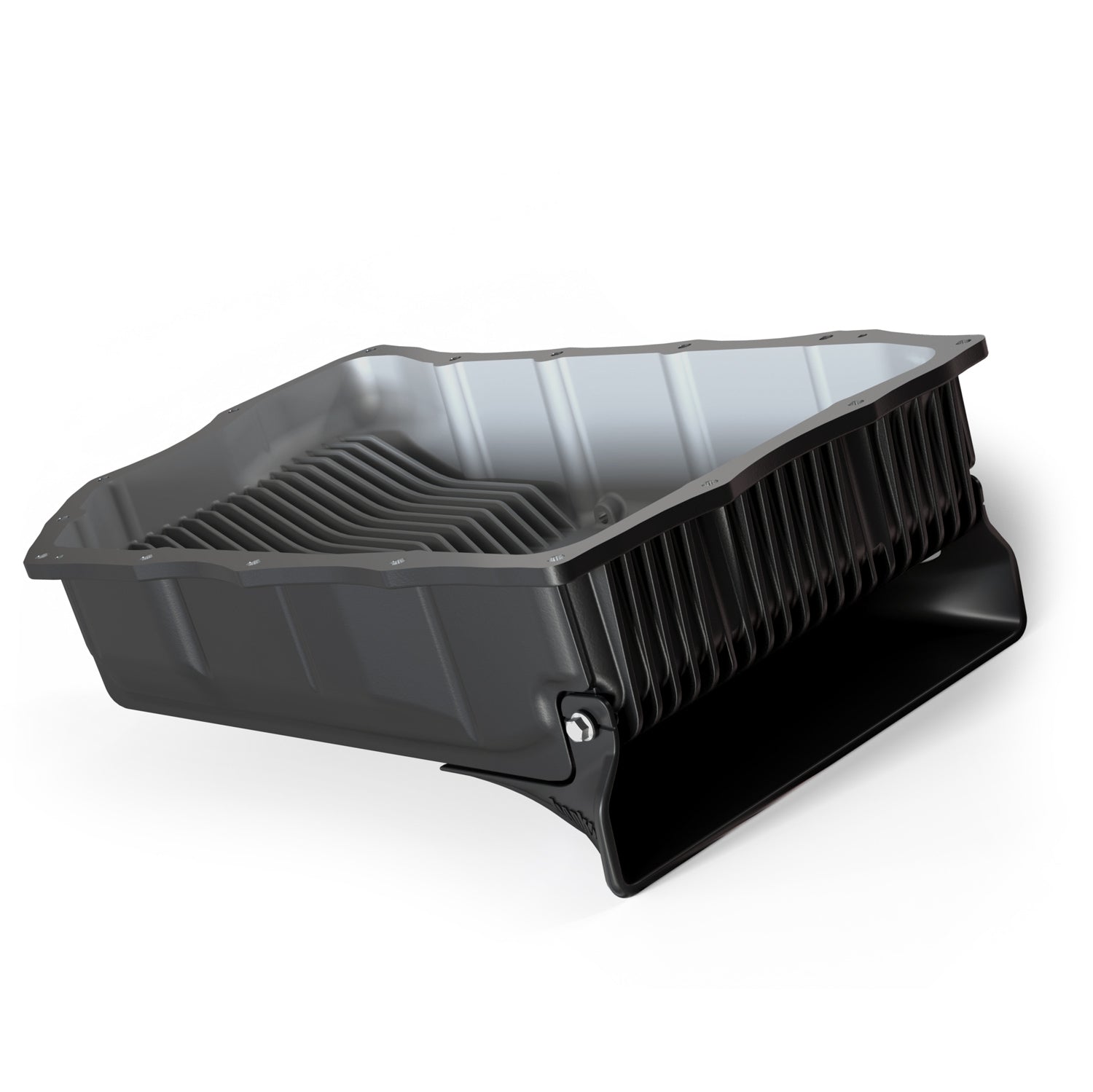

Banks brings Ram-Air cooling to the heavy-duty Allison 10L1000 transmission for 2020-2024. Using technology from our patented differential covers, the Banks Ram-Air Transmission Pan extends fluid oil life by rejecting more heat than stock and all competitors. An additional three quarts of capacity, a break-away Ram-Air scoop, and Banks FlowThru Fins aid in cooling. Cooler fluid means a longer-lasting transmission.

Key Features
  • Engineered for the highest heat rejection, improved oil flow and full oil drainage
  • Adds 3 additional quarts of fluid capacity
  • Internal fins transfer heat through the cover into the external fins
  • 123% more heat absorption surface area than stock
  • 134% more cooling surface area than stock
  • Breakaway Ram-Air Scoop Design Prevents Pan Damage
  • Internal geometry allows full fluid drainage
Fluid Dynamics
  • Internal cooling fins run inline with the drain port with streamlined passageways
  • Downward facing port eases oil change process
  • Low fluid aeration means longer fluid life
Technical Specs
  • 1/8 NPT port for aux temp sensor
  • External heat radiation fin count: 22
  • Internal heat absorption fin count: 20

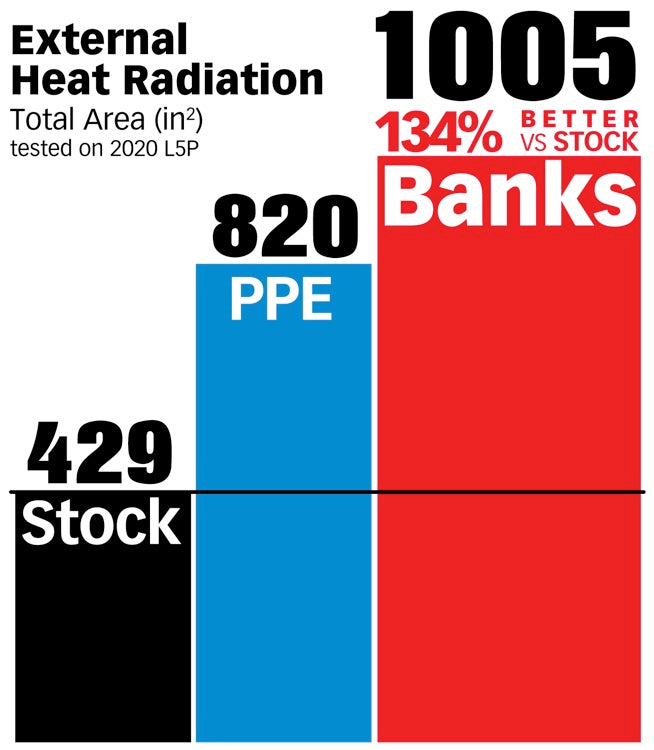

  • External heat radiation surface area: 1005 in2

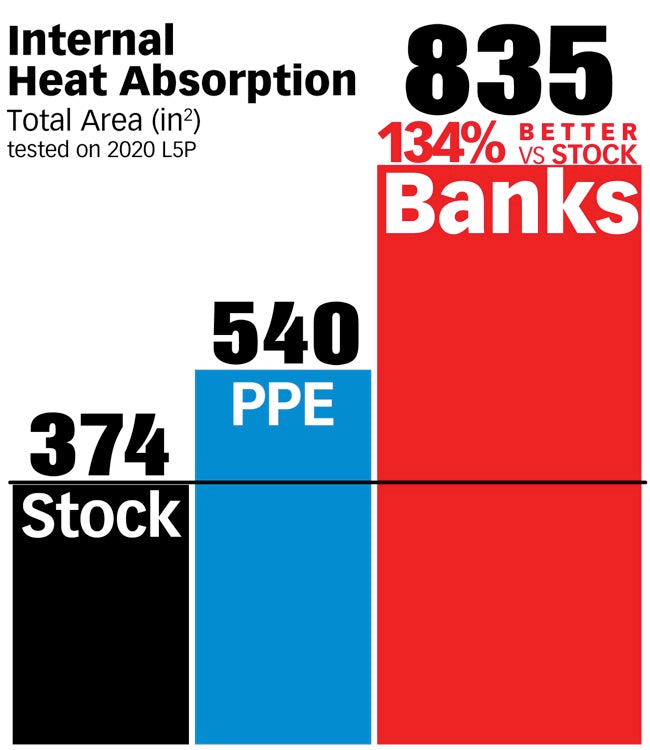

  • Internal heat absorption surface area: 835 in2
  • Fasteners: 16 x stainless steel M6 flange hex bolts
  • Material: A380 aluminum diecast with CNC machined surfaces
Oil service
  • High temp resistant Ferrite Magnetic Drain Plug
  • Fully drains oil pickup tube for quicker oil changes
  • Banks recommends Amsoil ATF
  • Adds 3.0 quarts additional capacity(Check OEM Owners Manual)
