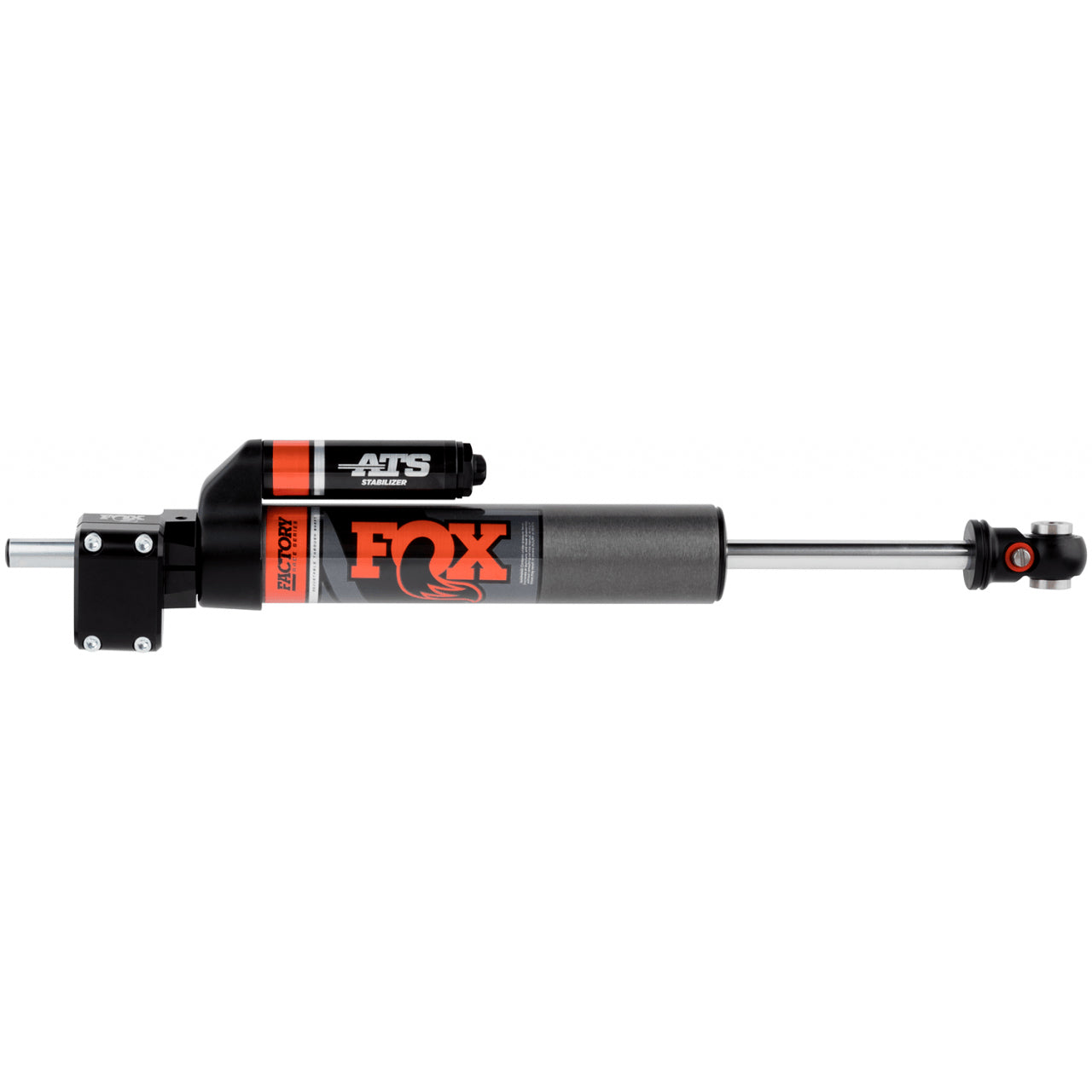

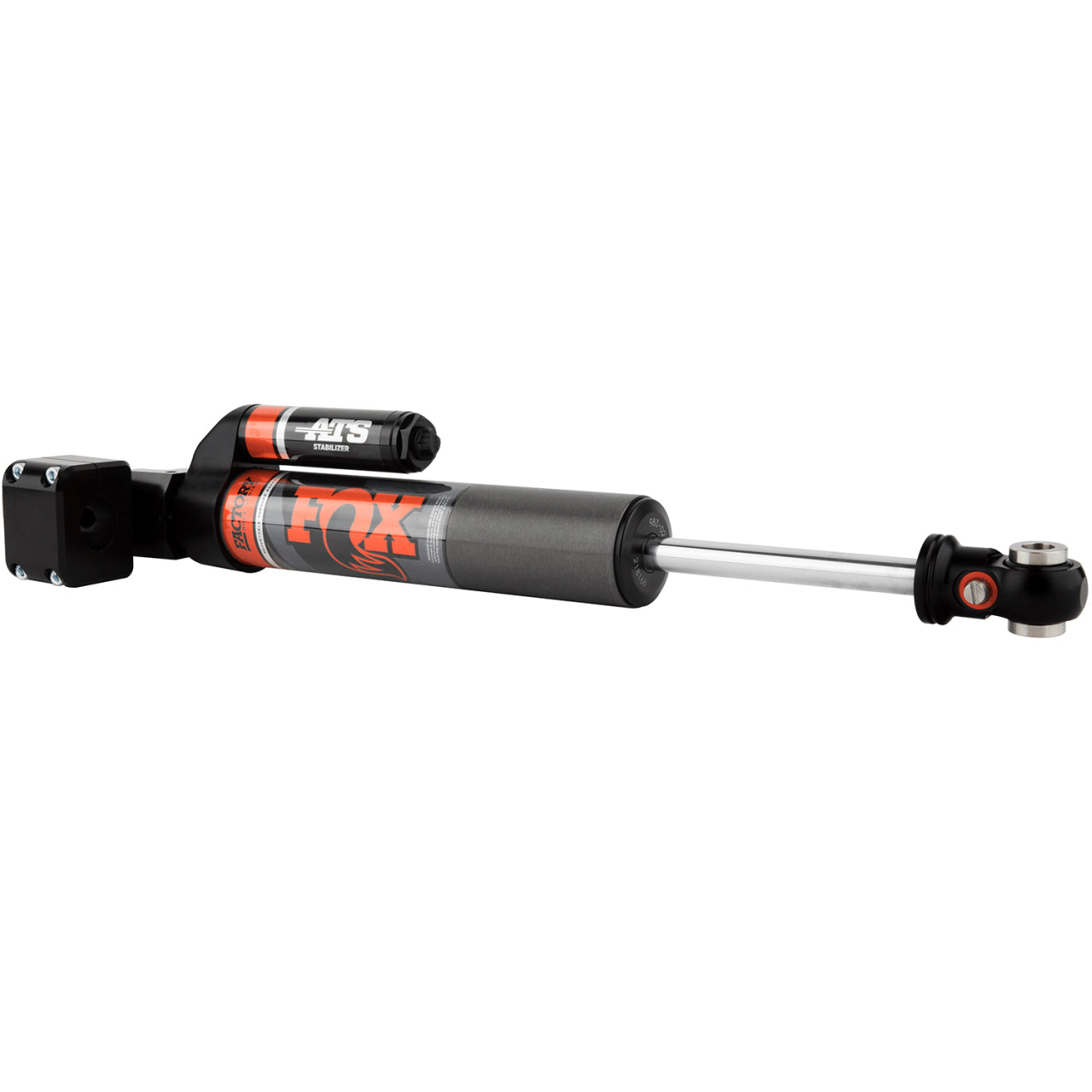

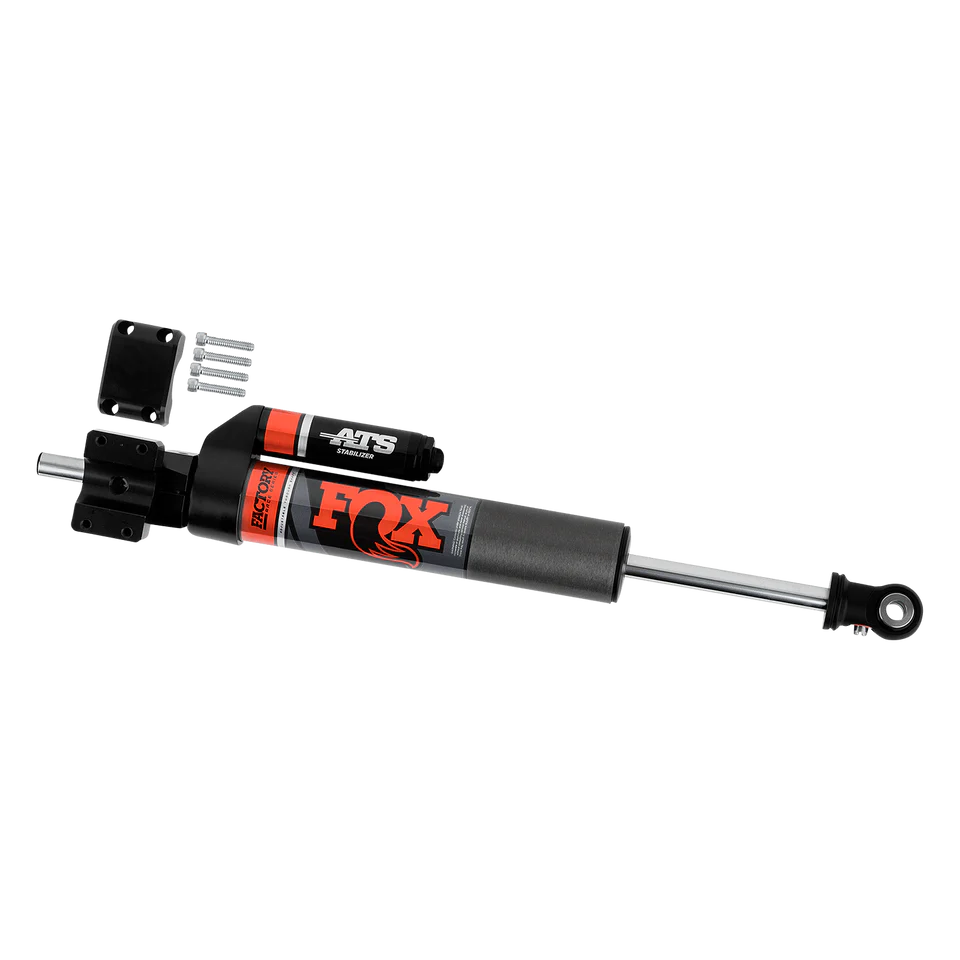

'17-23 Ford F250/350 Fox Factory Race Series 2.0 ATS Stabilizer
'17-23 Ford F250/350 Fox Factory Race Series 2.0 ATS Stabilizer

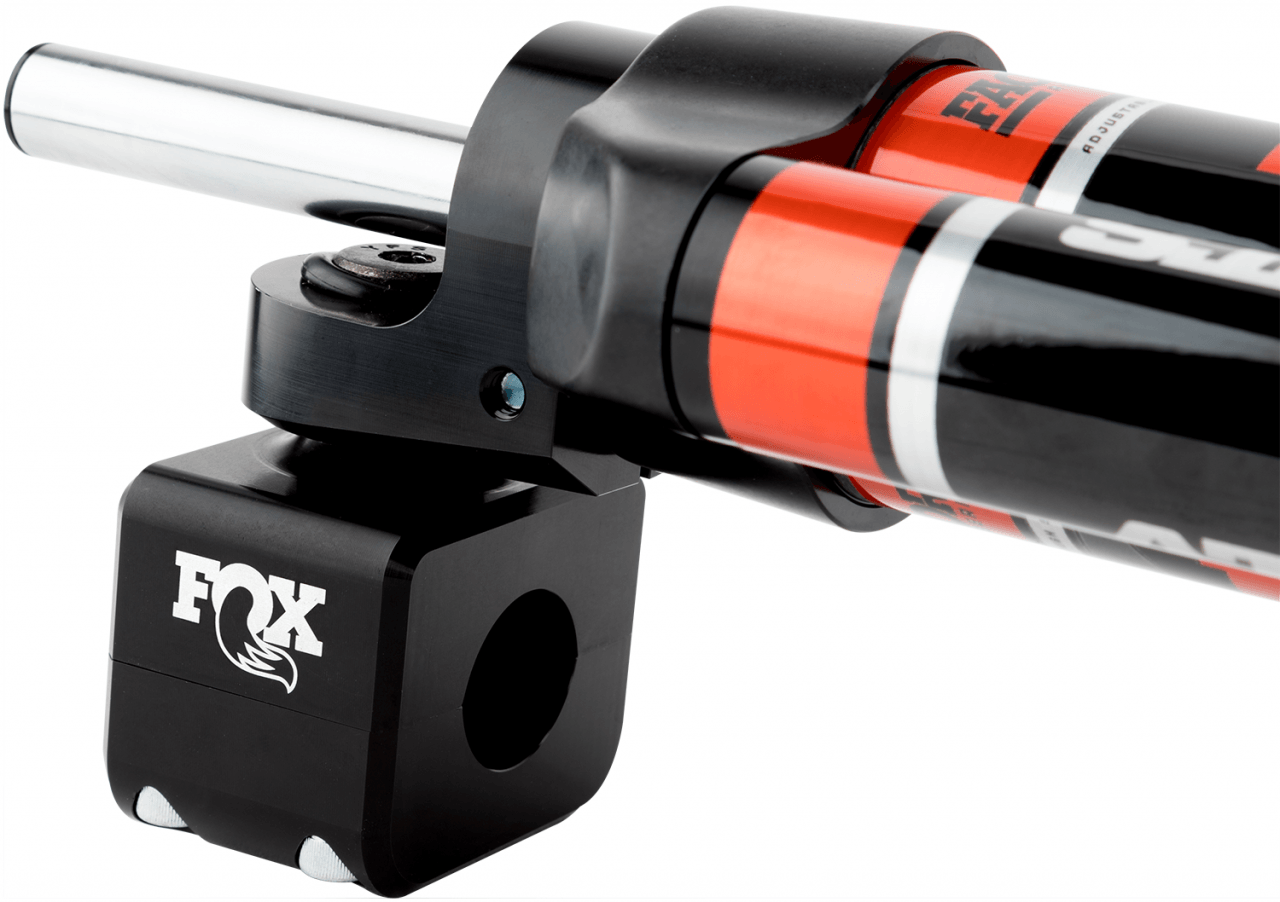

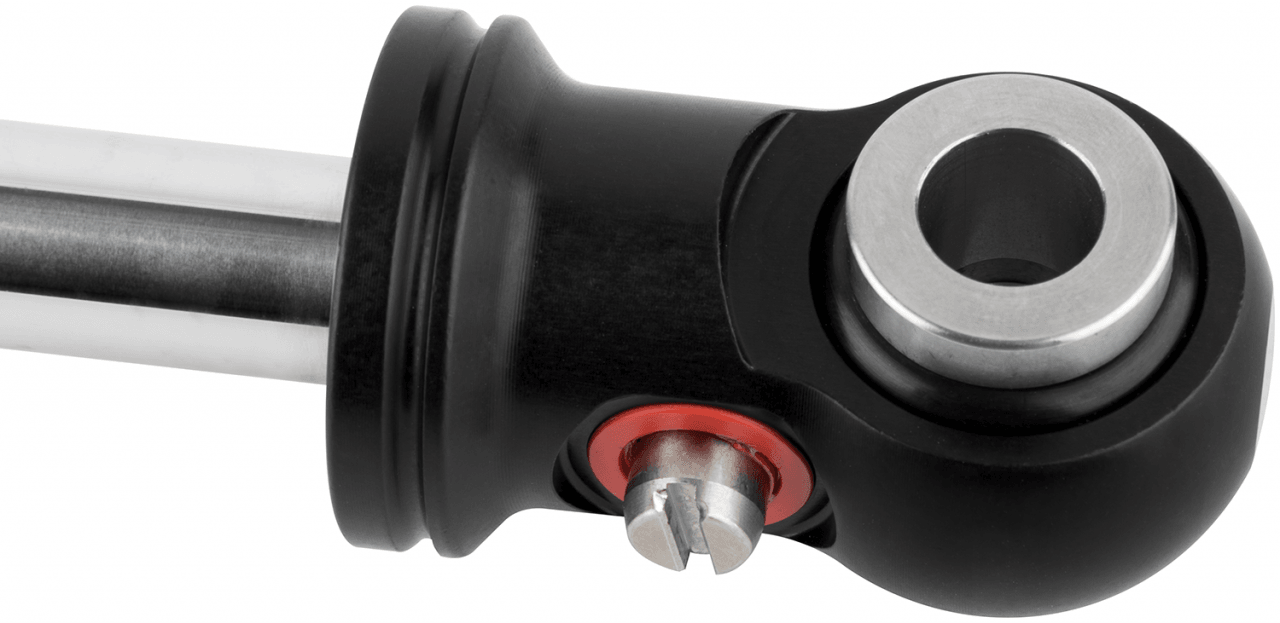

'17-23 Ford F250/350 Fox Factory Race Series 2.0 ATS Stabilizer close-up
'17-23 Ford F250/350 Fox Factory Race Series 2.0 ATS Stabilizer close-up

Fox

'17-23 Ford F250/350 Fox Factory Race Series 2.0 ATS Stabilizer

$499.95
SKU: Fox-983-02-143
Quantity:

'17-23 Ford F250/350 Fox Factory Race Series 2.0 ATS Stabilizer

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The Fox Factory Race Series 2.0 ATS Stabilizer for the 2017-2023 Ford F250 and F350 is a highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer. This aftermarket suspension component will help improve your Super Duty's steering

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel.

VEHICLE FITMENT:
  • 2017-2023 Ford F250
  • 2017-2023 Ford F350
KEY FEATURES:
  • Body: 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
  • Body Plating: Hard-anodized for a durable finish
  • Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Adjustments: Adjuster - 24 clicks of adjustability
  • Extended: 22.190
  • Compressed: 14.090
  • Travel: 8.110
  • Top Mount: Tie Rod Clamp
  • Bottom Mount: Eyelet
