07-09 Toyota FJ Cruiser Suspension System-Stage 3 Suspension Icon Vehicle Dynamics Billet Delta Joint UCA 650lbs. (Standard)

Icon Vehicle Dynamics

07-09 Toyota FJ Cruiser Suspension System-Stage 3

$2,795.76 $3,664.19
Save $868.43
SKU: K53053T
UCA OPTION:

UCA OPTION
Front Spring Rate:

Front Spring Rate
Quantity:

07-09 Toyota FJ Cruiser Suspension System-Stage 3

Tubular Delta Joint UCA / 650lbs. (Standard)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

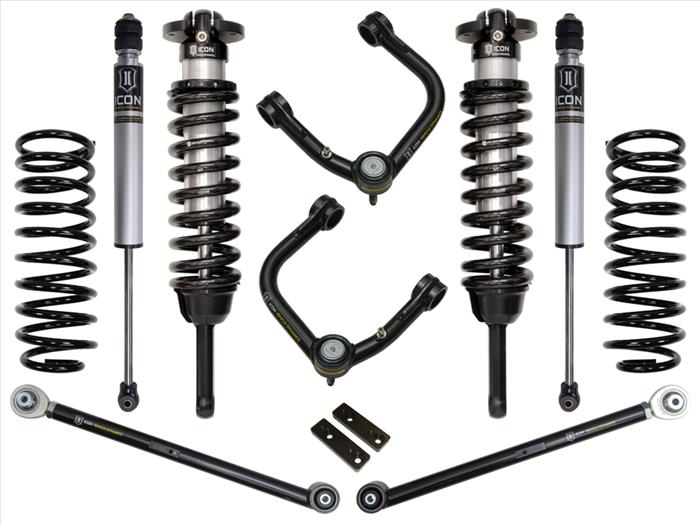

The Stage 3 suspension system for the 2007-2009 Toyota FJ Cruiser includes the components found in the Stage 2 system along with an ICON Billet Aluminum or Tubular Rear Lower Link kit. Extended travel ICON 2.5 Series coilover shocks and a billet aluminum or tubular Delta Joint upper control arm kit provide a significant upgrade to the FJ Cruiser's front suspension. The rear of the vehicle is improved with our 2" lift coil springs, ICON 2.0 Aluminum Series shocks, and the additional rear lower links. ICON's CNC machined 6061 billet aluminum lower links are much stronger than the OE units, can be easily adjusted on the truck for optimum pinion angle, and are protected by a machined nylon skid strip to help slide over rocks without damage to the link's structure. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

KEY FEATURES:
  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Extended Travel coilovers matched with ICON UCA provides increased front droop travel
  • Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
  • Bolt-on system means no cutting or welding necessary for install
TECH INFO:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
SYSTEM COMPONENTS:
  • 58645 (QTY: 1) | 07-09 FJ/03-09 4RNR/03-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT
  • UPPER CONTROL ARM OPTION
    • 58551DJ (QTY.1) | 07-UP FJ/03-UP 4RNR/03-UP GX BILLET UCA DJ KIT
    • 58451DJ (QTY.1) | 07-UP FJ/03-UP 4RNR/03-UP GX TUBULAR UCA DJ KIT
  • 52700 (QTY: 1) | 07-UP FJ/03-UP 4RNR/03-UP GX REAR 2" SPRING KIT
  • UPPER TRAILING ARM OPTION
    • 54100T (QTY.1) | 07-UP FJ/03-UP 4RNR/03-UP GX TUBULAR UPPER TRAILING ARM KIT
    • 54100 (QTY.1) | 07-UP FJ/03-UP 4RNR/03-UP GX BILLET UPPER TRAILING ARM KIT
  • 56505 (QTY: 2) | 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.0 VS IR
