'01-19 Chevy/GMC 2500/3500 Ram-Air Transmission Pan
'01-19 Chevy/GMC 2500/3500 Ram-Air Transmission Pan
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
overview

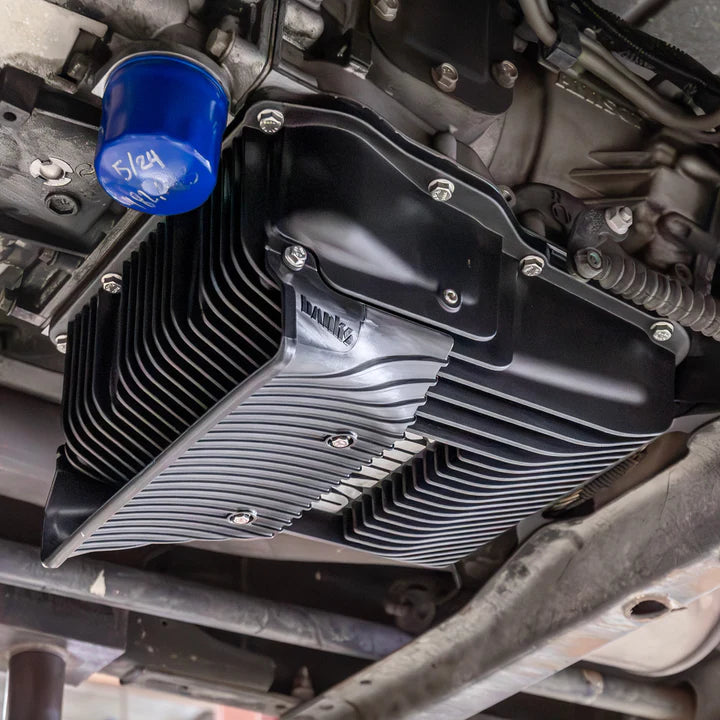

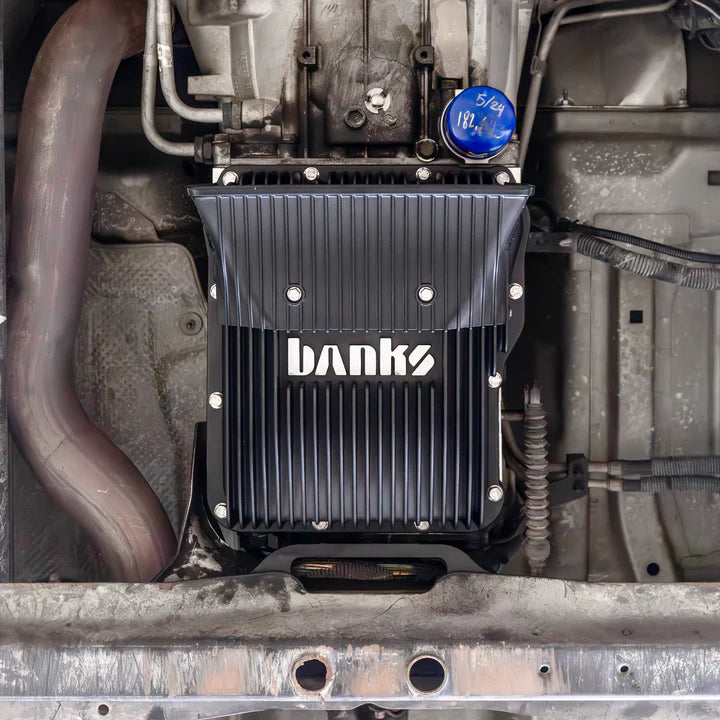

Banks brings Ram-Air cooling to the Allison 1000 transmission. Using technology from our patented differential covers, the Banks Ram-Air Transmission Pan extends fluid oil life by rejecting more heat than stock and all competitors. An additional two quarts of capacity, a break-away Ram-Air scoop, and Banks FlowThru Fins aid in cooling. Cooler fluid means a longer-lasting transmission.
Key Features
- Engineered for the highest heat rejection, improved oil flow and full oil drainage
- Adds 2 additional quarts of fluid capacity

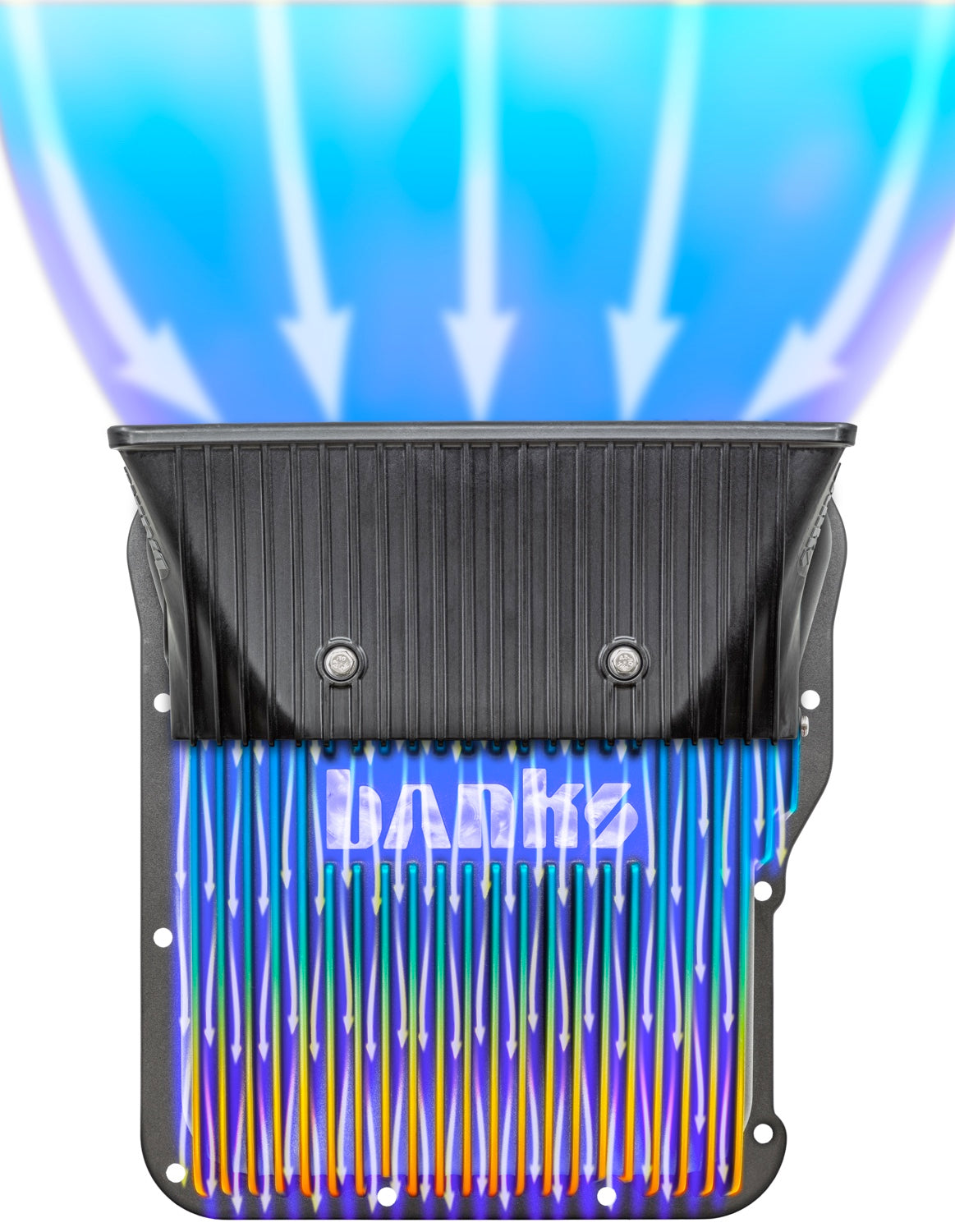

- FlowThru Fins efficiently transfer heat from the oil to the cover's exterior

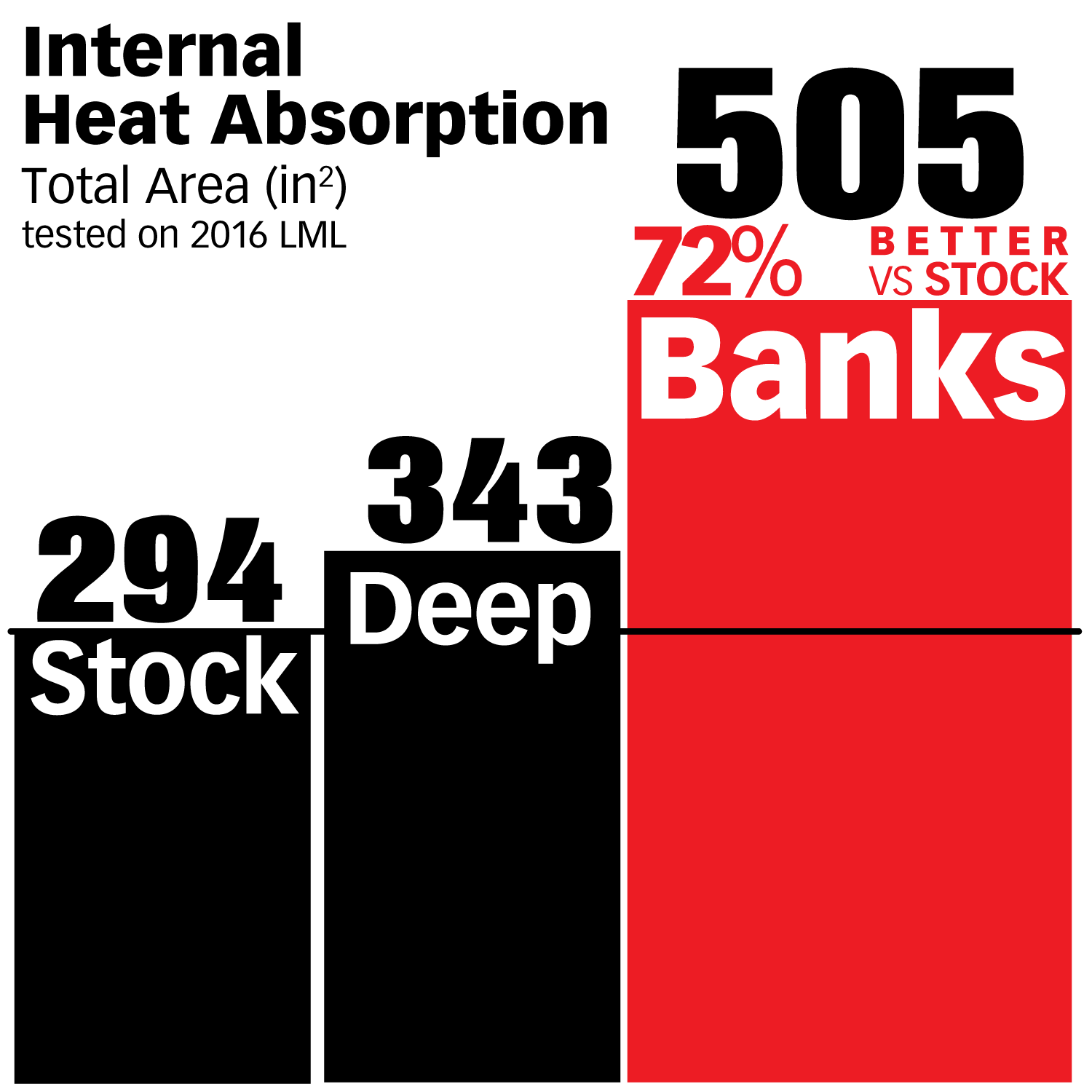

- 72% more heat absorption surface area than stock

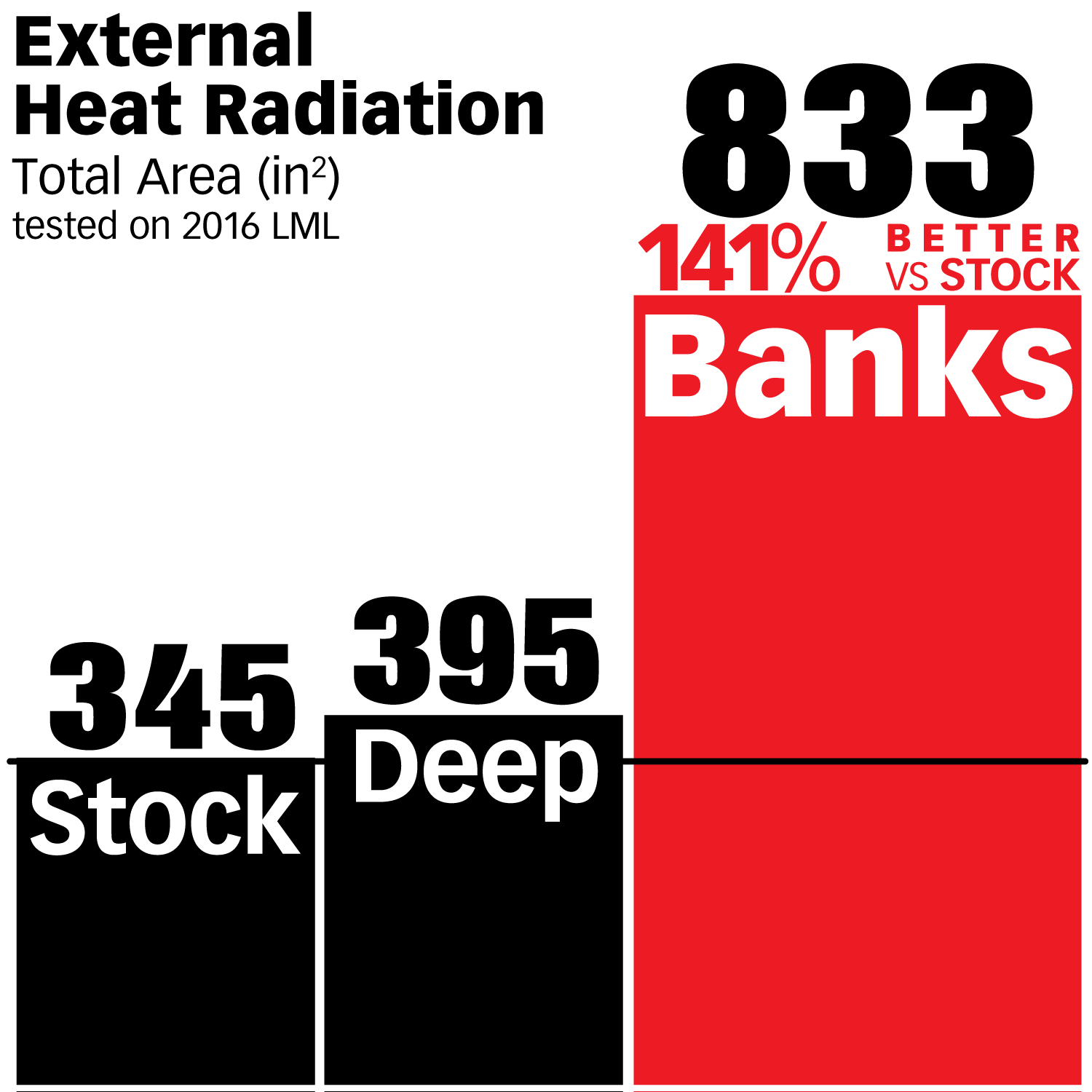

- 141% more cooling surface area than stock

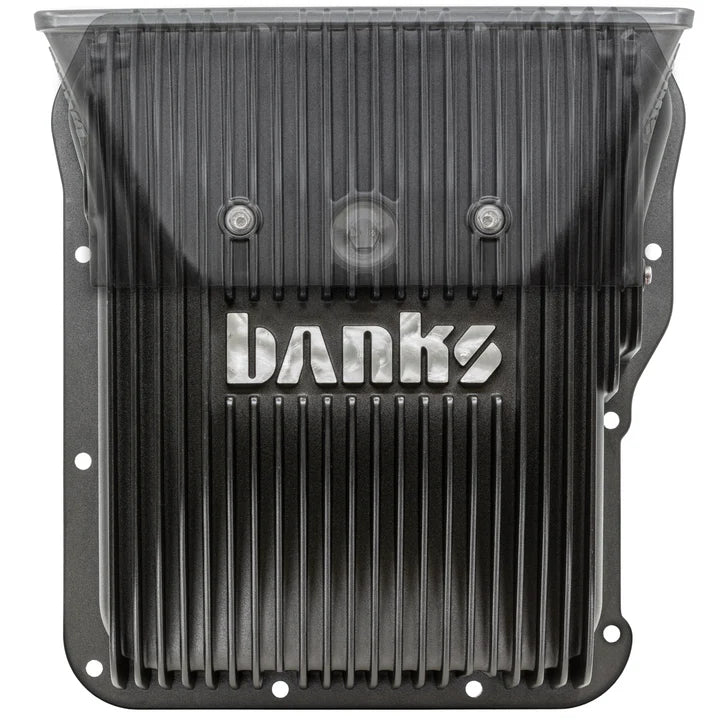

- Breakaway Ram-Air Scoop design prevents pan damage
- Allows full fluid drainage
Fluid Dynamics
- Internal cooling fins run inline with the drain port with streamlined passageways
- Downward-facing port eases oil change process
- Lower aeration means longer fluid life
Technical Specs

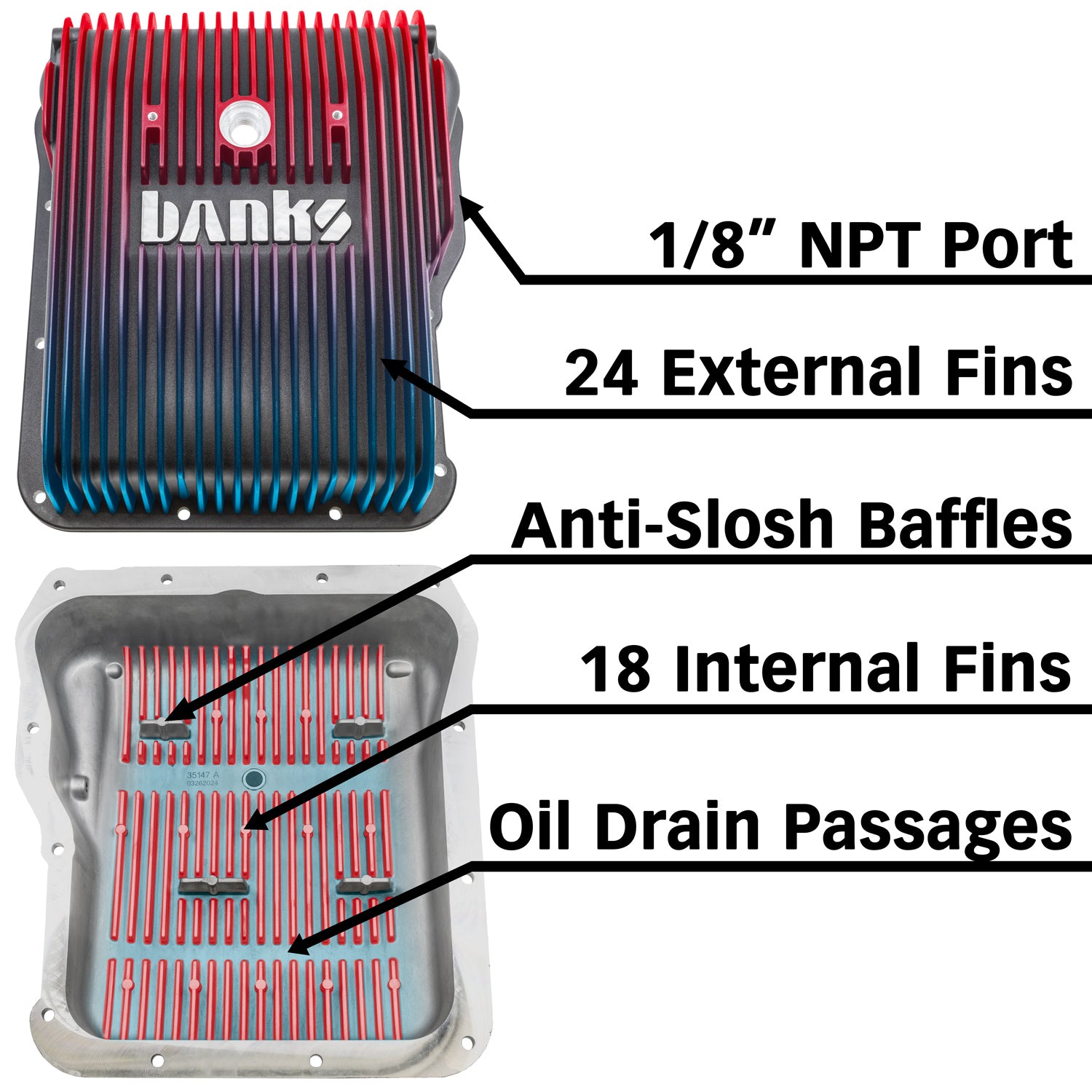

- 1/8 NPT port for aux temp sensor
- External heat radiation fin count: 24
- Internal heat absorption fin count: 18
- External heat radiation surface area: 833 in2
- Internal heat absorption surface area: 505 in2
- Fasteners: 12 x stainless steel M6 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
Oil service
- High temp resistant Ferrite Magnetic Drain Plug
- Fully drains oil pickup tube for quicker oil changes
- Banks recommends Amsoil Synthetic Diesel Oil
- Adds 2 quarts additional capacity(Check OEM Owners Manual)
