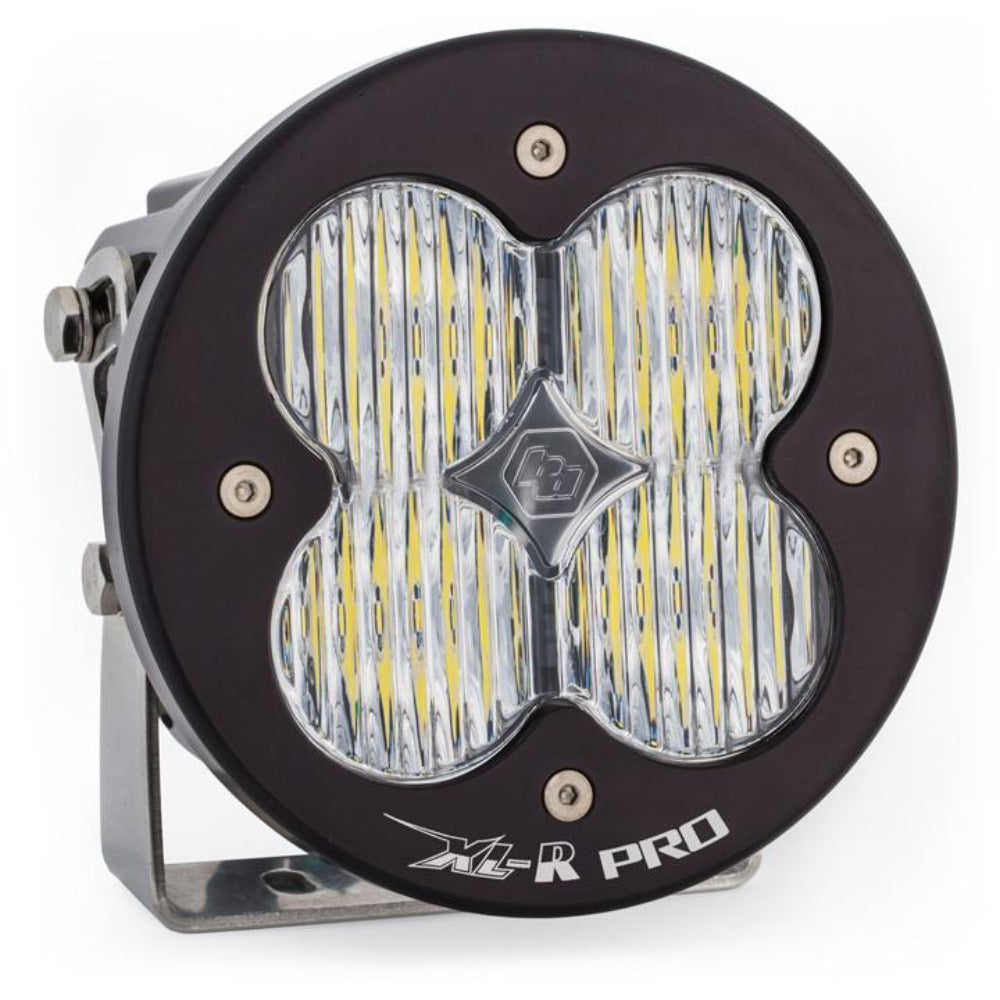

XL Pro-R LED Light Lighting Baja Designs Clear Wide Cornering Display

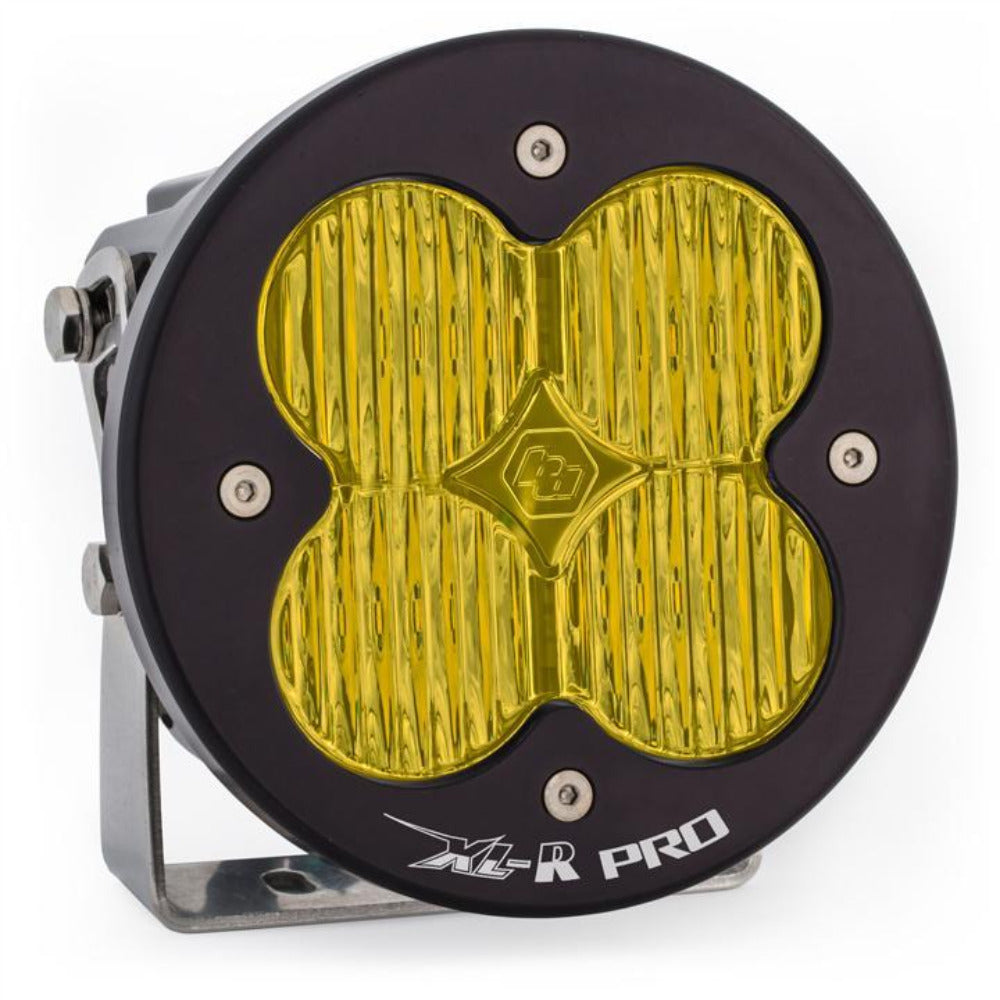

XL Pro-R LED Light Lighting Baja Designs Amber Wide Cornering Display

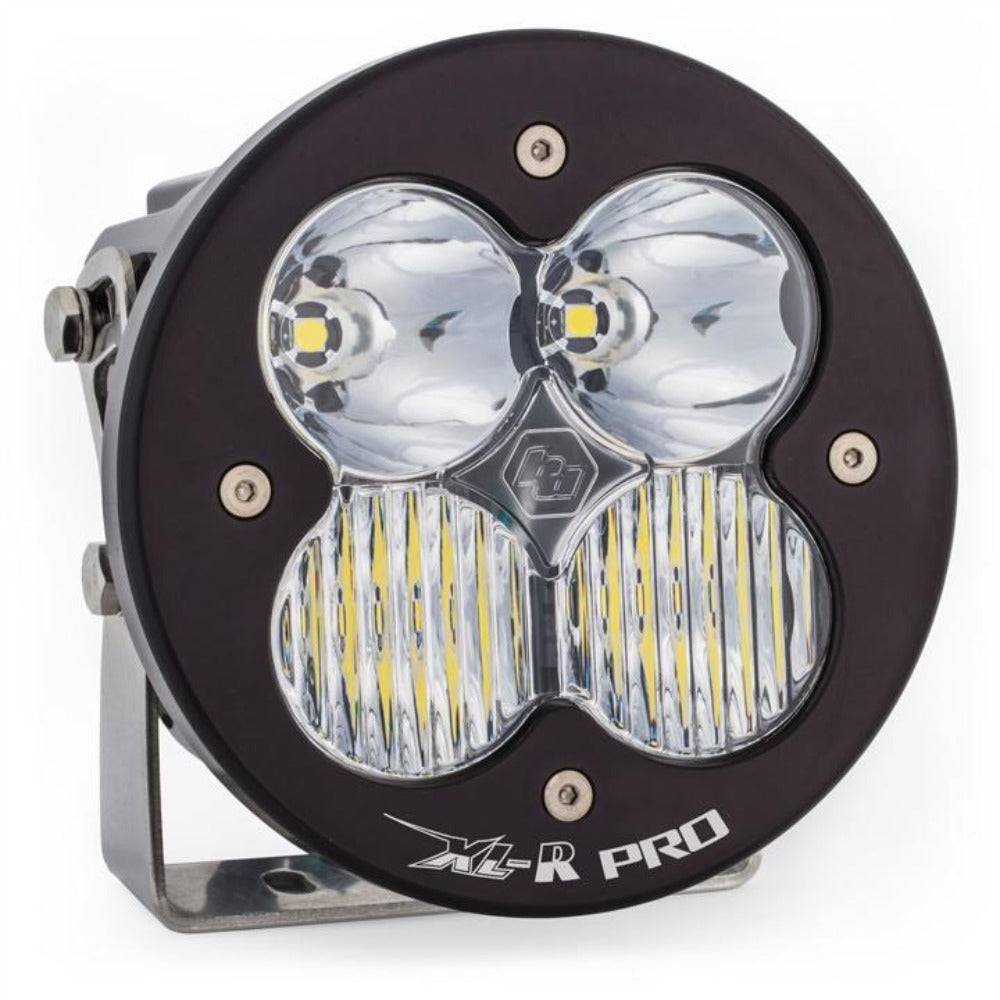

XL Pro-R LED Light Lighting Baja Designs Clear Driving/Combo Display
XL Pro-R LED Light Lighting Baja Designs Clear Spot Display
XL Pro-R LED Light Lighting Baja Designs Amber Driving/Combo Display

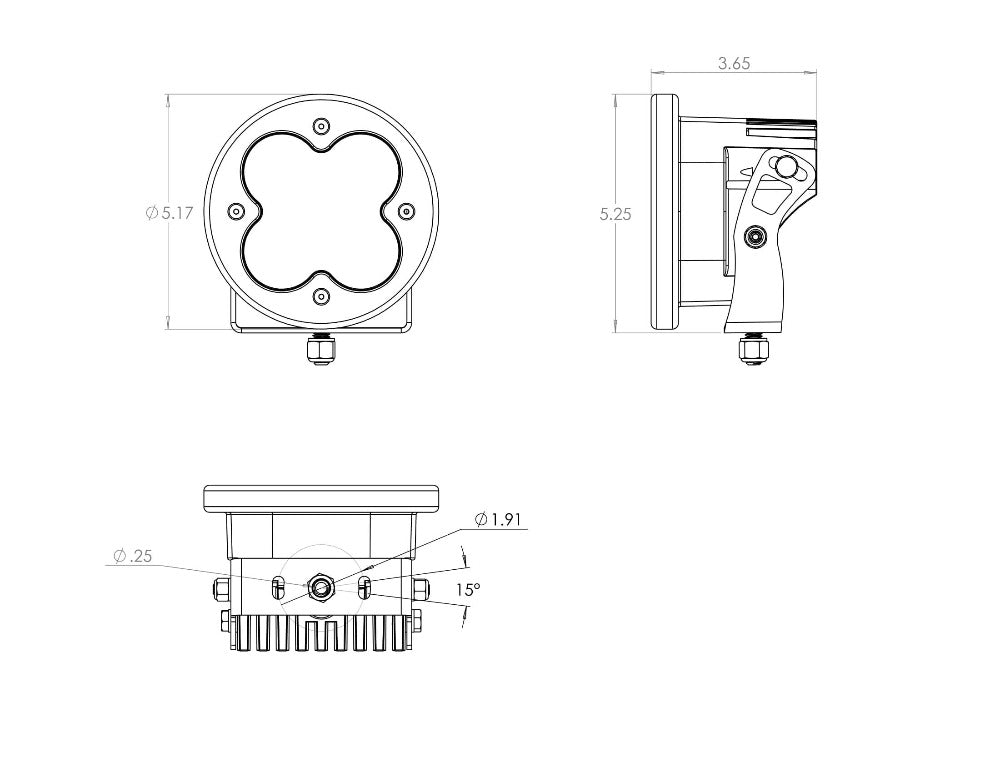

XL Pro-R LED Light Lighting Baja Designs Diagram of Measurements

Baja Designs

XL Pro-R LED Light

$339.95
SKU: BAJA-530001
Lense Color:

Lense Color
Beam Pattern:

Beam Pattern
Quantity:

XL Pro-R LED Light

Clear / Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
THE PERFECT SPREAD OF LIGHT:

With a 4,900 lumen count and power draw of 40 watts, the XL Pro is the only single housing LED auxiliary light on the market that has the distance of an 8” HID with the smooth spread of an LED. The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 50% dimming feature. Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar.

WHAT'S INCLUDED:
  • XL-R Pro LED Light
  • Mounting Bracket
SPECS:
  • Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
  • Wattage/Amps:  40W / 2.90A
  • Dimensions: 5.24" x 3.65" x 5.24"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens:  Hardcoated Polycarbonate
  • Housing:  Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
  • Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
