Warn Industries

ZEON XC 12-S - 110512

$1,679.99
SKU: 110512

ZEON XC 12-S - 110512

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

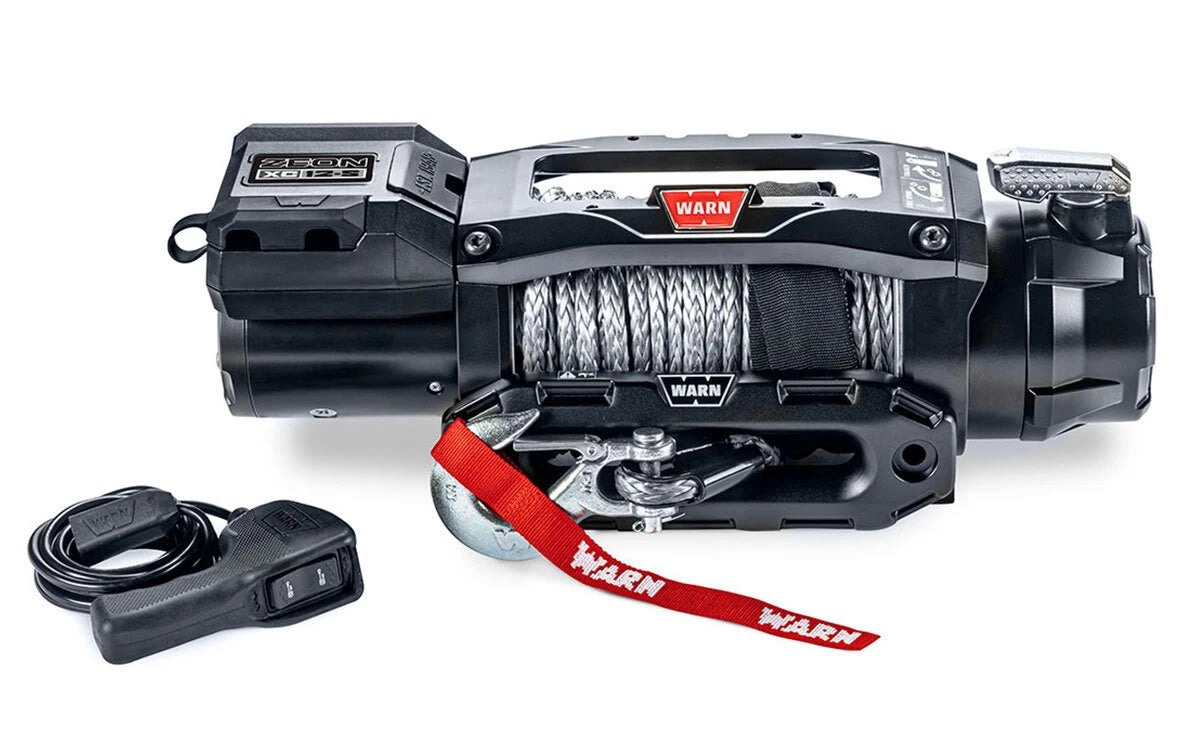

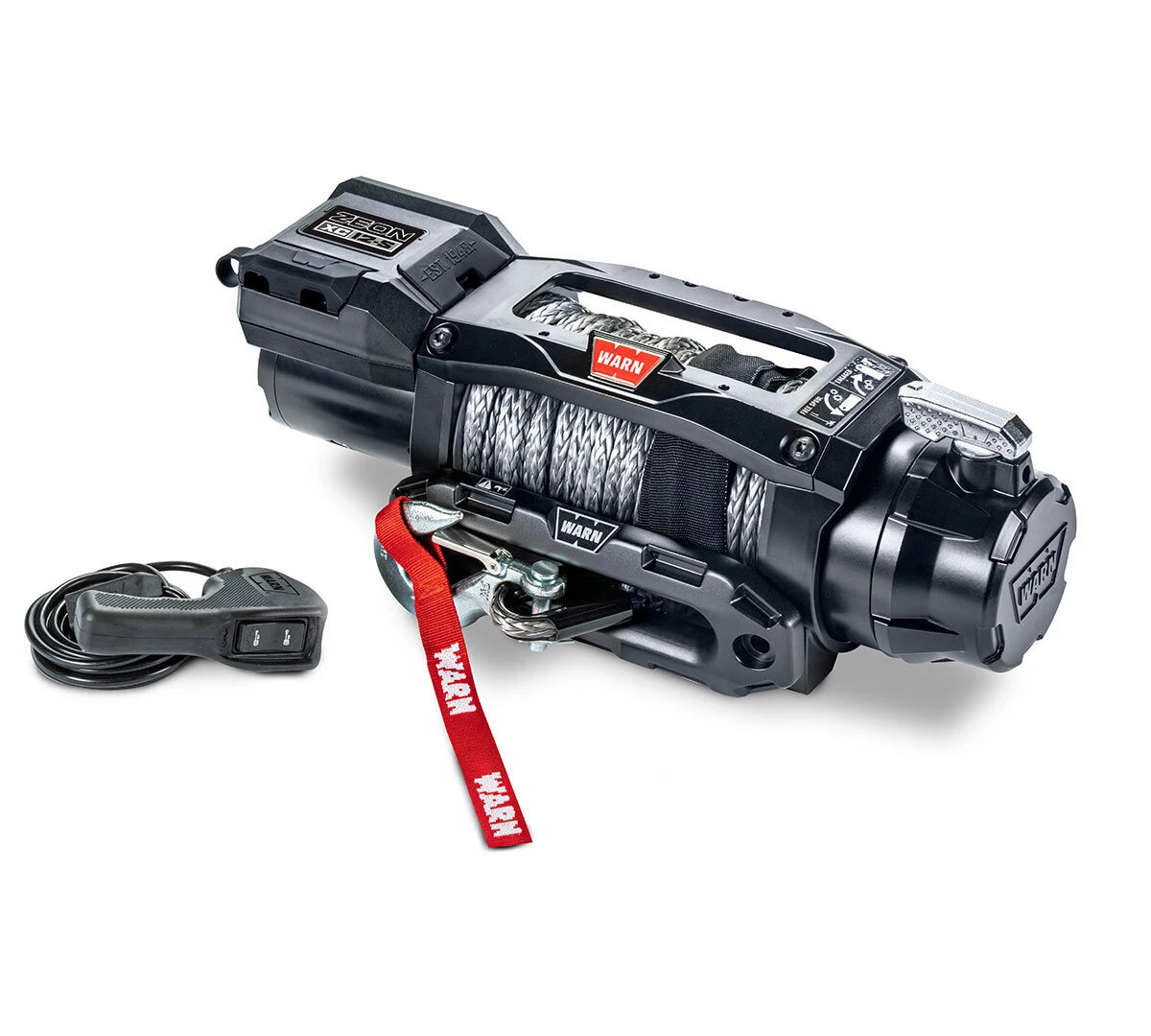

The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at our Clackamas, Oregon facility.

  • All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces

  • High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class

  • Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated

  • Corrosion resistant black fasteners meet the highest OEM-grade specifications

  • All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency

  • Remote socket can be relocated up to 9” away from control pack without disassembly

  • Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit)

  • Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions

  • The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed

  • Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation

  • Automatic load-holding cone brake offers excellent control and holding strength

  • Exceptionally durable corded remote with 12’ lead

  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network

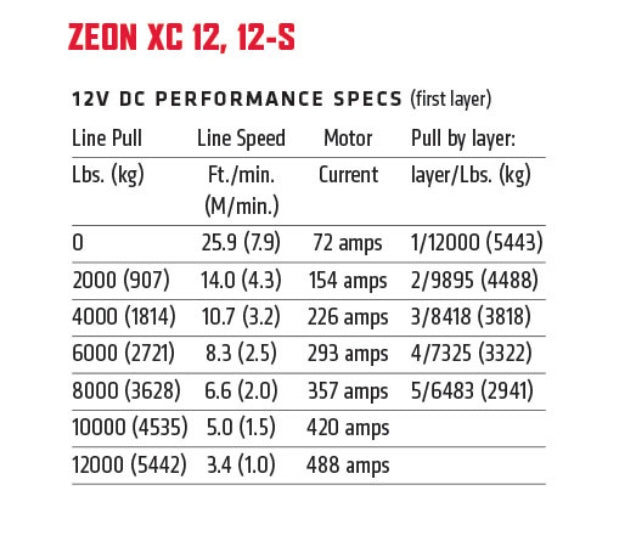

Specs:
Rated Line Pull (Single Line) 12,000lbs (5443 kg)
Motor 12V DC, series wound
Electrical controls Albright Contactor
Remote Control Corded remote with 12’ (3.7m) lead
Geartrain 3-stage planetary
Gear Ratio 176:1
Clutch (freespooling) Rotating Ring Gear
Brake Automatic, six segment mechanical cone
Drum diameter/Length 3.15”/9.0” (80mm/229mm)
Rope 3/8” X 80’ (9.52mm x 24.38m) Spydura Pro Synthetic
Fairlead Epic Fairlead - black anodized, forged aluminum hawse
Recommended Battery 650 CCA minimum for winching
Battery leads 2 gauge, 72” (1.83m)
Zeon Finish Satin-black powder coat
Corrosion Resistance 408 hour salt spray, OEM grade fasteners
Ingress Protection IP68/IP69K rated waterproof
Warranty Limited lifetime mechanical, 7 years electrical

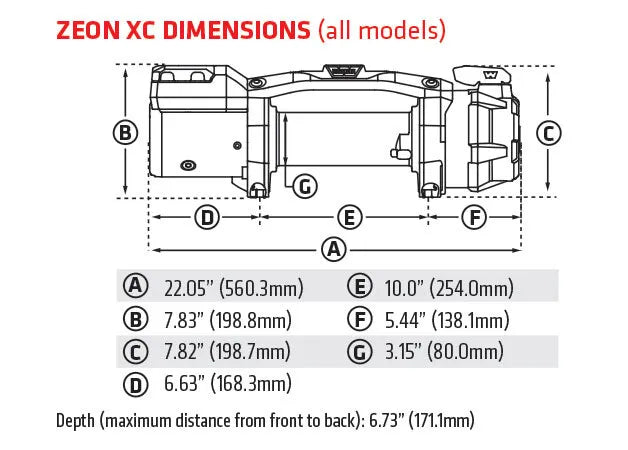

Zeon Dimensions length: 22.06" (560.3mm), height: 7.83" (198.8mm)
Mounting Bolt Pattern 10" x 4.5" (254mm x 80mm)
