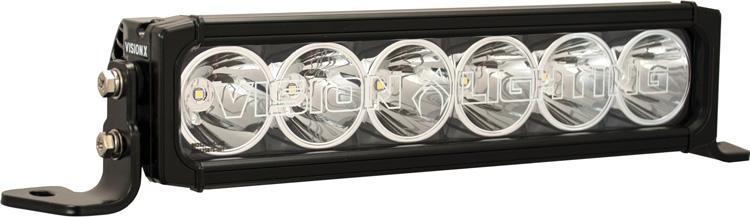

XPR-S Series LED Light Bar Lighting Vision X Standard 6" display

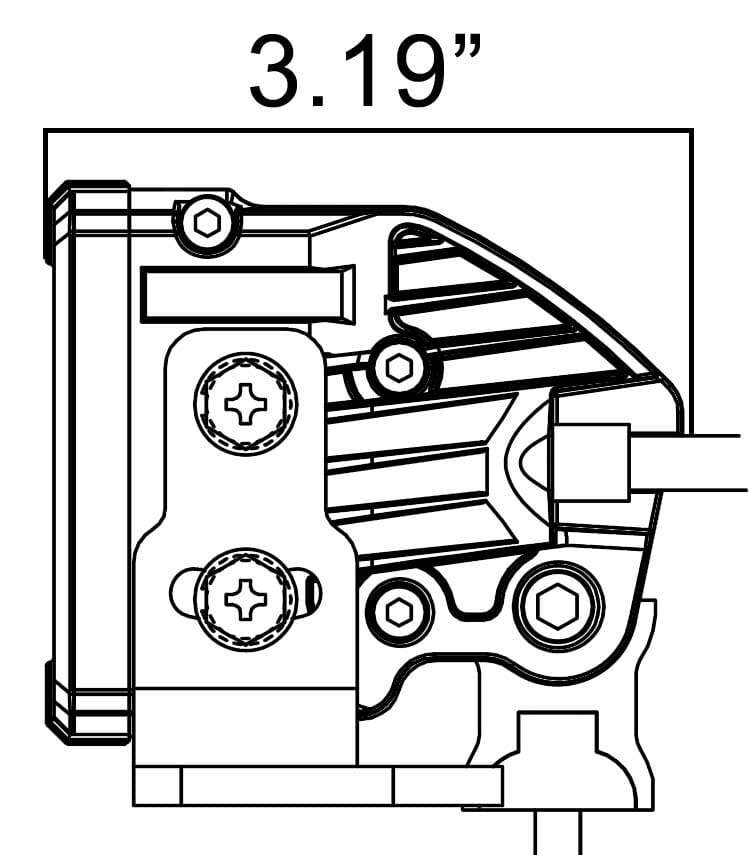

XPR-S Series LED Light Bar Vision X design
XPR-S Series LED Light Bar Lighting Vision X display

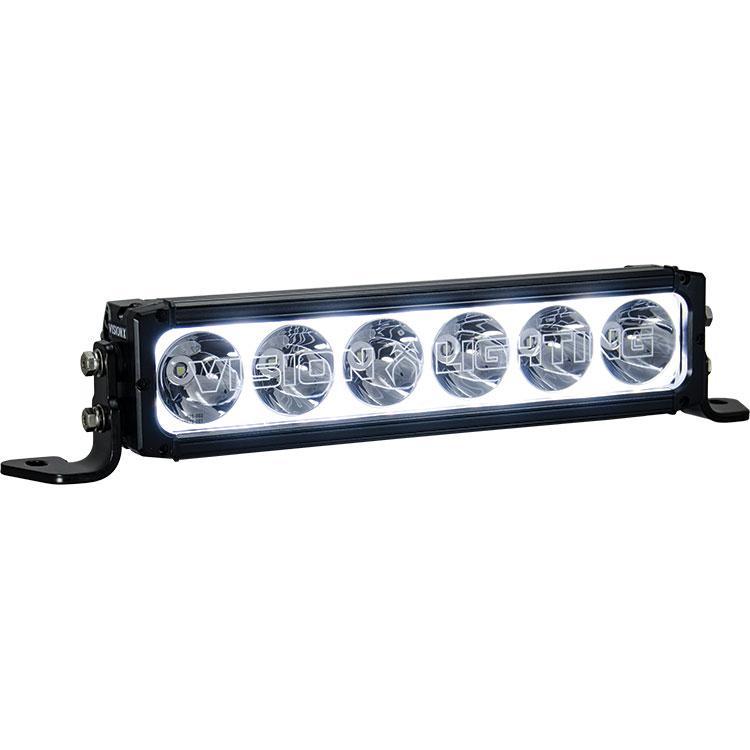

XPR-S Series LED Light Bar Lighting Vision X Halo 6"  display
XPR-S Series LED Light Bar Lighting Vision X Standard 35"  display

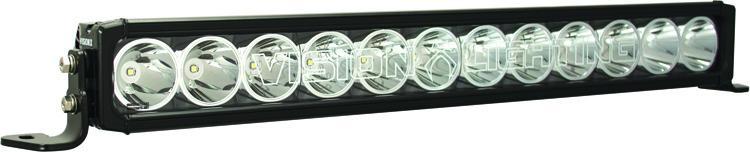

XPR-S Series LED Light Bar Lighting Vision X Standard 19"  display
XPR-S Series LED Light Bar Lighting Vision X display
XPR-S Series LED Light Bar Lighting Vision X Standard 40" display
XPR-S Series LED Light Bar Lighting Vision X display

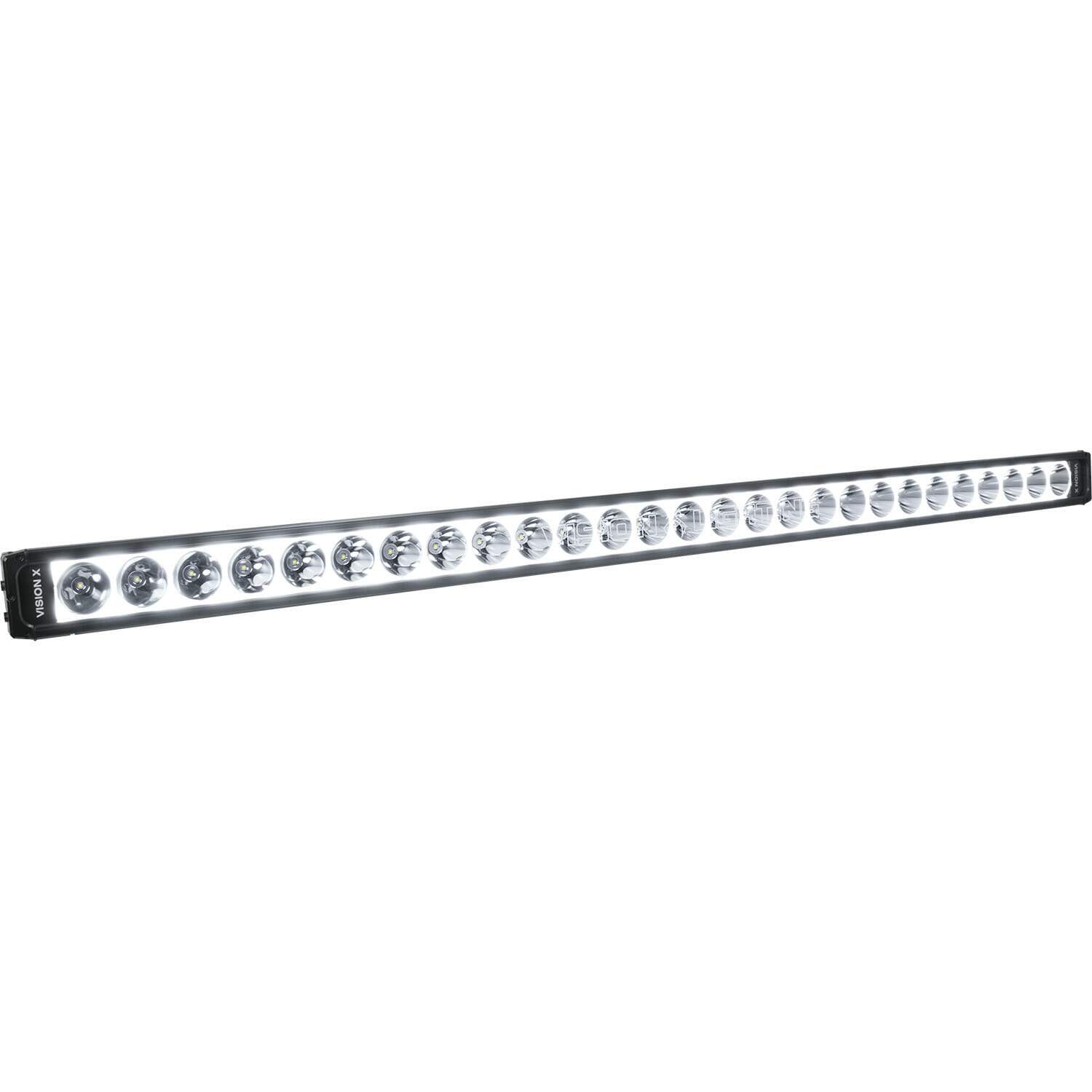

XPR-S Series LED Light Bar Lighting Vision X Halo 45"  display
XPR-S Series LED Light Bar Lighting Vision X  display

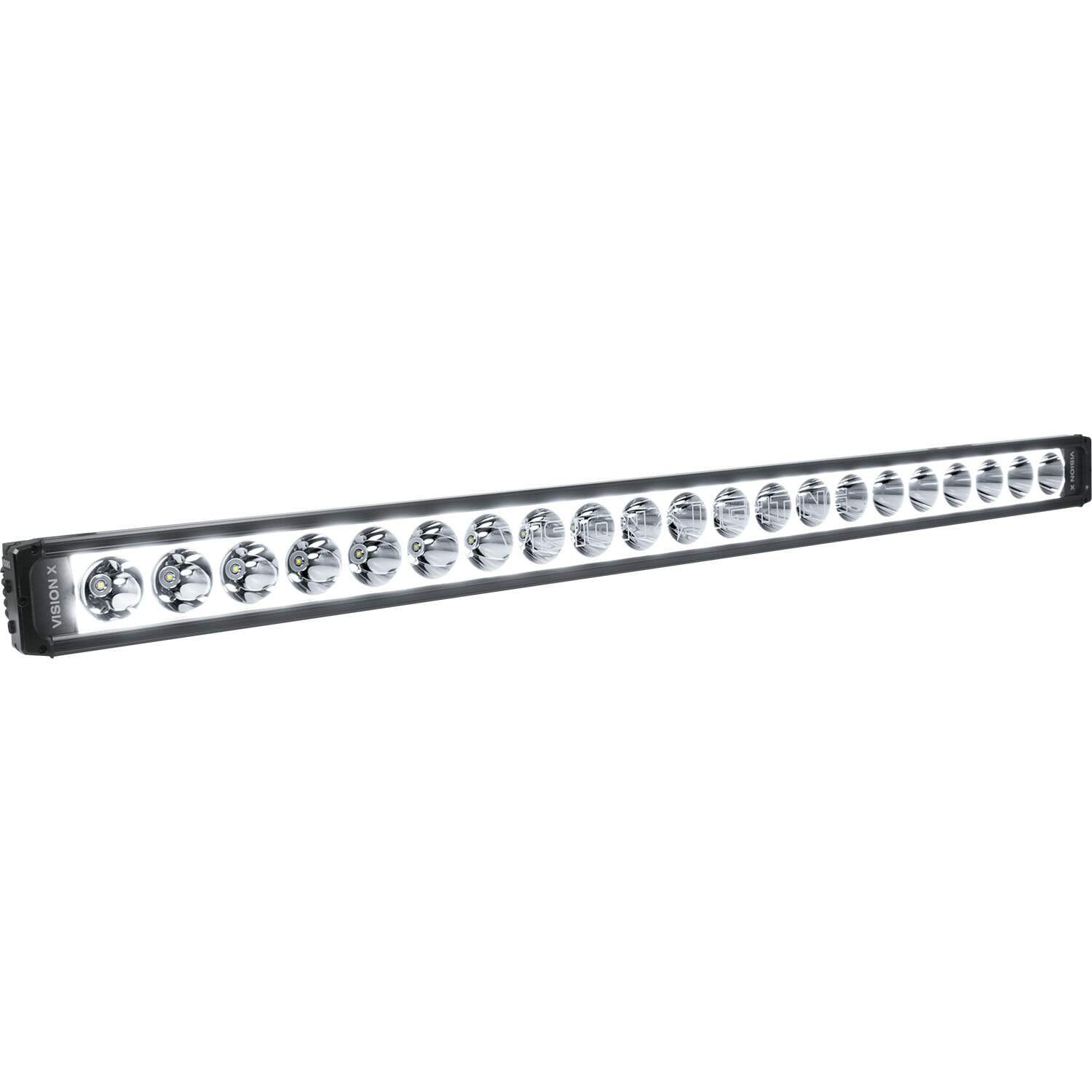

XPR-S Series LED Light Bar Lighting Vision X Halo 35"  display
XPR-S Series LED Light Bar Lighting Vision X Halo 24"  display

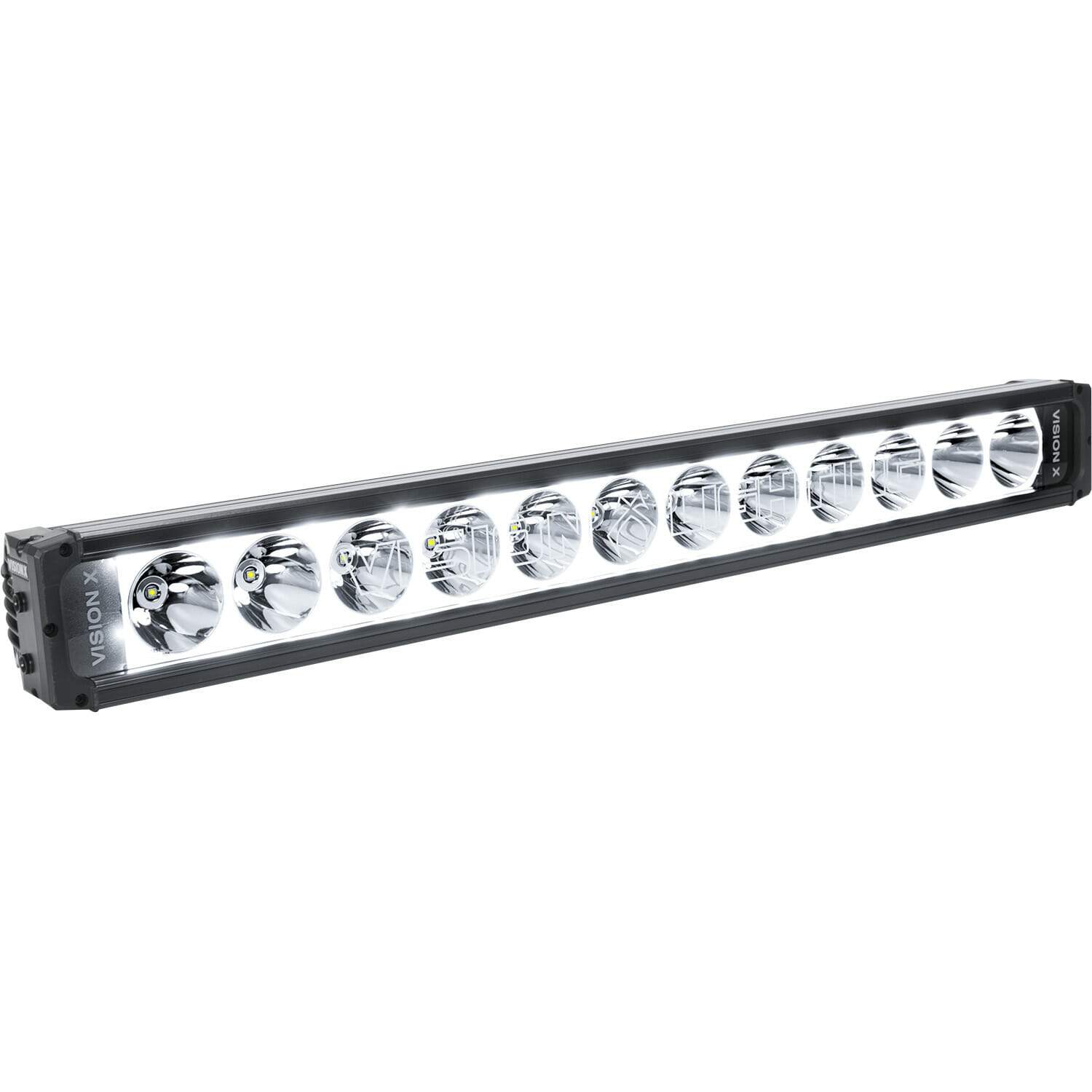

XPR-S Series LED Light Bar Lighting Vision X Halo 19" display
XPR-S Series LED Light Bar Lighting Vision X  display
XPR-S Series LED Light Bar Lighting Vision X  display

Vision X

XPR-S Series LED Light Bar

Sale price$299.00
SKU: XPR-3S (9897462)
Model:

Model

Bar Length (in.):

Bar Length (in.)

Quantity:

XPR-S Series LED Light Bar

Standard / 6"

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

The new XPR-S Light bar series provides the ultimate long distance light bar option with 40-90% more distance than the XPR Series. The XPR-S combines powerful 10 watt LEDs with upgraded IRIS reflector technology to outshine and outlast the competition.

KEY FEATURES:

  • Upgraded IRIS Reflector Technology With 10 Watt LED
  • 40-95% More Distance than XPR Series
  • Plug And Play Harness Included
  • 6″ – 51″ Lengths Available
  • Ultimate Long Distance Projection
  • Up to 29,133 Raw Lumens
  • Dual Mounting Options: With dual mounting options of both end-cap mounting and patented mounting feet, this light bar is the ultimate solution for your truck, Jeep, or ATV.
  • Prime Drive Technology: Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.

SPECS:

PART# SKU # BEAM LENGTH # OF LEDs RAW LUMENS EFFECTIVE LUMENS WEIGHT INPUT VOLTS WATTS AMP DRAW
XPR-3S 9897462 Straight 6″ 3 3,237 lm 2,216 lm 1.55 lb 11-32V 30 2.5A
XPR-6S 9897479 Straight 11.50″ 6 6,474 lm 4,431 lm 2.84 lb 11-32V 60 5.0A
XPR-9S 9897455 Straight 19.00″ 9 9,711 lm 6,648 lm 4.65 lb 11-32V 90 7.5A
XPR-12S 9897394 Straight 24.00″ 12 12,948 lm 9,064 lm 5.24 lb 11-32V 120 10.0A
XPR-15S 9897400 Straight 29.40″ 15 16,185 lm 11,330 lm 6.05 lb 11-32V 150 12.5A
XPR-18S 9897417 Straight 34.70″ 18 19,422 lm 13,595 lm 7.67 lb 11-32V 180 15.0A
XPR-21S 9897424 Straight 40.00″ 21 22,659 lm 15,861 lm 9.01 lb 11-32V 210 17.5A
XPR-24S 9897431 Straight 45.00″ 24 25,896 lm 18,127 lm 9.67 lb 11-32V 240 20.0A
XPR-27S 9897448 Straight 50.63″ 27 29,133 lm 20,393 lm 15 lb 11-32V 270 22.5A

HALO MODEL SPECS:

PART # SKU # BEAM LENGTH # OF LEDs RAW LUMENS EFFECTIVE LUMENS WEIGHT INPUT VOLTS WATTS AMP DRAW
XPR-H3S 9898544 Straight 6″ 3 3,237 lm 2,216 lm 1.55 lb 11-32V 30 2.5A
XPR-H6S 9898537 Straight 11.50″ 6 6,474 lm 4,431 lm 2.84 lb 11-32V 60 5.0A
XPR-H9S 9898902 Straight 19.00″ 9 9,711 lm 6,648 lm 4.65 lb 11-32V 90 7.5A
XPR-H12S 9898841 Straight 24.00″ 12 12,948 lm 9,064 lm 5.24 lb 11-32V 120 10.0A
XPR-H15S 9898858 Straight 29.40″ 15 16,185 lm 11,330 lm 6.05 lb 11-32V 150 12.5A
XPR-H18S 9898865 Straight 34.70″ 18 19,422 lm 13,595 lm 7.67 lb 11-32V 180 15.0A
XPR-H21S 9898872 Straight 40.00″ 21 22,659 lm 15,861 lm 9.01 lb 11-32V 210 17.5A
XPR-H24S 9898889 Straight 45.00″ 24 25,896 lm 18,127 lm 9.67 lb 11-32V 240 20.0A
XPR-H27S 9898896 Straight 50.63″ 27 29,133 lm 20,393 lm 15 lb 11-32V 270 22.5A
