Vision X
XPL Series Lo Pro LED Light Bar
Bar Length (in.)
XPL Series Lo Pro LED Light Bar
6"
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
The XPL Halo Series of LED Light Bars builds upon the XPR Series by combining the distance power of Iris Reflector Technology with an ultra slim housing design. Utilizing a powerful 5W Cree LED, the XPL series is able to produce up to 19,260 lumens and over 2,000 ft. of usable light

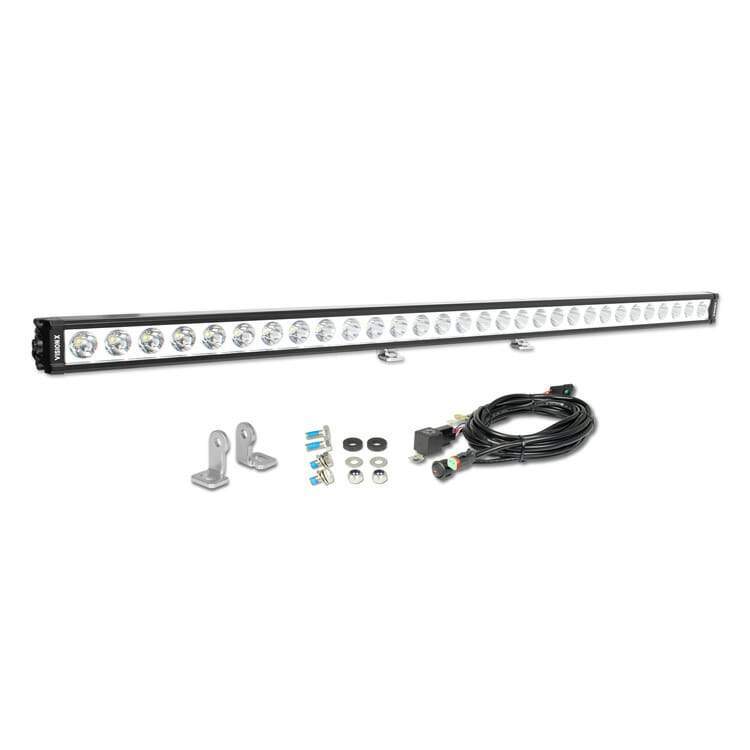

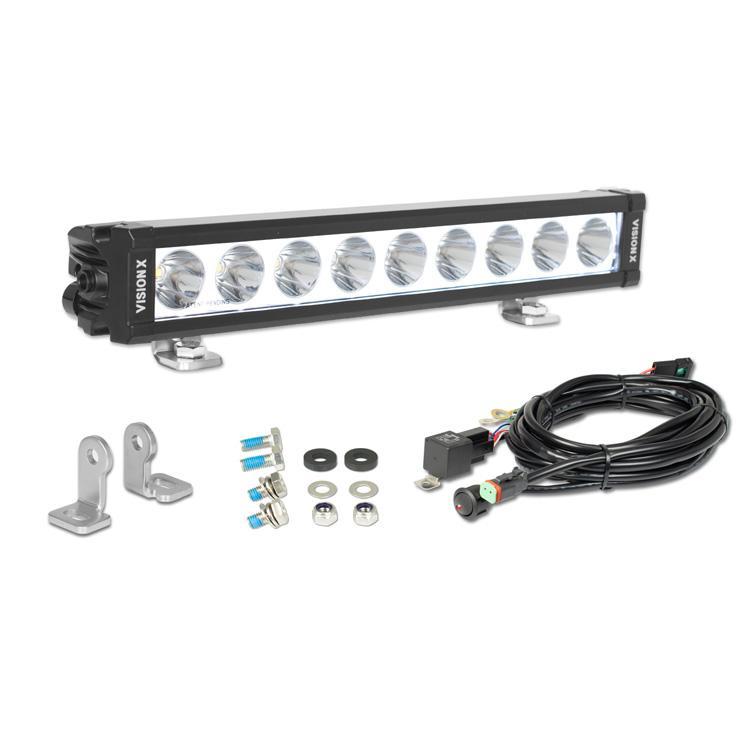

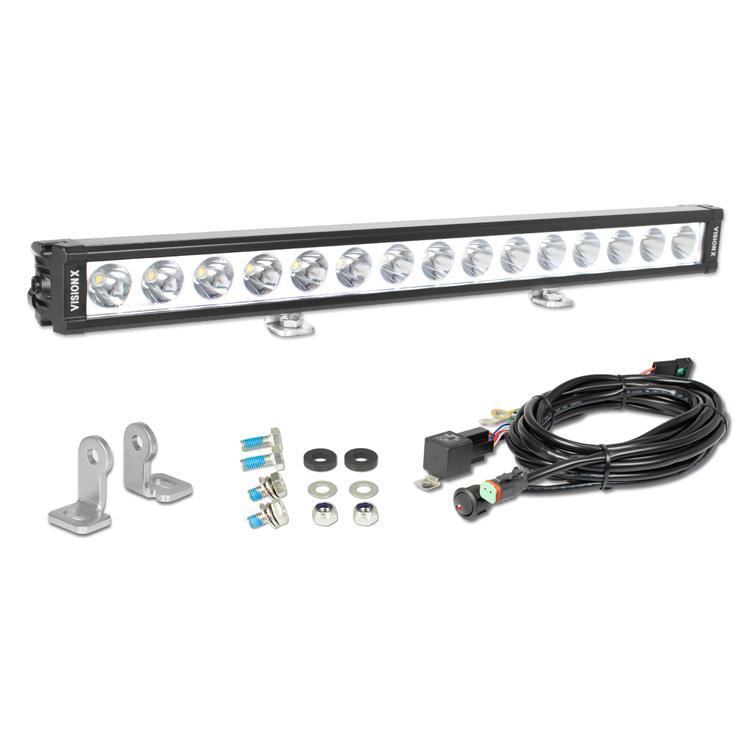

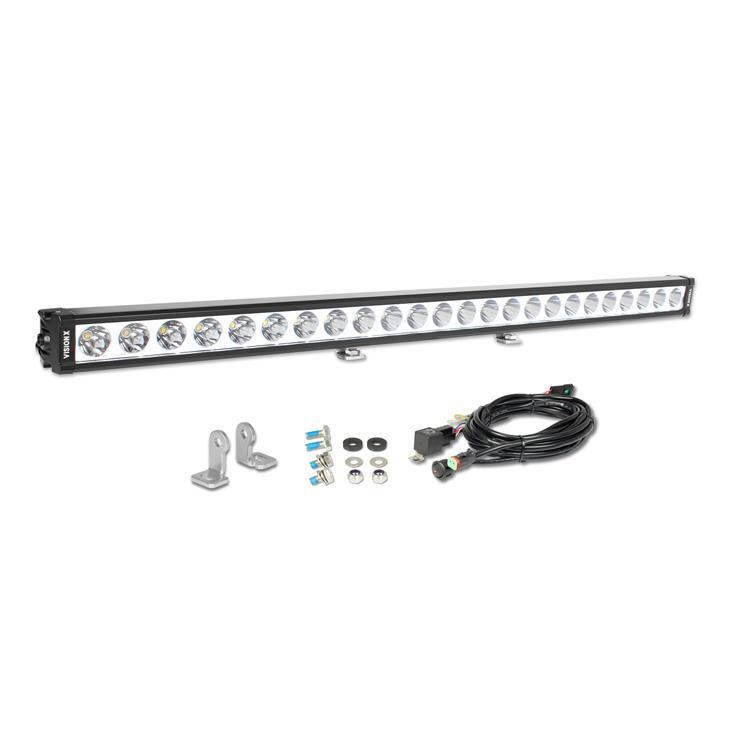

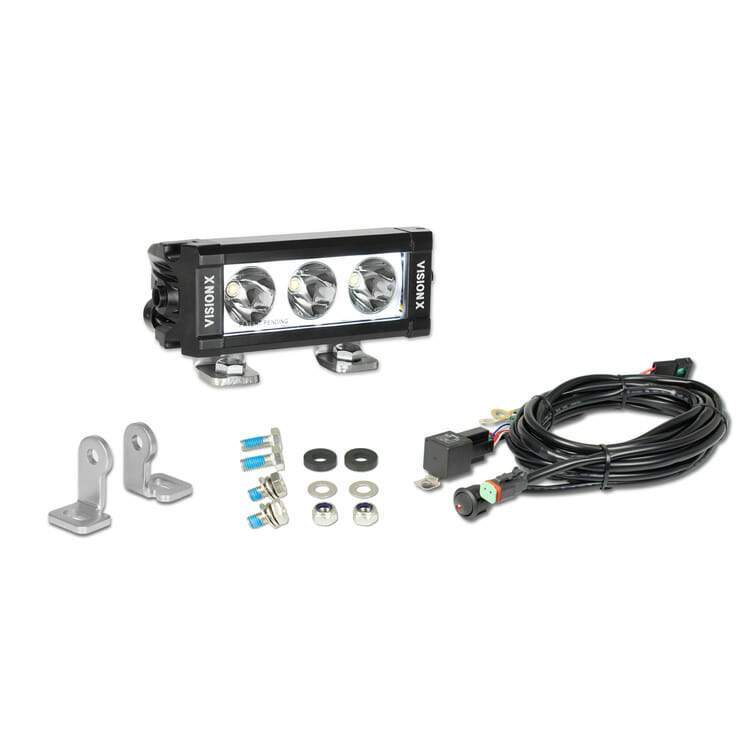

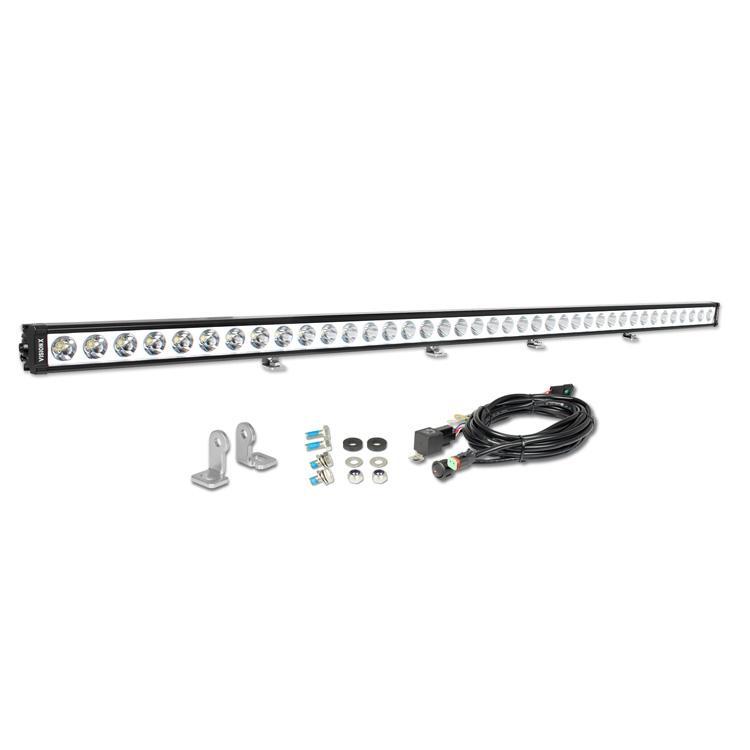

The XPL Series Light Bar comes standard with the newly redesigned mounting feet and the option to add wiring harness and/or side wing mounts. Allowing the option to mount with Side Wings off each end cap or with Vision X’s foot mounting design. Both mounting options allow for adjustability once installed, so you can aim the light for optimal visibility.
KEY FEATURES:
- Ultra Slim Housing Design
- Daytime Running Backlit Halo
- Iris Reflector Technology for Superior Distance
- Ultra Slim Housing Design Daytime Running Halo
- Multiple Mounting Options
SPECS:
ITEM# | LENGTH | RAW LUMENS | EFFECTIVE LUMENS | WATTS | AMP DRAW | BEAM |
XPL-H3EMH | 6" | 1,605 lm | 1,124 lm | 15 | 1.25A | Spot |
XPL-H6EMH | 9" | 3,210 lm | 2,247 lm | 30 | 2.5A | Spot |
XPL-H9EMH | 13" | 4,815 lm | 3,371 lm | 45 | 3.75A | Spot |
XPL-H15EMH | 21" | 8,025 lm | 5,618 lm | 75 | 6.25A | Spot |
XPL-H24EMH | 32" | 12,840 lm | 8,988 lm | 120 | 10A | Spot |
XPL-H30EMH | 40" | 16,050 lm | 11,235 lm | 150 | 12.5A | Spot |
XPL-H39EMH | 51" | 19,260 lm | 13,482 lm | 180 | 15A | Spot |
