Wiring Harness for Antenna Mounts with Tomar LED Lights

$219.95
SKU: 6000411
Quantity:

Wiring Harness for Antenna Mounts with Tomar LED Lights

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

OVERVIEW

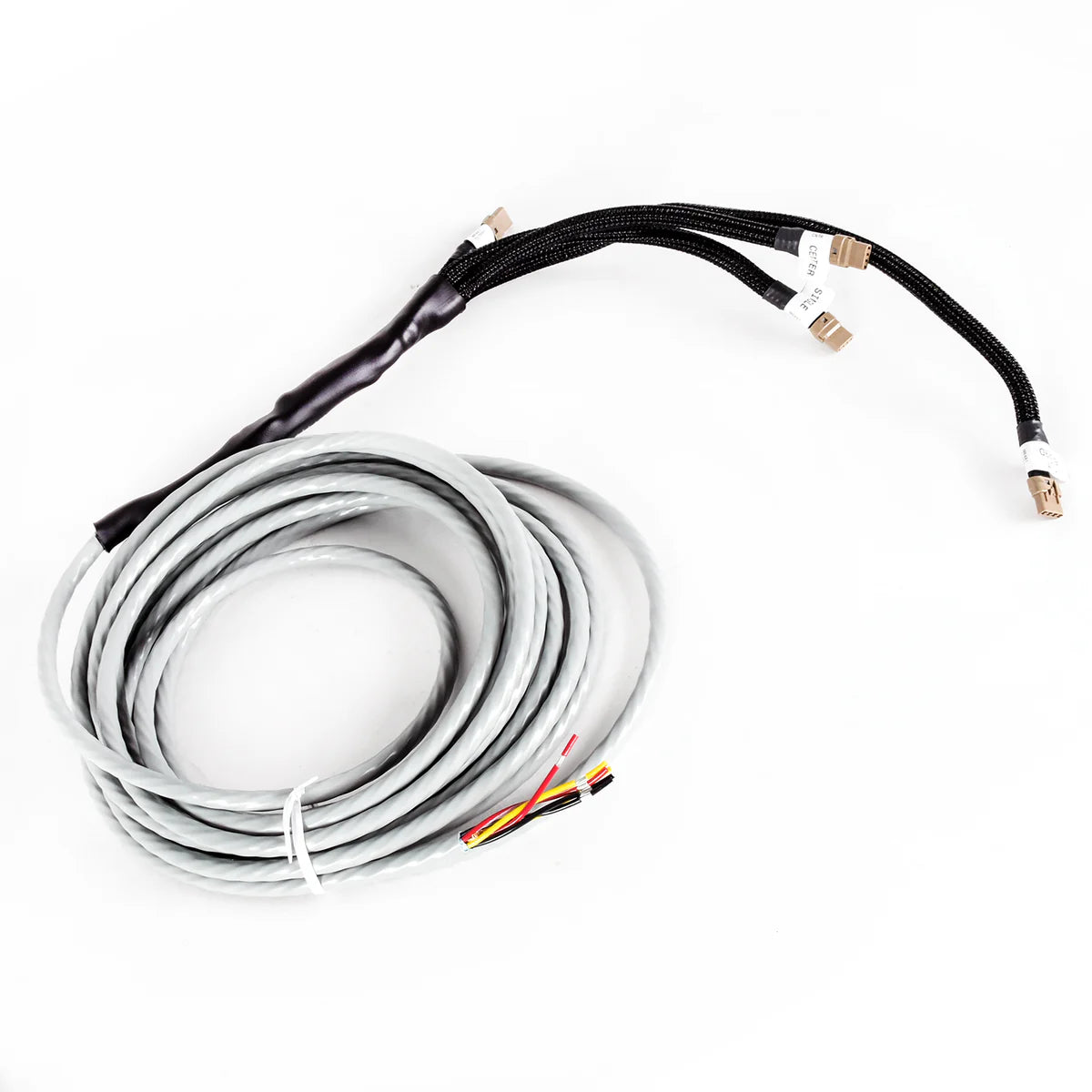

This wiring harness allows you to seamlessly connect your Tomar LED lights to your truck.  This cable is approximately 20 feet long and allows you to power your Tomar LED lights.

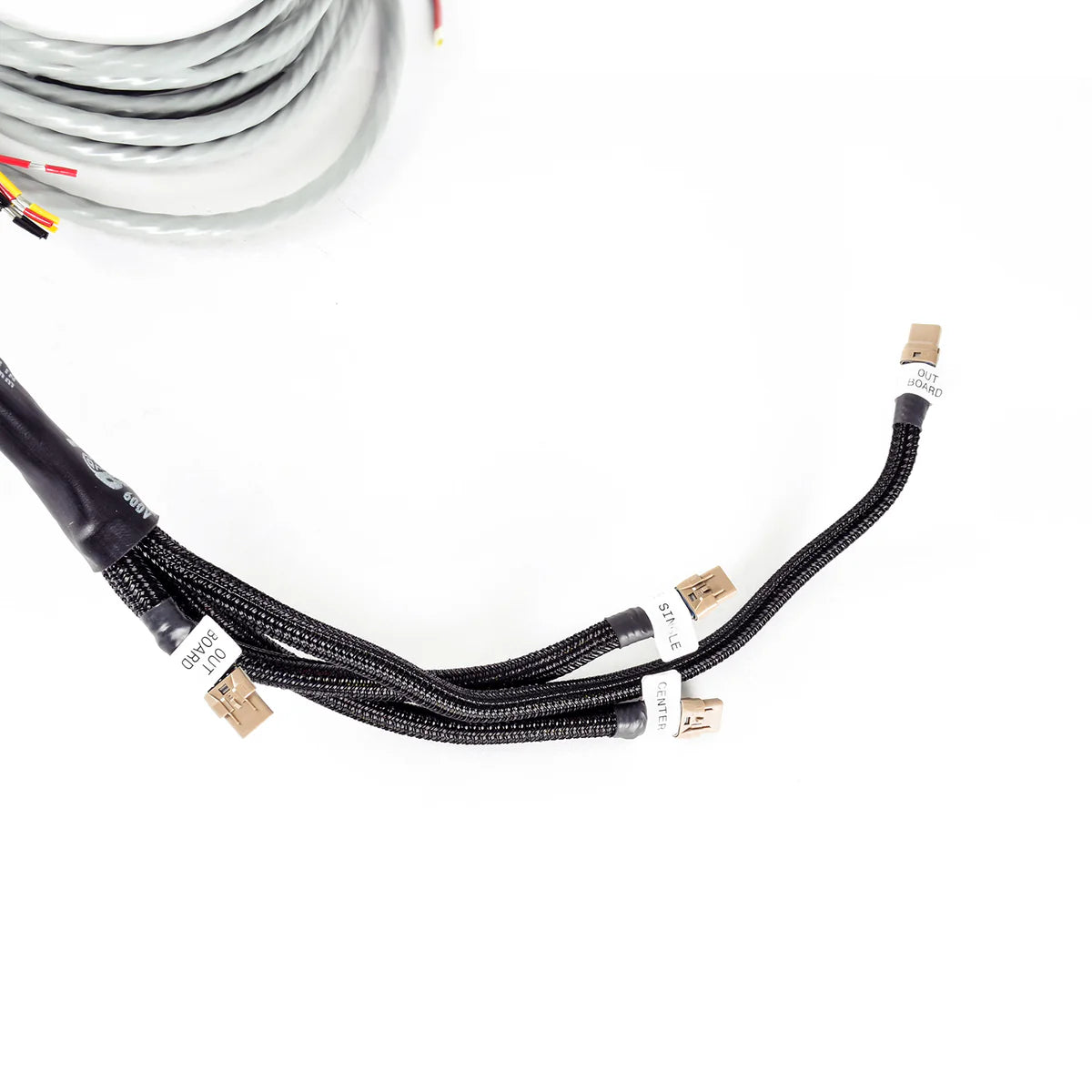

The connector marked with 'Single" is wired to be independent from the other 3 connectors.  This is so that you can control the light you plug into this connector separately from the other 2 lights.  If you want all 3 of the lights controlled by the same switch, then use connectors marked "outboard, outboard and center".

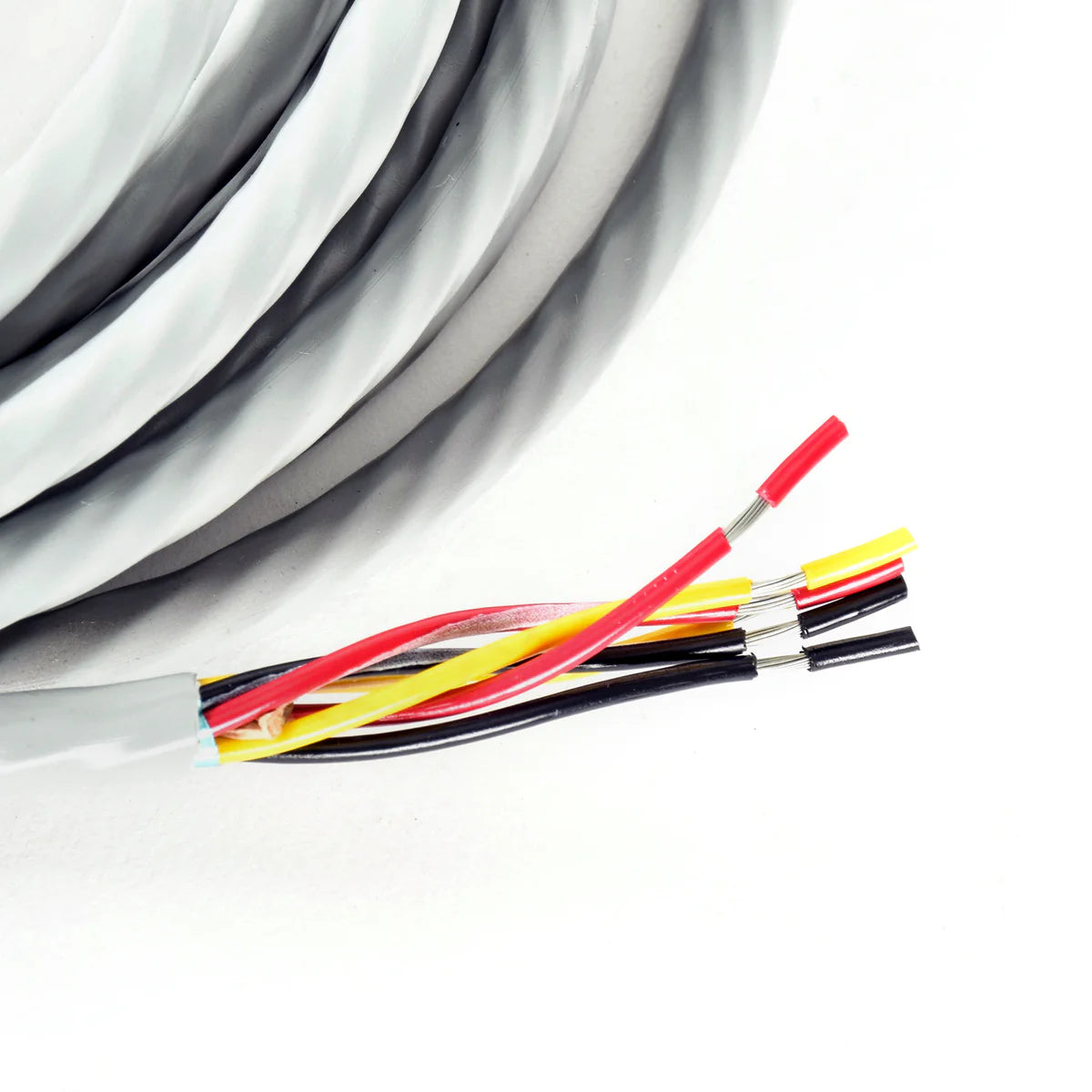

There are 6 wires pre-stripped and ready to wire to switches or to 'upfitter' switches if your vehicle is equipped with them.  The wire colors and what they control are below:

Red - Battery power to connectors 'outboard, outboard, center' for Mode 1 light operation.

Black - Ground to all four connectors.

Black With White Trace - Battery power to connectors 'outboard, outboard, center' for Mode 2 light operation.

Note: for Mode 2 light operation power must be applied to both the Red and Black With While Trace wires at the same time.

Red With White Trace - Battery power to the connector marked 'single' for Mode 1 light operation.

Yellow With White Trace - Battery power to the connector marked 'single' for Mode 2 light operation.  Note: for Mode 2 light operation power must be applied to both the Red With White Trace and Yellow With White Trace wires at the same time.

Yellow - This wire is only used for light programming on the connector marked 'Single'.  Lights are preprogrammed to factory defaults - Mode 1 is 'steady burn', or ON and Mode 2 is 'flashing'.
