ZEON 8-S Winch W/Spydura Synthetic Rope
ZEON 8-S Winch W/Spydura Synthetic Rope
ZEON 8-S Winch W/Spydura Synthetic Rope

Warn Industries

ZEON 8-S Winch W/Spydura Synthetic Rope

$1,764.70
SKU: Warn-89305

ZEON 8-S Winch W/Spydura Synthetic Rope

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The Pinnacle of Winches

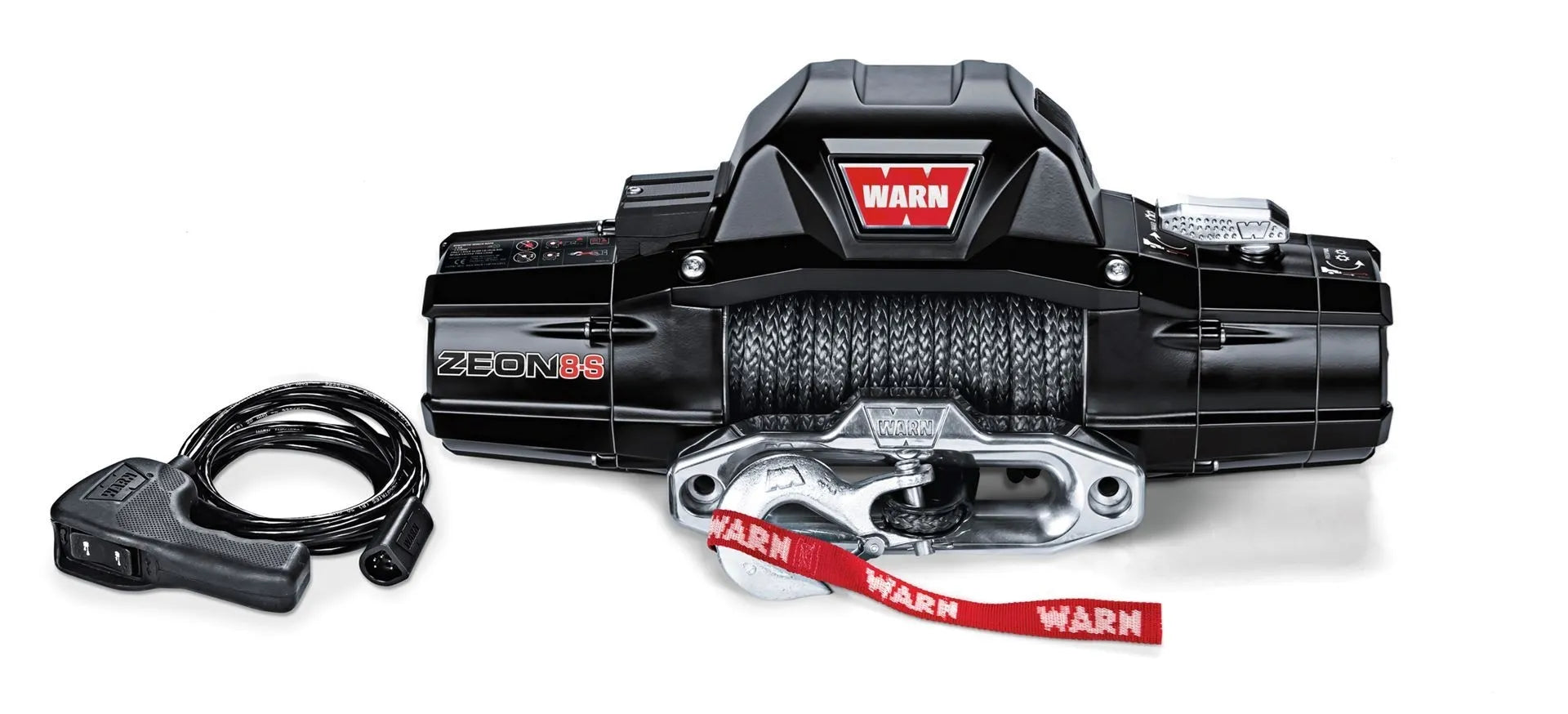

WARN ZEON 8-S premium winch with 3/8 inch on WARN Spydura Synthetic rope, advanced, capable, and strong. Don not let the good looks fool you. We have packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail.

The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

Key Features
  • 8,000 lb. (3630 kg) single-line pulling capacity
  • Includes 100 ft of 3/8 in WARN Spydura synthetic rope, which includes a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately).
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Backed by the WARN Limited Lifetime Warranty

Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

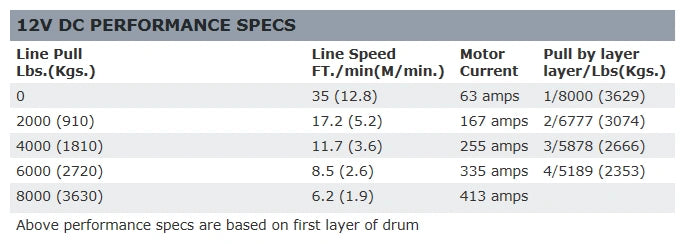

ZEON 8-S Specs
  • Rated line pull: 8000 lbs. (3630 kg) single-line
  • Motor: 12V DC, series wound
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12 ft (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 162:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone

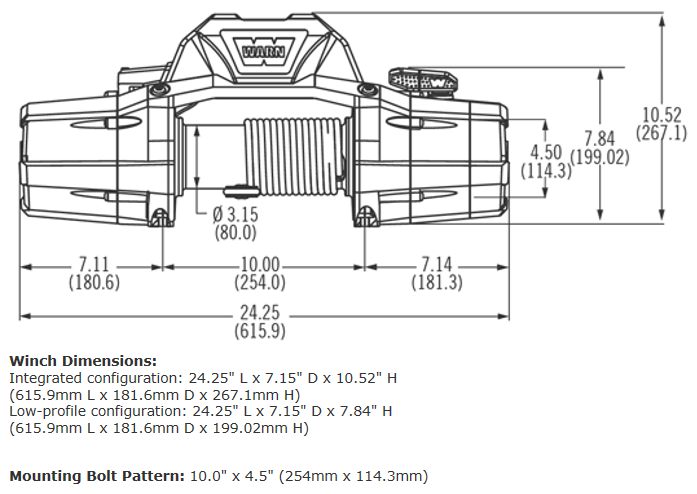

  • Drum diameter/Length: 3.15 inch/9.0 inch (80mm/229mm)
  • Weight (kit shipping): 75 lbs. (34 kg)
  • Rope: 3/8 inch x 100 ft (9.5mm x 30.5m) Spydura synthetic
  • Fairlead: Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 25mm gauge, 72 inch (1.83m)
  • Finish: Satin-black powder coat
  • Warranty: Limited lifetime
