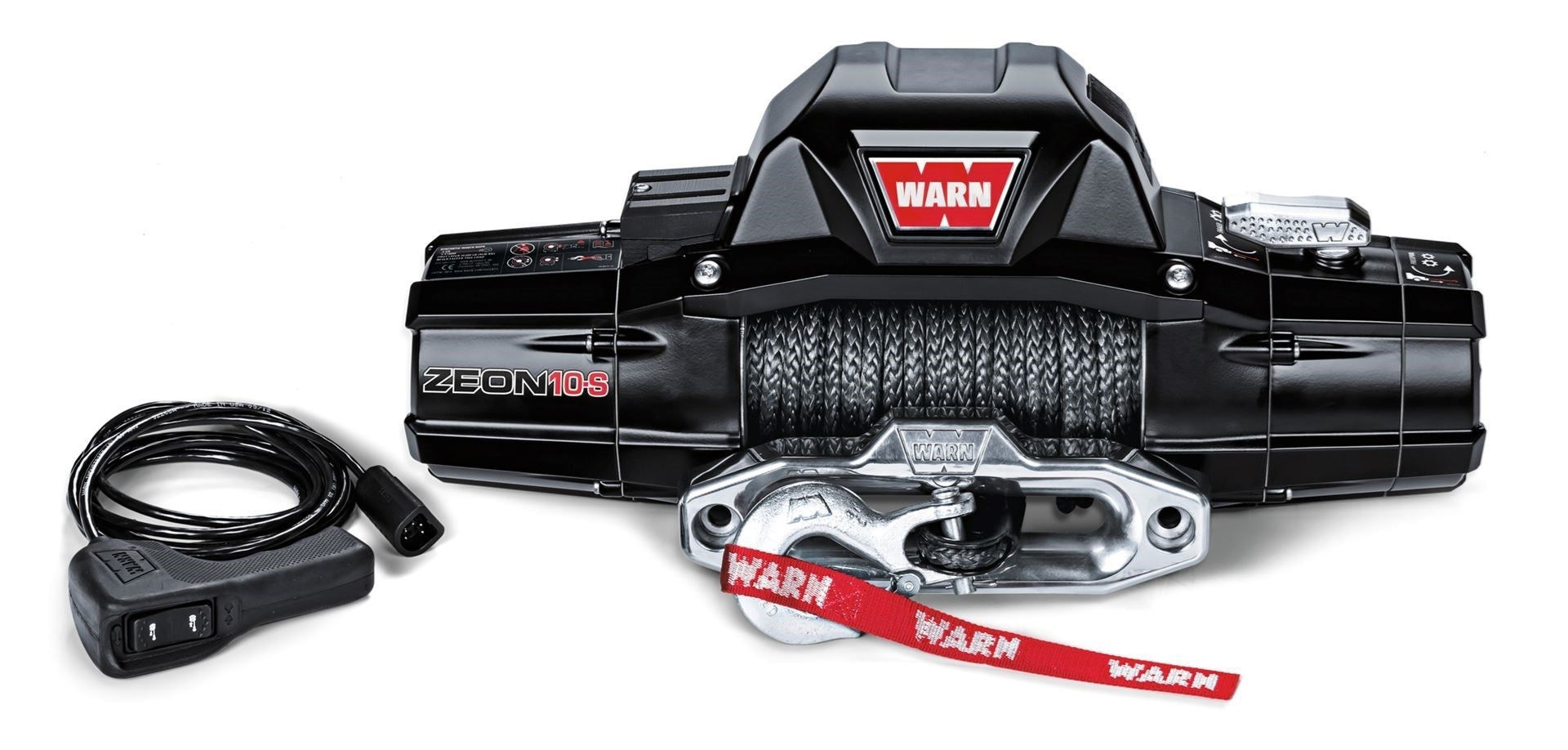

ZEON 10-S Winch w/Spydura Synthetic Rope
ZEON 10-S Winch w/Spydura Synthetic Rope
ZEON 10-S Winch w/Spydura Synthetic Rope

Warn Industries

ZEON 10-S Winch w/Spydura Synthetic Rope

$1,627.49 $1,806.99
Save $179.50
SKU: Warn-89611
Quantity:

ZEON 10-S Winch w/Spydura Synthetic Rope

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The optimal choice

The Warn ZEON 10-S Winch has 10,000 lbs. of cutting-edge pulling muscle. Choose your way to conquer the terrain. The Warn ZEON 10-S Winch is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. An aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you have got a workhorse unit you can trust for years to come.

KEY FEATURES:
  • 10,000 lb. (4536 kg) single-line pulling capacity.
  • Includes 100 ft of 3/8 inch WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately)
  • Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
ZEON 10-S Specs:
  • PN 89611
  • Rated line pull: 10,000 lbs. (4536 kg) single-line
  • Motor: 12V DC, series wound
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12 ft (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 216:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone

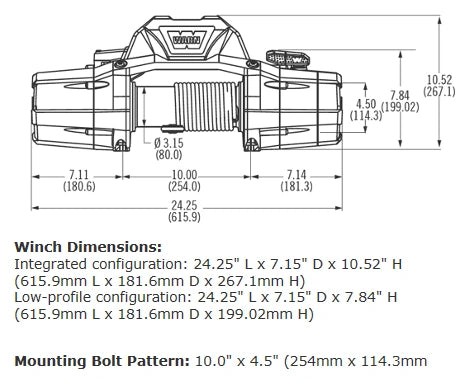

  • Drum diameter/Length: 3.15 inch/9.0 inch (80mm/229mm)
  • Weight (kit shipping): 75 lbs. (34 kg)
  • Rope: 3/8 inch x 100 ft (9.5mm x 30.5m) Spydura synthetic
  • Fairlead: Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 inch (1.83m)
  • Finish: Satin-black powder coat
  • Warranty: Limited lifetime
