PRODUCT OVERVIEW:

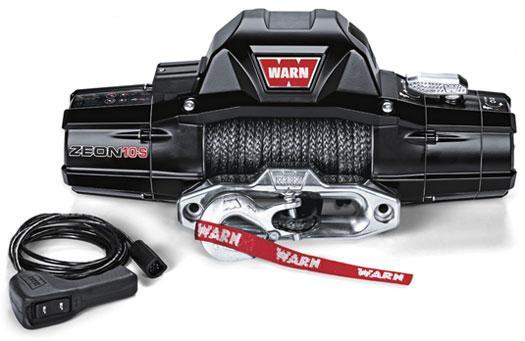

WARN ZEON 10, 10,000 lbs. of cutting-edge pulling muscle, choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you have got a workhorse unit you can trust for years to come.
- 10,000 lb. (4536 kg) single-line pulling capacity.
- Includes 80 ft of 3/8 inch galvanized steel wire rope
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately)
- Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty
Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 10 Specs
- PN 88990 (12V)
- Rated line pull: 10,000 lbs. (4536 kg) single-line
- Motor: series wound, 12V DC, 24V DC
- Electrical controls: Contactor
- Remote Control: Remote switch, 12 ft (3.7m) lead
- Geartrain: 3-stage planetary
- Gear ratio: 216:1
- Clutch (freespooling): Rotating ring gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.15 inch/9.0 inch (80mm/229mm)
- Weight (kit shipping): 98 lbs. (44 kg)
- Rope: 3/8 inch x 80 ft (9.52mm x 24.38m) steel
- Fairlead: Roller
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72 inch (1.83m)
- Finish: Satin-black powder coat
- Warranty: Limited lifetime
