Warn Industries

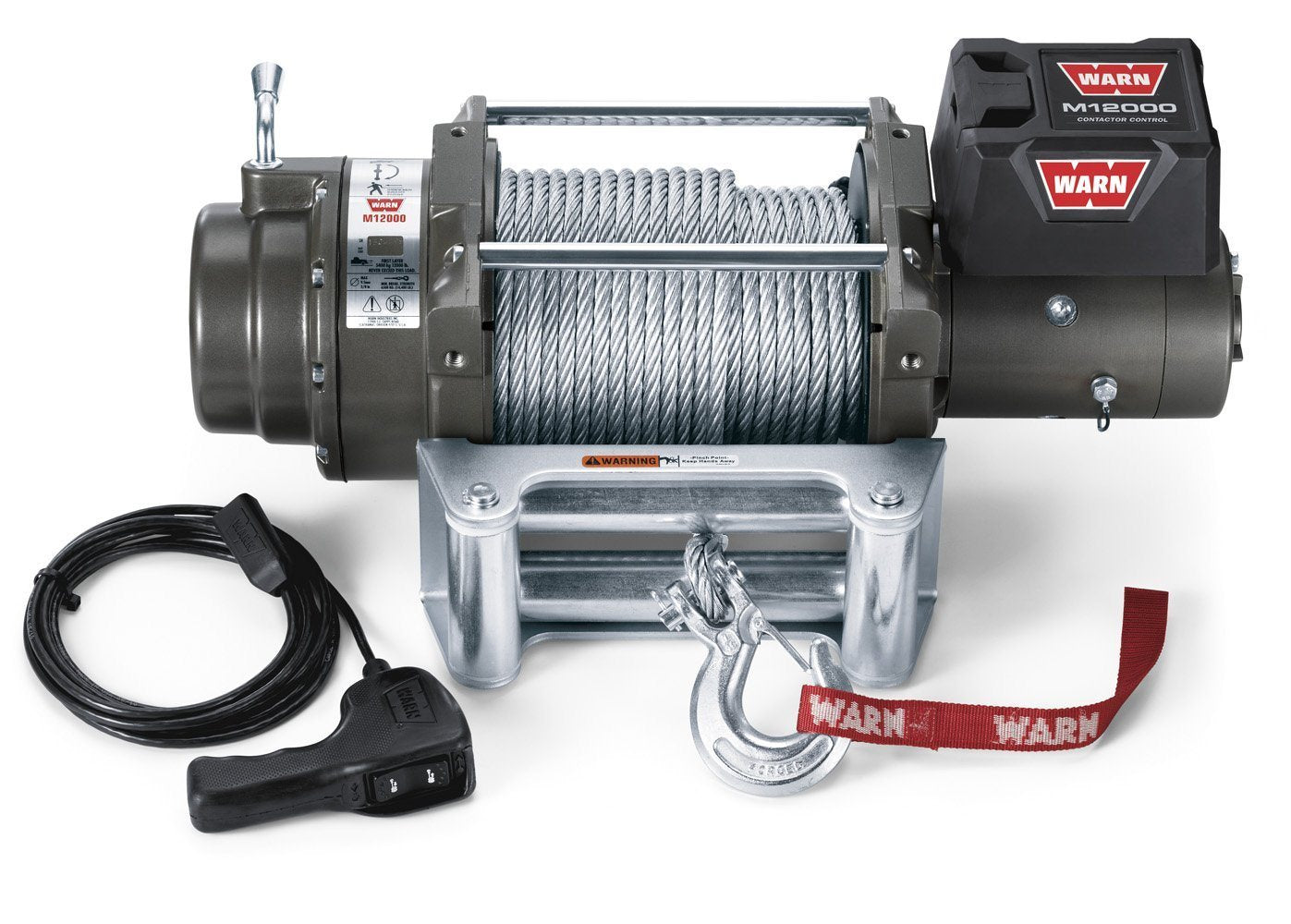

Warn M12000 Heavy Weight Winch 12,000 Lb Capacity

  • VENDOR: Warn Industries
  • PART#: Warn-17801
  • MSRP: Regular price $2,463.49
  • YOUR PRICE: $2,029.99

PRODUCT OVERVIEW:

The Warn M12000 heavy weight winch is a reliable workhorse to meet heavy winching needs Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.

Features:

  • 12,000 lb. (5,440 kg) pulling capacity (single line)
  • Large frame winch design is designed to handle heavier winch loads
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Brake provides superior control while winching
  • Remote-mount control box allows for various mounting options
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12 ft (3.7m) lead
  • Chip-resistant powder-coated finish
  • 125 ft of 3/8 inch (38m of 9.5mm) diameter wire rope

M12000 Specs:

  • Part Number: 17801 (12V)
  • Rated line pull: 12000 lbs., (5440 kgs.) single-line
  • Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12 inch (3.7m) lead
  • Geartrain: 3-Stage Planetary
  • Gear ratio: 261:1
  • Clutch (freespooling): Rotating Ring Gear
  • Brake: Automatic mechanical cone
  • Drum diameter/Length: 3.5 inch/8.2 inch (9cm/21cm)
  • Weight: 136 lbs. (62kgs.)
  • Wire rope: 125 ft , 3/8 inch diameter (38m, 9.5mm diam.)
  • Fairlead: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 inch (1.83m)
  • Finish: Argent Gray Powder Coat

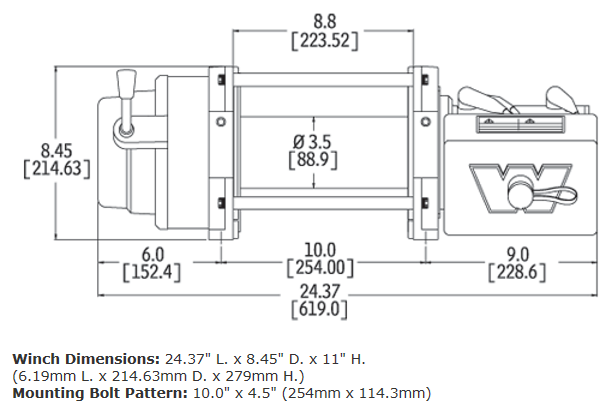

  • Winch Dimensions: 24.37 inch L. x 8.45 inch D. x 11 inch H. (619mm L. x 214.63mm D. x 279mm H.)
  • Mounting Bolt Pattern: 10.0 inch x 4.5 inch (254mm x 114.3mm)
