Warn Industries
Warn 9.0RC Lightweight Winch 9,000 Lb Capacity
Warn 9.0RC Lightweight Winch 9,000 Lb Capacity
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Compact and Mighty

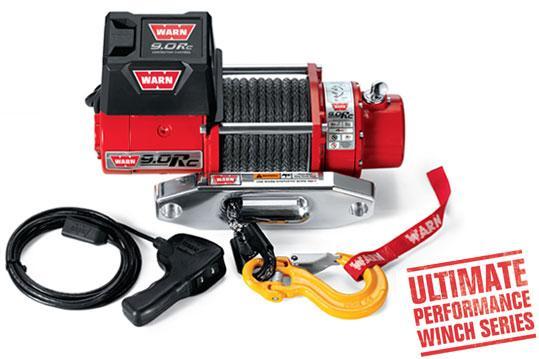

The Warn 9.0rc is a compact, lightweight winch for rock sports. This ultimate performance winch has a 9,000 lb pulling capacity. Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.
Features:
- 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
- Next-generation control pack delivers long duty cycles
- New-style remote control
- 50 ft of 3/8 inch(15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
- Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
- Aluminum hawse fairlead
- Exclusive multi-segment cam actuated brake for positive operator control during winching
- Gloss red paint with primer undercoat gives superior corrosion resistance
9.0Rc Specs:
- Winch Model: WARN 9.0Rc
- PN: 71550
- Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
- Motor: Series Wound, 12V 4.8 hp
- Electrical controls: Contactor
- Remote Control: Remote switch, 12 ft (3.7m) lead
- Geartrain: 3-Stage Planetary
- Gear ratio: 216:1
- Clutch (freespooling): Sliding Ring Gear
- Brake: Automatic mechanical cone brake

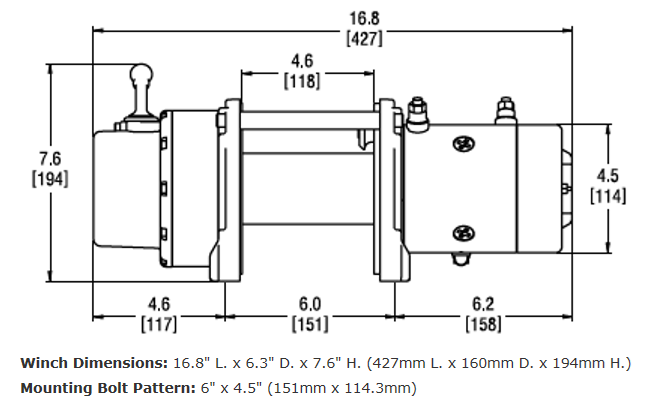

- Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)
- Weight: 54 lbs. (24.8kgs.)
- Rope: 50 ft, 3/8 inch (15m, 9.5mm) Spydura synthetic Rope
- Fairlead: Polished Aluminum Hawse
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72 inch (1.83m)
- Finish: Gloss red paint over primer undercoating
