Warn Industries
16.5ti-S Heavy Weight Winch
16.5ti-S Heavy Weight Winch
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Power and efficiency
With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch Warn makes, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection.
This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.
KEY FEATURES
- 16,500 lb. capacity
 - Includes 80' of 3/8" Spydura Pro synthetic rope
 - Includes 18,000 lb capacity EPIC hook
 - Thermometric indicator LED provides operator feedback
 - Large-frame winch architecture mounts feet forward
 - Contactor control for the ultimate in reliable electronics
 - Powerful, efficient series-wound motor
 - Durable, smooth three-stage planetary gear train
 - Best-in-class cone brake

SPECS
- TYPE: Electric
 - MOUNT TYPE: Vehicle Mounted
 - RECOMMENDED USE: Vehicle Recovery
 - VOLTAGE: 12 Volt
 - MOTOR HORSEPOWER:4.6 Horsepower
 - ELECTRICAL CONTROL TYPE: Contactors
 - MOTOR TYPE: Series Wound
 - DRIVE GEAR TYPE: Planetary
 - GEAR REDUCTION RATIO: 315:1
 - FREE SPOOLING: Yes
 - BRAKE TYPE: Direct Drive Cone
 - LINE DIAMETER (IN): 3/8 Inch
 - LINE LENGTH (FT): 80 Feet
 - LINE MATERIAL: Synthetic
 - FAIRLEAD TYPE: Hawse
 - CONFORMS TO J706 STANDARDS: No
 - REMOTE TYPE: 12 Feet Wired
 - MOUNTING HOLE QUANTITY: 4
 - OPERATION TYPE: Automatic

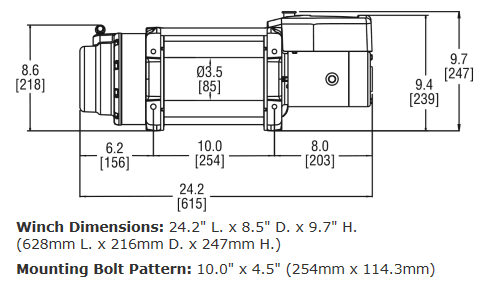

 - MOUNTING PATTERN LENGTH (IN): 10 Inch
 - MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
 - INCLUDES MOUNTING HARDWARE: No

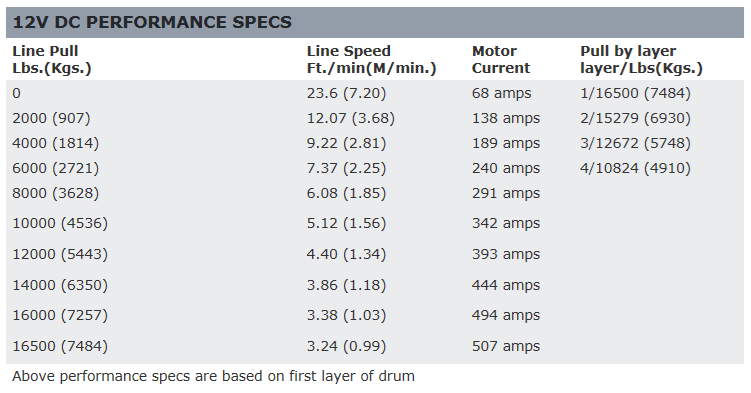

 - MAX AMP DRAW/ LINE PULL: 507 Amp Draw/ 16500 Pound
 - MAX LINE PULL/ LINE SPEED: 16500 Pound/ 3.24 Feet Per Minute
