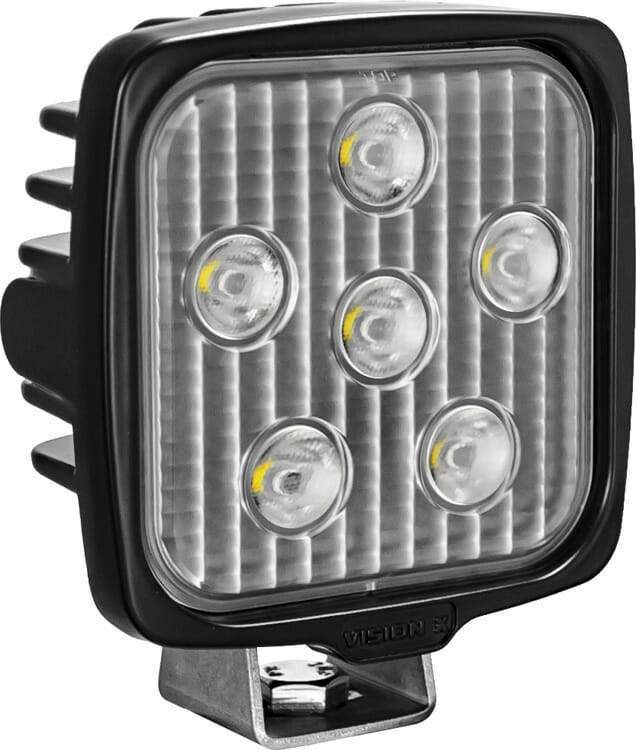

VL-Series LED Light Square 6 LED's With Connector Vision X individual display

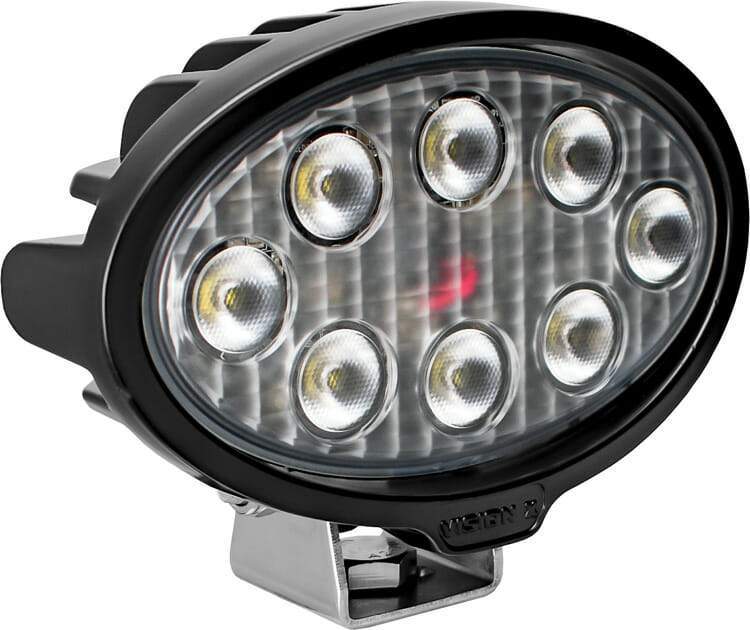

VL-Series LED Light Oval 8 LED's With Connector Vision X individual display

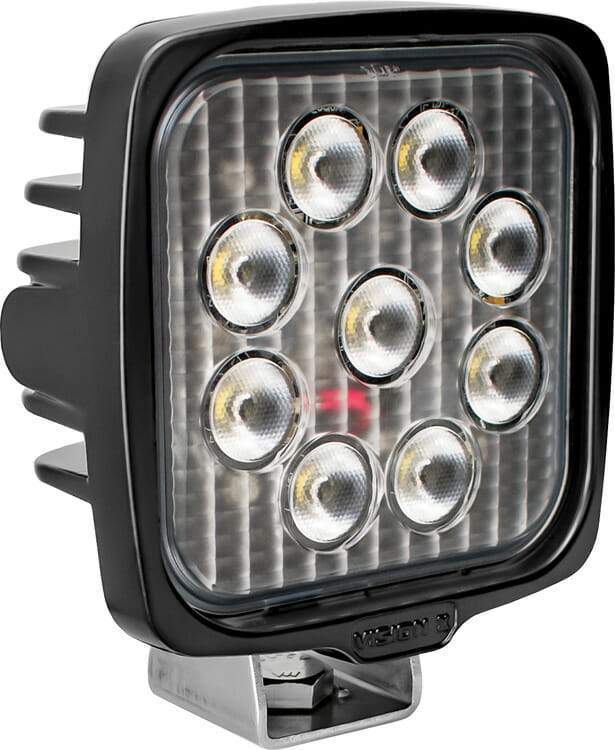

VL-Series LED Light Square 9 LED's With Connector Vision X individual display

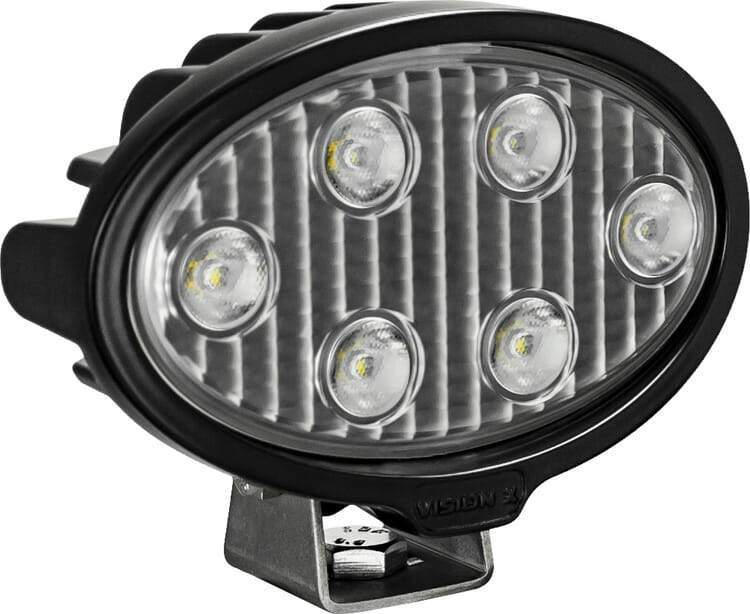

VL-Series LED Light Oval 6 LED's With Connector Vision X individual display

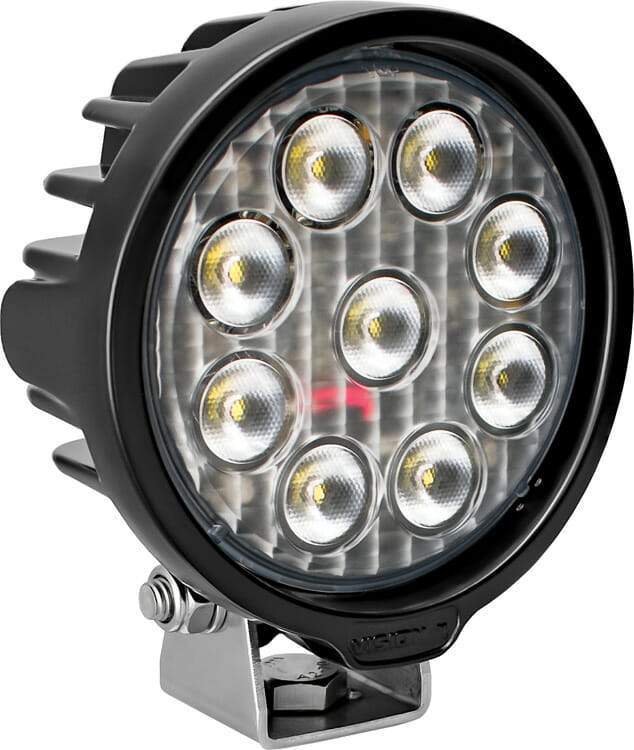

VL-Series LED Light Round 9 LED's With Connector Vision X

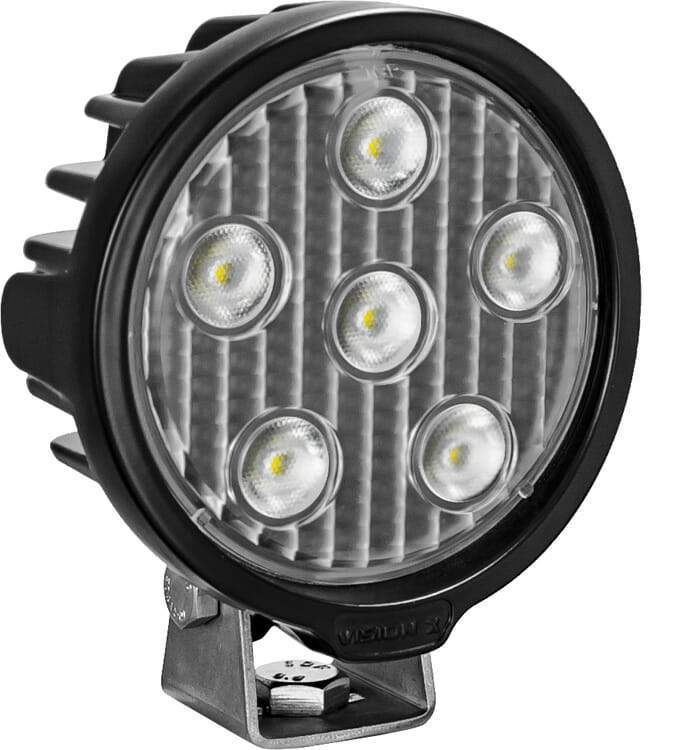

VL-Series LED Light Round 6 LED's With Connector Vision X

Vision X

VL-Series LED Light

$74.16
SKU: VWS050640 (9911366)
Light Shape:

Light Shape
LED Configuration:

LED Configuration
Wiring Confguration:

Wiring Confguration

VL-Series LED Light

Square / 6 LED's / With Connector

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The VL-Series LED Light Duty offers outstanding light output in a functional design which can be easily adjusted with the single bolt bracket. High quality construction and components enable VL-Series LED Light Duty to withstand vibration up to 15.6 Grms. Built-in reverse polarity protection helps prevent accidental damage caused by incorrect installation. VL-Series LED Light Duty work lighting is a high value, versatile range designed for many light duty commercial applications.

KEY FEATURES:
  • Ultra Bright Cree LEDs
  • 3 Housing Options
  • 2 Output Options
  • IP67/IP69K
  • Ultra Bright Cree LED
  • CISPR 25 Class 3 Rated
  • Die-Cast Aluminum Housing
SQUARE SERIES SPECS:
ITEM # PART # BEAM # OF LIGHTS HOUSING RAW LUMENS INPUT VOLTS WATTS AMP DRAW
VWS050640 9911366 40° 1 Black 3,168 lm 9-32V 30 2.5A
VWS050940 9911373 40° 1 Black 4,752 lm 9-32V 45 3.75A
VLS050640 9911304 40° 1 Black 3,168 lm 9-32V 30 2.5A
VLS050940 9911311 40° 1 Black 4,752 lm 9-32V 45 3.75A


ROUND SERIES SPECS:
ITEM # PART # BEAM # OF LIGHTS HOUSING RAW LUMENS INPUT VOLTS WATTS AMP DRAW
VWR050640 9911342 40° 1 Black 3,168 lm 11-65V 30 2.5A
VWR050940 9911359 40° 1 Black 4,752 lm V 45 3.75A
VLR050640 9911281 40° 1 Black 3,168 lm 11-65V 30 2.5A
VLR050940 9911298 40° 1 Black 4,752 lm V 45 3.75A


OVAL SERIES SPECS:
ITEM # PART # BEAM # OF LIGHTS HOUSING WEIGHT INPUT VOLTS WATTS AMP DRAW
VWO050640 9911328 40° 1 Black 3,168 lm 11-65V 30 2.5A
VWO050840 9911335 40° 1 Black 4,224 lm 11-65V 40 3.33A
VLO050640 9911267 40° 1 Black 3,168 lm 11-65V 30 2.5A
VLO050840 9911274 40° 1 Black 4,224 lm 11-65V 40 3.33A
