Switch Pros

Switch Pros RCR-Force-12 | 12 Switch Power Panel System

$1,078.00
SKU: SP-RCR-FORCE-12

Switch Pros RCR-Force-12 | 12 Switch Power Panel System

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

The Switch-Pros RCR-FORCE-12 includes twelve tactile switches, in a three-row configuration that is user-programmable, with the same style of the previous Switch-Pros systems. The twelve circuit, 170 amp power module will control up to seventeen outputs, using a combination of direct and trigger inputs. Five of the circuits can handle inductive loads, and one circuit is a low side driver.

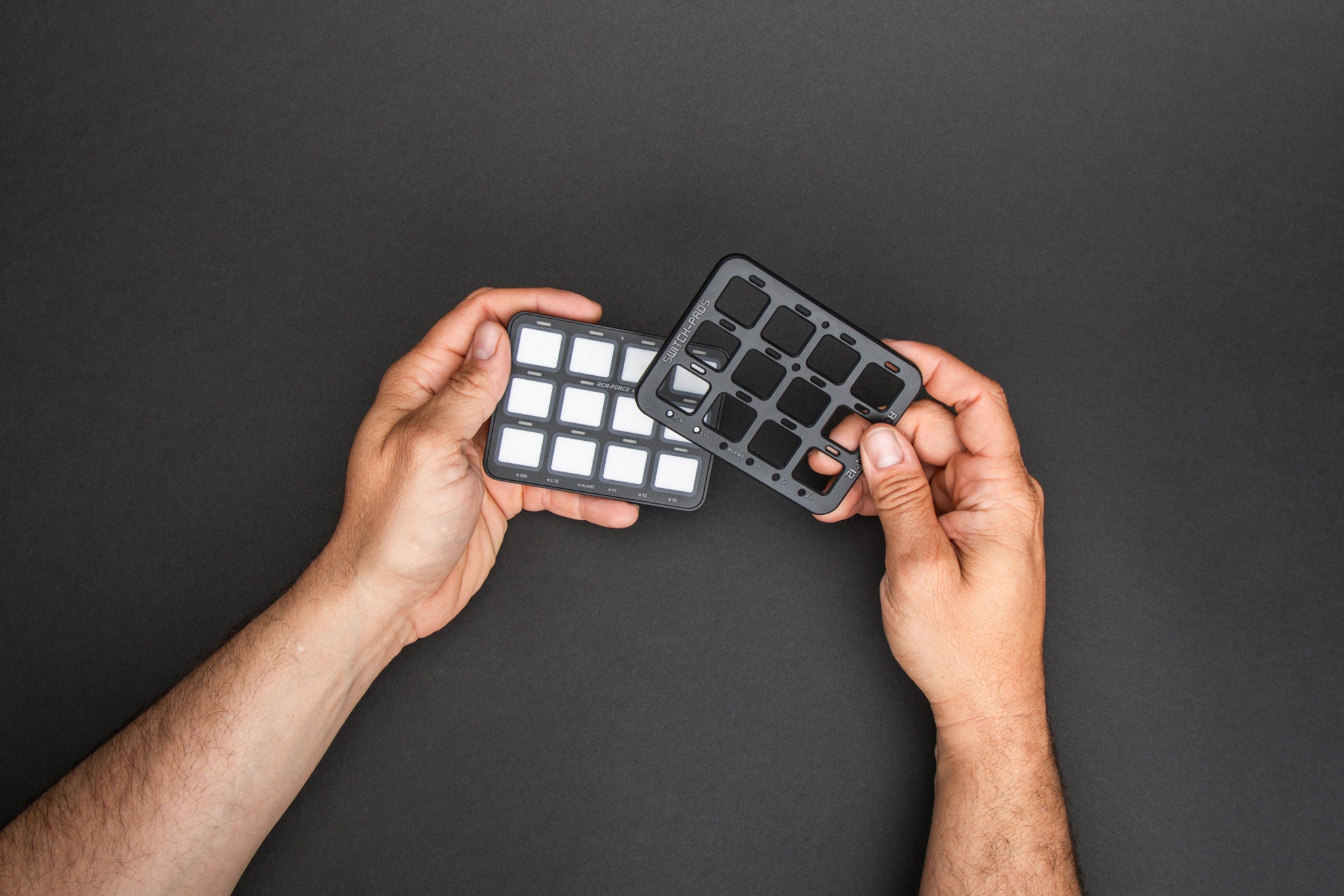

The RCR-FORCE-12 Kit includes everything required for installation, plus the all-new RCR-Touch snap on bezel, which will help the driver select switches with precision even while traveling rough terrain or wearing gloves.

KEY FEATURES:
  • 12 user-programmable switches
  • RCR-TOUCH™ switch cover
  • Waterproof, solid state power module
  • 150amp capacity with 17 outputs
    • 4 rated @ 35A and 1 rated @ 30A
      (High In-Rush circuits)
    • 11 rated @ 15A, which can be combined for larger loads
    • 1 Low Side driver switch, rated @ 2A
  • Built-in Bluetooth module
  • Program and operate accessories with phone or tablet
  • System can be used to start vehicle
  • No bulky relay box
  • RGB Backlighting with unlimited color options
  • Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Sleep Mode for minimal power consumption
  • Color coded output wires
  • Daisy Chain up to 3 Switch Panels to One Power Module
  • Free app for iOs and Android platforms
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • LED Input Status Indicators for easy troubleshooting
  • Battery Voltage Readout on App screen
SWITCH PANEL SPECS:
  • RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
  • Switch Panel enclosure measures
    4” L x 3” W x .375” H
  • Splash proof with Polycarbonate overlay faceplate
  • Pre-machined for factory- look installation
  • RGB backlighting
  • Orange LED switch indicators
  • 6 Programmable LED Status indicators

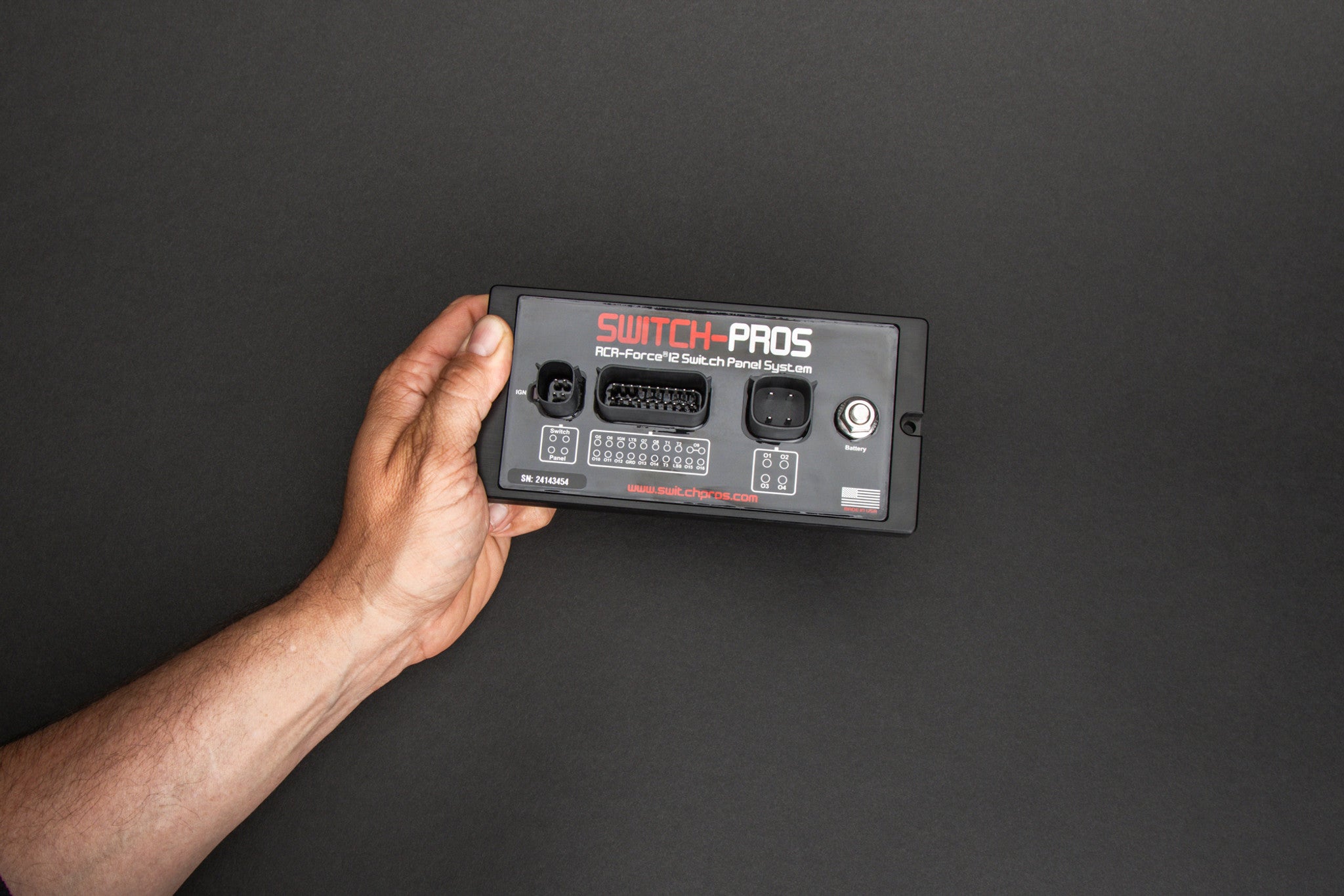

POWER MODULE SPECS:
  • 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
  • 150A maximum rating
  • 7”L x 3.5”W x .5”H (excluding connectors)
  • Waterproof and Solid State
  • Underhood rated 125° to -40°C
  • LED Ignition Input Status Indicator

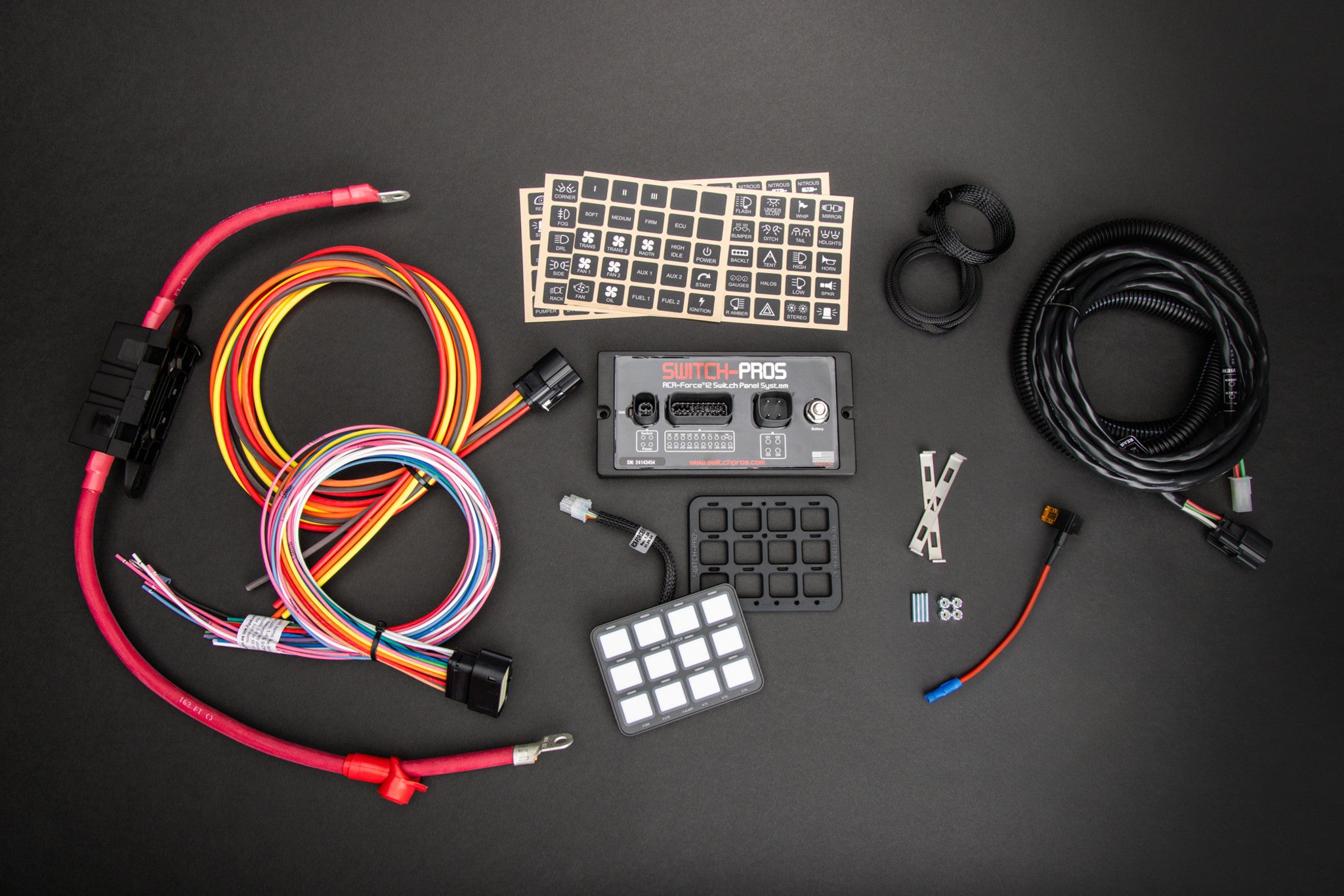

KIT INCLUDES:
  • Switch Pros RCR-Force-12 Panel
  • Switch Pros RCR-Force-12 Power Module
  • RCR-TOUCH™ switch cover
  • 11’ of Communication Cable between Switch Panel and Power Module
  • Power Cable with 150A inline Circuit protection
  • 100 User Selectable Legends included (Horizontal orientation)
  • Installation brackets and hardware
  • Color Coded Output wires
  • Wire harness with waterproof, sealed automotive grade connectors
SWITCH PROGRAMABLE FEATURES:
  • Preset Dimming function WITH MEMORY (100% to 10% brightness)
  • Master Mode, with ability to turn multiple outputs On AND Off with one touch
  • Every Master Switch can control up to 4 other switch outputs
  • On-On-Off logic
  • Touch Panel lockout
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Automatic Power-Up upon vehicle start up
  • Safety Lockout for specific switches
  • Time Delay off
