Reflex Light Actuator Kit – S8 Light Bar - Universal
Reflex Light Actuator Kit – S8 Light Bar - Universal
Reflex Light Actuator Kit – S8 Light Bar - Universal
Reflex Light Actuator Kit – S8 Light Bar - Universal
Reflex Light Actuator Kit – S8 Light Bar - Universal

Baja Designs

Reflex Light Actuator Kit – S8 Light Bar - Universal

$99.95
SKU: 80-0013
Actuator Kit:

Actuator Kit

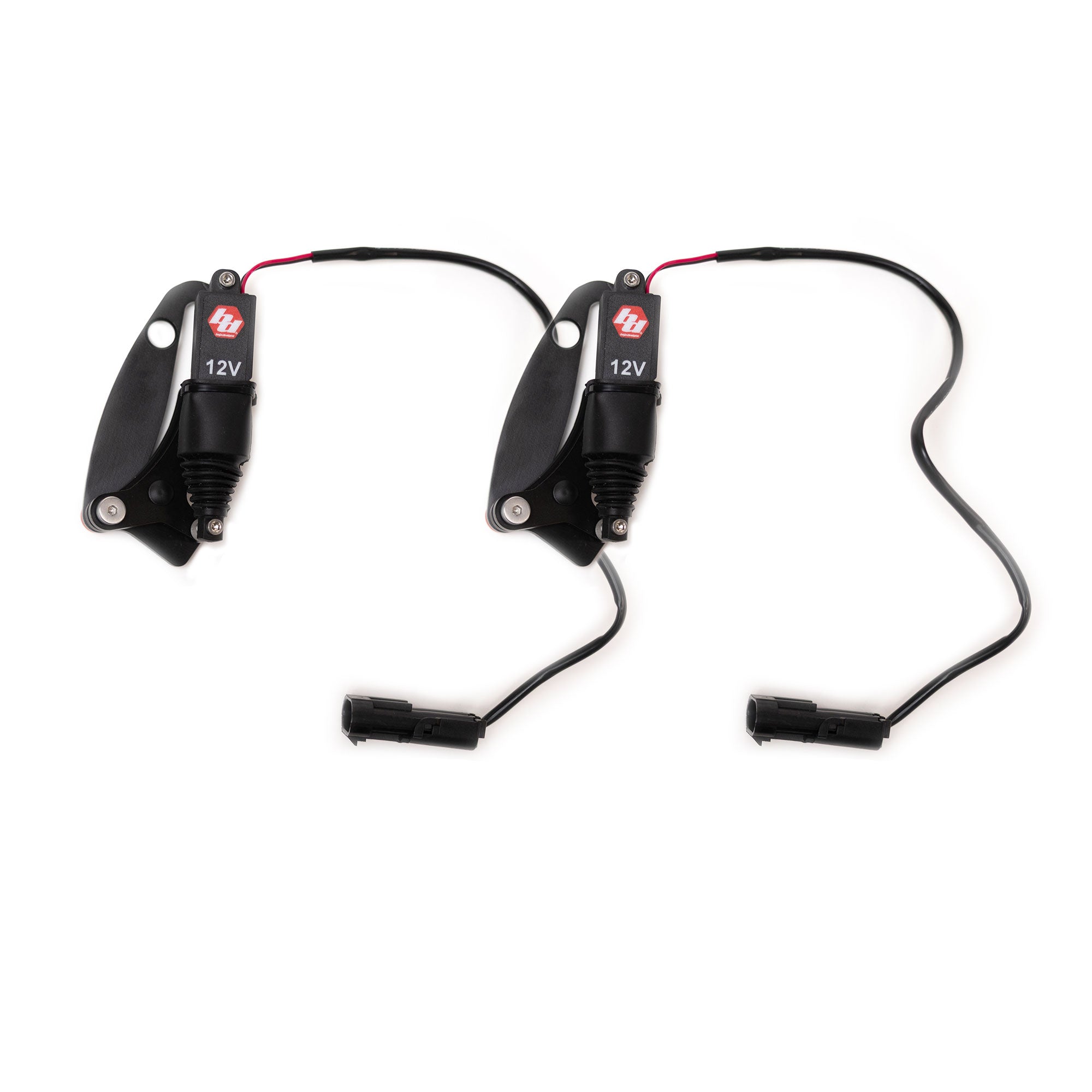

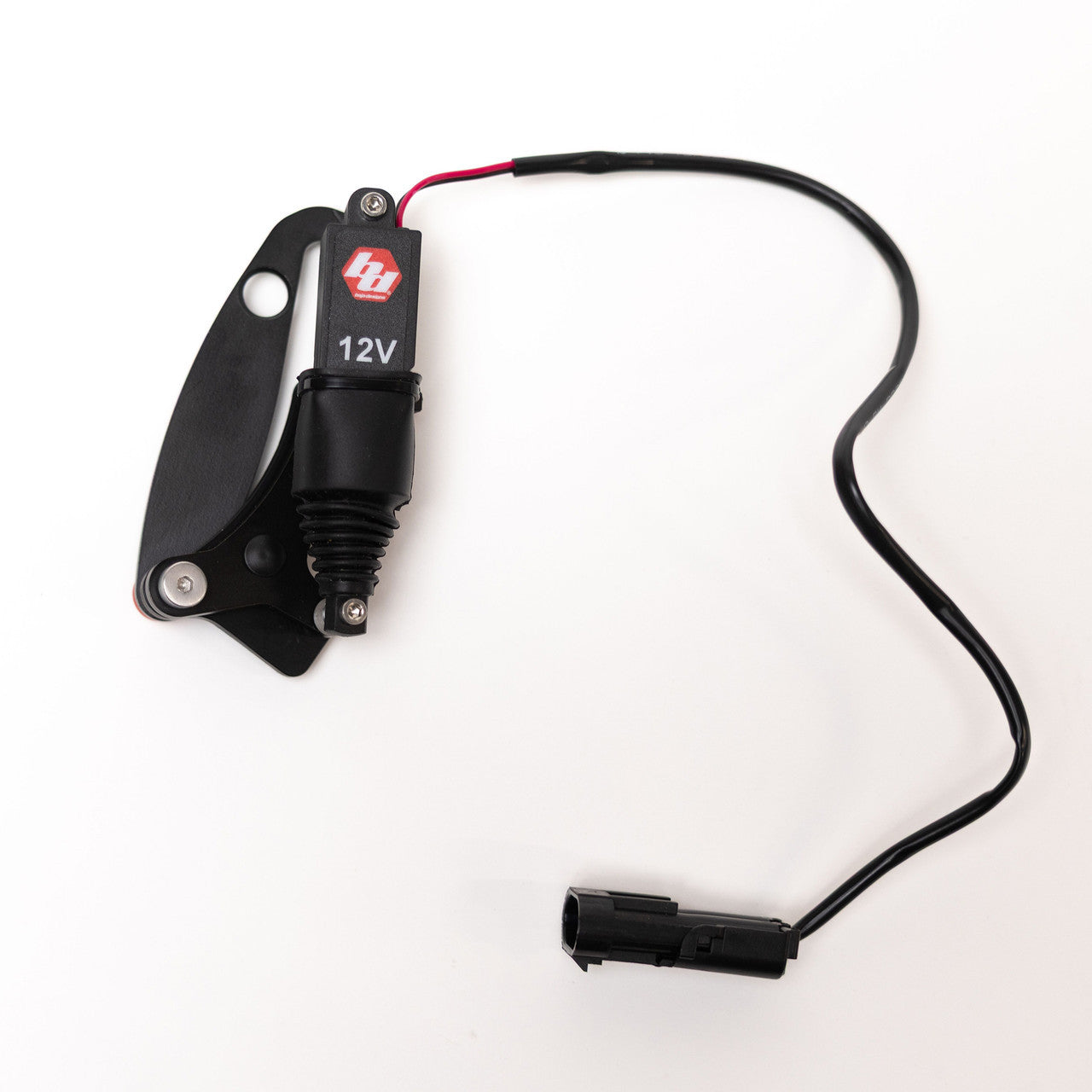

Reflex Light Actuator Kit – S8 Light Bar - Universal

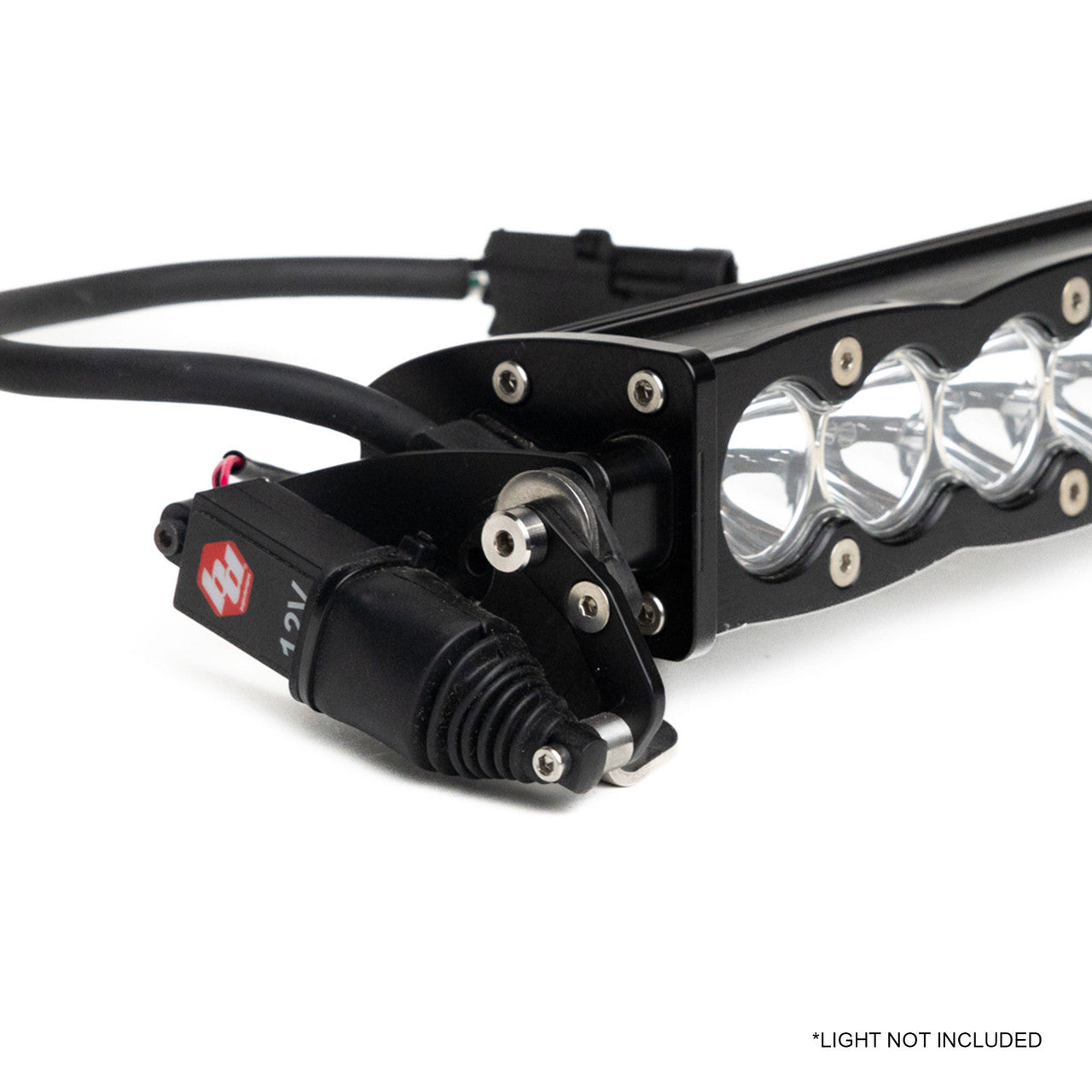

S8 Single (10" Length)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

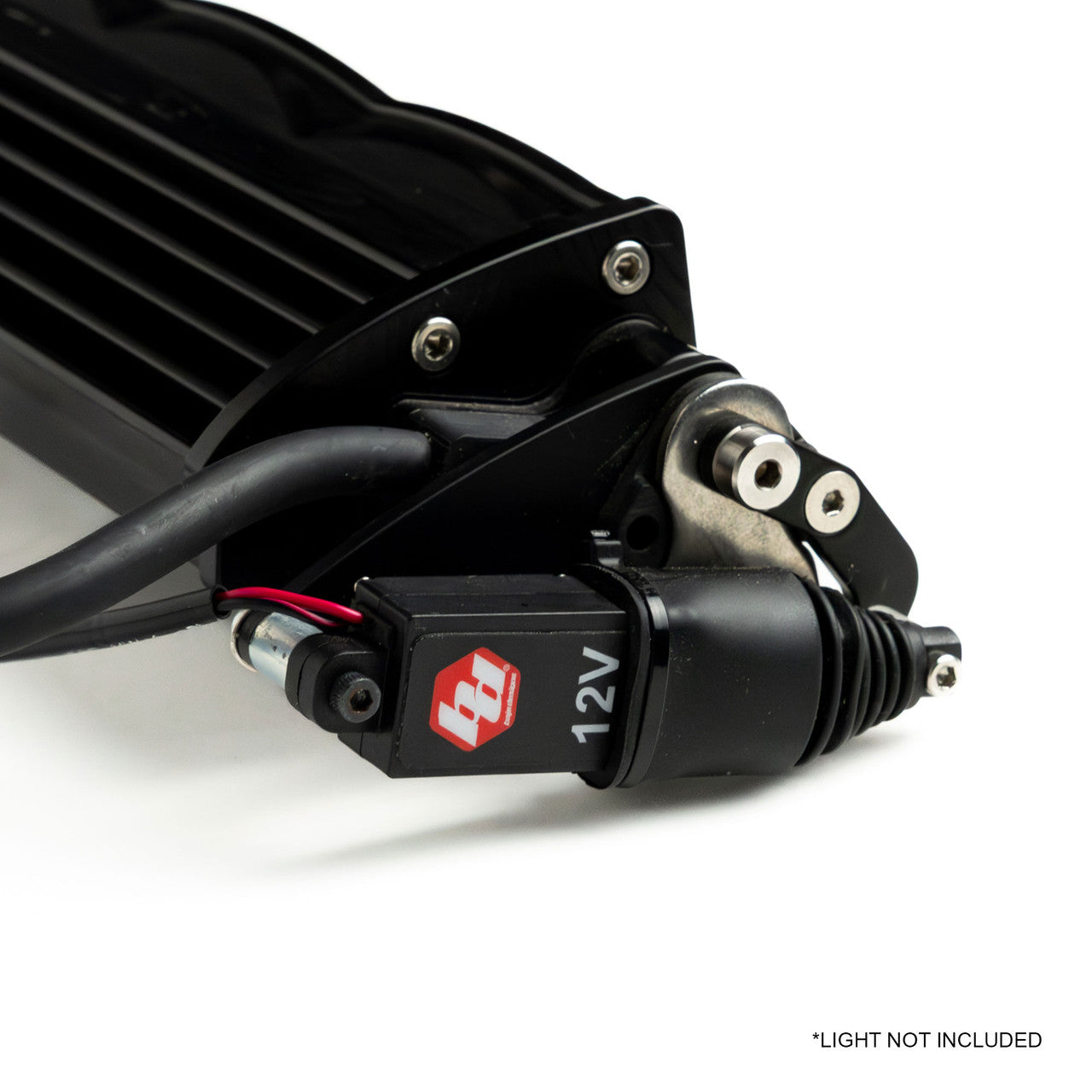

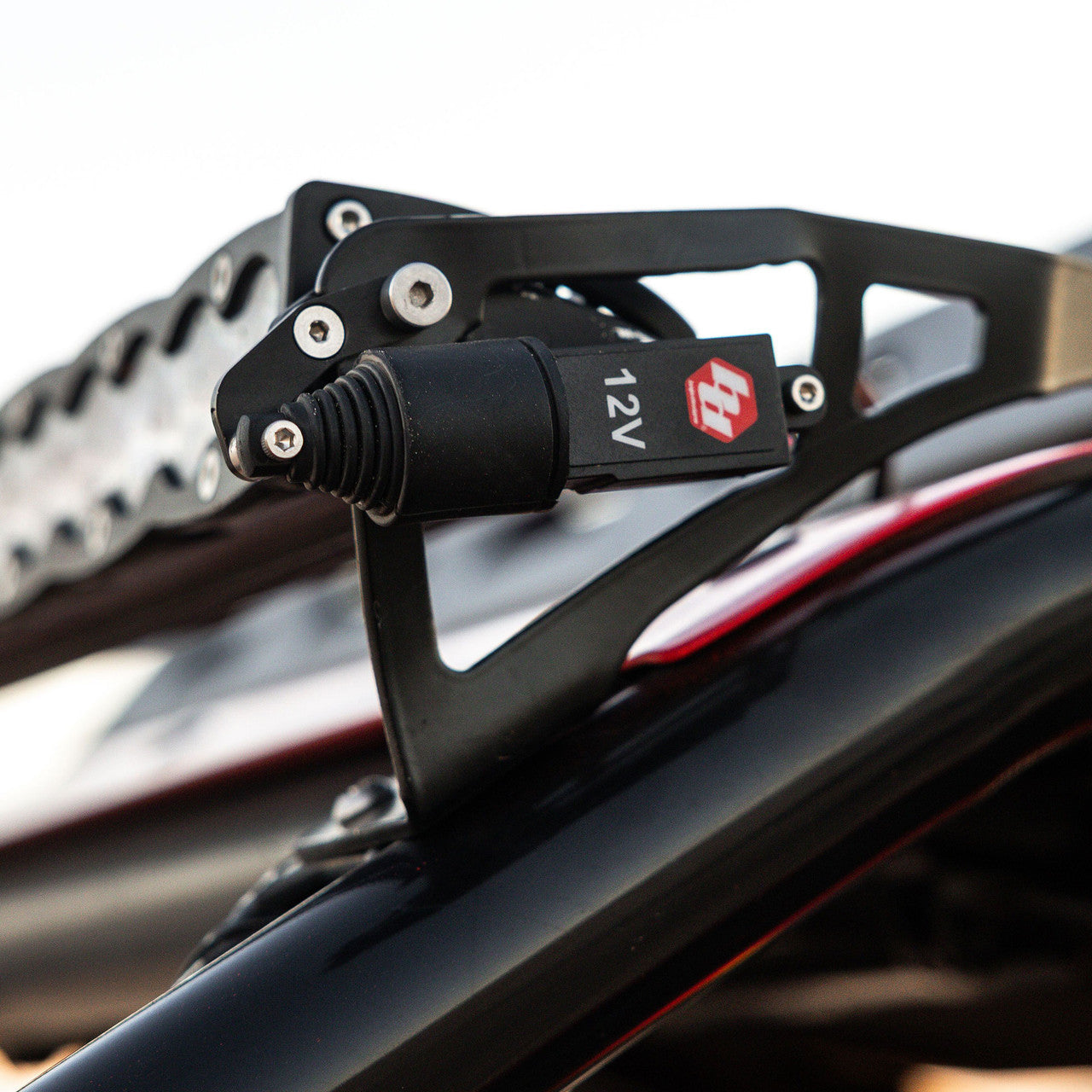

Introducing the Reflex Light Actuator™ (Patent Pending) – the first fully compatible actuator system designed exclusively for the Baja Designs light lineup. Born from racing in Baja, the Reflex brings professional race-level engineering to a consumer-ready solution. Engineered exclusively for our lights, the Reflex delivers instant, on-the-fly control of light pitch angle. Drivers can adjust their light up to 20 degrees depending on light type, ensuring perfect light coverage for every terrain change, climb, descent, or high-speed section. The Reflex mounts directly to existing Baja Designs light brackets with included hardware. No fabrication, no guesswork, just clean installation and plug-and-play setup. This actuator kit is compatible with S8 light bars. NOTE: Wiring harness sold separately.

Harness Note:

Pair harnesses (64-6307 - Toggle Harness / 64-6305 - Power Management Harness) are designed for use with single and pair actuator configurations on light bars. For 10” light bars using single actuator, the extra lead is not used and can be tucked away. For 20" and longer light bars both leads will be utilized to power two actuators.

Features:
  • Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
  • Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.
  • Compatible with most VSKs using the light’s universal bracket.
  • Wiring harnesses for control via rocker switch or power control modules (sPOD, SwitchPros, and others).
  • NOTE: Wiring Harness sold separately
Specs:
  • For 10” S8 light bars, one actuator is needed
  • For 20”+ S8 light bars, two actuators are needed
  • 0.14A/2.0W at 13.8V per actuator
  • MIL-STD-810G, IEC compliant
  • Waterproof Rating: IP54

NOTE: Actuator Wiring Harness sold separately.
