OVERVIEW

PRODUCT OVERVIEW:

Our Switch Pros Power Panel Mount for your 2016-Current (3rd Gen) Toyota Tacoma allows you to mount your SP-9100 without cutting up your Tacoma's interior. We take an OEM Toyota Tacoma panel, and CNC laser cut the panel to fit an SP-9100 without losing the function of your OEM buttons and switches.

KEY FEATURES:

CNC Laser cut and etched factory Toyota panel
Direct Replacement for your Tacoma's OEM switch panel
CAD Designed by SDHQ
Designed for a tight fit with Switch Pros Bezel Mount Panels
Included Reinforcement Backing Plate System
- Increases panel clip holding pressure
- Clamps switch panel into dash panel making it sturdy and theft resistant.
- Eliminates the chance of hardware vibrating loose

SP-9100 FEATURES AND SPECS

Putting an end to dashboard clutter is easy, with the Switch-Pro 9100 Switch Panel Power System. Featuring eight user-programmable switches, this compact panel is the most advanced and versatile on the market. Now featuring RGB backlighting, dimming for lighting outputs, external trigger to activate up to 2 outputs and a battery voltage display on app screen.

The switch Pros App Compatible with iPhone and Android based Smartphones, you can command your vehicle accessories with the touch of your handset screen.

KEY FEATURES:

Eight user-programmable switches
Four 35A circuits and four 18A circuits
Waterproof, Solid State 125A Power Module
RGB Backlighting provides unlimited color options, using Color Picker on App
Daisy Chain up to 3 Switch Panels to One Power Module
Color Coded circuit wires
100 User-selectable switch legends
LED Input Status Indicators for easy troubleshooting
Time Delay Off function available for all circuits
Splash proof switch panel with Polycarbonate overlay faceplate
Program and control the system from switch panel pad or smartphone
Bluetooth interface with FREE Apple or Android App
Battery Voltage Readout on App screen
No Fuses or Bulky Relay box
Built-In Bluetooth Module

Switch Panel Specs:

RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375”H; includes concealed mounting hardware for factory-look installation
Orange LED switch indicators
100 Selectable User Legends

Power Module Specs:

8 Outputs: 4 rated @ 35A, 4 rated @ 18A
125A maximum rating
Waterproof and Solid State
6”L x 3”W x .5”H (excluding connectors)
LED Input Status Indicators for easy troubleshooting
Underhood rated 125° to -40°C

Kit Also Includes:

11’ of Communication Cable between Switch Panel and Power Module
Color Coded Output wires
Wire harness with Waterproof, sealed automotive grade connectors
Power Cable with 125A inline fuse

Switches can be programmed to be:

On/Off or Momentary
Ignition or Battery Input
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Memory Function
Master Mode, with the ability to turn multiple outputs On AND Off with one touch
Automatic Power-Up upon vehicle startup
Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Lighting outputs can dim from 100% to 10%, with the ability to dim during Flash or Strobe patterns
Sleep Mode for minimal power consumption

There is also a programming function to adjust the brightness of backlighting and indicator LEDs.

INSTALLED PICTURES

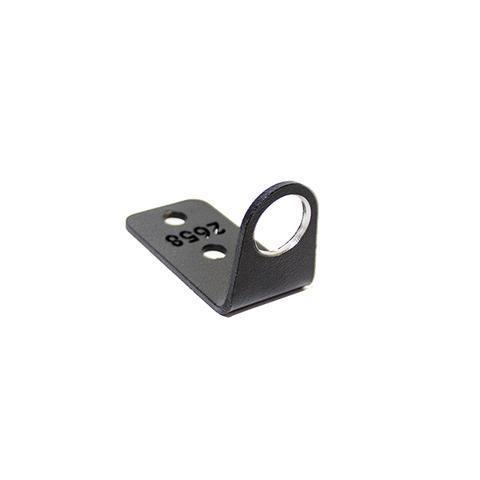

Push to Talk Grab Bar Mount
