Method Wheels
MR401 UTV Beadlock
Finish
Wheel Diameter (in.)
Size | Bolt Pattern | Back Spacing (in.)
STATE OF CALIFORNIA CONSUMER WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm.

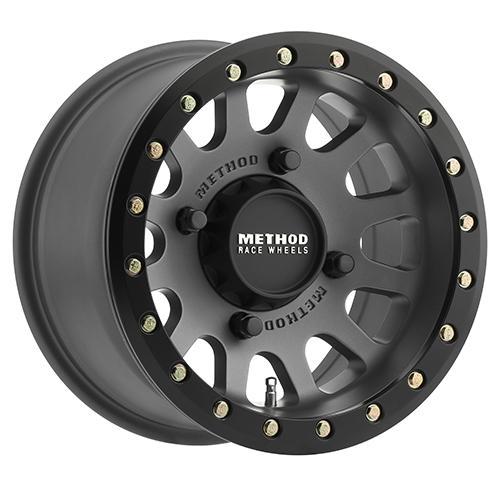

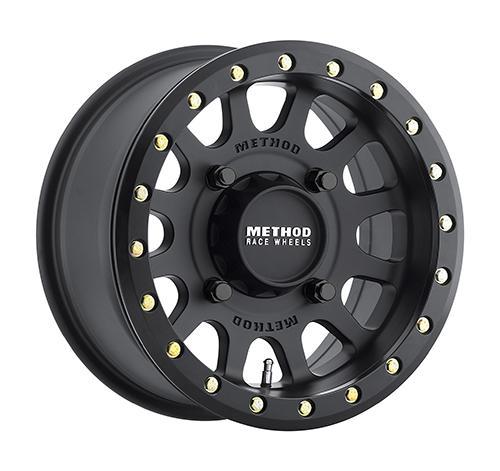

The 401 UTV Beadlock is the premier wheel for the serious racer or enthusiast. The wheel includes a forged 6061 beadlock ring along with Grade 8 Zinc plated mounting hardware. This matte black wheel and ring is available from 12”-15” and has a load rating of 1600 lbs.
WHEEL DIAMETER (IN) | WHEEL WIDTH (IN) | BOLT PATTERN | BOLT HOLE | BOLT DIAMETER | OFFSET (MM) | BACKSIDE SPACING (IN) | ATV OFFSET B+F | HUB BORE (MM) | MAX LOAD (LBS) | COLOR/FINISH | PART NUMBER |
14 | 10.0 | 4x156 | 4 | 156 | -2 | 5.30 | 5+5 | 132.0 | 1600 | Matte Black | MR40141046555B |
14 | 10.0 | 4x156 | 4 | 156 | -2 | 5.30 | 5+5 | 132.0 | 1600 | Titanium with Matte Black Ring | MR40141046855B |
14 | 7.0 | 4x110 | 4 | 110 | 13 | 4.30 | 4+3 | 80.3 | 1600 | Machined | MR40147040343B |
14 | 7.0 | 4x110 | 4 | 110 | 13 | 4.30 | 4+3 | 80.3 | 1600 | Matte Black | MR40147040543B |
14 | 7.0 | 4x110 | 4 | 110 | 38 | 5.30 | 5+2 | 80.3 | 1600 | Matte Black | MR40147040552B |
14 | 7.0 | 4x156 | 4 | 156 | 13 | 4.30 | 4+3 | 132.0 | 1600 | Machined | MR40147046343B |
14 | 7.0 | 4x156 | 4 | 156 | 38 | 5.30 | 5+2 | 132.0 | 1600 | Machined | MR40147046352B |
14 | 7.0 | 4x156 | 4 | 156 | 13 | 4.30 | 4+3 | 132.0 | 1600 | Matte Black | MR40147046543B |
14 | 7.0 | 4x156 | 4 | 156 | 38 | 5.30 | 5+2 | 132.0 | 1600 | Matte Black | MR40147046552B |
14 | 7.0 | 4x156 | 4 | 156 | 13 | 4.30 | 4+3 | 132.0 | 1600 | Titanium with Matte Black Ring | MR40147046843B |
14 | 7.0 | 4x156 | 4 | 156 | 38 | 5.30 | 5+2 | 132.0 | 1600 | Titanium with Matte Black Ring | MR40147046852B |
14 | 7.0 | 4x136 | 4 | 136 | 13 | 4.30 | 4+3 | 106.0 | 1600 | Machined | MR40147047343B |
14 | 7.0 | 4x136 | 4 | 136 | 38 | 5.30 | 5+2 | 106.0 | 1600 | Machined | MR40147047352B |
14 | 7.0 | 4x136 | 4 | 136 | 13 | 4.30 | 4+3 | 106.0 | 1600 | Matte Black | MR40147047543B |
14 | 7.0 | 4x136 | 4 | 136 | 38 | 5.30 | 5+2 | 106.0 | 1600 | Matte Black | MR40147047552B |
14 | 7.0 | 4x136 | 4 | 136 | 13 | 4.30 | 4+3 | 106.0 | 1600 | Titanium with Matte Black Ring | MR40147047843B |
14 | 8.0 | 4x156 | 4 | 156 | -2 | 5.30 | 4+4 | 132.0 | 1600 | Matte Black | MR40148046544B |
14 | 8.0 | 4x156 | 4 | 156 | -2 | 5.30 | 4+4 | 132.0 | 1600 | Titanium with Matte Black Ring | MR40148046844B |
15 | 7.0 | 4x110 | 4 | 110 | 13 | 4.30 | 4+3 | 80.3 | 1600 | Matte Black | MR40157040543B |
15 | 7.0 | 4x156 | 4 | 156 | 13 | 4.30 | 4+3 | 132.0 | 1600 | Machined | MR40157046343B |
15 | 7.0 | 4x156 | 4 | 156 | 13 | 4.30 | 4+3 | 132.0 | 1600 | Matte Black | MR40157046543B |
15 | 7.0 | 4x156 | 4 | 156 | 13 | 4.30 | 4+3 | 132.0 | 1600 | Titanium with Matte Black Ring | MR40157046843B |
15 | 7.0 | 4x136 | 4 | 136 | 13 | 4.30 | 4+3 | 106.0 | 1600 | Matte Black | MR40157047543B |
15 | 7.0 | 4x136 | 4 | 136 | 13 | 4.30 | 4+3 | 106.0 | 1600 | Titanium with Matte Black Ring | MR40157047843B |
