Method Wheels

MR106 Beadlock Wheel

  • VENDOR: Method Wheels
  • PART#: MR10679050544B
  • YOUR PRICE: Regular price $477.95

PRODUCT OVERVIEW:

The 106 Beadlock is a new style that combines clean and modern styling with unrivaled off road functionality. The no-frills split six-spoke face design has deep concave thanks to a 3.5” backspace (-44mm offset) on a 17x9 wheel. A Method logo is debossed into the wheel at the end of one of the spokes.  The matte black 106 includes a matte black v.3 ring, hardware kit and a bolt-on aluminum center cap. Five and six lug will be available off the shelf and blanks** will be offered to accommodate anything else you may need. 8 lug options will include a push-through center cap.

v.3 Ring Features:

  • Forged 6061 aluminum ring
  • 53% thicker than original 101 beadlock ring reduces deflection
  • Excess material removed for weight reduction
  • Recessed hardware has 360 degree protection to eliminate sheared bolts on rocks or other obstacles on the trail
  • 17% wider bead seat to accommodate larger tires

WHEEL DIAMETER (IN) WHEEL WIDTH (IN) BOLT PATTERN BOLT HOLE  BOLT DIAMETER   OFFSET (MM) BACKSIDE SPACING (IN) ATV OFFSET B+F  HUB BORE (MM) MAX LOAD  (LBS)  COLOR/FINISH   PART NUMBER

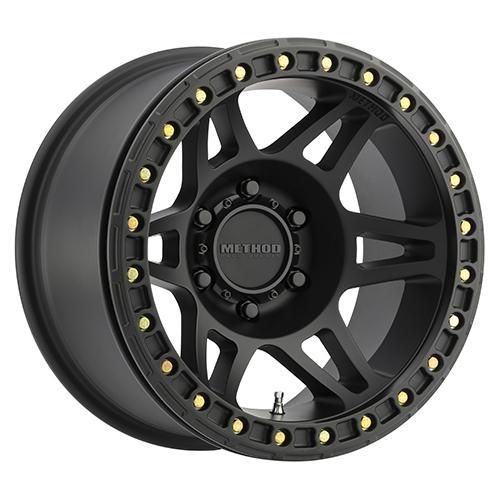

17 9.0 5x5 5 5 -44 3.50 N/A 71.5 3600 Matte Black MR10679050544B

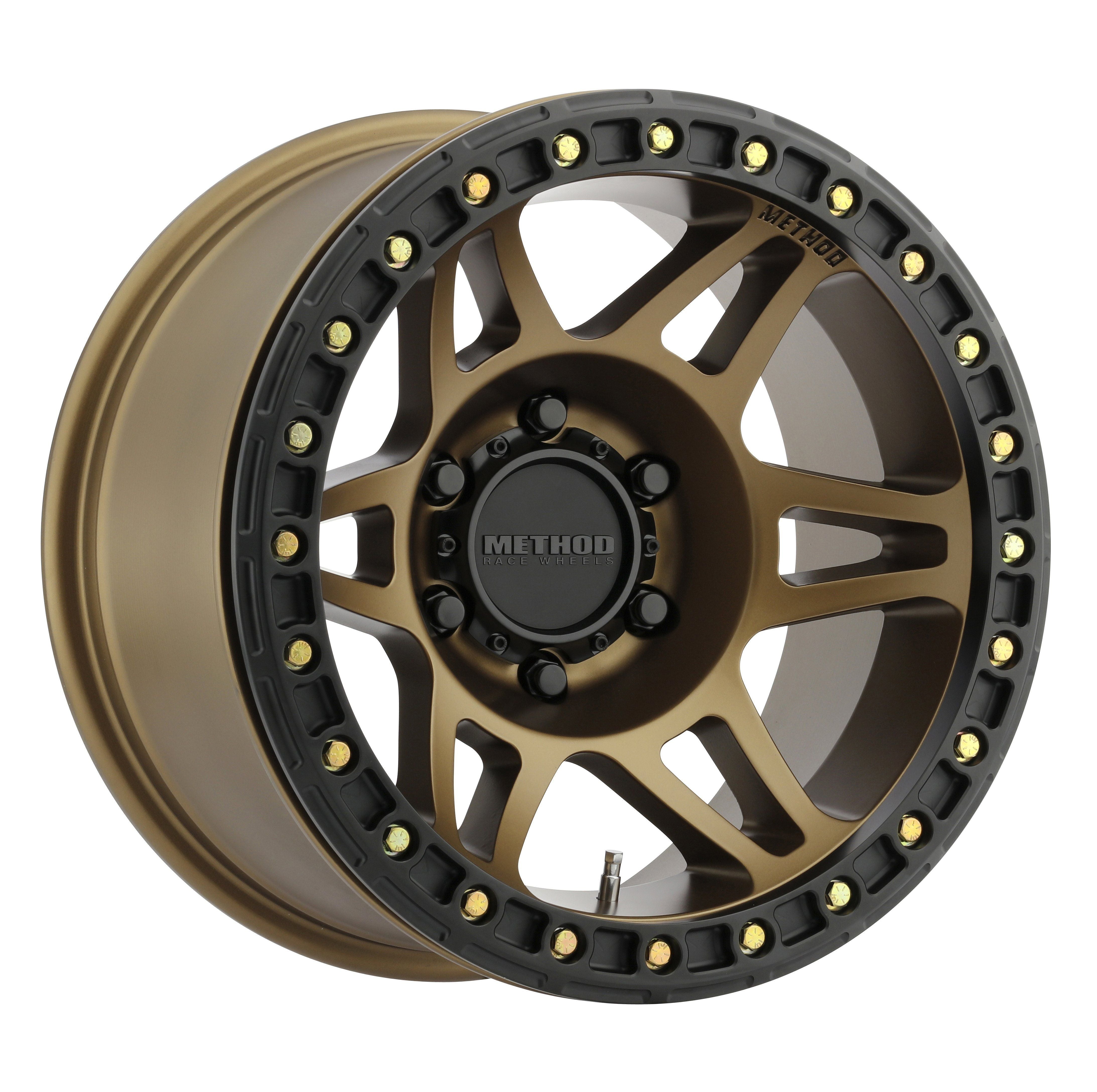

17 9.0 5x5 5 5 -44 3.50 N/A 71.5 3600 Method Bronze MR10679050944B
17 9.0 6x5.5 6 139.7 -44 3.50 N/A 108.0 3600 Matte Black MR10679060544B
17 9.0 6x5.5 6 139.7 -44 3.50 N/A 108.0 3600 Method Bronze MR10679060944B
17 9.0 BLANK BLANK BLANK -44 3.50 N/A 71.5 3600 Matte Black MR10679000544B
17 9.0 BLANK BLANK BLANK -44 3.50 N/A 71.5 3600 Method Bronze MR10679000944B
