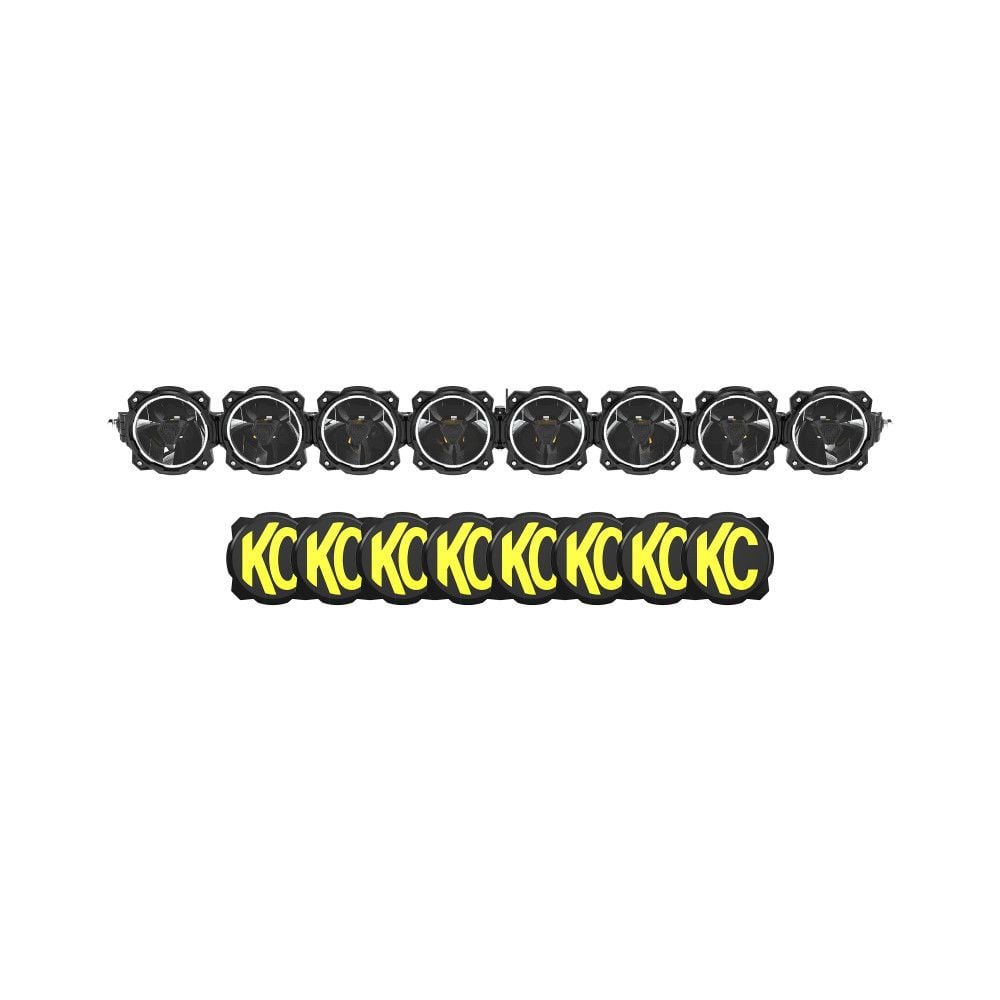

KC HiLiTES Gravity Titan LED Light Bar
KC HiLiTES Gravity Titan LED Light Bar
KC HiLiTES Gravity Titan LED Light Bar

KC HiLiTES

KC HiLiTES Gravity Titan LED Light Bar

$1,149.99
SKU: 91413
Size:

Size

KC HiLiTES Gravity Titan LED Light Bar

20"

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Overview:

The Gravity® Titan™ series elevates the beloved Pro6 lights, increasing brightness, expanding coverage, and integrating an Amber Dust Light for the ultimate, no-compromise lighting solution. The Titan Light Bars revolutionize off-road lighting, merging KC's pioneering linkable and curvable design of the Pro6 but amping up the performance.

At their heart lies the innovative Titan Core, driving 3 LEDs per optics, delivering a 1.3x larger Illumination Zone, 1.7x brighter output, and 1.3x more beam distance than the Gravity Pro6. At the flip of the switch, alter between High Power Mode for intense output and an integrated Amber Dust Light for others to easily see you in dusty conditions. Featuring a patented Pass-Through Front Cooling system, the Titan ensures peak performance and durability, even in high-heat, high-demand situations.

After experiencing the unparalleled lighting power of the Gravity® Titan™, you'll never look back.

FEATURES:
  • Dual Power Modes:
    • Amber LED Dust Light: Acts as a marker light to be seen with in low-visibility conditions.
    • High-Power Mode: Offers intense lighting for nighttime trail use.
  • Titan Core:
    • Patented Pass-Through Front Cooling: Provides superior thermal management.
    • 3-Source LED Optics: Delivers comprehensive lighting coverage - short, mid, and long-range.
  • Linkable and Curvable: Patented Infinity Ring®️ system offers expandable widths and the option to curve or straighten your setup.
  • Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light.
  • MoistureBlock® Technology: An integrated plug built directly into the housing to keep water out, while maintaining a secure connection.
Specs:
  • Light Technology: LED
  • Location on Vehicle: Overhead
  • Lumens: 2,972 lm
  • Total Lumens By Size:
    • 20" - 8,916 lm
    • 26"-11,888 lm
    • 32"-14,860 lm
    • 39"-17,832 lm
    • 45"-20,804 lm
    • 50"-23,776 lm
    • 57"-26,748 lm
  • Beam Distance: 936 m
  • Wattage Per Light: 39W
  • Total Wattage by Size:
    • 20"-118W
    • 26"-158W
    • 32"-197W
    • 39"-237W
    • 45-276W
    • 50"-316W
    • 57"-355W
  • Voltage: 9V-36V
  • Amp Draw: 3.29 a
  • Total Amp Draw by Size:
    • 20"-9.87 a
    • 26"-13.16 a
    • 32"-16.45 a
    • 39"-19.74 a
    • 45"-23.03 a
    • 50"-26.32 a
    • 56"-29.61 a
  • Beam Pattern: Combo
  • Light Temperature: 5000K
  • DOT Compliant: No
  • SAE/ECE: No
  • Lens Color: Clear
  • Light Color: Amber / White
  • Material: Aluminum Alloy
  • UPC: 084709914172
  • Color: Black
  • In The Box: 1 x 45" Gravity®️ Titan™ LED Light Bar - 7-Light, 7 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
  • IP rating: IP68
  • Prop 65: No
  • Size: 45"
