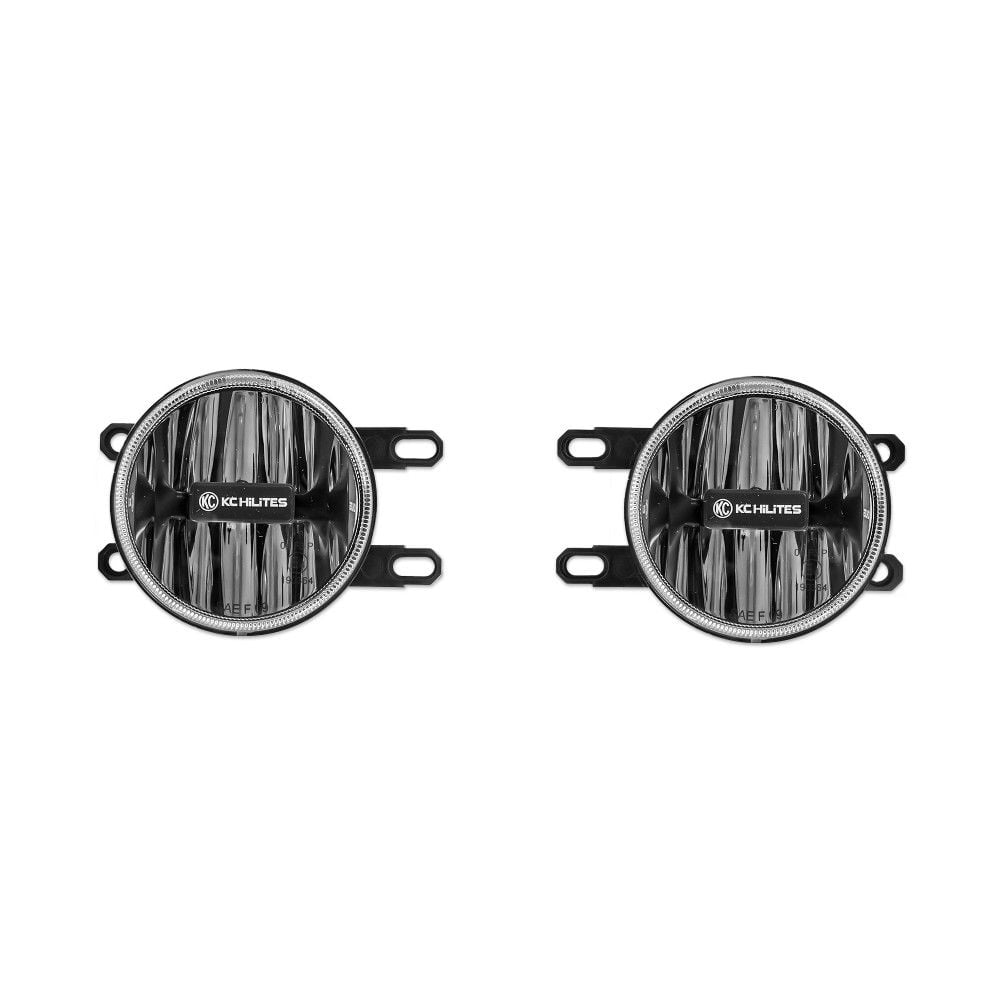

KC HiLites Gravity LED G4 Fog Light Pair Pack System - Toyota
KC HiLites Gravity LED G4 Fog Light Pair Pack System - Toyota

KC HiLiTES

KC HiLites Gravity LED G4 Fog Light Pair Pack System - Toyota

$389.99
SKU: 0500

KC HiLites Gravity LED G4 Fog Light Pair Pack System - Toyota

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Overview:

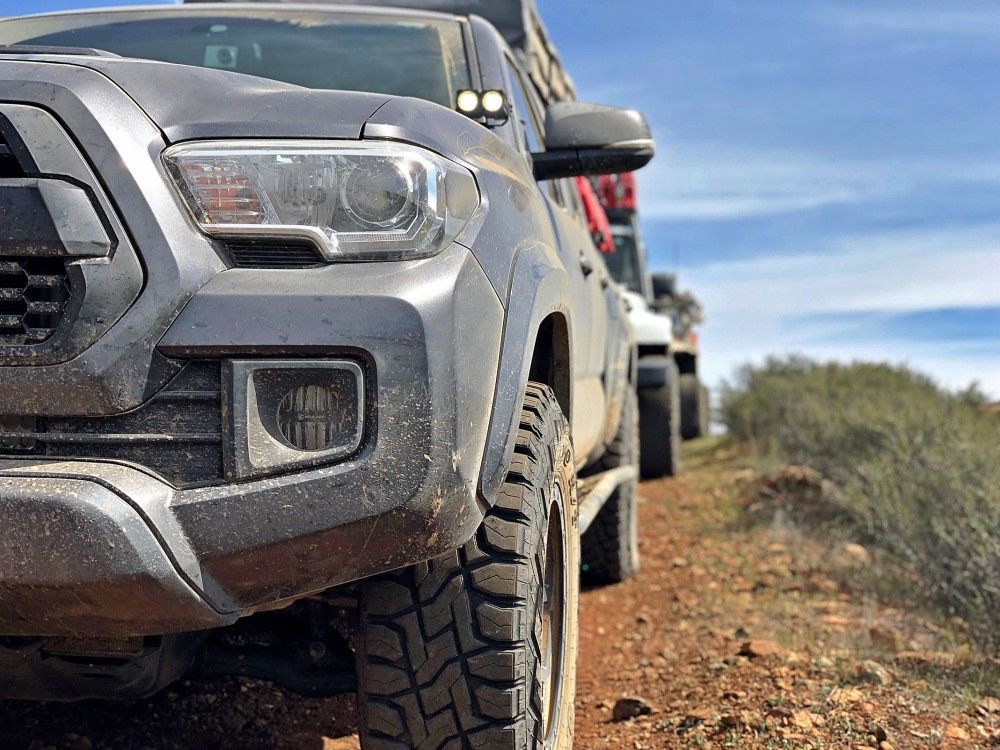

KC's Fog Light Bracket/LED upgrade allows mounting of KC Gravity® G4 LED fog lights to Tacoma's OEM fog lamp locations. Brackets gives your G4 fog lights a clean, factory installed look without having to drill or cut your bumper.

Features:
  • 2 x 10W 4" Gravity® LED Fog Lights
  • Lightweight Magnesium Housing for Maximum Heat Dissipation
  • UV Treated Shatter Resistant Polycarbonate Lens
  • Street Legal Fog Beam Pattern
LIGHT PERFORMANCE (PER LIGHT):
  • Raw Lumens: 866 lm
  • Compliance: SAE J583 & ECE-R19
  • Lux @ 10 Meters: 150 lx
  • Candela: 150,000 cd
  • Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT):
  •  -Wattage: 10W
  •  -LED Source: CREE XP-G R4
  •  -Color: 5000K
  •  -Amp Draw: .74A
  •  -Voltage: 9V-32V
  •  -IP Rating: IP68
  •  -Dimensions: W - 3.94" x H - 3.94" x D - 2.97"
Parts Included:
  • (2) 10W 4" Gravity® G4 LED Fog lights and Brackets for 12-23 Toyota Tacoma
  • H11 Wiring Harness w/ 2-Pin weather-proof connectors
TOYOTA AND LEXUS OE FOG LIGHT MOUNTING:

KC's G4 LEDs fits various 06-22 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output.

KC's Gravity G4 Toyota LED Fog Light Fits:
  • 12-23 Toyota Tacoma
  • 14-21 Toyota Tundra
  • 10-24 Toyota 4Runner
  • 06-12 Toyota Rav4
  • 13-15 Lexus: IS,ES,GS,RX,LX
GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision-designed reflectors to capture all the light and project it forward.

STREET LEGAL FOG BEAM PATTERN:

Fog Beam- Provides a low, wide-angle light pattern that increases visibility in conditions like dust, fog, snow and rain.

STRENGTH & DURABILITY:

Using high-quality electroplated aluminum housing and Polycarbonate lens in a self-contained housing, impermeable to dust and moisture.

Specs:
  • Compliance DOT/SAE/ECE: SAE J583, ECE R19 (Fog)
  • Light Technology: LED
  • Location on Vehicle: Bumper, Fog Pocket
  • Lumens: 866 lm
  • Beam Distance: 245 m
  • Total Wattage: 20W
  • Voltage: 9V-32V
  • Amp Draw: 1.67 a
  • Beam Pattern: Fog
  • DOT Compliant: No
  • SAE/ECE: Yes
  • Lens Color: Clear
  • Light Color: White
  • Product Dimensions: W - 3.94" x H - 3.94" x D - 2.97"
  • Material: Magnesium Alloy
  • Finish: Black
  • Color: Black
  • In The Box: 2 x 4" Gravity® LED Clear Fog Light (Toyota Specific Housing), H11 Wire Harness
  • IP rating: IP68
  • Prop 65: No
  • Size: 4"
