KC HiLites 7" Gravity® LED Pro DOT Headlight - Driving Beam - Single - Universal / 07-18 Jeep JK

$434.99
SKU: 4234

KC HiLites 7" Gravity® LED Pro DOT Headlight - Driving Beam - Single - Universal / 07-18 Jeep JK

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Overview:

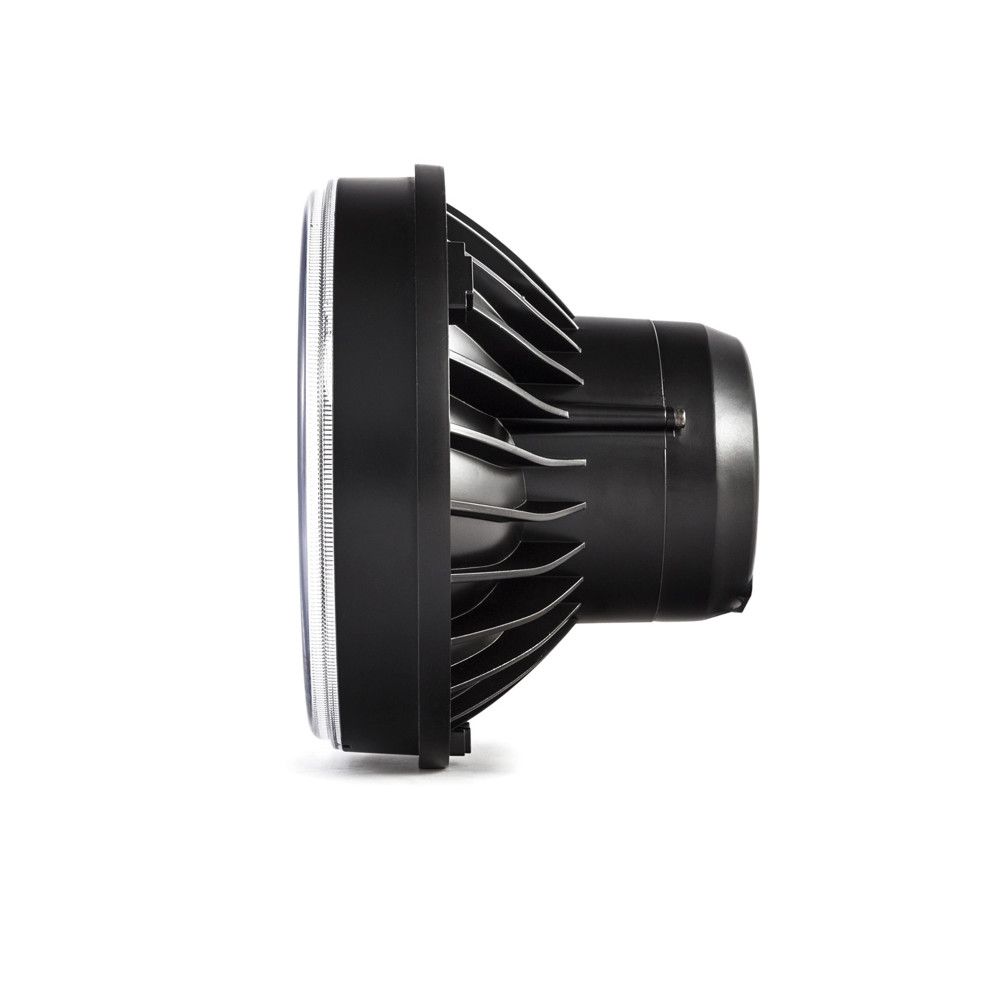

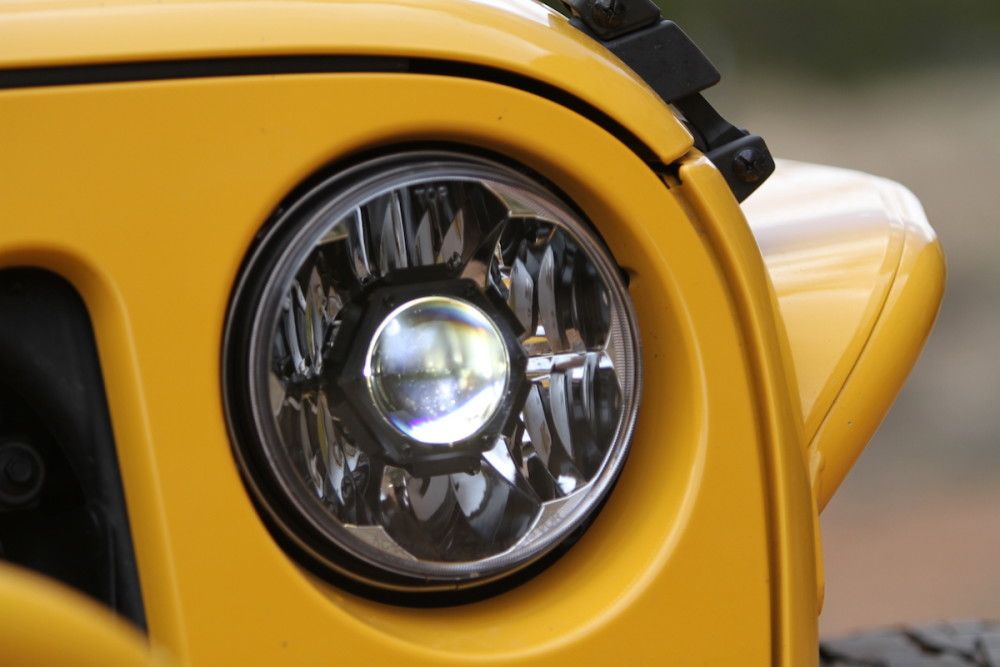

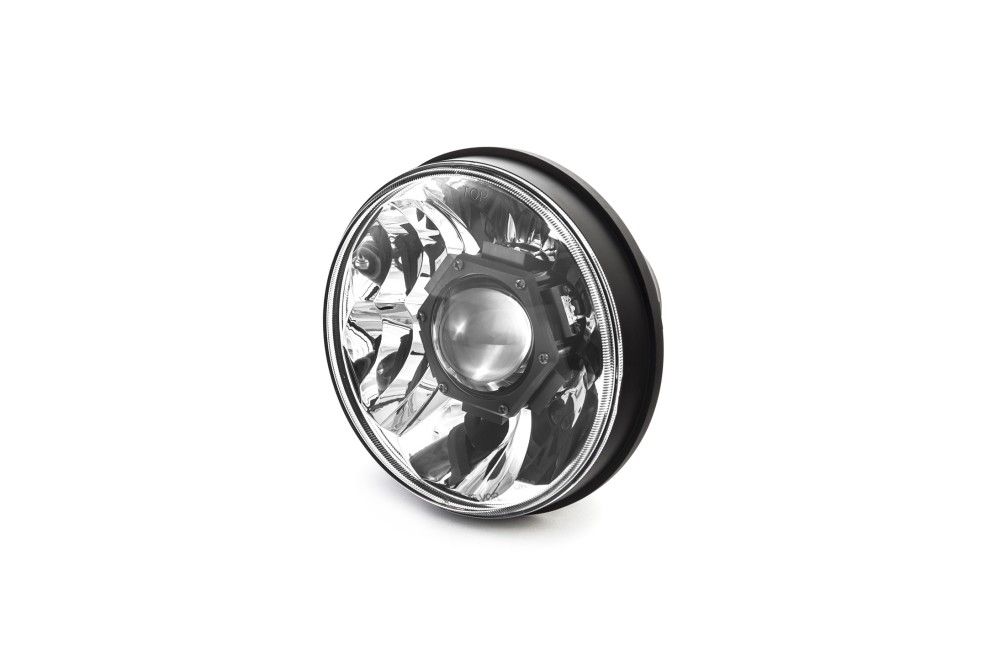

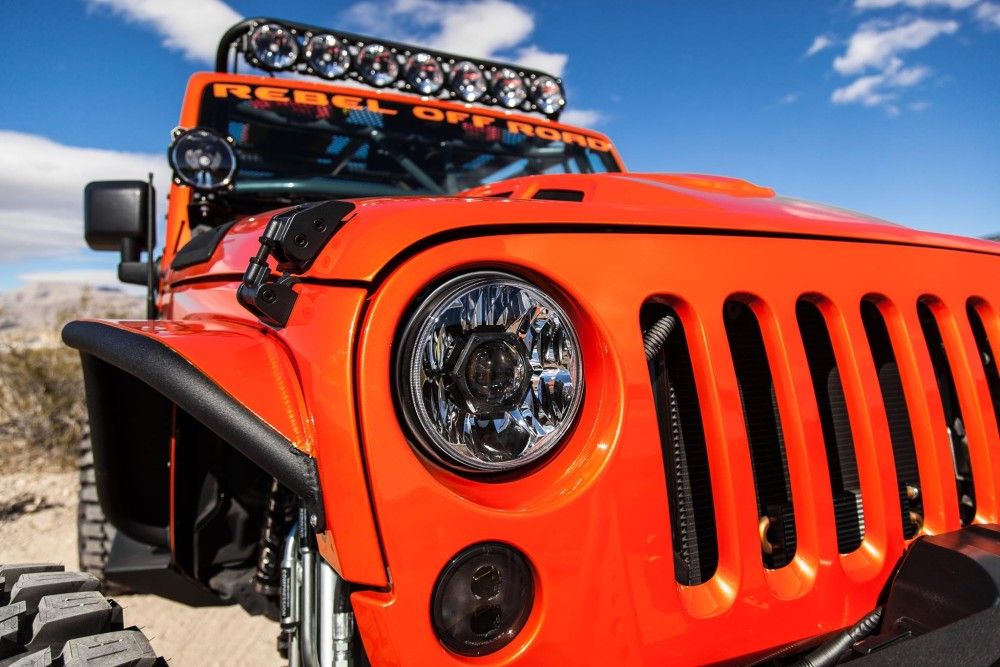

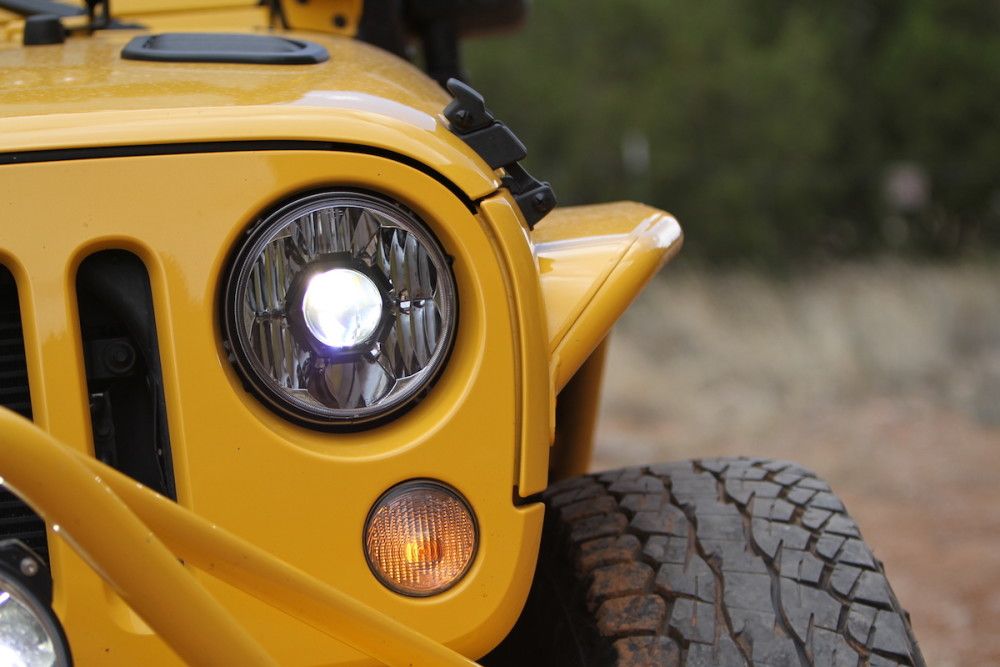

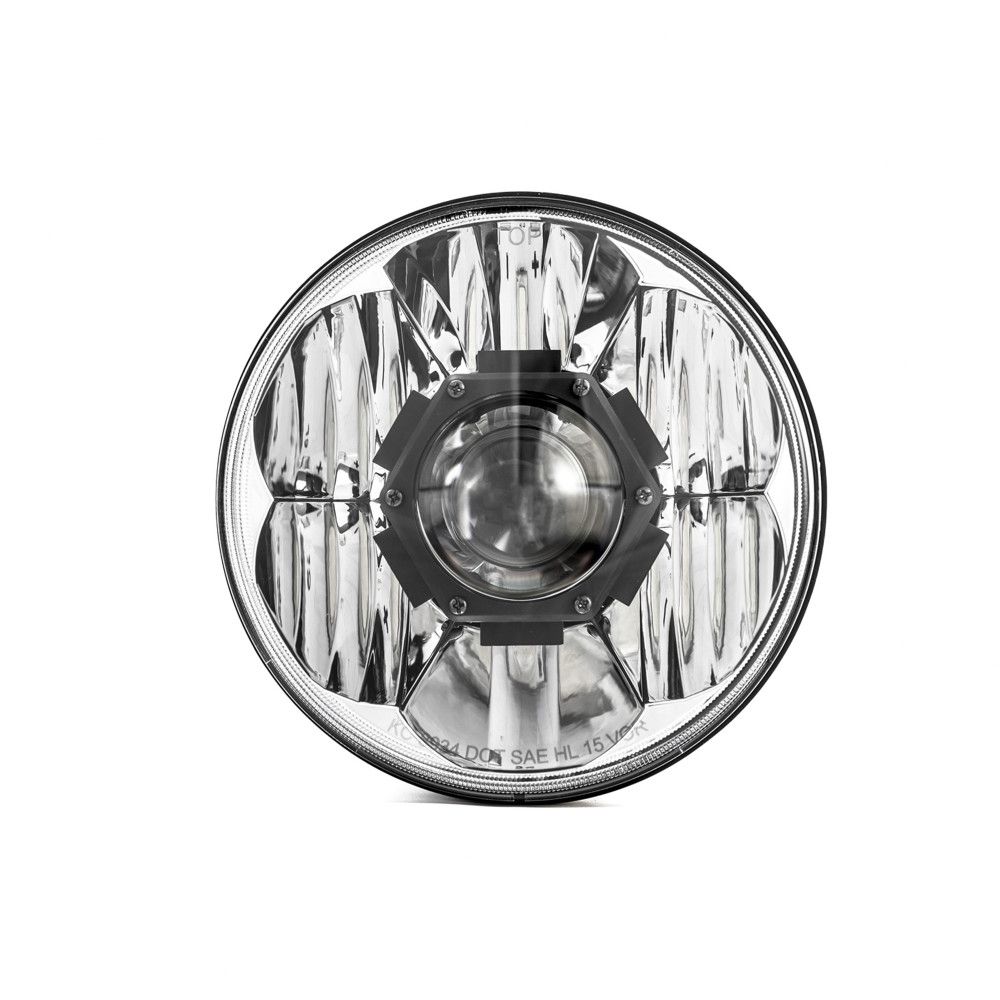

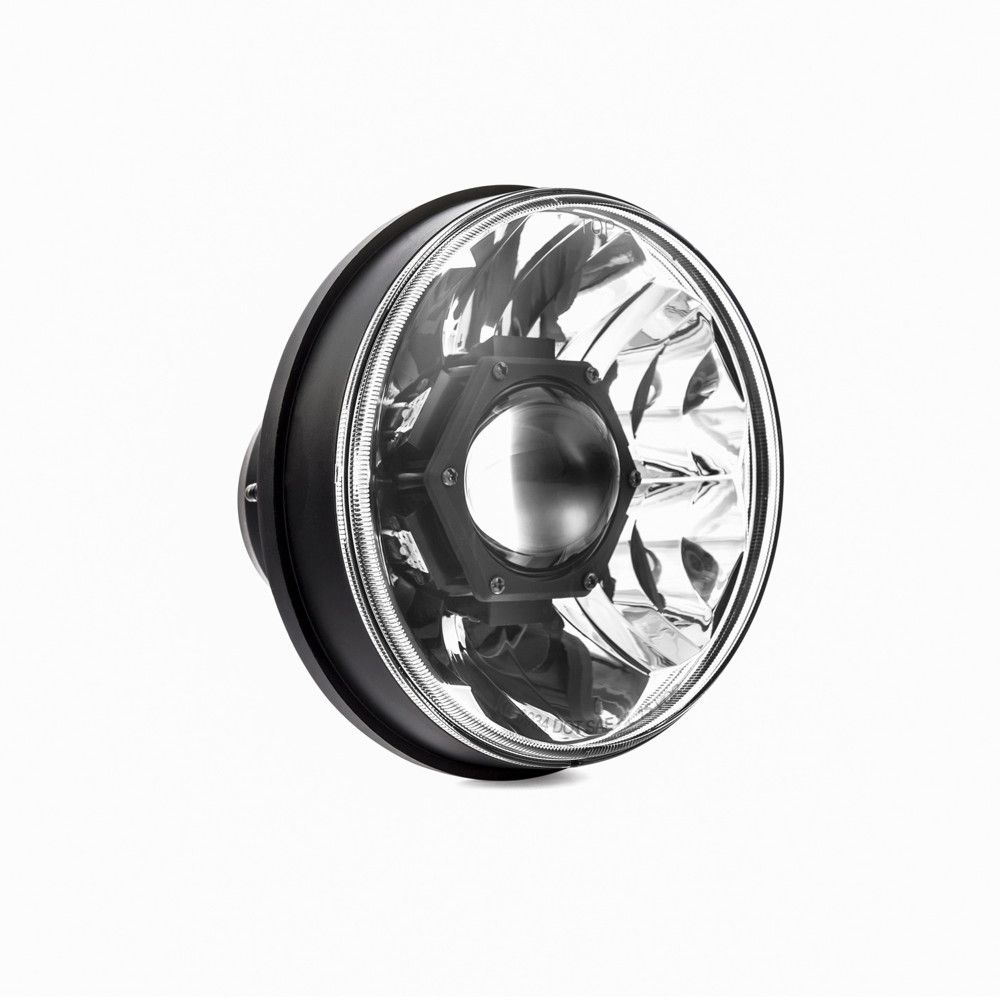

KC's Gravity LED Pro 7" Headlight is a DOT compliant Jeep Wrangler JK replacement

Features:
  • 40W Patented Gravity Projector Optics (GPO)
  • DOT Compliant High/Low Beams with Day Running Light Support (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
  • Hard Coated Polycarbonate Lens
  • Precision Die-Cast Aluminum Housing
  • Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights
  • These lights are sold individually

Note: Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

Harness & Wiring: Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

LIGHT PERFORMANCE:
  • Raw Lumens: Low- 2,967 lm, High-  2,575 lm, DRL- 386 lm
  • Lux @ 10 Meters: Low- 400 lx, High- 700 lx
  • Candela: Low- 40,000 cd, High- 70,000 cd
  • Beam Distance: Low- 400m, High- 529m
SPECIFICATIONS:
  • Wattage: Low- 20W, High- 30W, DRL- 1.35W
  • LED Bulb: CREE: XP HI/XPG2
  • Color Temp: 5000K
  • Amp Draw: 1.88A
  • Voltage: 9V-18V
  • IP Rating: IP68
  • Product Dimensions: W - 6.96" x D - 5.098"
GRAVITY LED EXTREME OUTPUT AND EFFICIENCY:

The Gravity LED Pro 7" headlight uses KC's newly patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.

HIGH-PERFORMANCE LED OPTICS:

The Gravity LED Pro 7" Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.

HIGH/LOW/DRL FUNCTIONS:

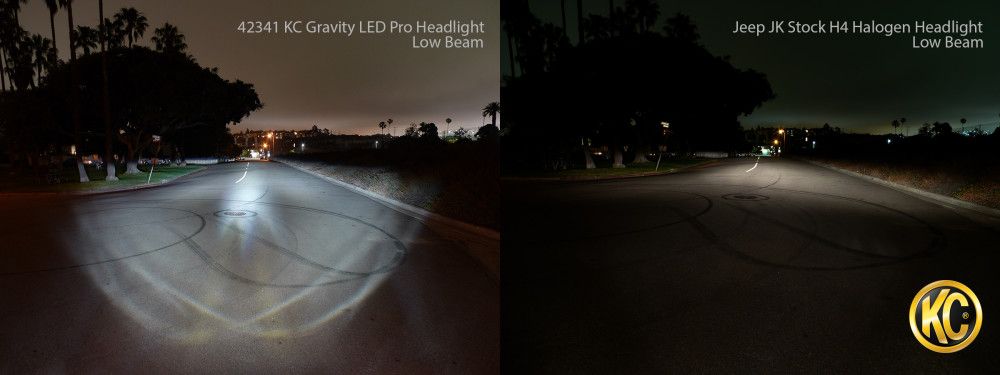

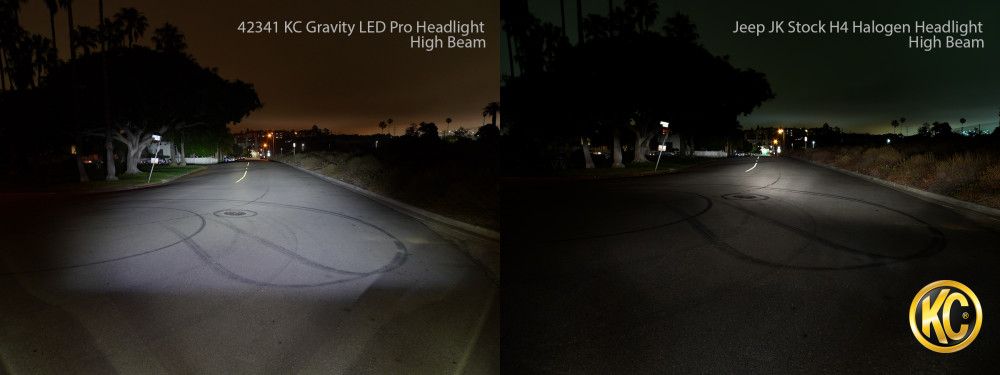

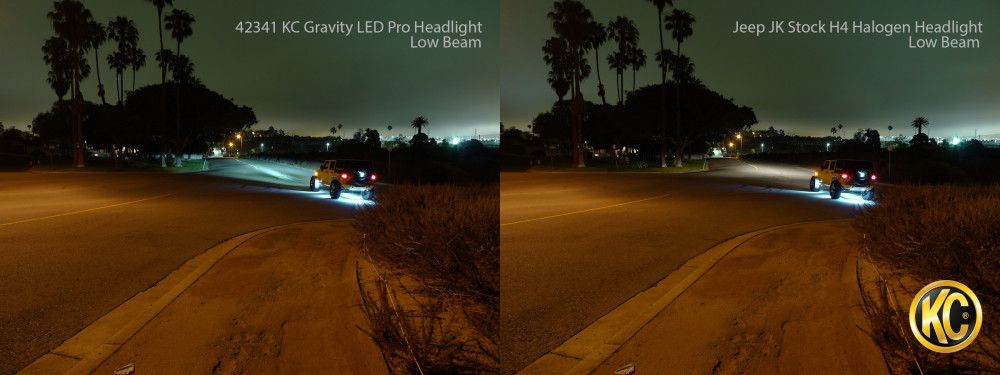

High/Low beams with DRL functionality come standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.

DESIGNED FOR DURABILITY:

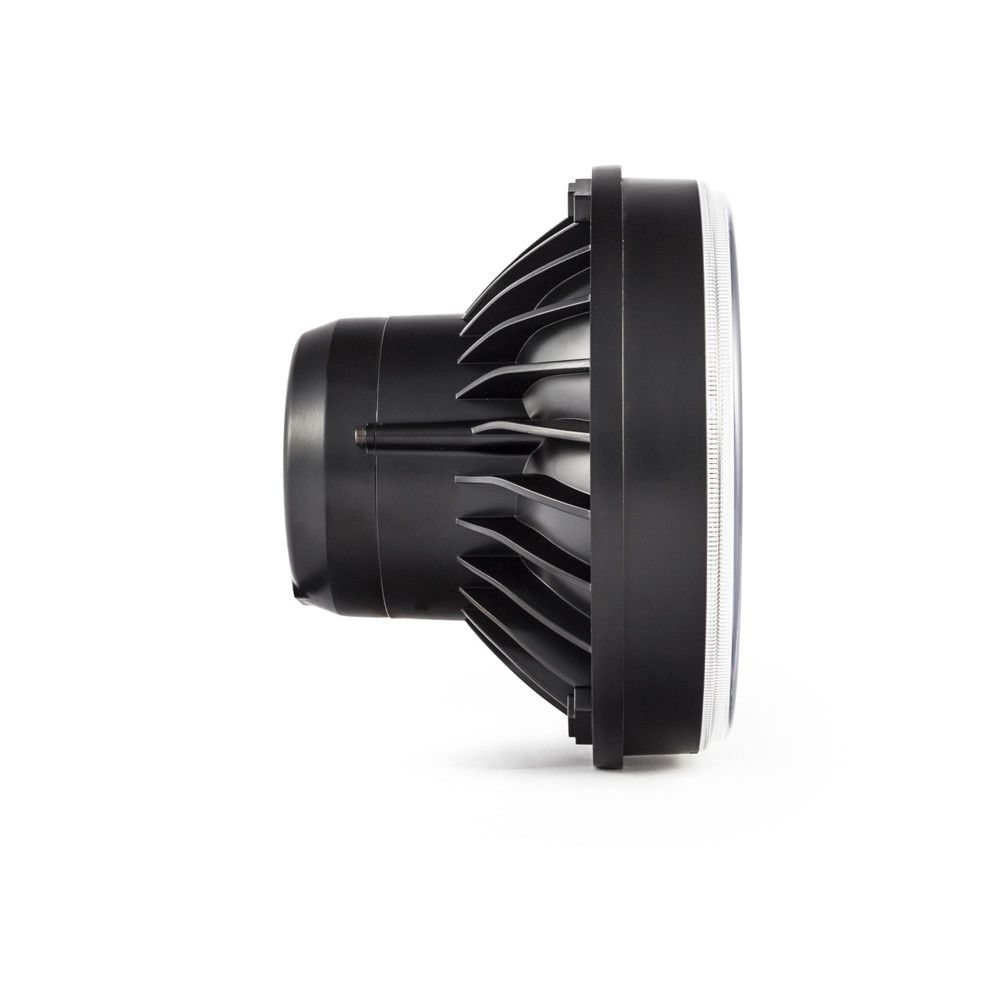

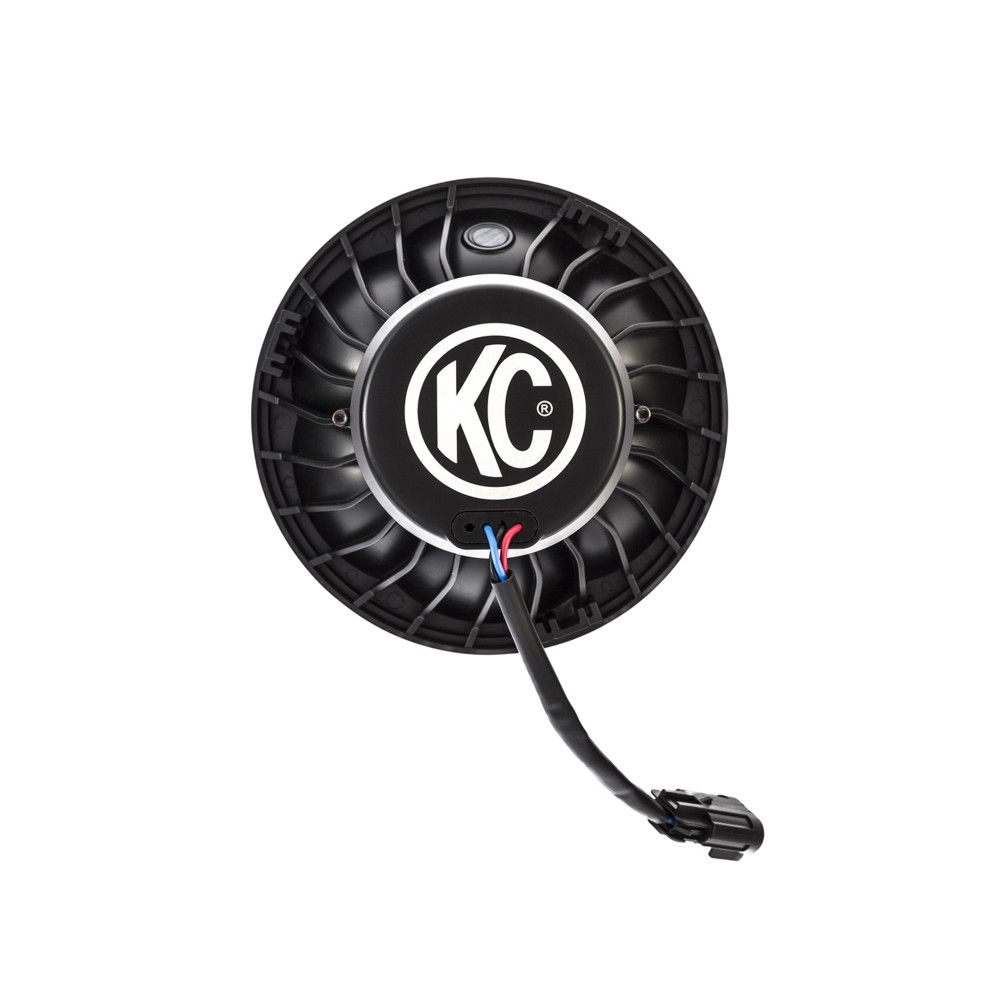

Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains, and driving conditions.

Specs:
  • Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
  • Light Technology: LED
  • Location on Vehicle: Headlight
  • Lumens: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
  • Beam Distance: 529 m
  • Total Wattage: 40W
  • Voltage: 9V-18V
  • Amp Draw: 3.3 a
  • Beam Pattern: Driving
  • DOT Compliant: Yes
  • SAE/ECE: Yes
  • Lens Color: Clear
  • Light Color: White
  • Product Dimensions: W - 6.96" x D - 5.098"
  • Material: Aluminum Alloy
  • Finish: Black
  • In The Box: Gravity® LED Pro 7" DOT Jeep JK 07-18 Headlight
  • Prop 65: No
  • Size: 7"
