Overview:

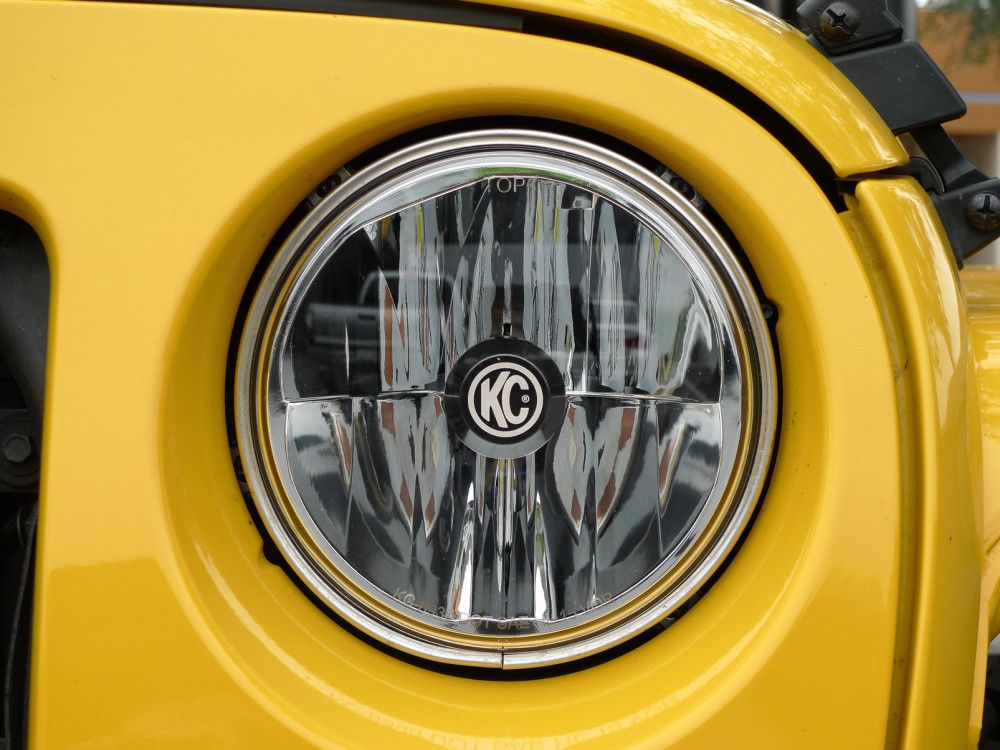

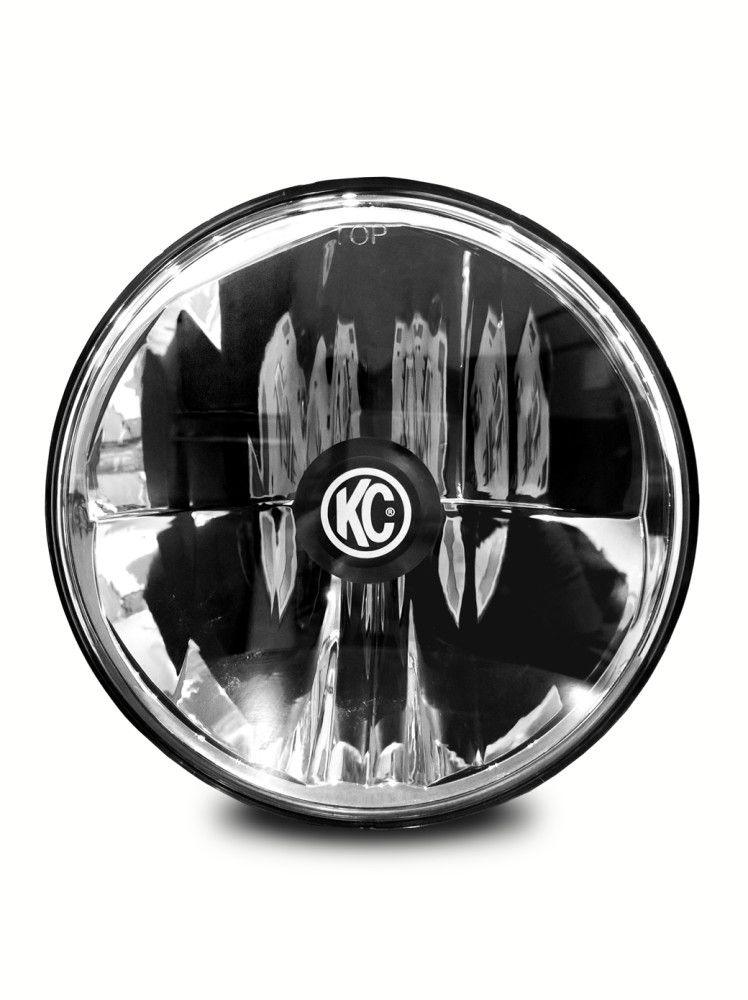

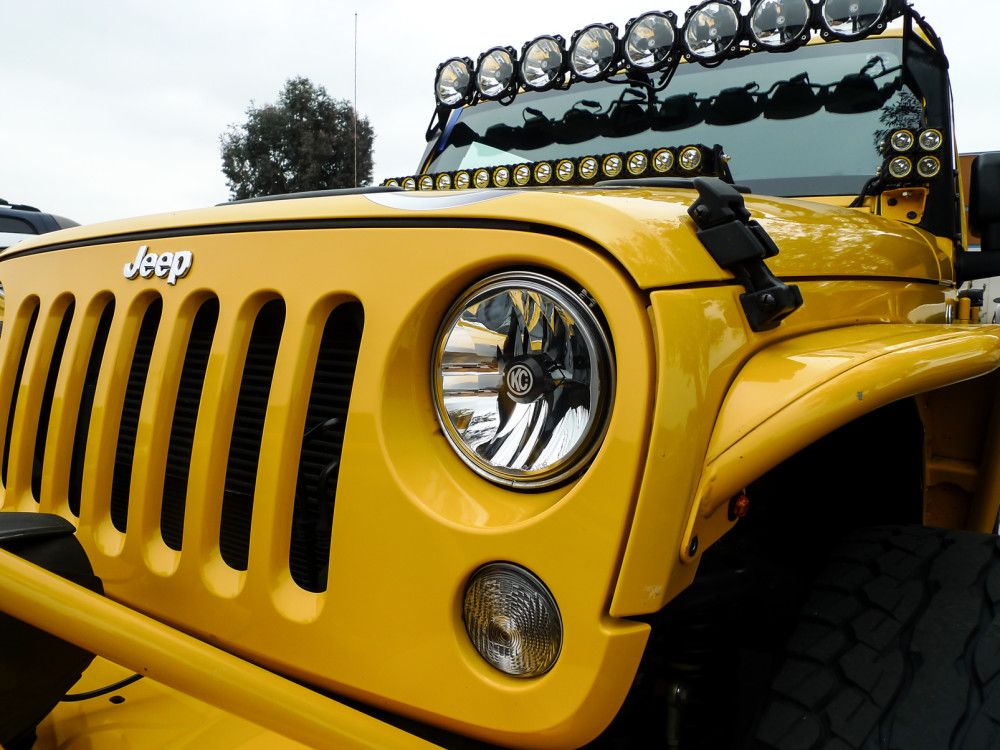

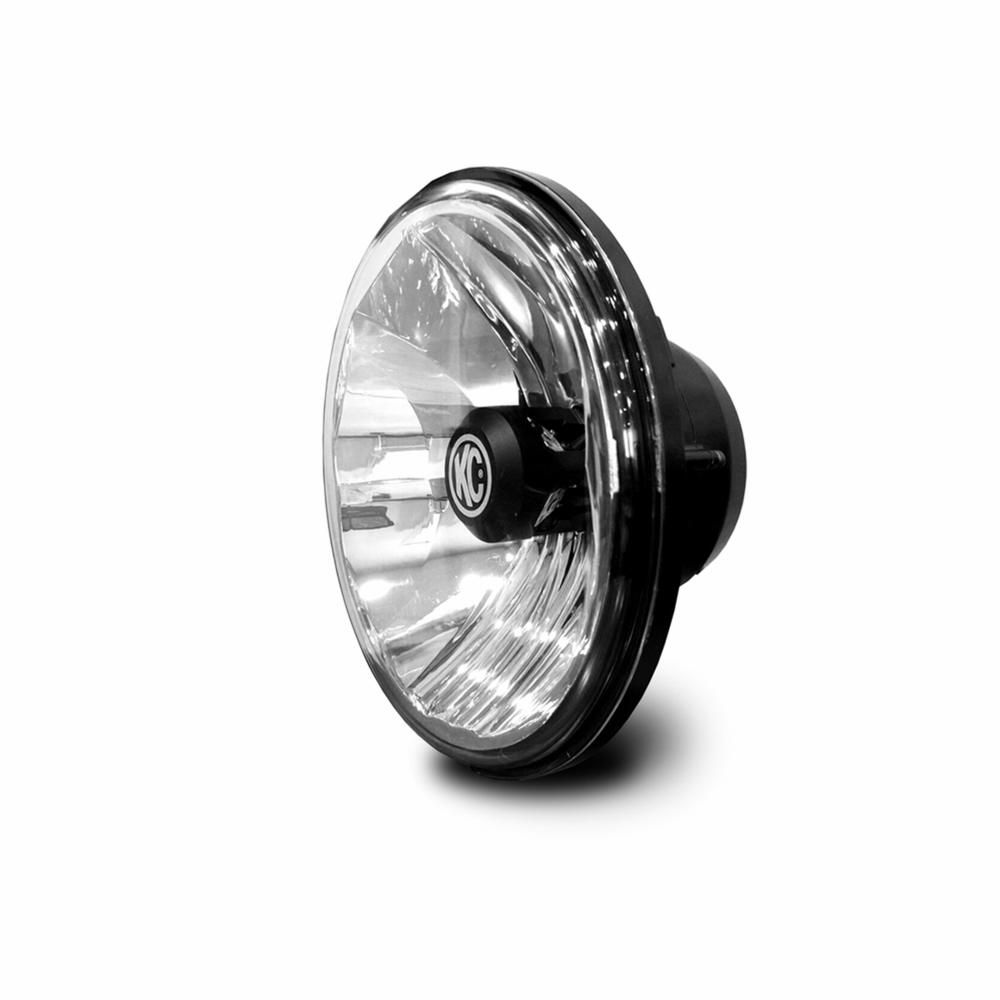

KC HiLiTES Gravity LED 7" Jeep JK Headlight features bright CREE LEDs for DOT compliant Low/High beam for 07-18 Jeep JKs. Die-cast aluminum housing using KC Gravity Reflective Diode with polycarbonate lens for optical clarity and output.

Features:
  • 40W Gravity® LED 7" Headlight
  • Hard Coated Polycarbonate Lens
  • Full Plug-n-Play for 07-18 Jeep JK Wrangler
  • Precision Die-Cast Aluminum Housing
  • KC Engineered Polished Reflector Optics
  • DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
  • This light is sold individually, quantity 2 is needed to complete one Jeep JK.

Harness & Wiring: Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

LIGHT PERFORMANCE (PER LIGHT):
  • Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
  • Compliance: SAE J851 & ECE-R112
  • Lux @ 10 Meters: Low- 415 lx, High- 775 lx
  • Candela: Low- 41,500 cd, High- 77,500 cd
  • Beam Distance: Low- 407m, High- 557m
SPECIFICATIONS (PER LIGHT:
  • Wattage: Low- 18W, High- 22W
  • LED Bulb: CREE XHP35 HI and Nichia
  • Color Temperature: 5000K
  • Amp Draw: 1.88A
  • Voltage: 9V-18V
  • IP Rating: IP68
  • Product Dimensions: W - 6.96" x D - 3.72"
PARTS INCLUDED:

 -Plug and Play H13 Connector for Jeep JK

GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN:

KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.

DESIGNED FOR DURABILITY:

Surrounding our Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Specs:
  • Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
  • Light Technology: LED
  • Location on Vehicle: Headlight
  • Lumens: 1260 lm
  • Beam Distance: 557 m
  • Total Wattage: 40W
  • Voltage: 9V-18V
  • Amp Draw: 3.3 a
  • Beam Pattern: Driving
  • DOT Compliant: Yes
  • SAE/ECE: Yes
  • Lens Color: Clear
  • Light Color: White
  • Product Dimensions: W - 6.96" x D - 3.72"
  • Material: Aluminum Alloy
  • Finish: Black
  • In The Box: Gravity® LED 7" DOT Jeep JK 2007-2018 Headlight
  • Prop 65: No
  • Size: 7"
