KC HiLites 6" Daylighter Halogen

$112.99
SKU: 1238
Beam Pattern:

Beam Pattern

KC HiLites 6" Daylighter Halogen

Spot

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Overview:

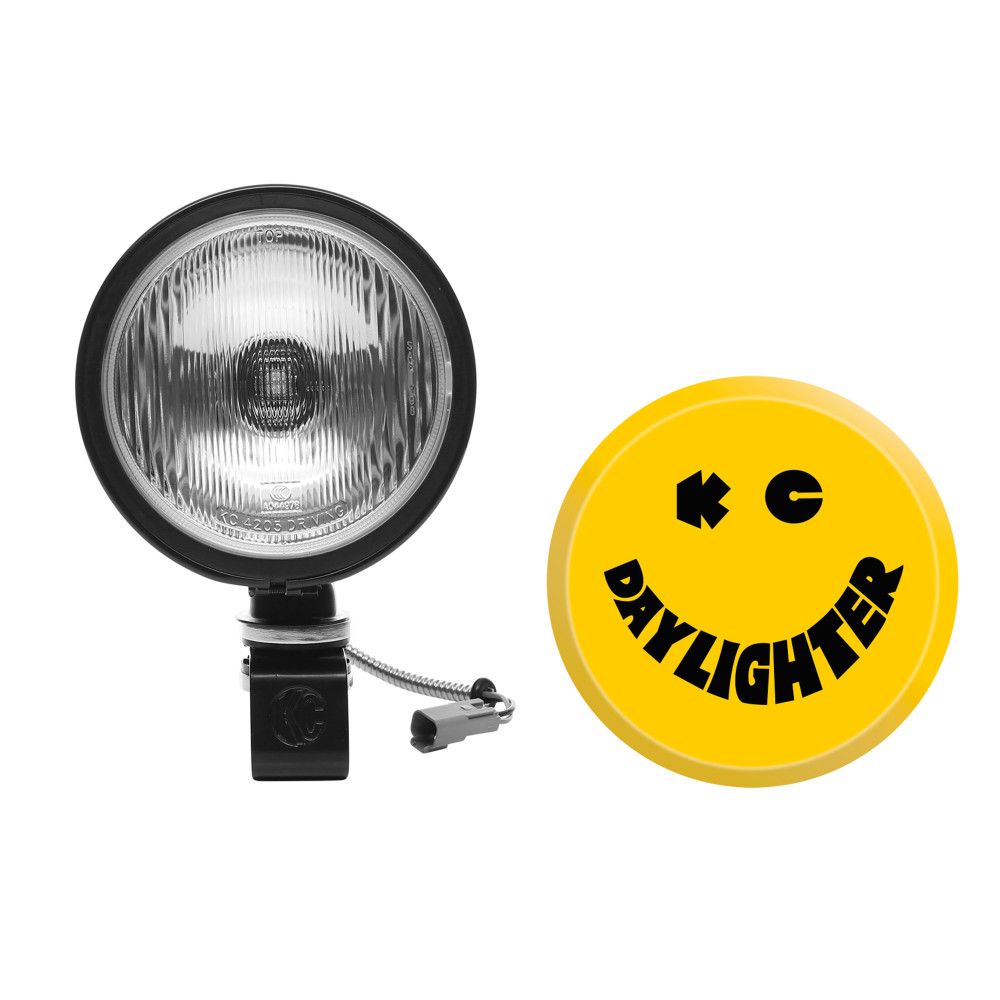

KC's Classic 6" Daylighter Halogen feature powerful 100w H3 Halogen Bulbs in a Spot Beam. Available in black powder coat, chrome or stainless steel housings. Also comes with KC Hilites Iconic Smiley Face light covers.

Harness & Wiring: Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.


Features:
  • 100W Halogen Bulb
  • Black Steel Housing
  • Tempered Glass Lens
  • Spot Beam Pattern

**NOTE: Please keep in mind that the wiring harness is not included in the Single version of this light, but its is included in the Pair Pack / System version.

LIGHT PERFORMANCE (PER LIGHT):
  • Raw Lumens: 2,452 lm
  • Lux @ 10 Meters: Spot- 1,962 lx
  • Candela: Spot- 196,200 cd
  • Beam Distance (Meters): Spot- 886m
SPECIFICATIONS (PER LIGHT)
  • Wattage: 100W
  • Amp Draw: 8.3A
  • Voltage: 9V-32V
  • IP Rating: IP68
  • Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"
PERFORMANCE HALOGEN AND PRECISION OPTICS:

6" Daylighter Halogens deliver up to 1,962 lx @10m of light output with a beam distance of 886 meters. Tempered glass lens, precision optical reflectors with bright H3 Halogen bulbs combine to improve range and clarity.

AVAILABLE BEAM PATTERN AND ADVANTAGES:

Different beam patterns offer specific lighting benefits to meet your lighting needs.
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION:

Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY:

The race-proven steel housing combined with over 40 years of testing to provide a strong and durable combination that will withstand the most severe conditions.

Specs:
  • Light Technology: Halogen
  • Location on Vehicle: A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
  • Lumens: 2,452 lm
  • Beam Distance: 886 m
  • Total Wattage: 100W
  • Voltage: 9V-32V
  • Amp Draw: 8.3 a
  • Beam Pattern: Spot
  • DOT Compliant: No
  • SAE/ECE: No
  • Lens Color: Clear
  • Light Color: White
  • Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"
  • Material: Stainless Steel
  • Finish: Black
  • Color: Black
  • In The Box: 6" (Black) Daylighter Halogen Spot Beam light, Protective Light Cover
  • IP rating: IP68
  • Prop 65: No
  • Size: 6"
