'24+ Toyota Tacoma Stage 2 Suspension System

Icon Vehicle Dynamics

'24+ Toyota Tacoma Stage 2 Suspension System

$2,599.76 $3,249.70
Save $649.94
SKU: K53292TS
Quantity:

'24+ Toyota Tacoma Stage 2 Suspension System

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

OVERVIEW

ICON Vehicle Dynamics 2024 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.

This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind.

Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance.

Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.



features & Benefits
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • ICON engineered front and rear coil springs
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Tech Info:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
  • TECH NOTE: This kit is configured for fitment on 4WD models. If installing onto a 2WD 2024 Toyota Tacoma SR, SR5, or TRD Sport, front differential drop kit part number 55160 is not needed and the other suspension system components can be ordered individually with full system functionality. 2WD specific kits are coming soon!
  • TECH NOTE: Will not fit 2024 Toyota Tacoma TRD PreRunner or 2024 Toyota Tacoma Limited AWD

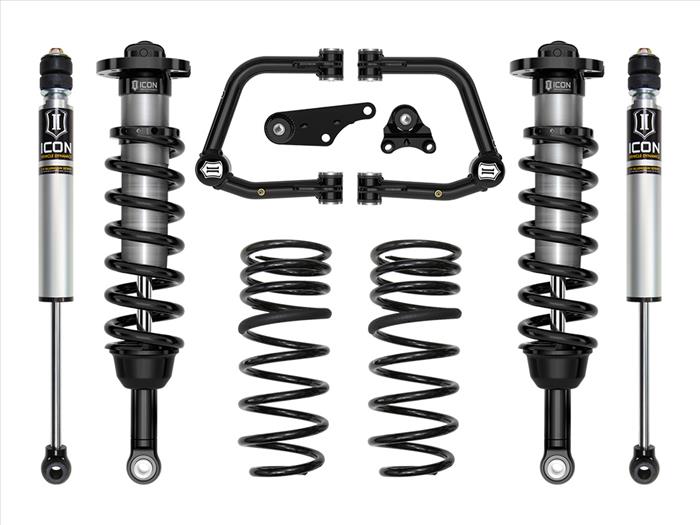

System Components:
  • 58680 (QTY: 1) | 24 TACOMA 2.5 VS IR COILOVER KIT
  • 58452DJ (QTY: 1) | 24 TACOMA TUBULAR UCA DJ PRO KIT
  • 55160 (QTY: 1) | 24 TACOMA DIFF DROP KIT
  • 56518 (QTY: 2) | 24 TACOMA 0-1" REAR 2.0 VS IR
  • 51213 (QTY: 1) | 24 TACOMA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
