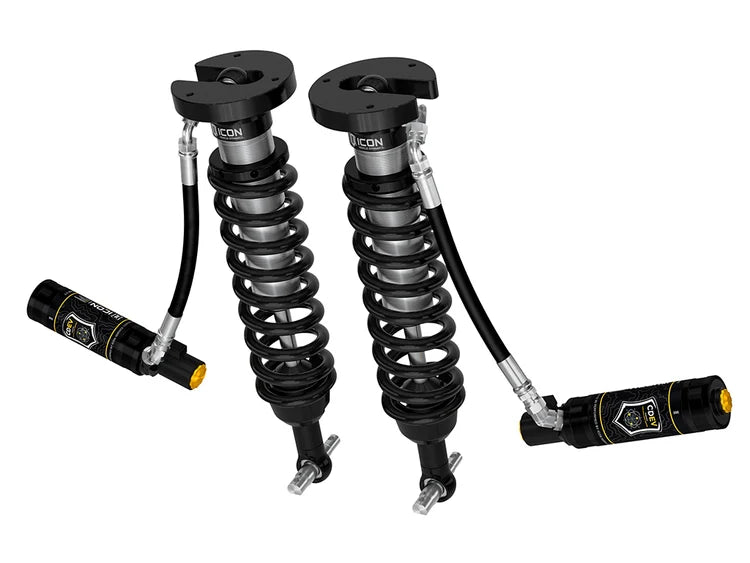

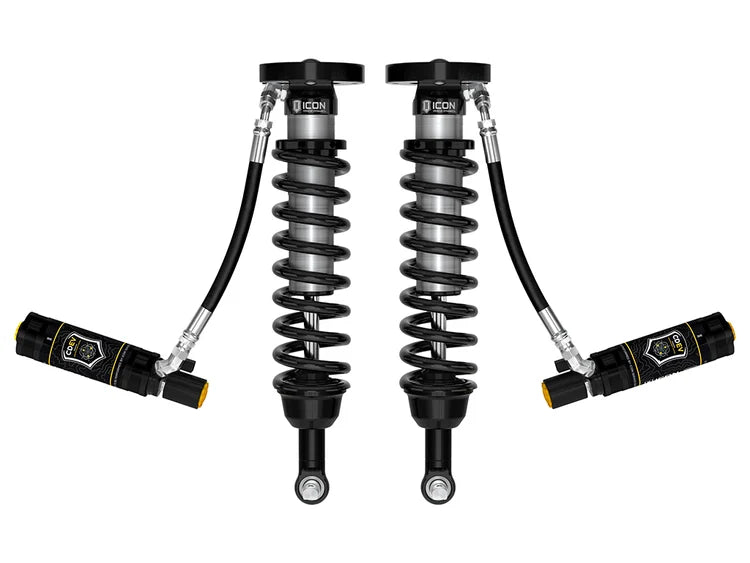

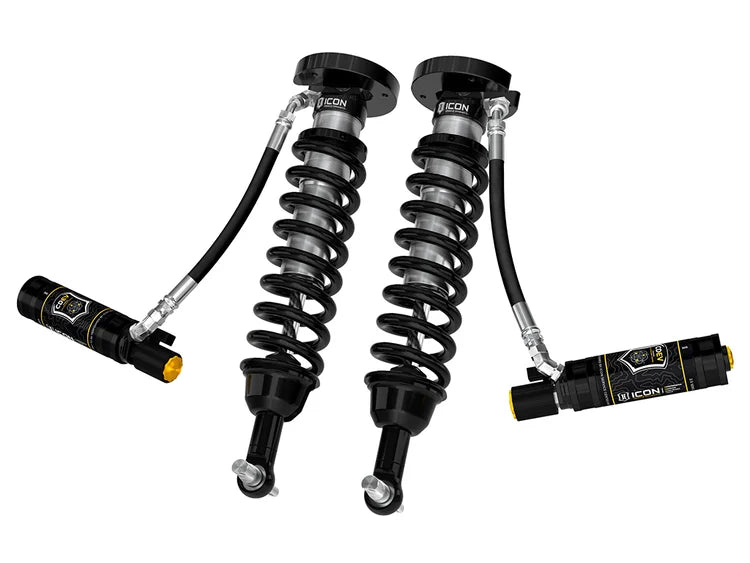

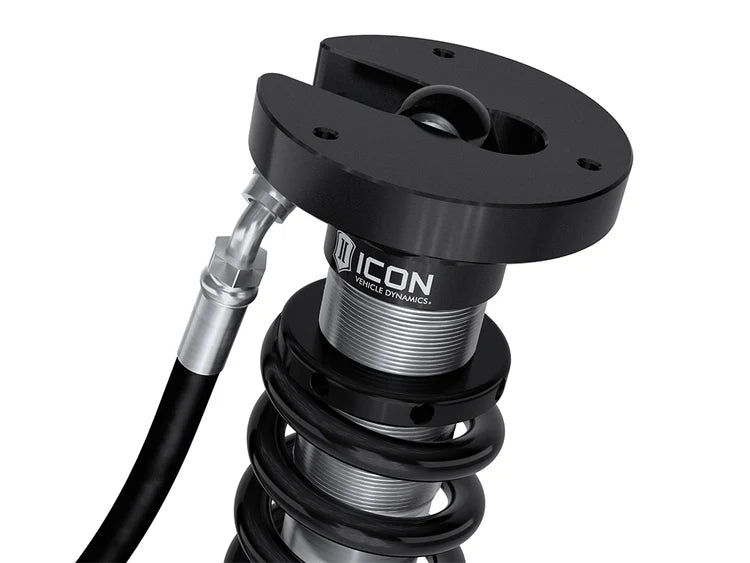

ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDEV, Pair
ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDEV, Pair
ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDEV, Pair
ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDEV, Pair

Icon Vehicle Dynamics

ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDEV, Pair

$2,599.95
SKU: 71656E
Quantity:

ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDEV, Pair

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:
The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2026 GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series rear shocks with CDEV, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.

Key Features
  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended offroad use
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Height-adjustable coilovers offer 1.5-3.5" of front lift height
  • ICON engineered coil springs
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no drilling or welding necessary for installation
Specifications
Brand ICON Vehicle Dynamics
UPC 840103437620
Shipping Width 12.00 in
Shipping Length 27.00 in
Shipping Depth 8.00 in
Shipping Weight 55.0000 LB
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
  • Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)
  • Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #110: Trimming required for recommended tire size
  • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
  • APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
  • APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022
  • APPLICATION NOTE #324: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 1.5-3.5" over stock. Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1.5" over stock.
  • APPLICATION NOTE #325: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1-3" over stock. Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1" over stock.
  • APPLICATION NOTE #326: Not compatible with models equipped with 4-cylinder engine
  • APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels
  • APPLICATION NOTE #335: Only fits models equipped with coil front springs
  • APPLICATION NOTE #338: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket rear shocks
