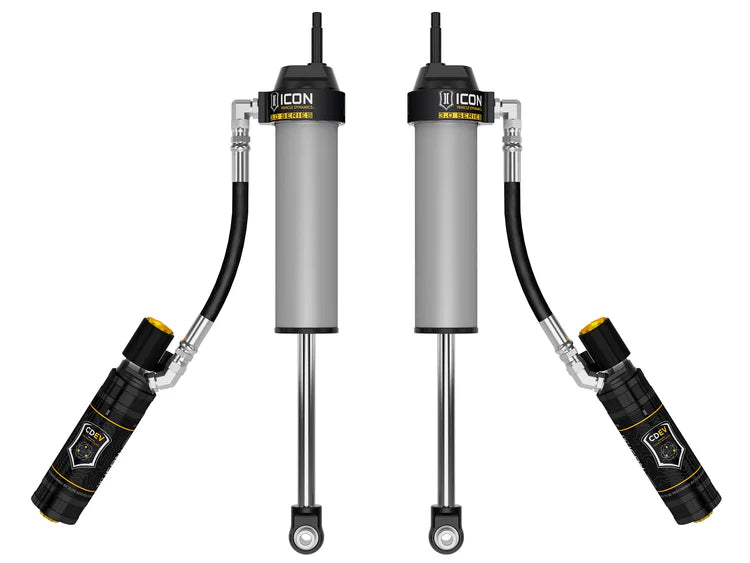

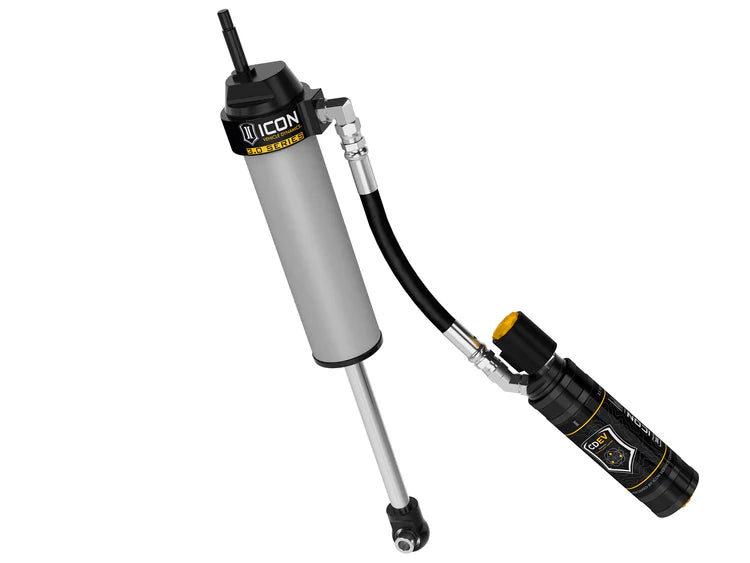

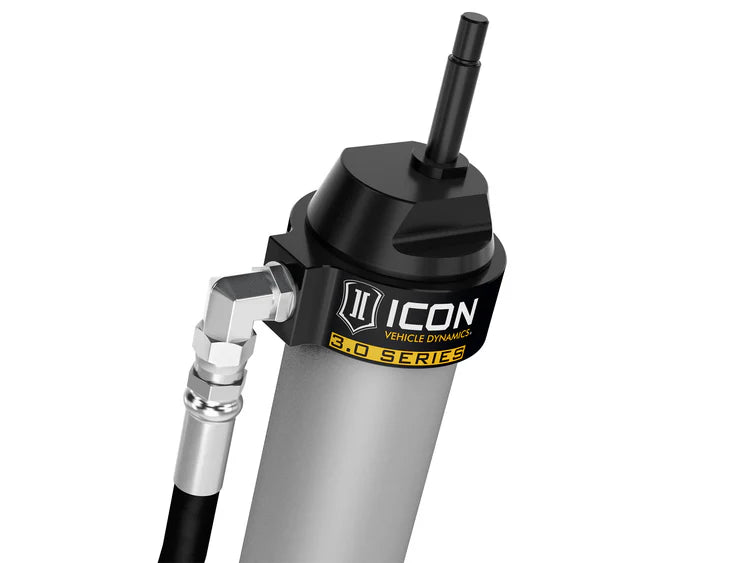

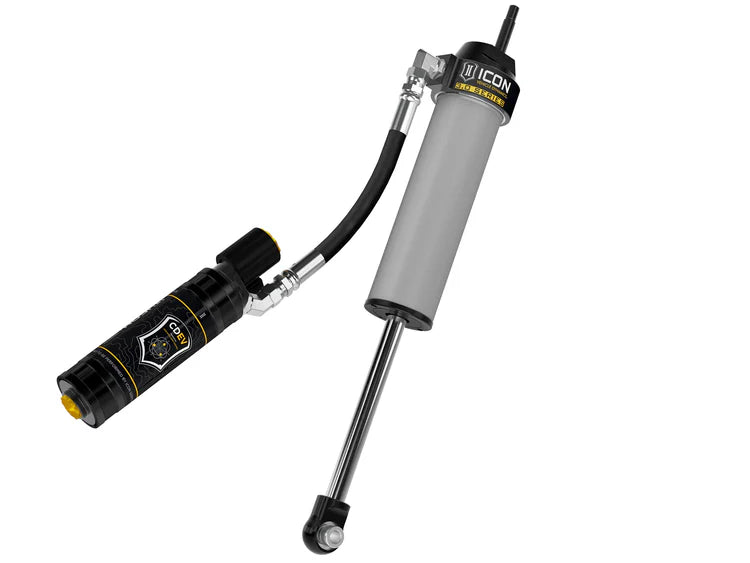

ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair

Icon Vehicle Dynamics

ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair

$2,289.95
SKU: 61802EP

ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Key Features
  • Compatible with 0-3" of front lift over stock
  • Vehicle specific design and tuning for superior shock damping and control
  • 3.0” Body diameter for increased oil volume and larger piston area
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • 6061 aircraft grade aluminum CNC machined components
  • Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
  • Fully rebuildable and revalveable
Specifications
Brand ICON Vehicle Dynamics
UPC 840103436623
Shipping Width 15.00 in
Shipping Length 39.00 in
Shipping Depth 9.00 in
Shipping Weight 37.0000 LB
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #1: Only fits 4WD models
  • APPLICATION NOTE #150: Shocks are fully serviceable
  • APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
  • APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
  • APPLICATION NOTE #474: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
  • APPLICATION NOTE #475: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
  • APPLICATION NOTE #476: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
  • APPLICATION NOTE #477: Compatible with 0-3" of front lift over stock of 2023-2026 F-250/F-350 4WD without Tremor package
  • APPLICATION NOTE #478: Compatible with 0-2” of front lift over stock of 2023-2026 F-250/F-350 4WD equipped with Tremor package
  • APPLICATION NOTE #483: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions without CDEV. Part number 611003 will also be required.
  • APPLICATION NOTE #484: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions with CDEV, part number 61720E, 61723E, or 61800E. Part numbers 611003 and 191207 will also be required.
