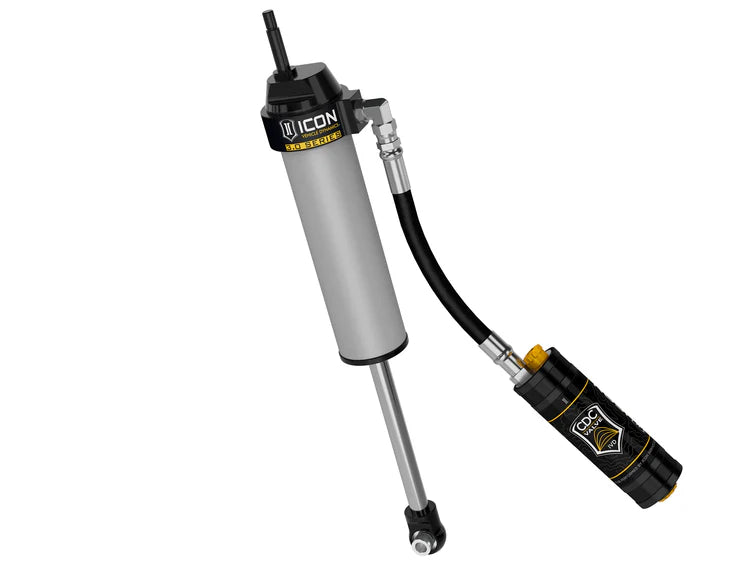

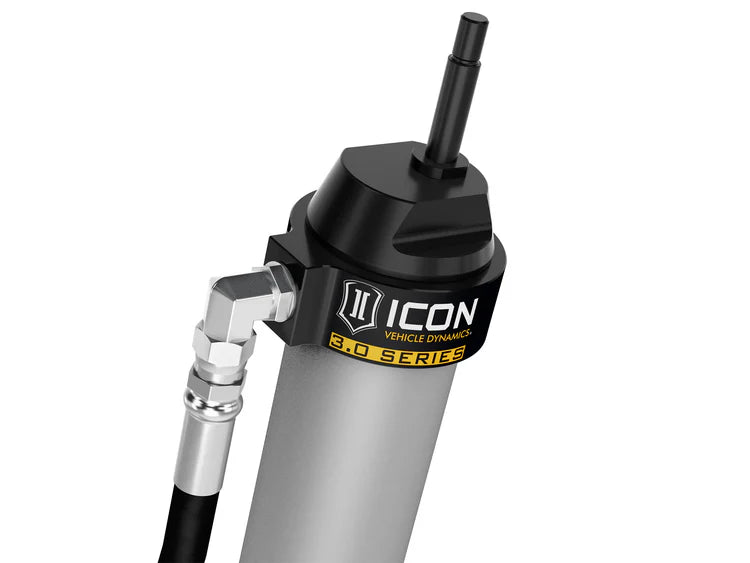

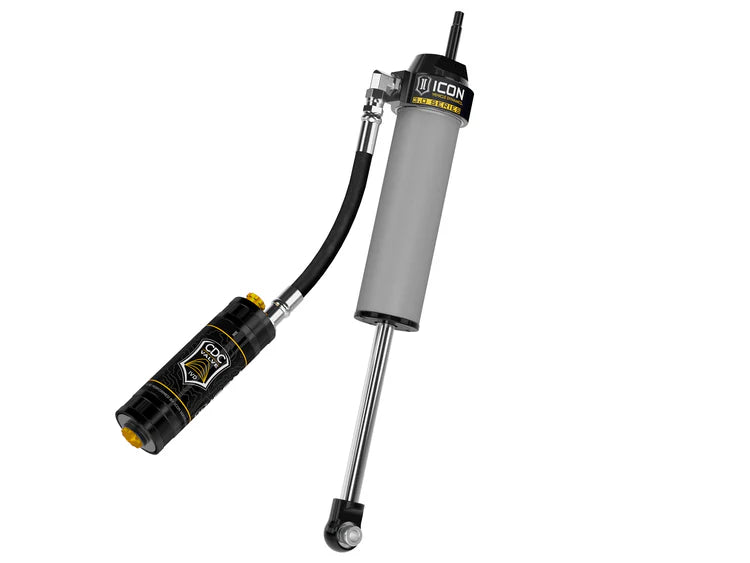

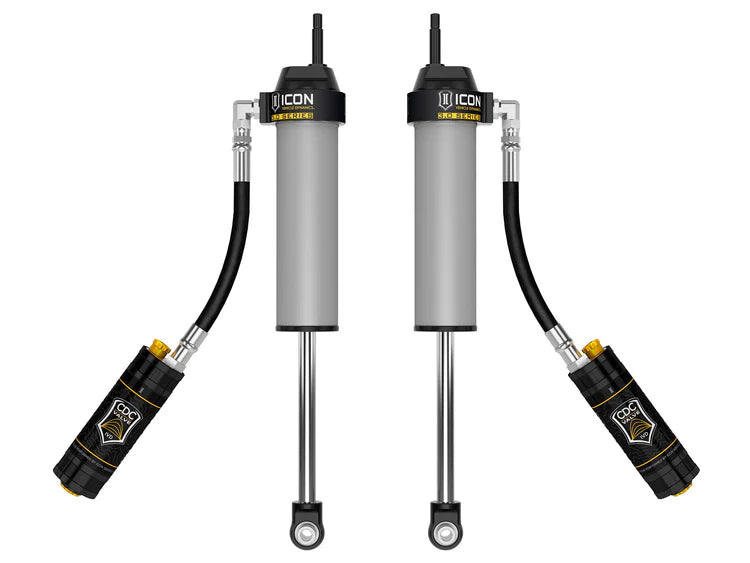

ICON 2005-2026 Ford Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
ICON 2005-2026 Ford Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
ICON 2005-2026 Ford Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
ICON 2005-2026 Ford Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair

Icon Vehicle Dynamics

ICON 2005-2026 Ford Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair

$1,889.95
SKU: 61802CP

ICON 2005-2026 Ford Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks, or mobbing across the desert at full throttle.

Key Features
  • Compatible with 0-3" of front lift over stock
  • Vehicle specific design and tuning for superior shock damping and control
  • 3.0” Body diameter for increased oil volume and larger piston area
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • 6061 aircraft grade aluminum CNC machined components
  • Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
  • Fully rebuildable and revalveable
Specifications
Brand ICON Vehicle Dynamics
UPC 840103436616
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 37.0000 LB
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #1: Only fits 4WD models
  • APPLICATION NOTE #150: Shocks are fully serviceable
  • APPLICATION NOTE #474: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
  • APPLICATION NOTE #475: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
  • APPLICATION NOTE #476: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
  • APPLICATION NOTE #477: Compatible with 0-3" of front lift over stock of 2023-2026 F-250/F-350 4WD without Tremor package
  • APPLICATION NOTE #478: Compatible with 0-2” of front lift over stock of 2023-2026 F-250/F-350 4WD equipped with Tremor package
  • APPLICATION NOTE #479: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD
  • APPLICATION NOTE #480: Compatible with 0-3” of front lift over stock of 2023-2026 F-450 4WD
  • APPLICATION NOTE #481: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
  • APPLICATION NOTE #482: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion
