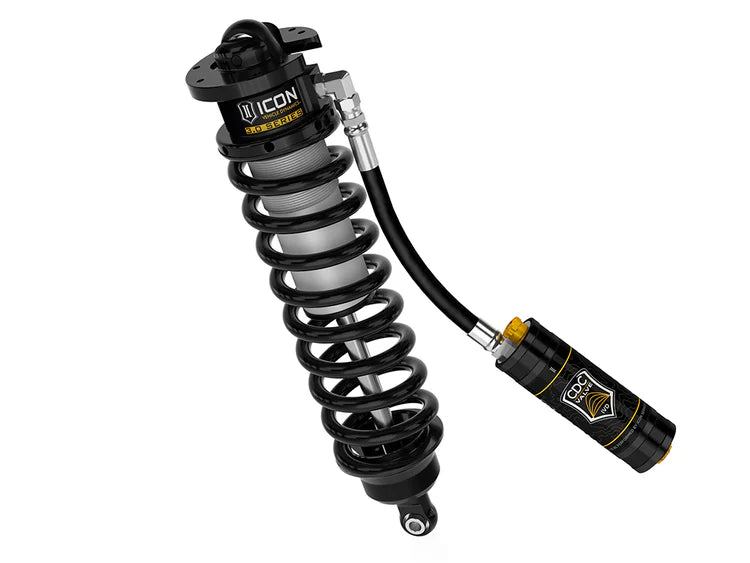

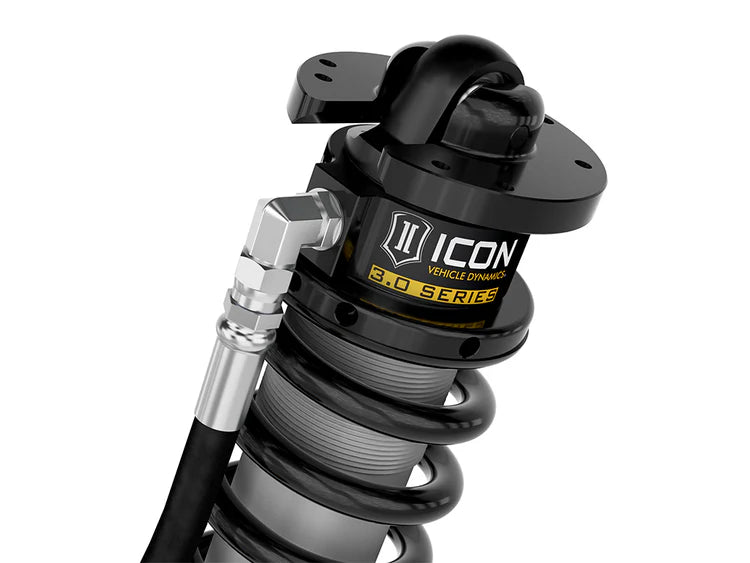

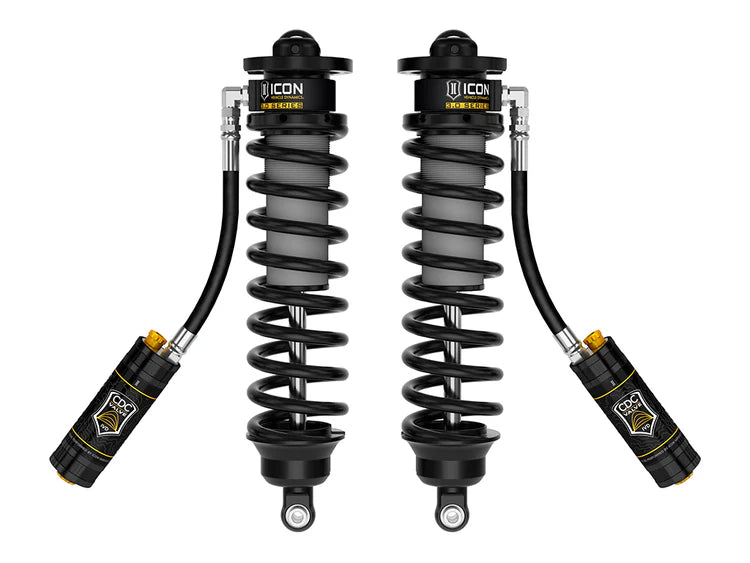

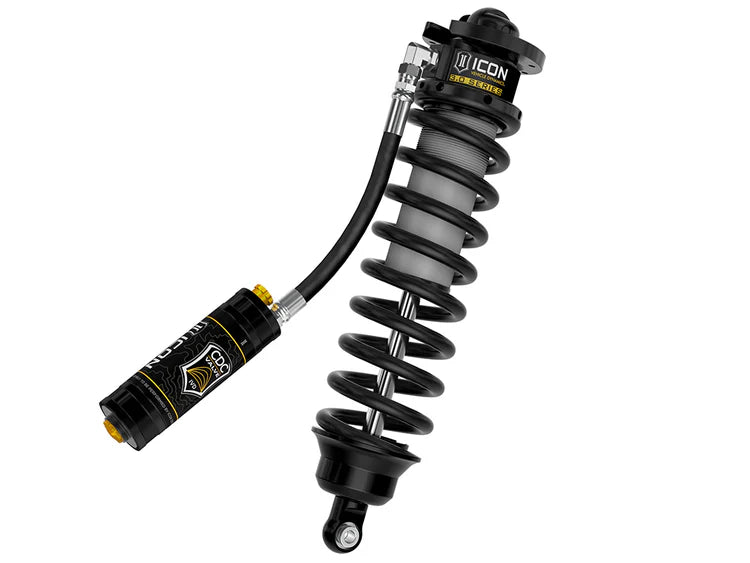

ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV
ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV
ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV
ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV

Icon Vehicle Dynamics

ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV

$3,099.95
SKU: 61801C

ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

ICON's V.S. 3.0 Series Remote Reservoir CDCV Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2026 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks, or mobbing across the desert at full throttle.

Key Features
  • Bolt-in system fits in OE coil bucket location
  • Coilover conversion allows for addition of secondary shock
  • Vehicle specific design and tuning for superior shock damping and control
  • 3.0” Body diameter for increased oil volume and larger piston area
  • Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • ICON engineered coil springs guaranteed for life against sagging or breakage
  • 6061 aircraft grade aluminum CNC machined components
  • FK Rod End bearings for extended longevity and minimal deflection
  • Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
  • Fully rebuildable and revalveable
Specifications
Brand ICON Vehicle Dynamics
UPC 840103436593
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 74.0000 LB
Technical Notes
  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires (2005-2016 models): 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
  • Recommended Aftermarket Tires (2017-2026 models): 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #1: Only fits 4WD models
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
  • APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
  • APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.
  • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • APPLICATION NOTE #463: If installing with ICON 2.5 Series or 3.0 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
  • APPLICATION NOTE #467: 2005-2019 Super Duty diesel models will have front lift height range of 4-5.5" over stock
  • APPLICATION NOTE #468: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 4.75-6.25" over stock
  • APPLICATION NOTE #469: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
  • APPLICATION NOTE #470: 2023-2026 Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
  • APPLICATION NOTE #471: 2023-2026 Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
  • APPLICATION NOTE #472: 2023-2026 Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
  • APPLICATION NOTE #473: 2023-2026 Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
