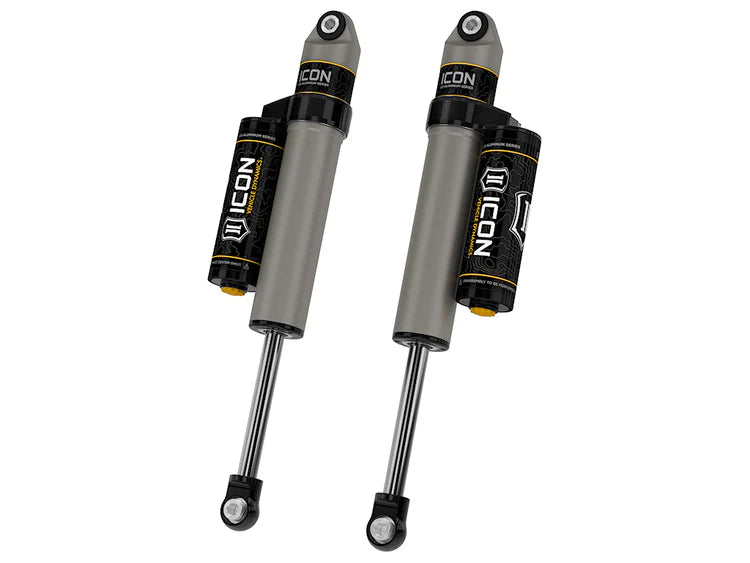

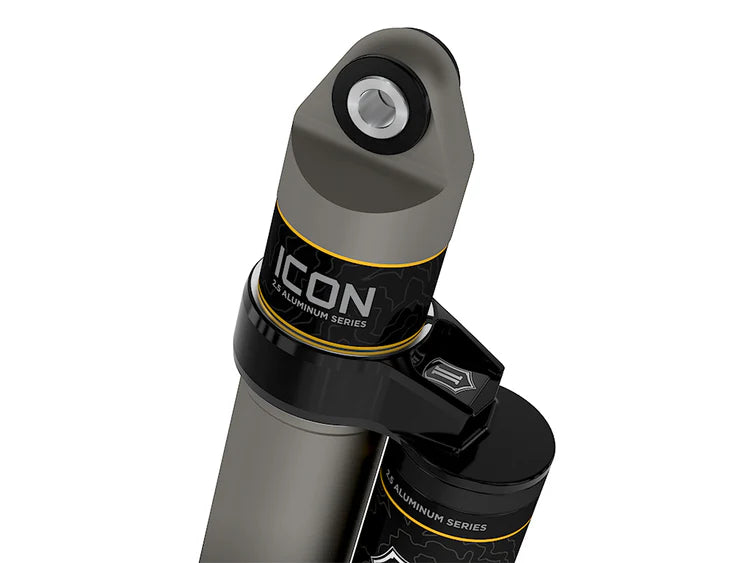

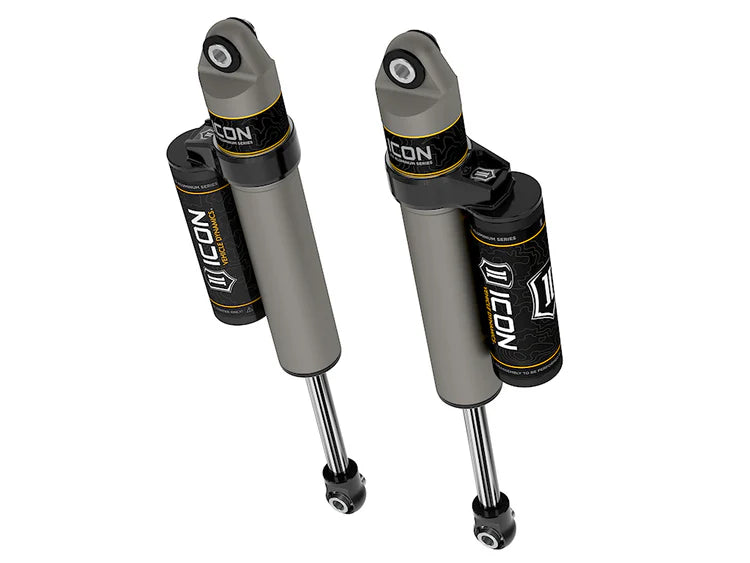

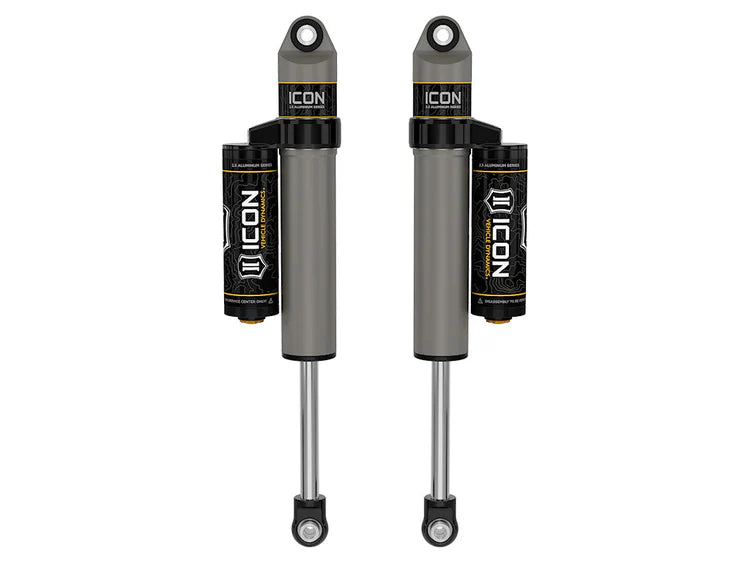

ICON 2001-2026 GM 2500/3500 HD, 0-1" Lift/2007-2018 GM 1500, 4" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
ICON 2001-2026 GM 2500/3500 HD, 0-1" Lift/2007-2018 GM 1500, 4" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
ICON 2001-2026 GM 2500/3500 HD, 0-1" Lift/2007-2018 GM 1500, 4" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
ICON 2001-2026 GM 2500/3500 HD, 0-1" Lift/2007-2018 GM 1500, 4" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair

Icon Vehicle Dynamics

ICON 2001-2026 GM 2500/3500 HD, 0-1" Lift/2007-2018 GM 1500, 4" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair

$1,129.95
SKU: 77701P

ICON 2001-2026 GM 2500/3500 HD, 0-1" Lift/2007-2018 GM 1500, 4" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Overview:

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that, when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user-defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV.

Key Features
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • All ICON 2.5 Aluminum Series Remote Reservoir shocks can be upgraded with an ICON compression adjuster (CDCV, CDXS, or CDEV)
  • 100% Rebuildable
  • 100% Revalveable
Specifications
Brand ICON Vehicle Dynamics
UPC 840103406244
Proxy Number 77701
Shipping Width 15 in
Shipping Length 39 in
Shipping Depth 9 in
Shipping Weight 27 LB
Technical Notes
  • APPLICATION NOTE #3: Will not fit Cab & Chassis models
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #303: Compatible with 07-18 GM 1500 with 4" of rear lift
  • APPLICATION NOTE #304: Compatible with 01-19 GM 2500/3500 HD with 0-1" of rear lift
  • APPLICATION NOTE #305: Compatible with 20-26 GM 2500/3500 HD with 0-1.5" of rear lift
