'17-24 Ford F250/350 Carli Adjustable Track Bar Kit
'17-24 Ford F250/350 Carli Adjustable Track Bar Kit
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

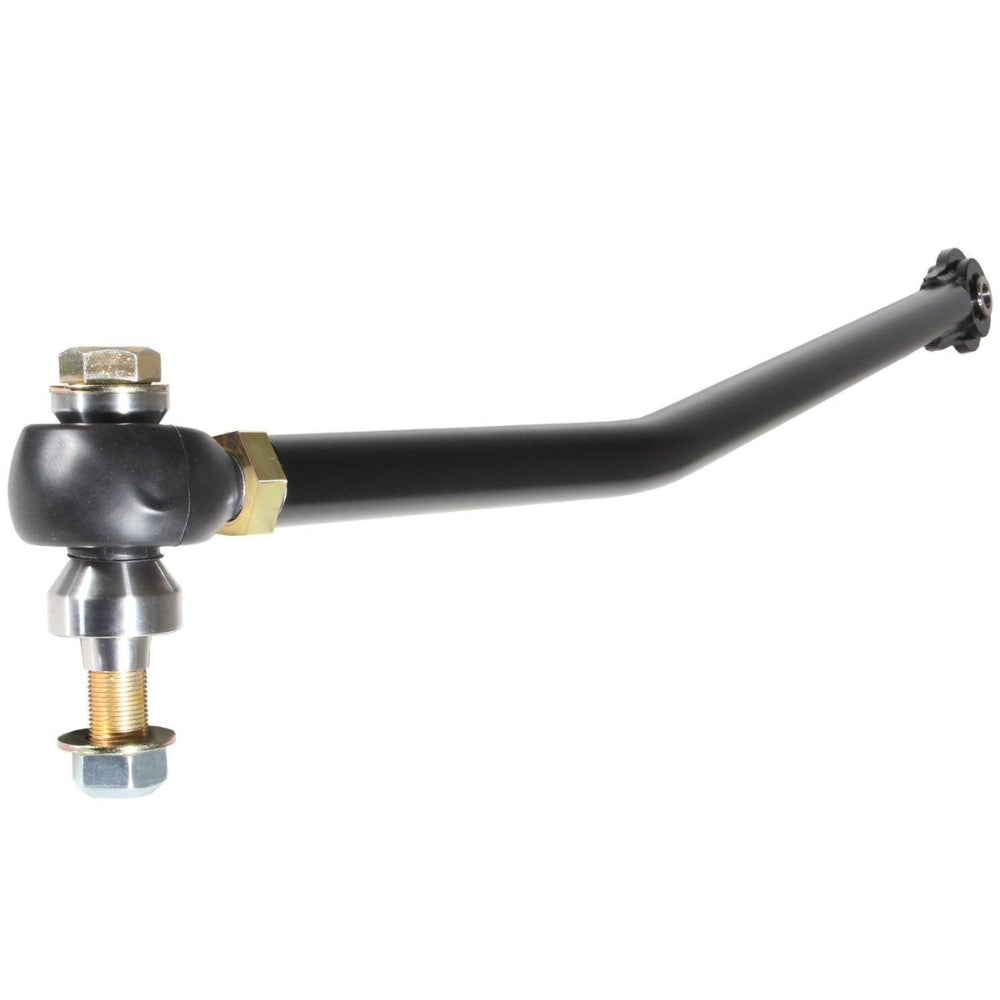

Carli's Adjustable Track Bar Kit for the 2017-2024 Ford F-250 and F-350 (Ford Super Duty) will help eliminate that dreaded death wobble and improve your Super Duty's ride quality.
The Carli Suspension adjustable track bar kit for the 2017-Current Ford F250 and F350 Bar’s dual FK Bearing pivots allow the bar to cycle free from the bind of the factory double-vulcanized bushings while offering vibration damping to minimize road noise transmission and maximize service life.

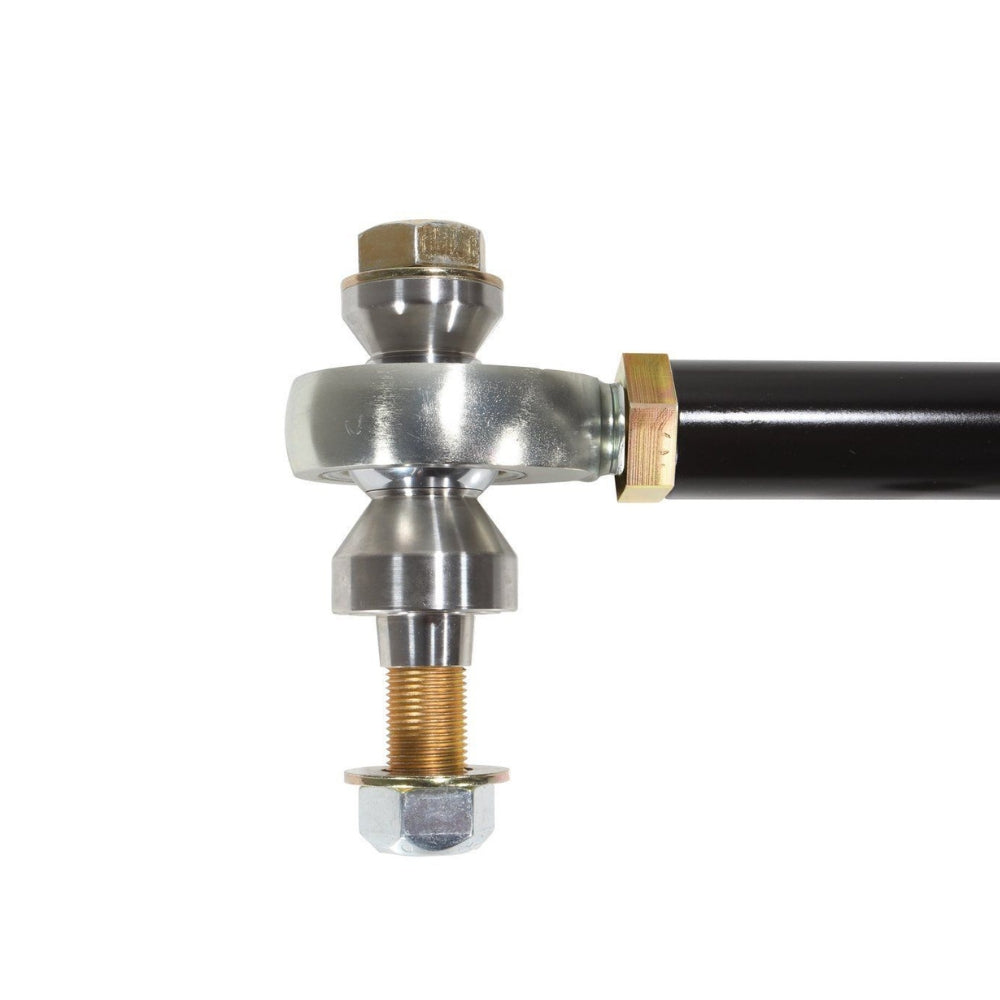

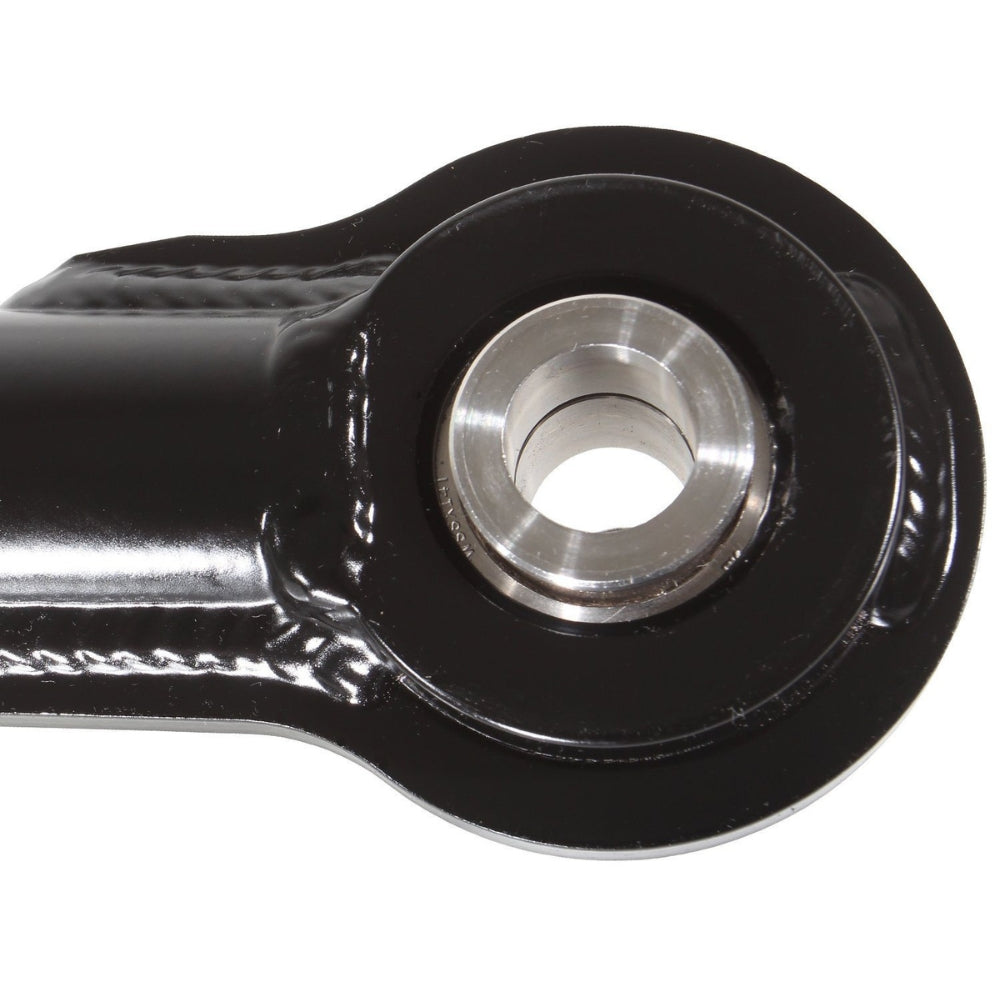

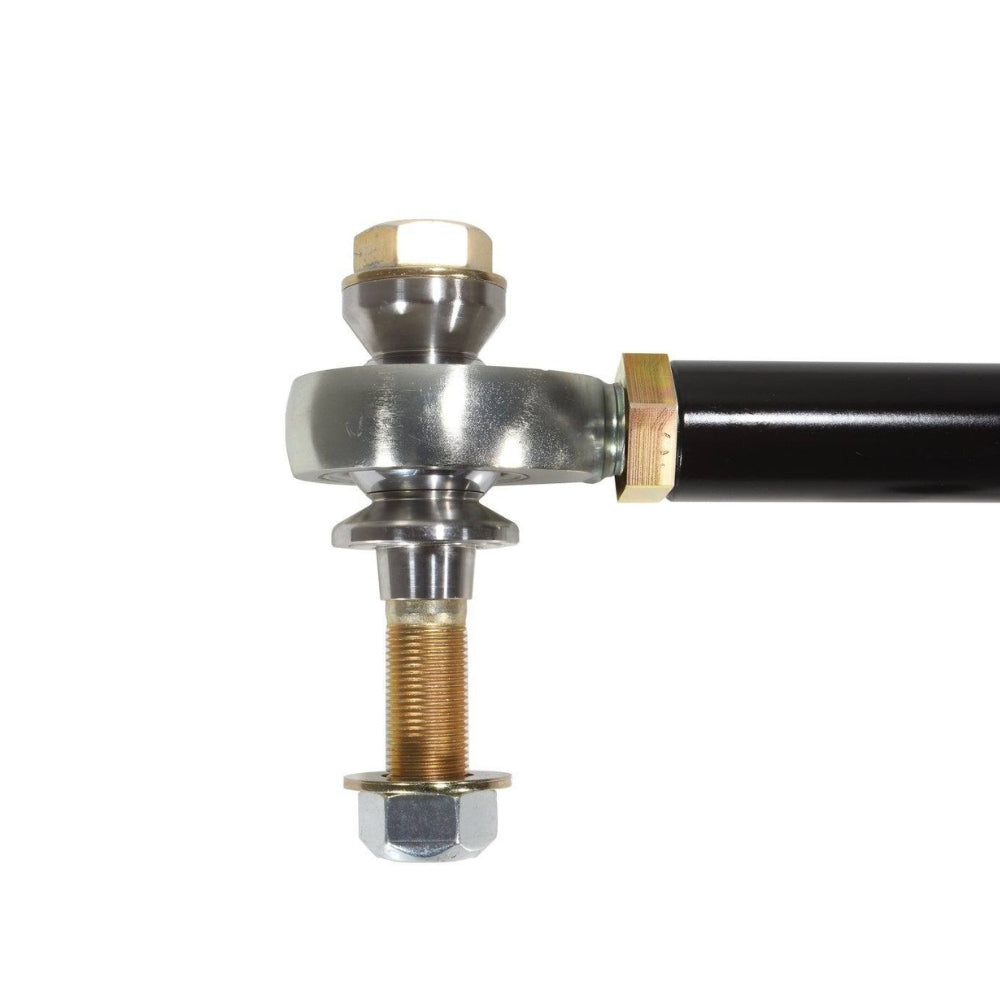

A track bar isn’t a product that weighs heavy on most when considering a suspension lift. Quite the contrary, it is often overlooked as a simple geometry correction that will be addressed by whatever lift-kit is purchased. Often, with leveling kits, it’s not addressed at all. Enter, the Carli Suspension Super Duty Track bar. This game-changing track bar takes center stage offering 1.5″ OD x 3/8″ (wall thickness) DOM construction allowing direct threading (no weld-in bung) of a massive FK Bearing heim joint paired with the star of the show, Carli’s new Encapsulated Uniball in a fully welded and strap-gusseted housing.
KEY FEATURES:
- Massive Steering Upgrade
- Vibration Damping CUB Joint
- Fully Rebuildable
- Configurable to Carli 2.5-4.5″ Lifts
- NOT for use on stock-height Trucks.
FITMENT DETAILS:
- 2017-2019 Configurable to Carli 2.5″-4.5″ Lifts
- 2020-Current Configurable to Carli 3.5″-5.5″ Lifts
- Not for use on stock-height trucks
KIT DETAILS:

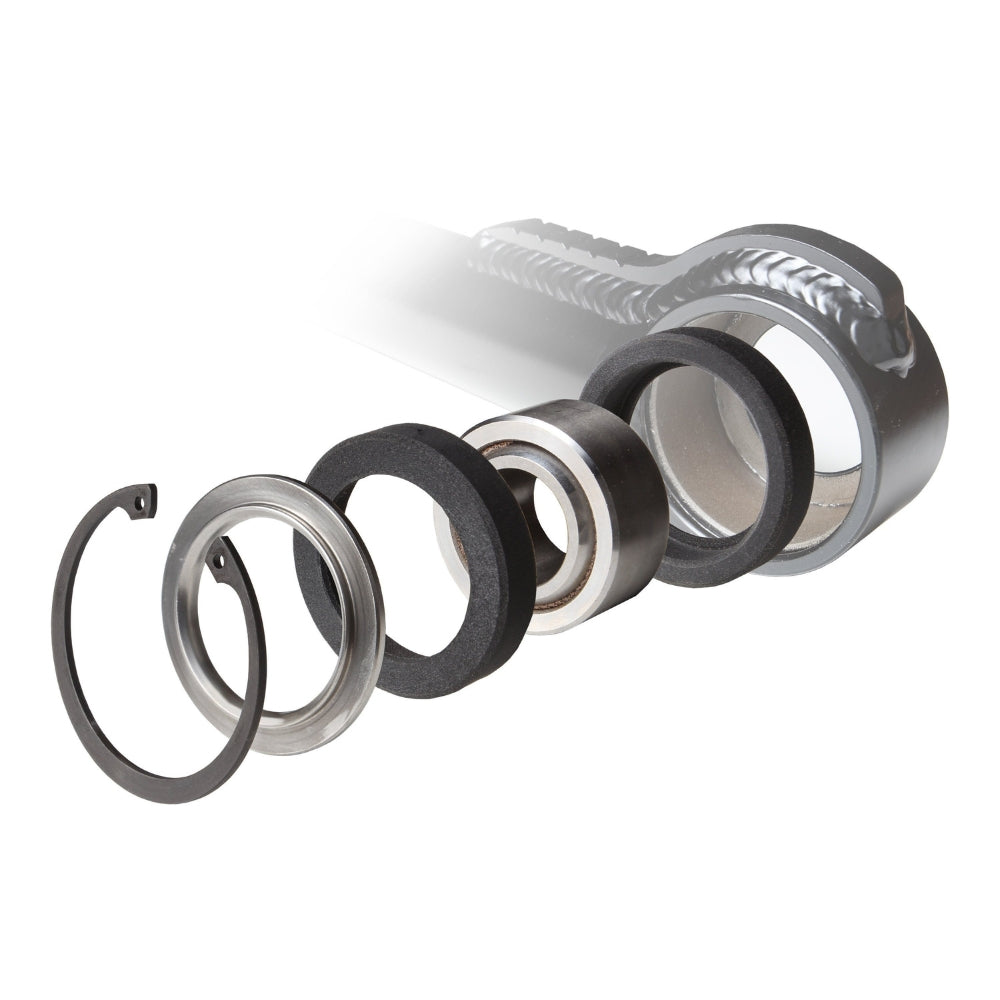

The Encapsulated FK Uniball – CUB Joint – was tested to -110°F and took it in stride with no cracking or deformation, even loss of damping during subjection to the extreme cold. The Heim and Encapsulated Uniball are both replaceable allowing users to rebuild rather than replace their bars.

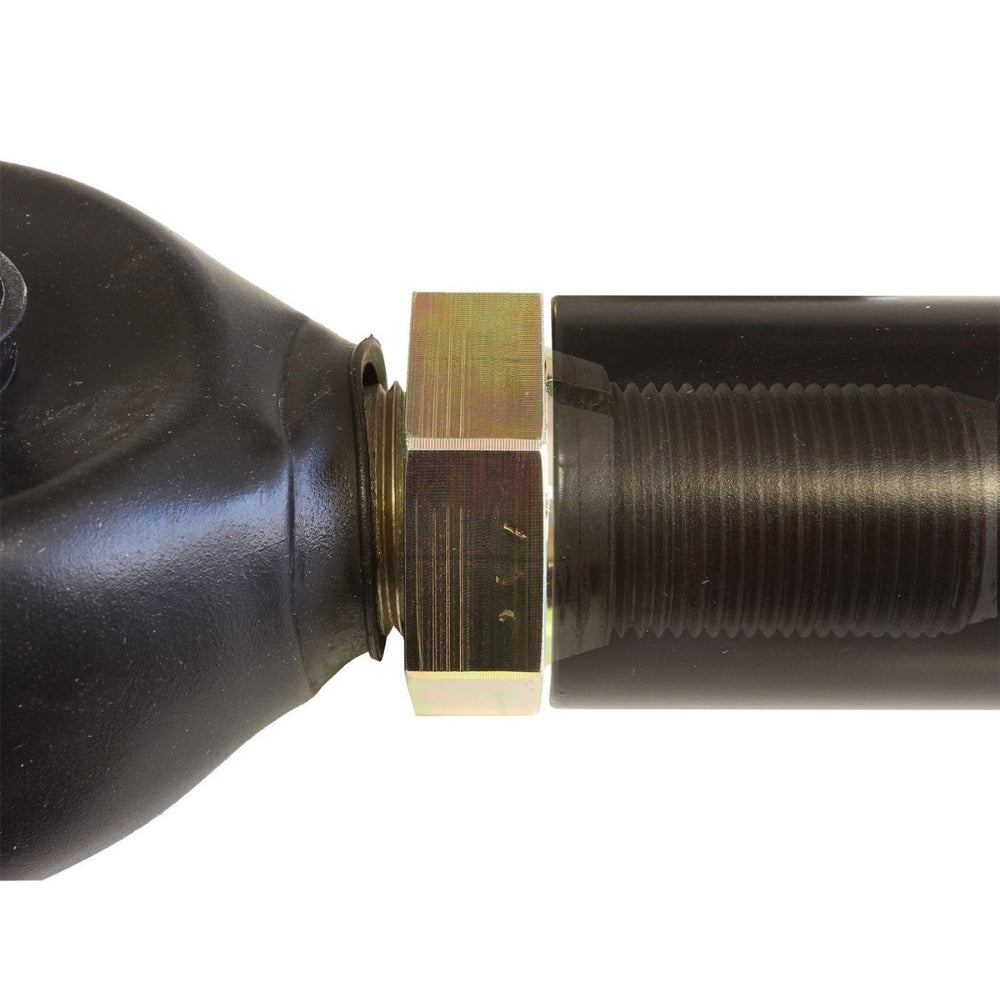

On the other end, a massive 1-1/4″ FK Bearing heat treated Chromoly Heim Joint encapsulated in a sealed boot and secure it to the bar with our proprietary Jammit nut. What’s wrong with a standard jam-nut – you ask? Not a damn thing but, if we can improve it, why not do so? We won’t give too many details as the design, metallurgy and production took enough time that we want to protect the details but the nut offers 100% more clamping surface area than a standard jam nut.
Designed and built to maximize travel and ensure factory compatibility, this track bar best suits 2.5″ and 4.5″ lift systems with OEM steering geometry (no track bar or pitman arm drops). In lieu of travel-limiting drop brackets, the Carli Track Bar includes different axle-spacer configurations engineered to alter the lower pivot to better match the factory steering arc respective to each lift height. Laymen’s terms, the bar includes all components necessary to configure specifically to both 2.5″ and 4.5″ steering geometry to minimize steering wheel feedback.
