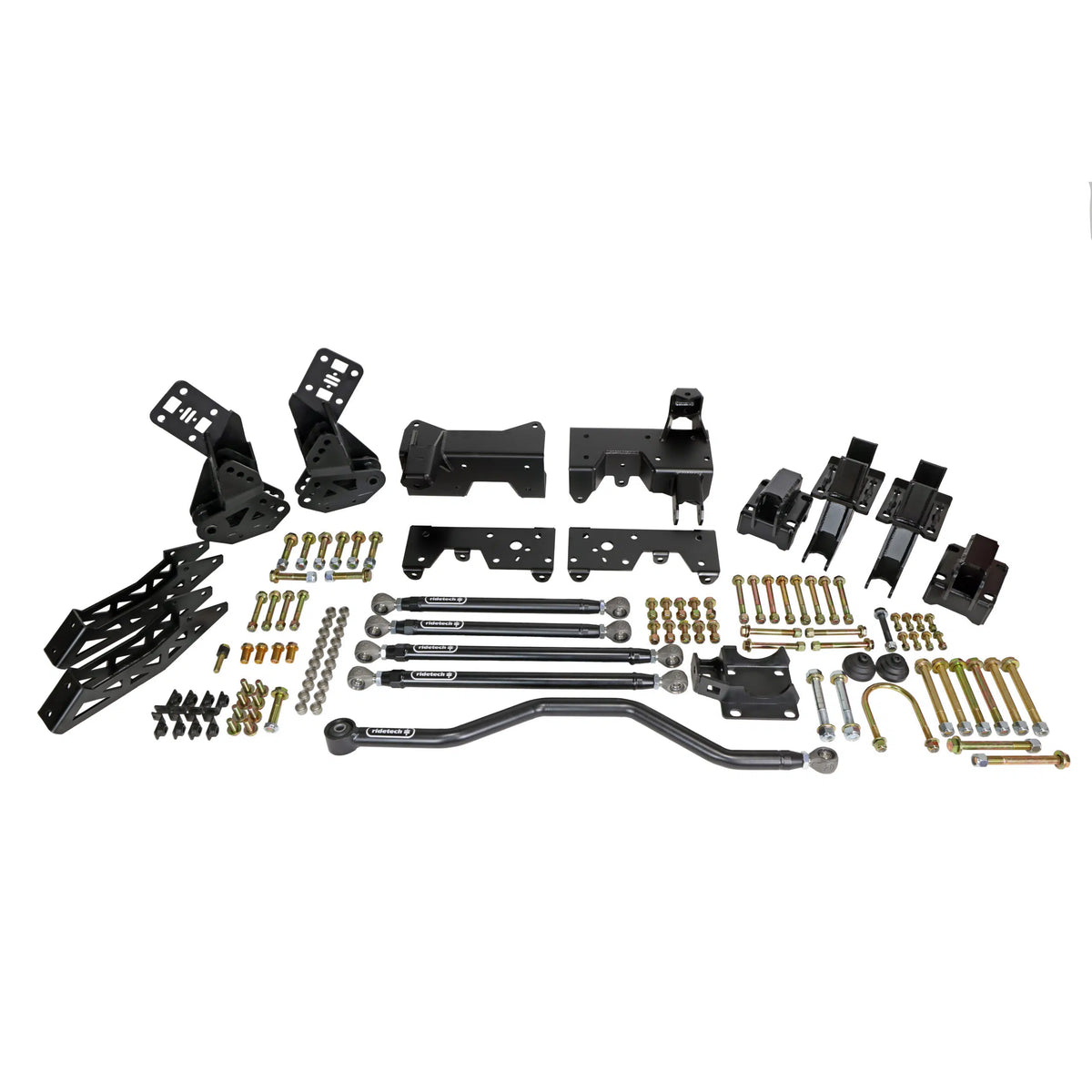

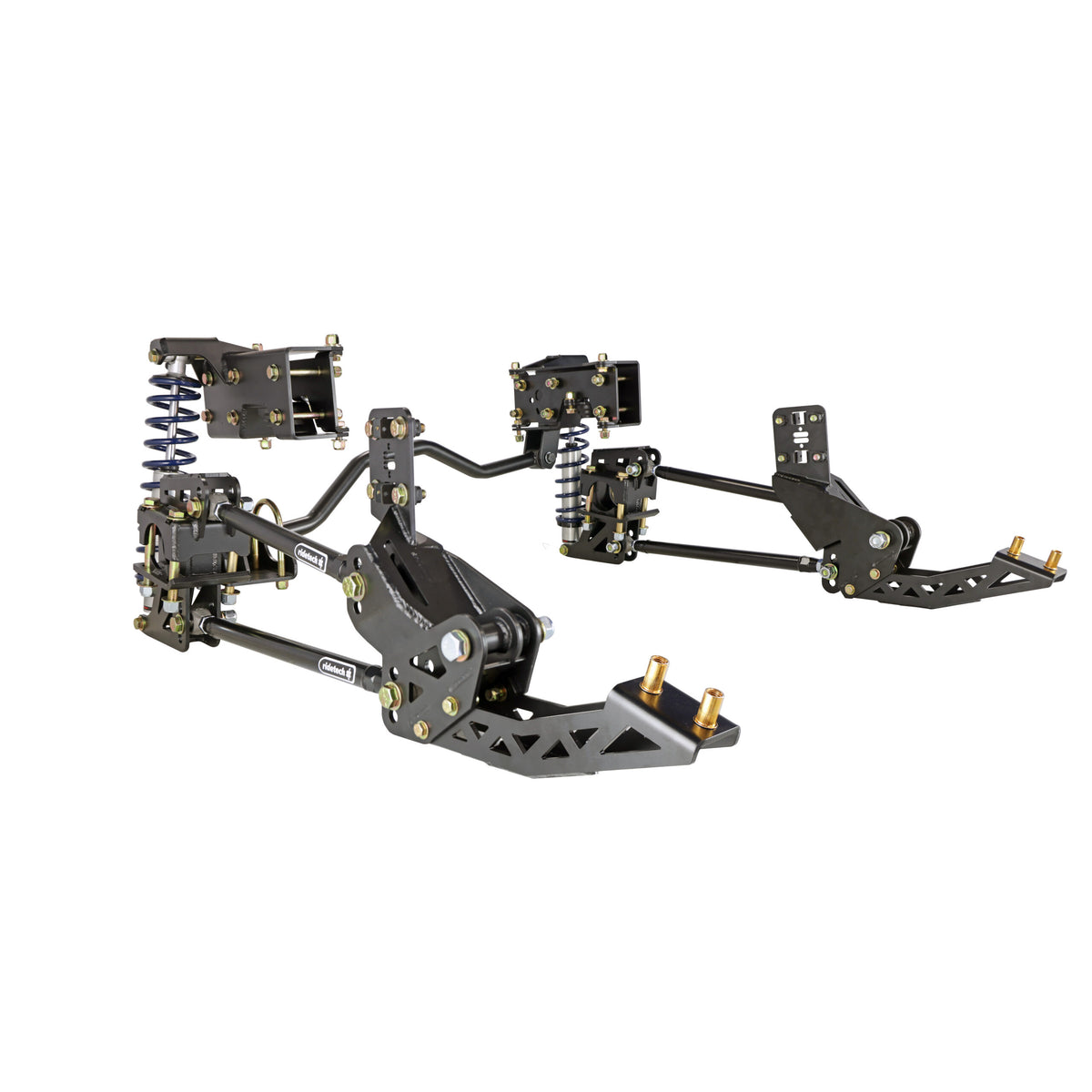

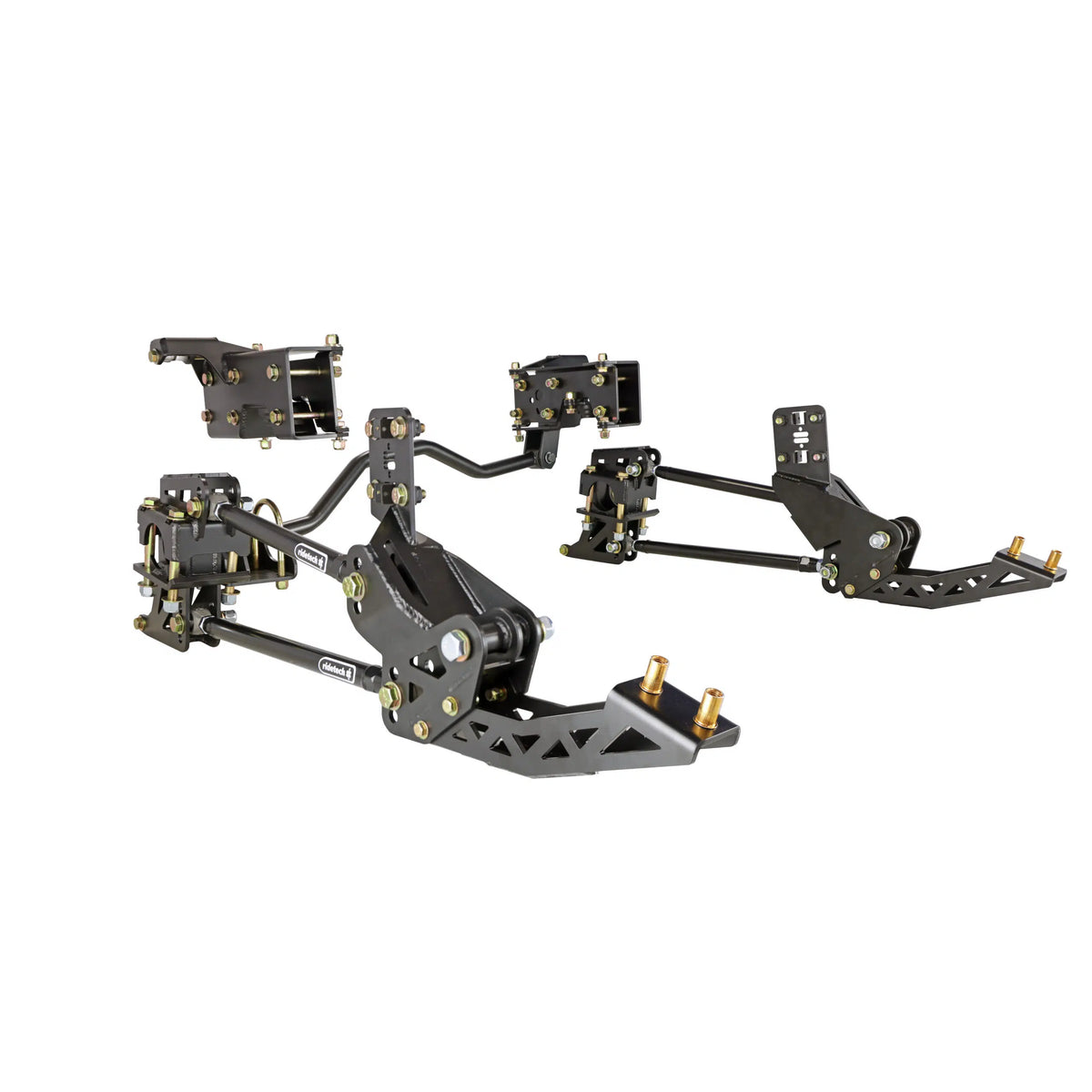

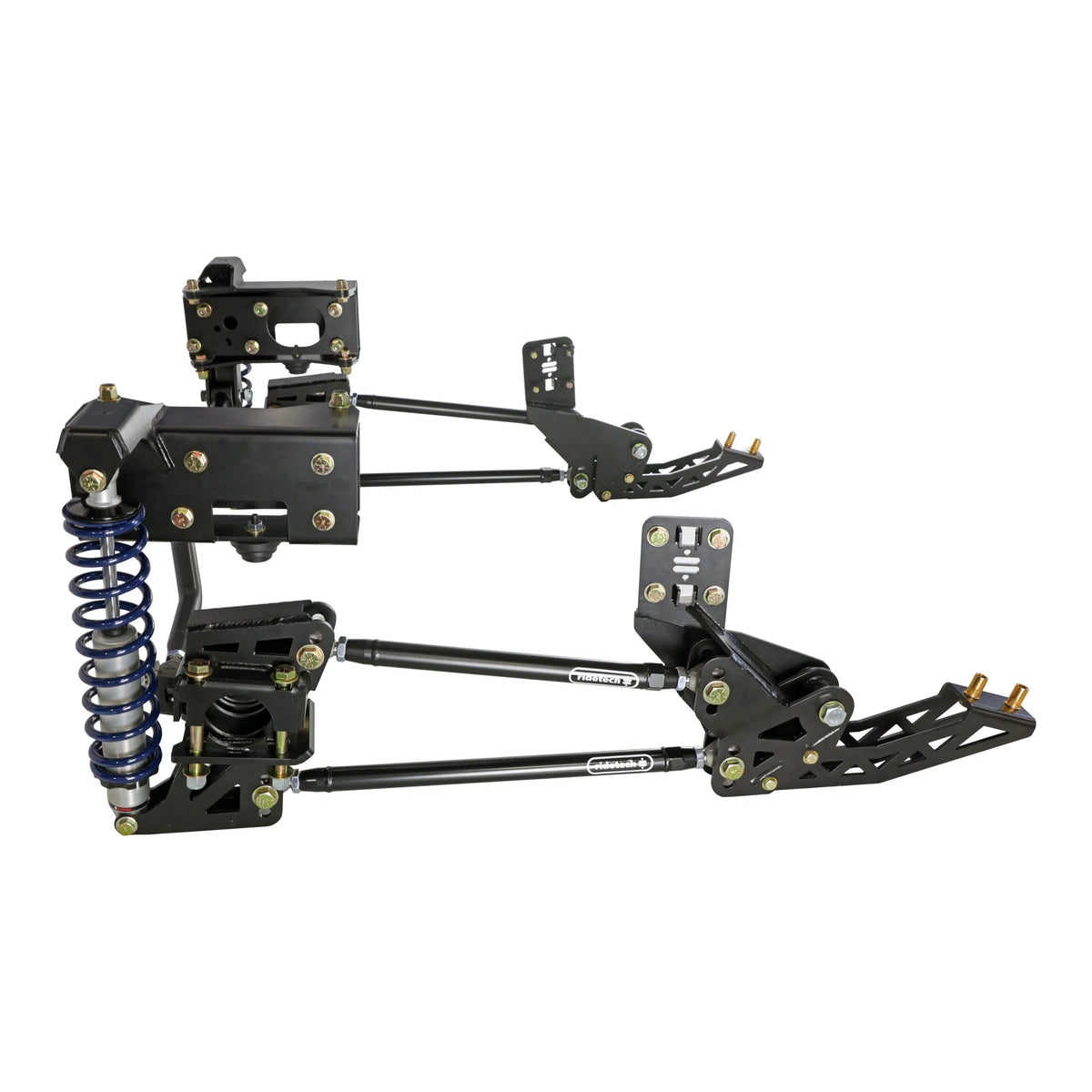

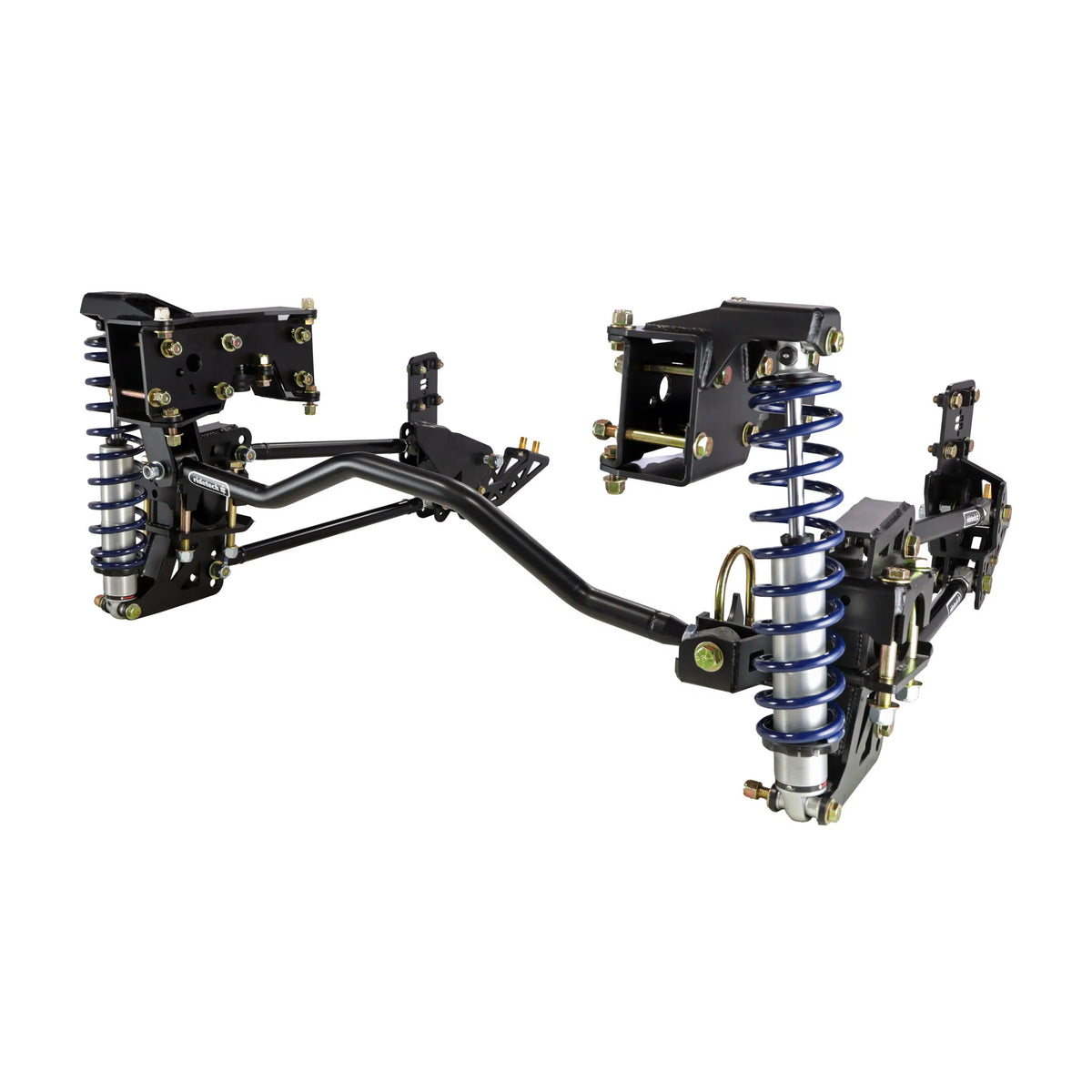

Bolt-On 4-Link Kit | 2015-2026 F-150

$2,995.00
SKU: 12297199
4-Link Configuration:

4-Link Configuration

Bolt-On 4-Link Kit | 2015-2026 F-150

No Notch (5" Drop Limit)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

Ridetech continues to improve the 2015-2026 Ford F-150 platform with the release of the most comprehensive and robust F-150 4-Link to date. The Ridetech F-150 4-Link greatly improves adjustability and rear suspension geometry, allowing preferred instant center and anti-squat value selection. This control grants far more control to how high-horsepower F-150s put power down. These are great for performance and drag race spec builds and are available in no-notch and c-notch versions (+2” rear ride height reduction). The adjustable panhard bar allows appropriate axle centering at the desired ride height.

Select which 4-Link Configuration you want (No-Notch or C-Notch), and then select from our HQ and TQ coil-over and ShockWave (air ride) options, then add to cart. If you’re in the market for a complete front and rear suspension that utilizes this 4-Link, you can find those here.

  • Put more power to the pavement with improved traction and power transfer—engineered for high-horsepower street and drag race F-150s.
  • Greater articulation over leaf spring setup without sacrificing stability
  • 4-link design capable of delivering much better ride quality characteristics over OE leaf spring setup
  • Purpose built 4-Link rear suspension design utilizes dedicated links for rear axle positioning and separate air ride or coilovers for load, eliminating inherent compromise of multi-leaf design
  • Two Upper Frame Mounts available:
    • No notch version accommodates up to 5” rear drop
    • C-notch version allows up to 7” rear drop
  • Multiple air options available:
    • HQ ShockWaves are 24-position rebound adjustable and ride height adjustable to dial in driver handling and stance preference
    • TQ triple adjustable ShockWaves for motorsport applications allow three points of shock adjustment: high & low speed compression and low speed rebound.
  • Coilovers and ShockWaves utilize Fox Factory monotube technology for superior performance you can feel and tune to your preference.
  • Adjustable anti-squat and instant center range from 50%-230%
  • Adjustable panhard bar installs around factory spare tire and fits around single side exhaust systems and the extra shield on PowerBoost models (factory and aftermarket dual exhaust models will require a lower crossover style exhaust (i.e. LOBO models)
  • 100% Bolt In | No welding required (C-Notch requires frame cutting)
  • All grade eight hardware included for seamless installation
  • Patented R-joints utilize a composite cage for no-noise articulation and no maintenance self-lubrication
  • Attractive black power coat finish provides corrosion resistance.
  • Towing while lowered? Spec a complete (front and rear) ShockWave system (coming soon) and run our E5 RidePro or stick with coil-overs in front and use our 2-Way Analog Air Ride Control System to retain towing and heavy load functionality.

Fitment:

  • 2015-2026 2WD/4WD Ford F-150
  • Compatible with BlueCruise & PowerBoost equipped trucks (C-notch not recommended on PowerBoost due to clearance issues)
  • Not compatible with Ford F-150 Lightning, Raptor or Tremor models
  • Not compatible with Ridetech rear sway bar, updated design coming soon!
  • Design accommodates popular drag spec wheel/tire combos. We tested one of our trucks with 315/50/17s out back. These are an ideal fitment for modified 2WD and 4WD F-150 trucks pushing high-horsepower (700-1000 whp) needing a sticky tire to get out of the hole.
