Banks Tuning Bundle for 2020-2022 Duramax 6.6L
Banks Tuning Bundle for 2020-2022 Duramax 6.6L
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Description:

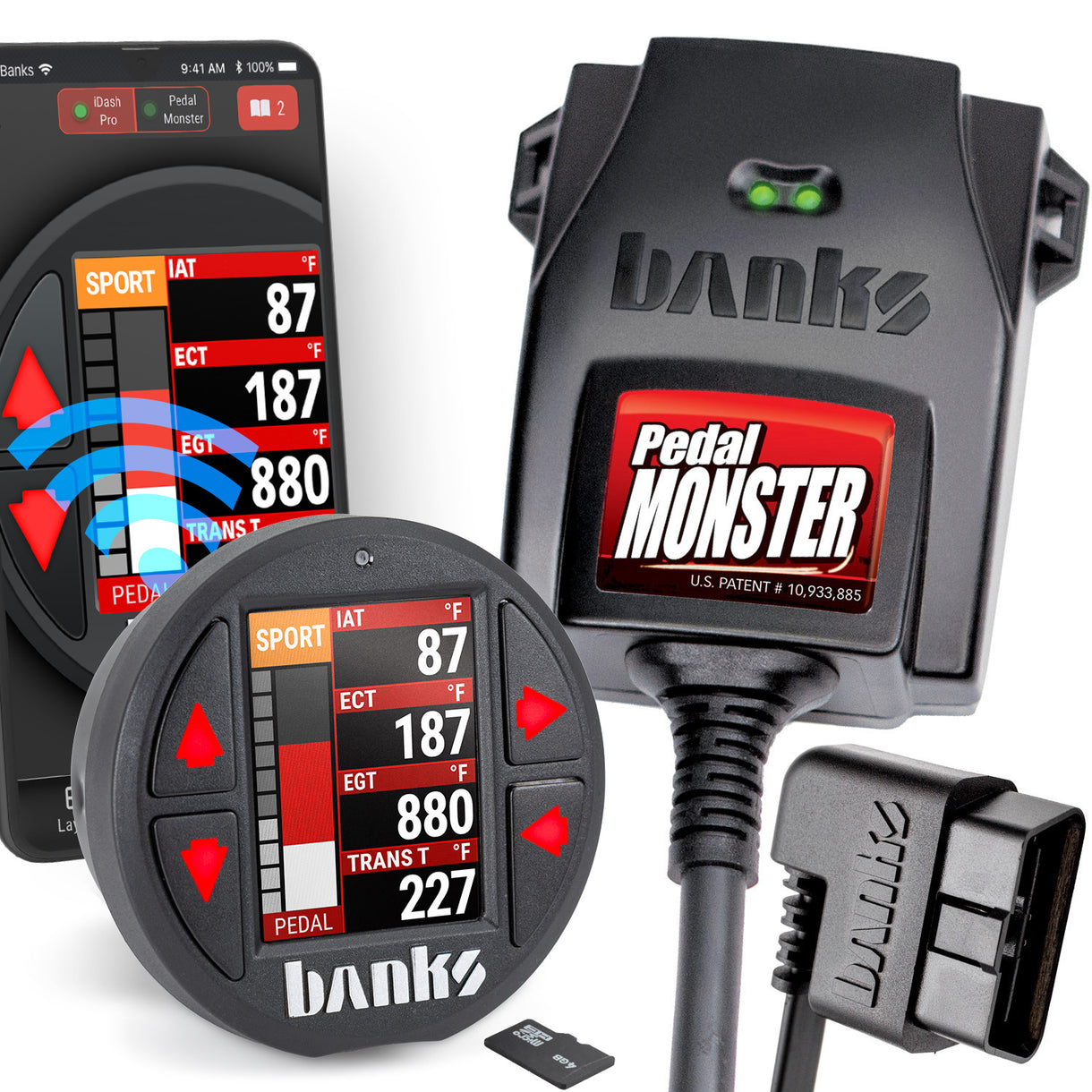

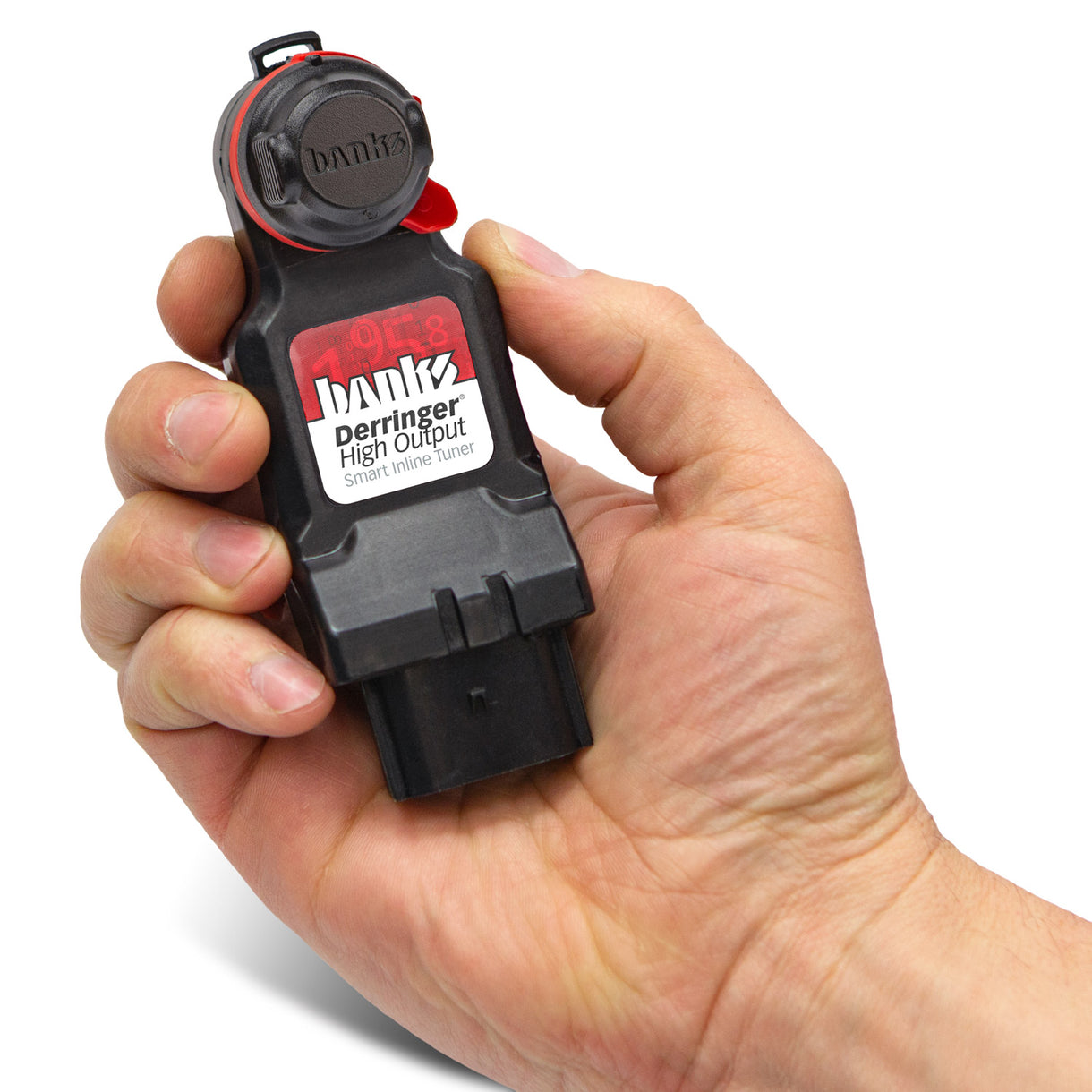

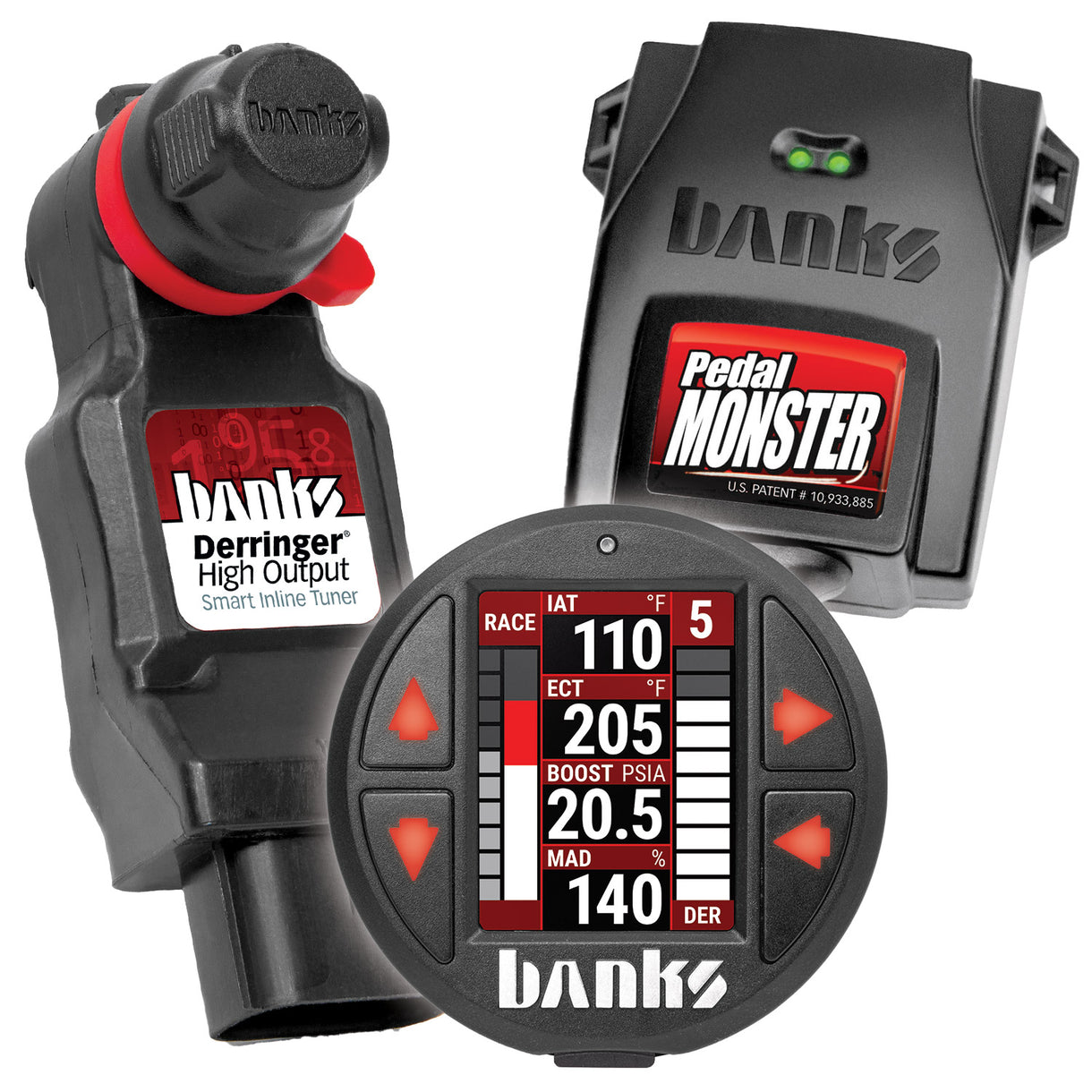

Banks all-new Tuning Bundle for 2020-23 Chevy/GMC Duramax 6.6L includes the Derringer High Output, iDash Data Pro Powertrain Information Center with mobile app, and PedalMonster throttle controller. Derringer High Output adds +117 hp +225 lb-ft with 6 safe power levels adjustable while you drive. The system communicates with the truck's ECM to adjust the tune in real-time, even compensating for altitude. Patented ActiveSafety circuitry protects the engine and transmission. PedalMonster improves acceleration and engine response thanks to its 150 tunable throttle contours with Tip-In Control. Both devices are controlled by Banks iDash Data Pro Powertrain Information Center, the most advanced automotive evaluation tool.

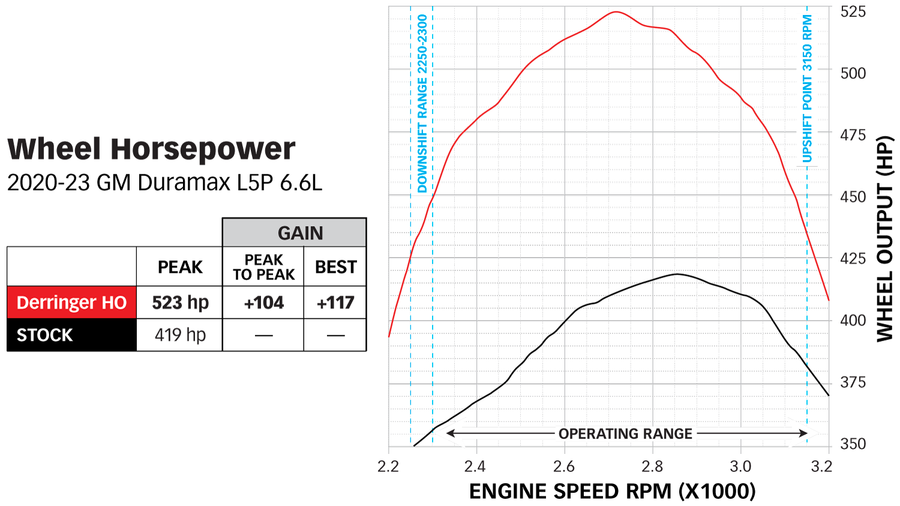

Power Gain:
Derringer has 6 power levels, adjustable on-the-fly, with a best gain of +117 hp pushing well above 520 wheel hp to the road. Plus, the massive increase of +225 lb-ft of torque is situated right in the heart of the power band where you need it most.
Level 6 produces best-in-class performance, while Levels 2-4 are optimized for work use with great mid-range feel with a loaded truck or towing a trailer.
Derringer H.O. vs the Competition
The Derringer High Output outruns the Edge Pulsar, using less fuel and maintaining lower exhaust gas temperatures.

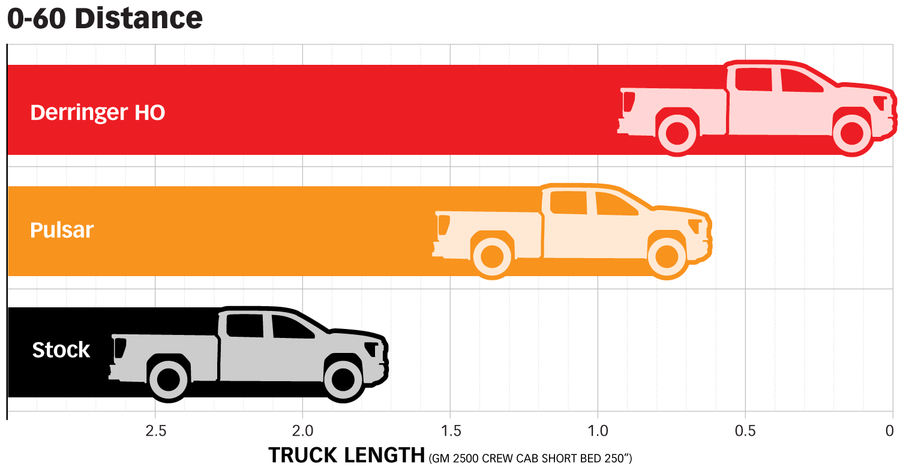

Thanks to the Derringer High Output's more precise tuning between the engine and the transmission, the 0-60 distance is reduced by over half a truck length compared to the Pulsar and almost two full truck lengths over stock. That's a distance of over 35 feet.

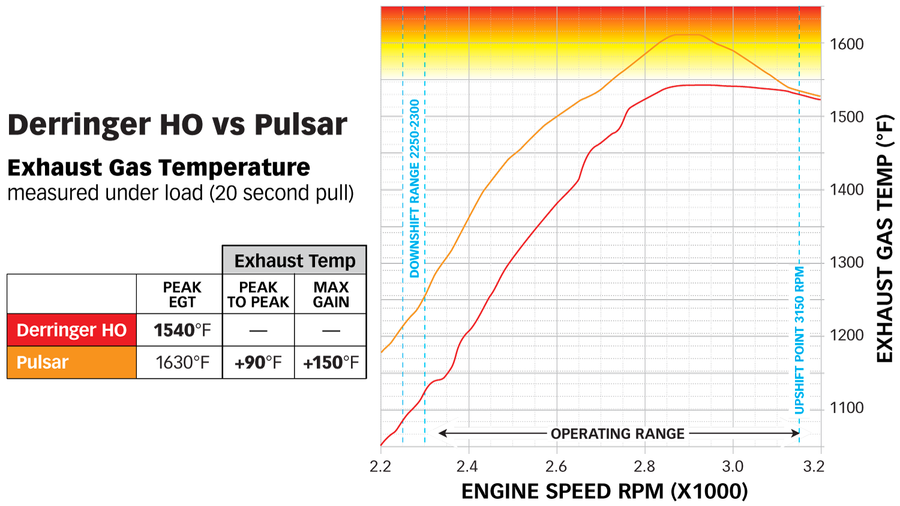

High Output Tuned Safely

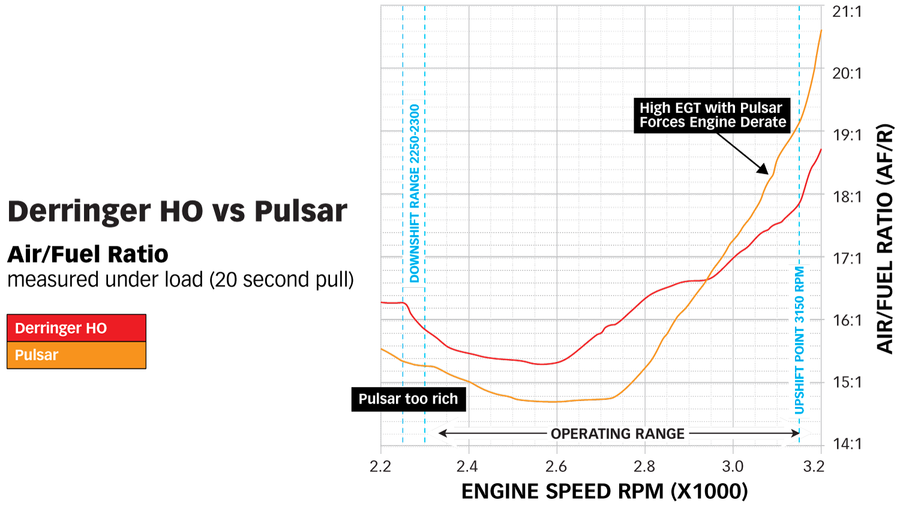

The Derringer HO maintains 10% cooler EGTs than Pulsar in our repeated tests. You do not want a tuner that adds fuel without additional air. An over-rich tune results in high exhaust temps and increased soot productions.
To maintain peak performance, EGT must be monitored and kept below 1550°F to avoid engine derate. This is when the ECM protects the engine from high temps by reducing fuel injection. In other words, the engine makes less horsepower when you need it the most. Imagine towing up a grade at altitude during the summer. The Banks Derringer-powered truck will outrun the Edge Pulsar truck when its EGTs climb and the ECM withdraws fuel to help cool the engine.
Consistent Power Delivery
The real-world benefits of powerful tuning done safely and reliably really show when you’re hauling a heavy load. At peak power, Derringer HO runs 10% leaner than Pulsar at its peak power, resulting in 6% better fuel economy.
Competitive products have been shown to over-fuel when under load which results in increased heat as well as loading up the diesel particulate filter (DPF) much quicker. The more the DPF is full of soot, the less time the engine will make full power. And, more frequent regens shorten the life of the DPF.
AutoRate® Dynamic Tuning
- Exhaust Gas Temperature (EGT) — Monitors EGT and intelligently modulates fueling to maintain a safe maximum EGT, protecting your turbo and engine.
- Altitude compensation — Senses ambient air pressure, controlling the turbocharger to maintain power as altitude increases.
-
Coolant Temperature Monitoring — Maintains safe power based on coolant temp.
Derringer does not add power below 160°F or above 240°F - Full Power Timer — Allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul.

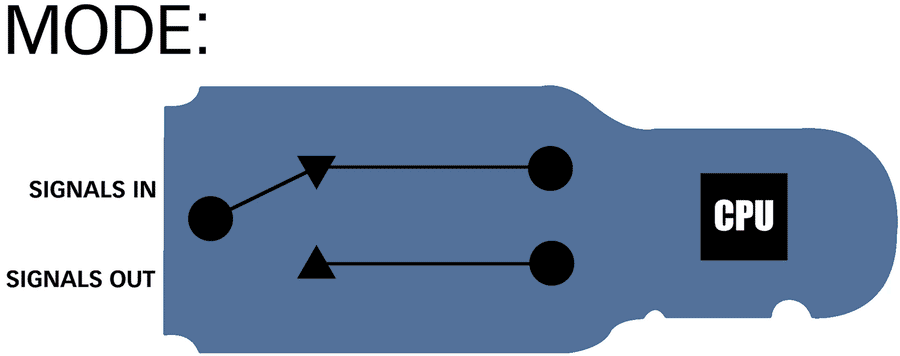

ActiveSafety® Health Monitoring
Derringer is the only tuner available with Active Safety® health monitoring circuitry:
- Internal diagnostics checks system 100 times per second
- Checks MAP and FRP signals and monitors CPU activity
- Activates in event of failure or loss of 12-volt power
- Bypass relays smoothly return stock power with no loss of power or "Limp Mode"

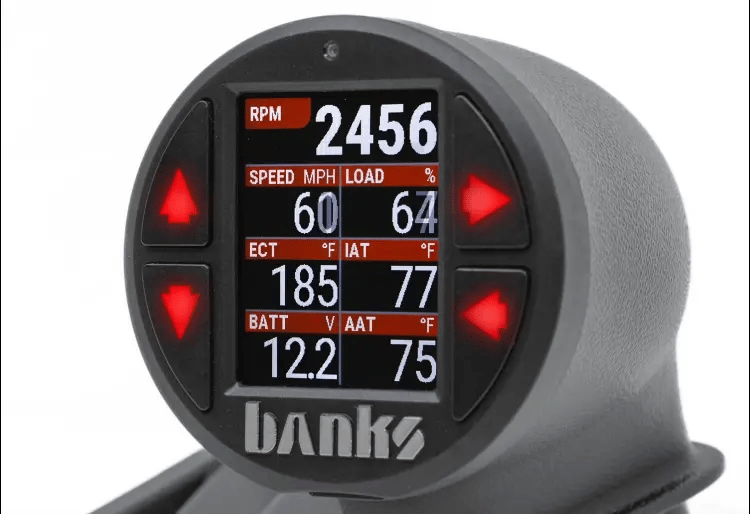

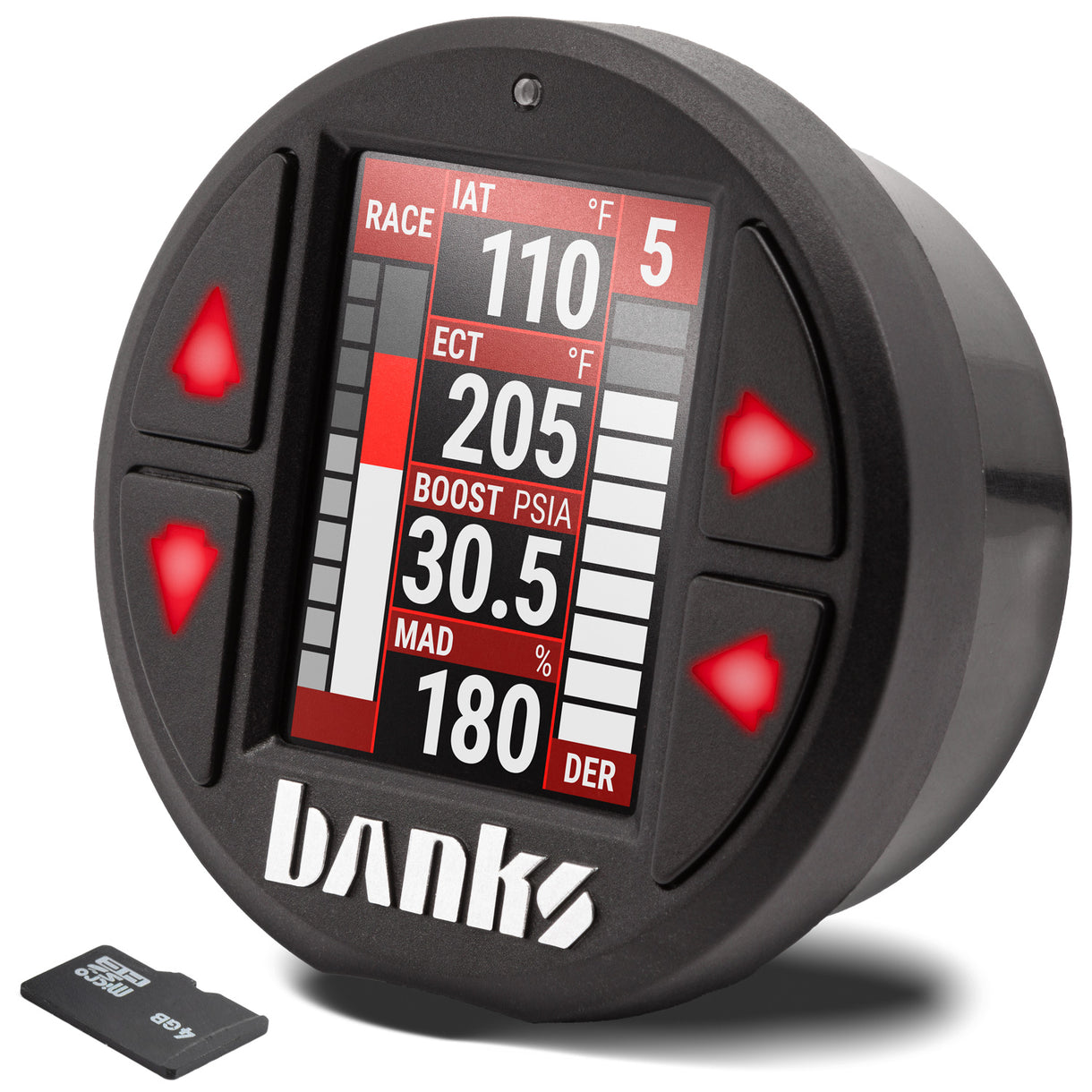

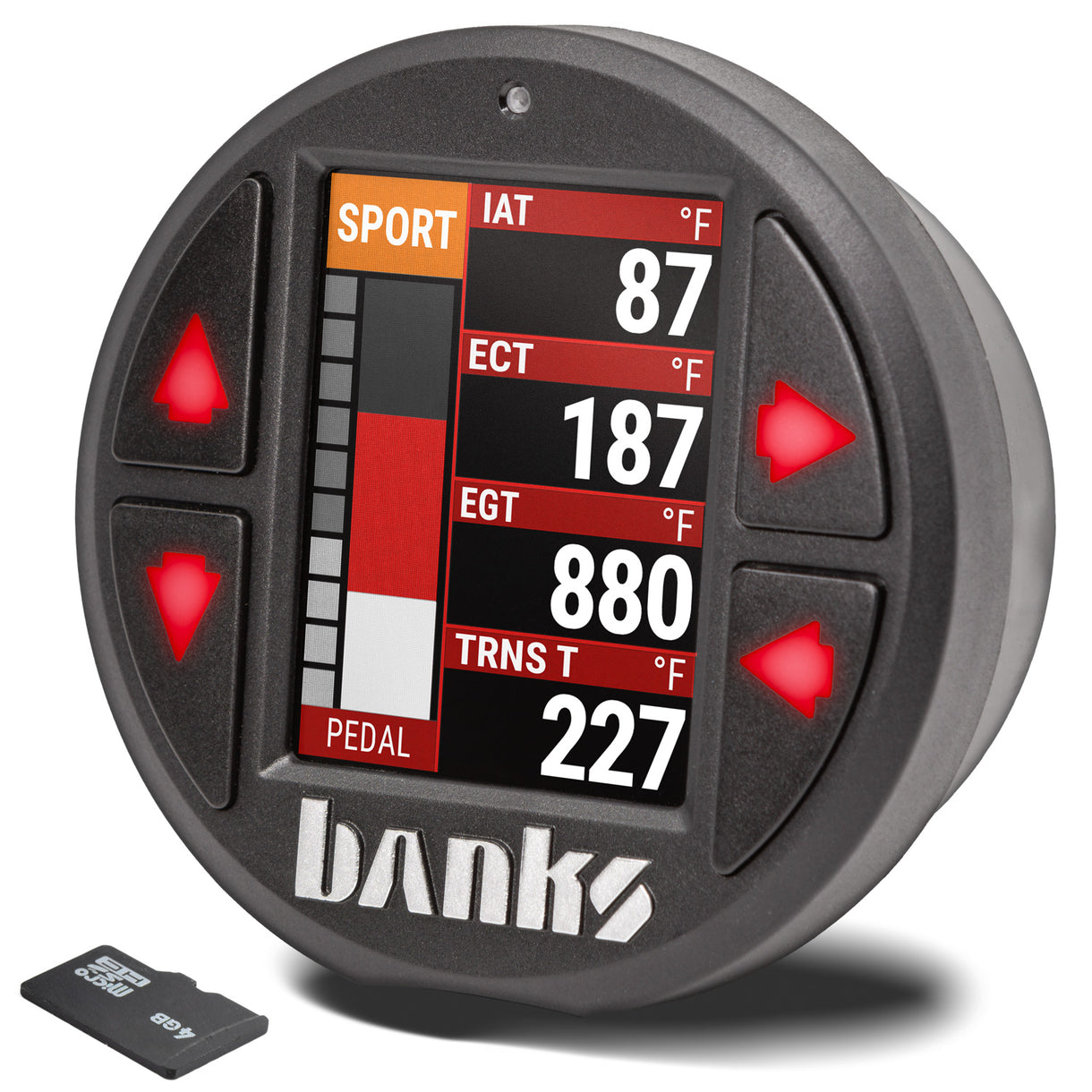

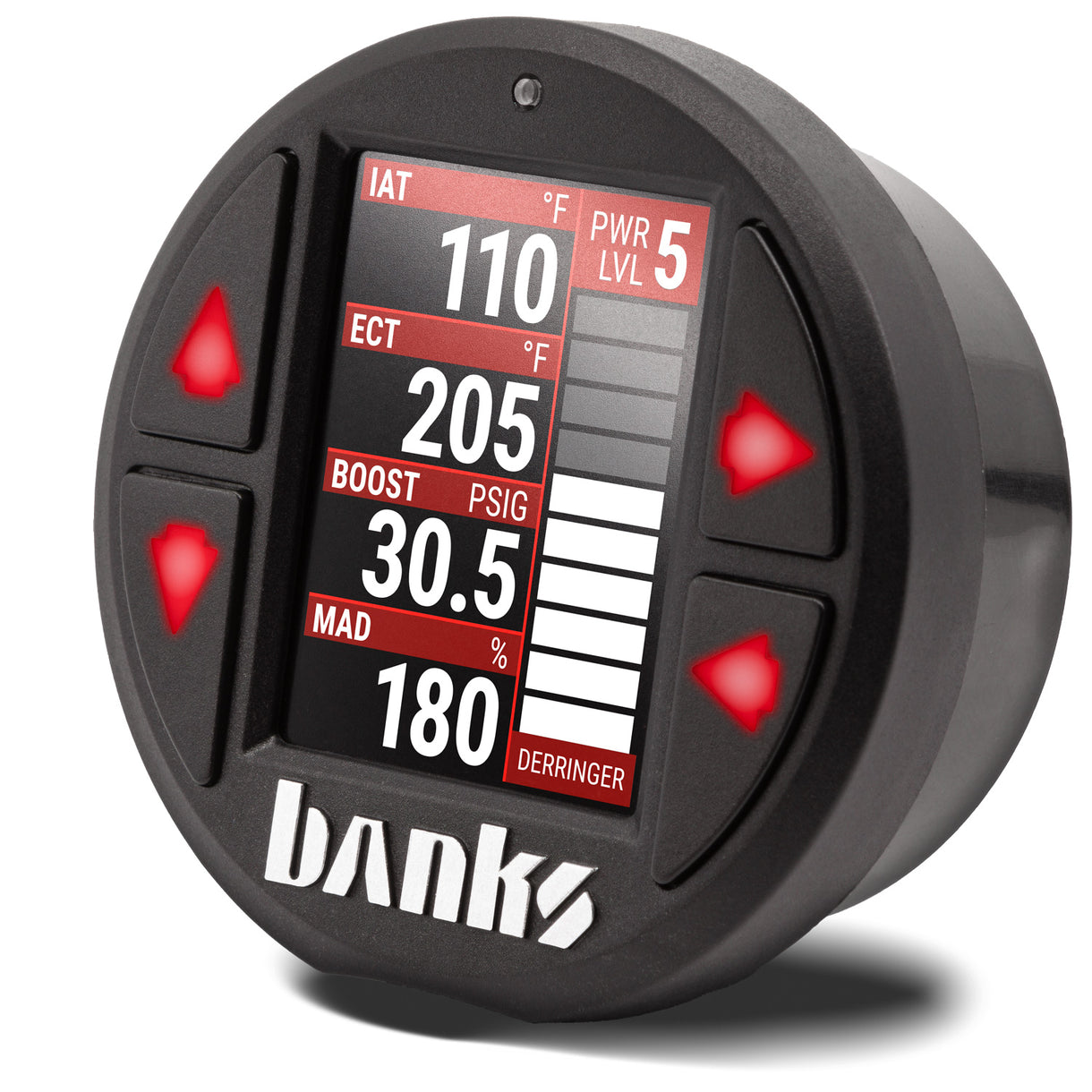

Includes iDash Powertrain Information Center

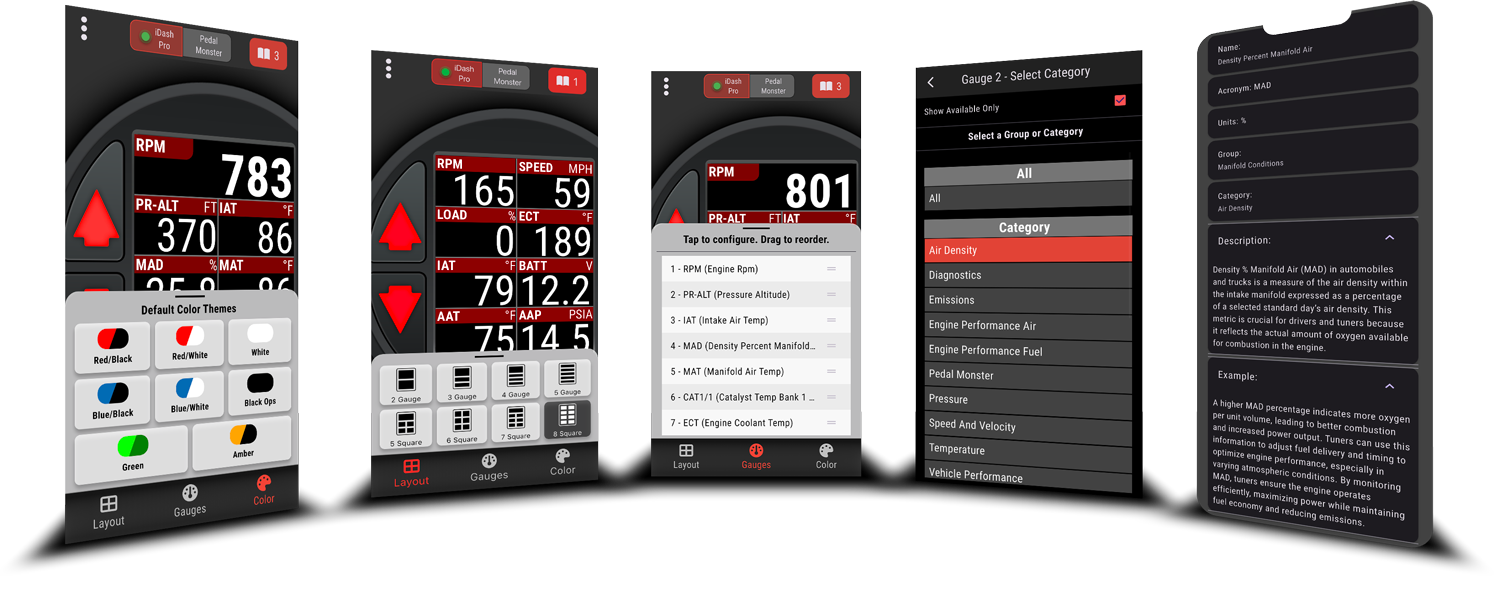

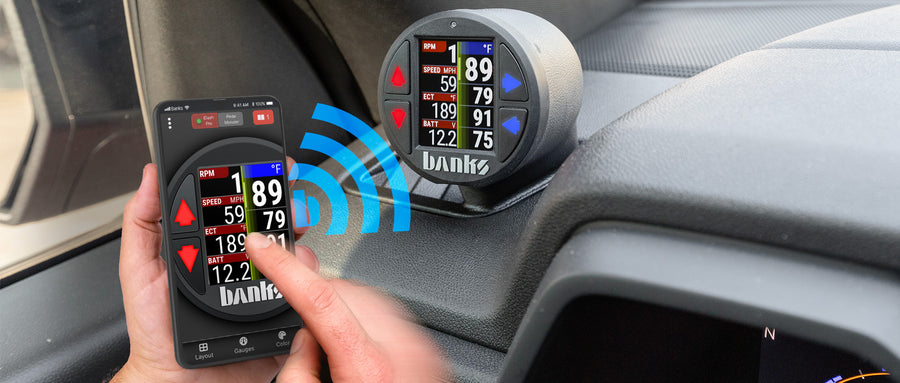

Bluetooth App Makes It Easy
The Banks mobile app for Apple and Android makes setup, configuring, and updating the iDash Pro easier than ever.
- Select and move gauges
- Change color themes
- Switch screen layouts
- Easily look up parameter definitions
Information At Your Fingertip

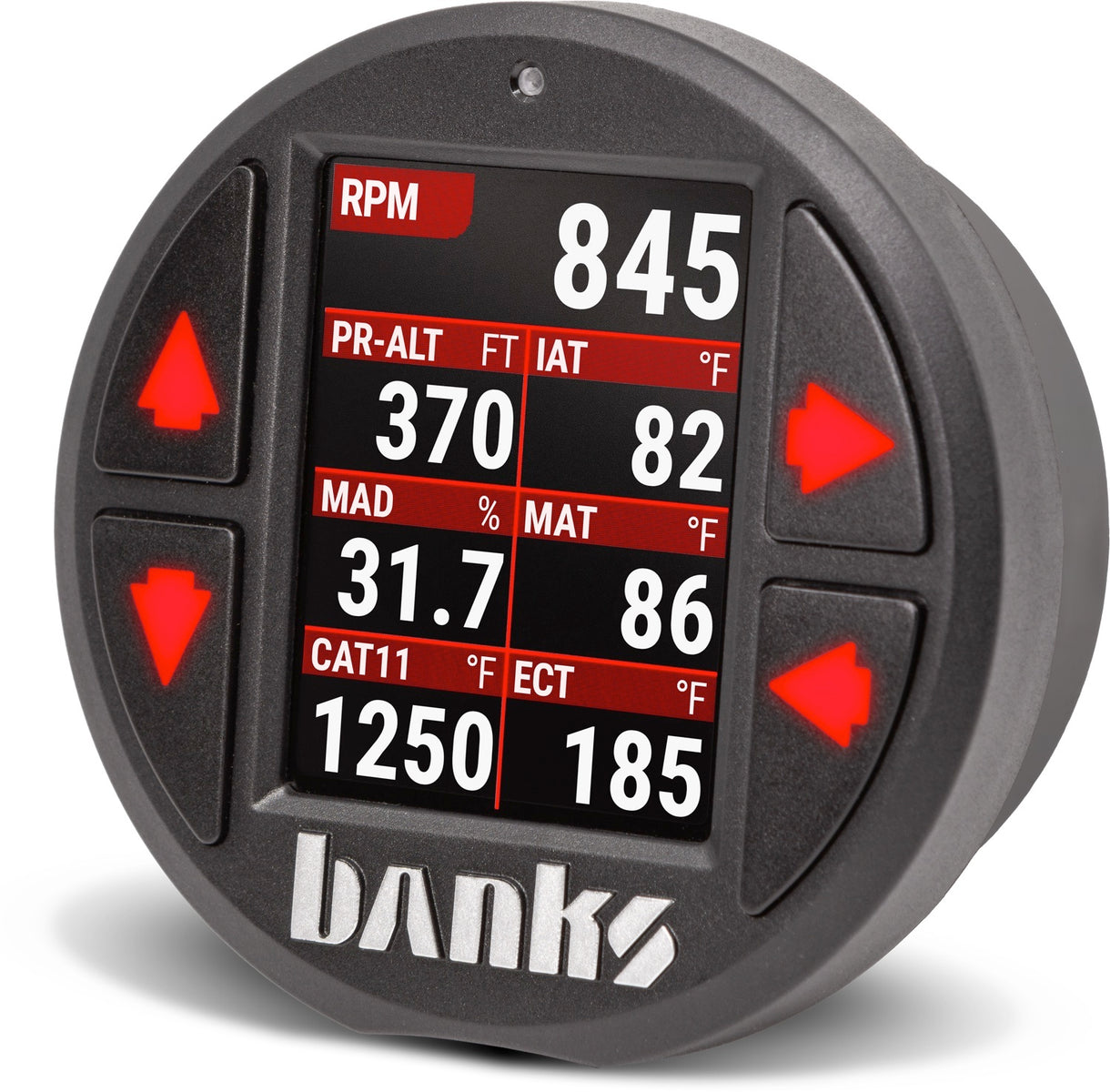

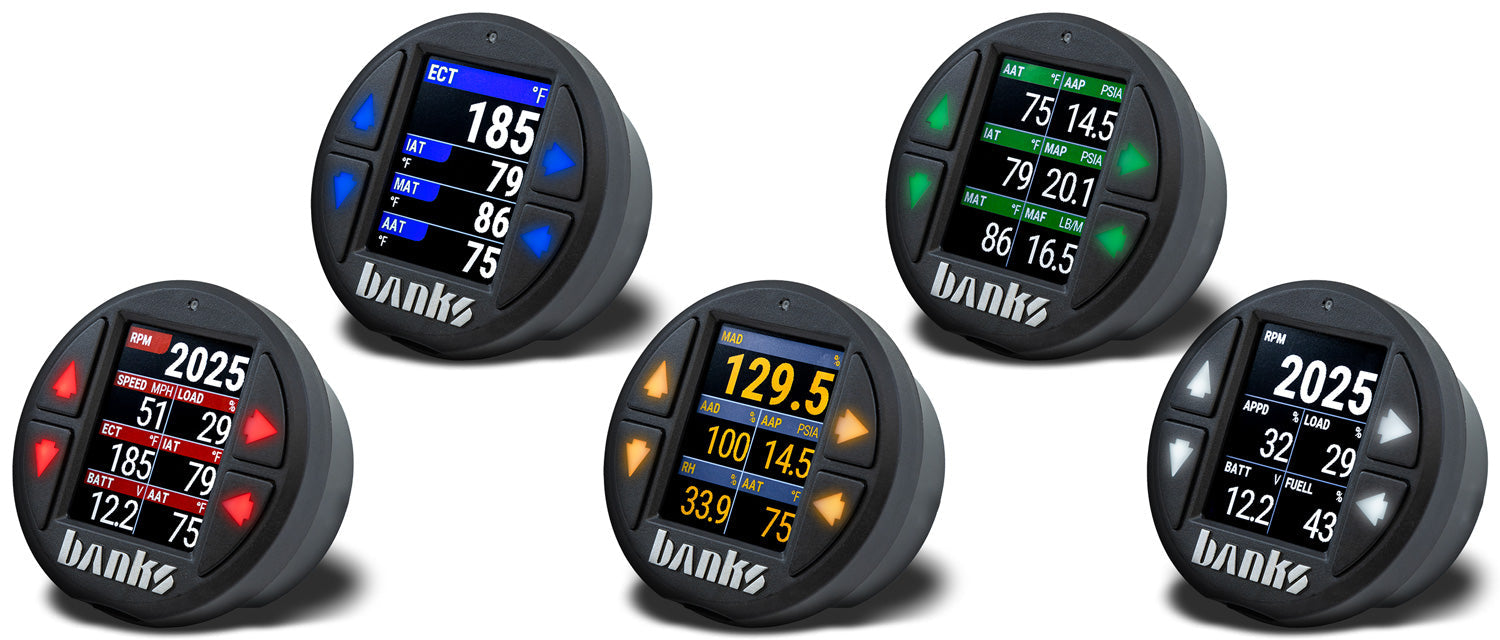

Monitor up to 8 gauges on 5 customizable screens. That's 40 gauges at the touch of a button. Quickly change gauges, layouts, colors, and pages via intuitive buttons or a tap or swipe on the mobile app. Connect up to 4 iDash Pros to see even more information at once.

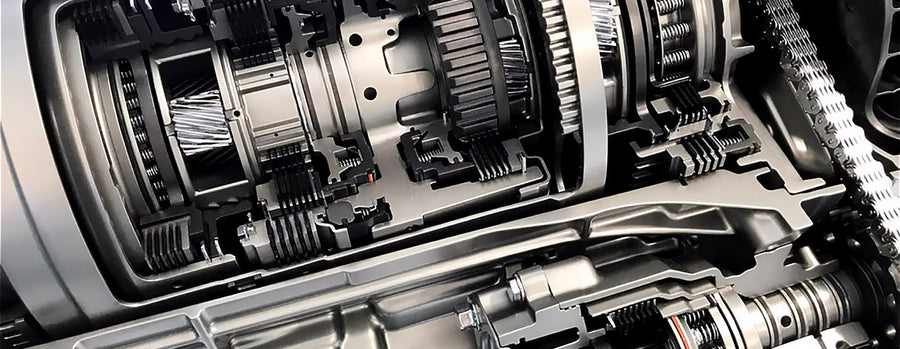

TransCommand® Active Transmission Safety System
Derringer High Output is calibrated to modulate power during shifts for better clutch engagement. Thanks to its OBD connectivity, Derringer knows when the GM/Allison 10-speed transmission is shifting gears. It reduces its added power momentarily to allow for a smooth shift. Competitive tuners have no idea or simply ignore when the transmission is shifting and continue to add power, overspeeding the transmission and causing long-term damage.
- Intelligent Shift Tuning — Gear shifts are optimized for each power level to protect the transmission and increase shift speed while protecting against torque converter and clutch slip.
- Accelerator Pedal Monitoring — Rolls in additional power progressively, optimizing for both part-throttle fuel economy and maximum power when you want it.

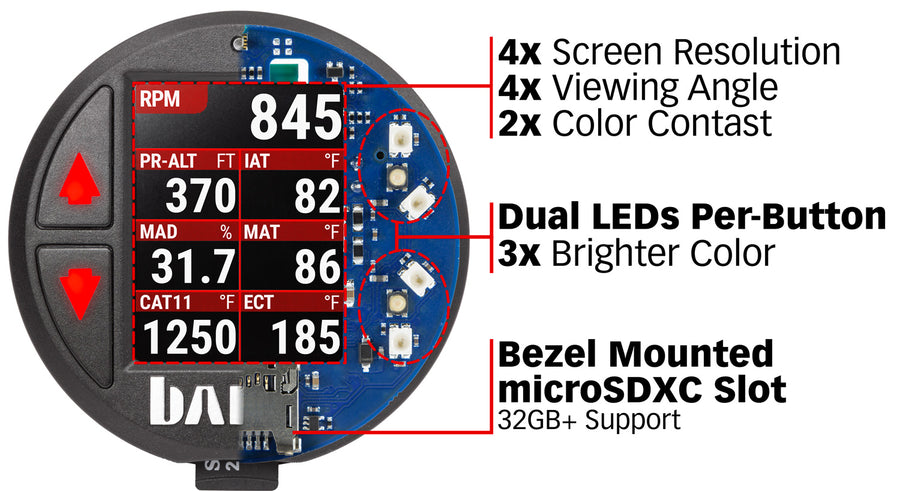

Progress Through Evolution
- High resolution screen with ultra-wide viewing angles
- Vibrant high-contrast selectable color schemes
- Higher speed datalog rate
- Expanded memory for nearly unlimited vehicle support
- Over-The-Air updates via Bluetooth
Total Throttle Control
Unlike conventional cable throttles, where your pedal is directly attached to the engine’s butterfly valve, electronic accelerator pedals are not mapped linearly. Part throttle drivability is often dampened as a means to stretch fuel economy, giving a mushy and unresponsive feel when on the road.
We spent months engineering smooth pedal contours that are a pleasure to drive. Others like Pedal Commander, have crude steps, making your pedal feel like an on-off switch. Your transmission responds by hunting for gears.
Choose Your Control

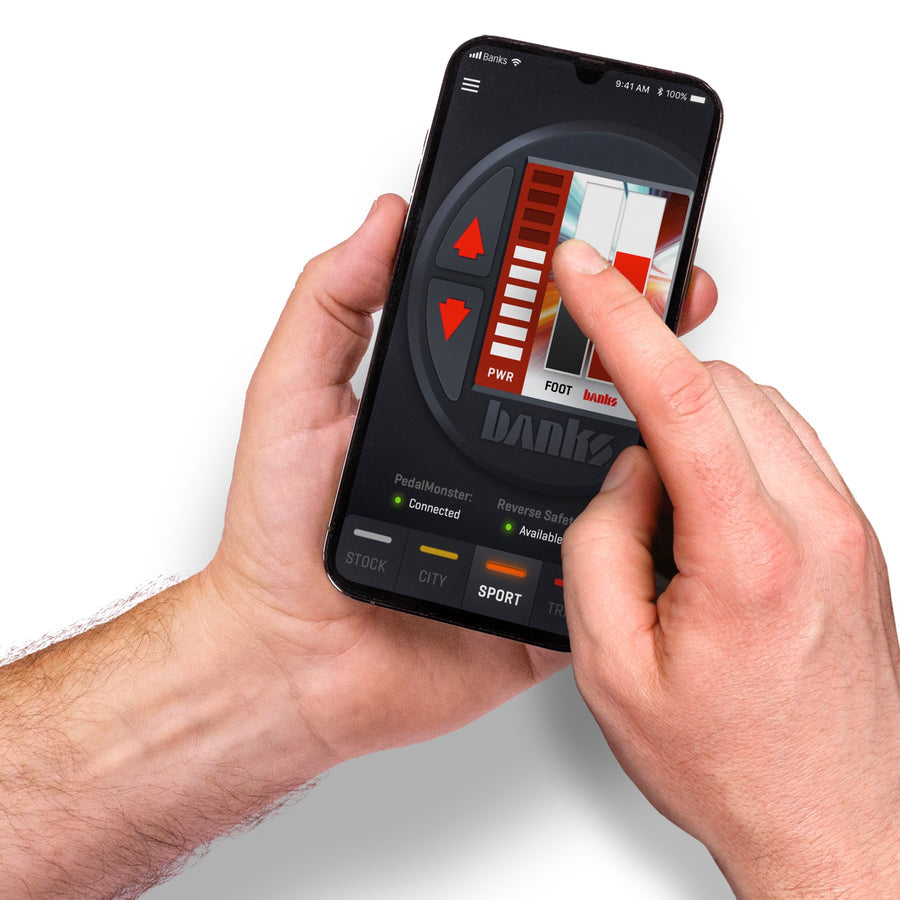

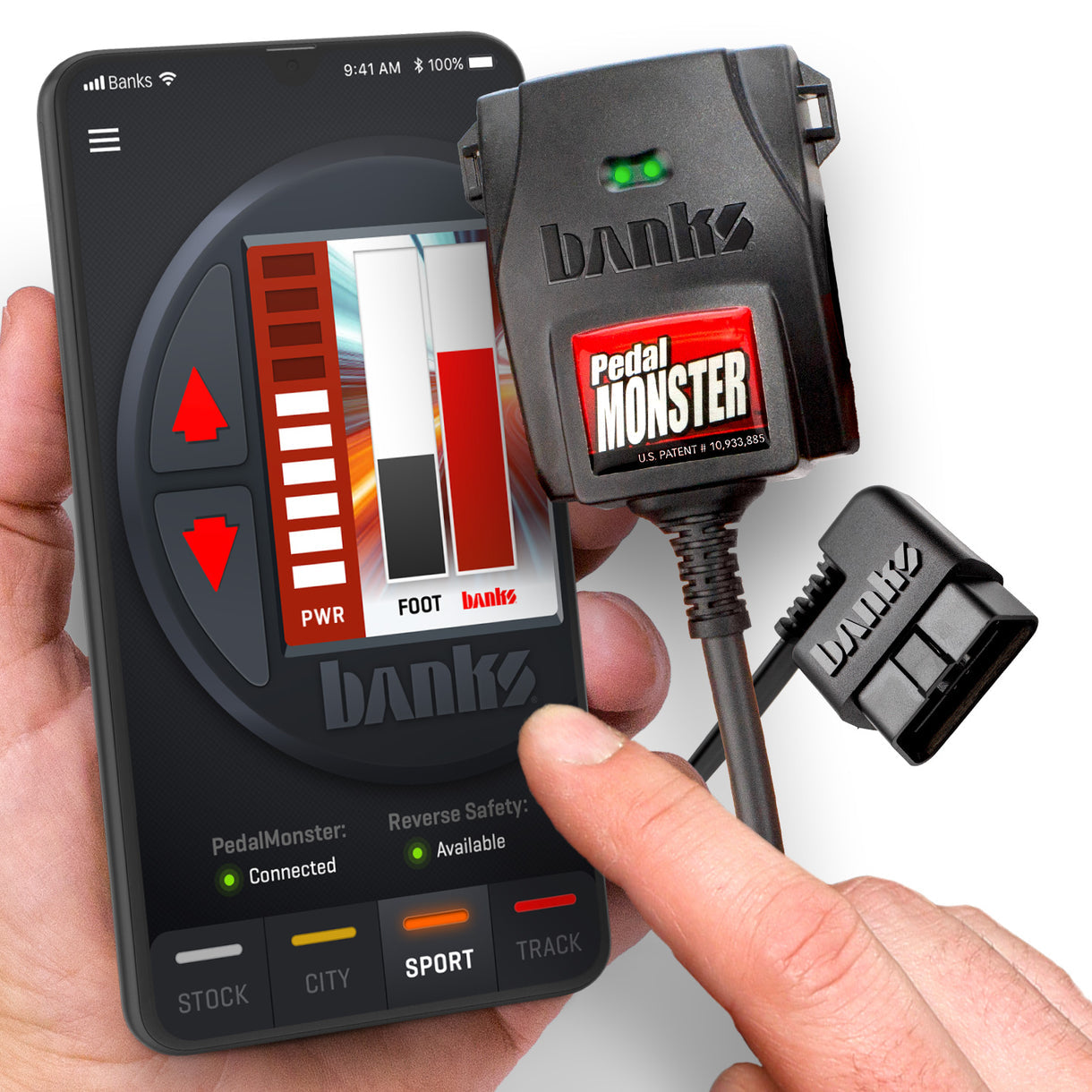

Pair the PedalMonster with an iDash Pro or Data Pro to be able to adjust pedal settings on the fly and open up a whole world of data not available on your vehicle’s dashboard.
With Bluetooth connectivity built in, new features and support for other vehicles can be added over-the air. No computer required.

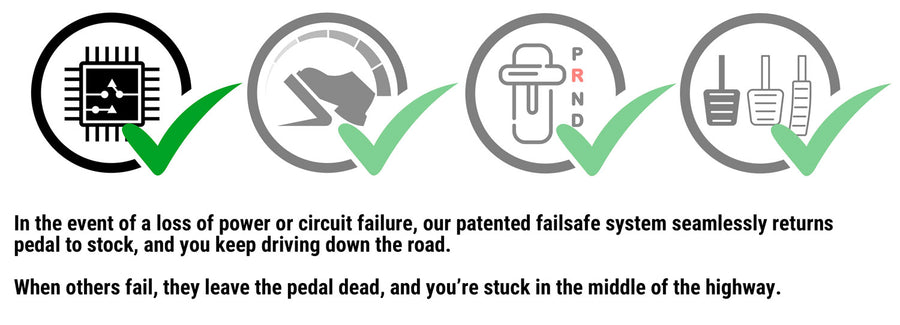

Unique Safety Features

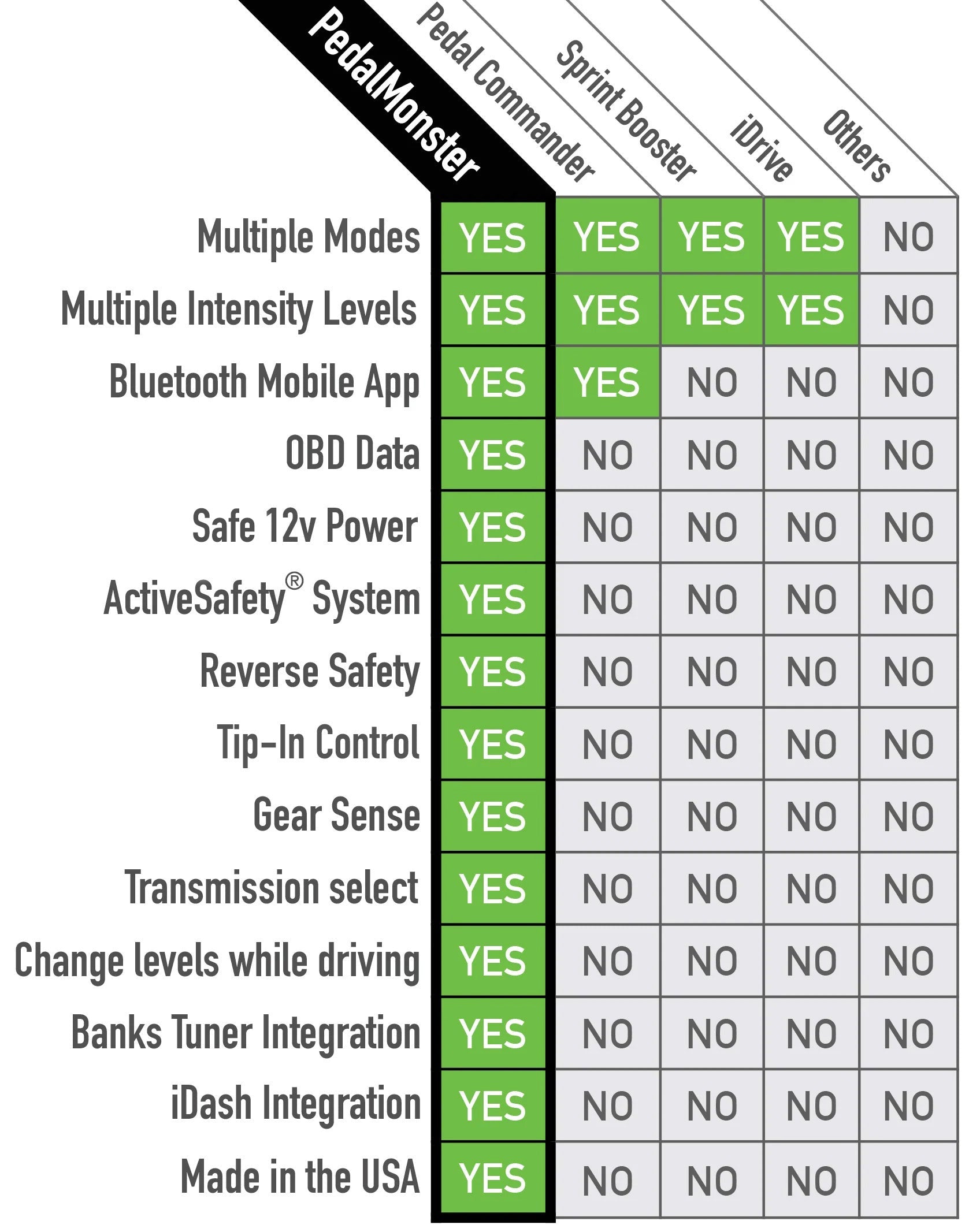

There are dozens of throttle controllers on the market, like Pedal Commander, Sprint Booster, iDrive, just to name a few. Each of them claims to be the most ADVANCED. As you see below thanks to its OBD-II connectivity and patented safety features, no throttle controller compares to Banks’ patented PedalMonster.

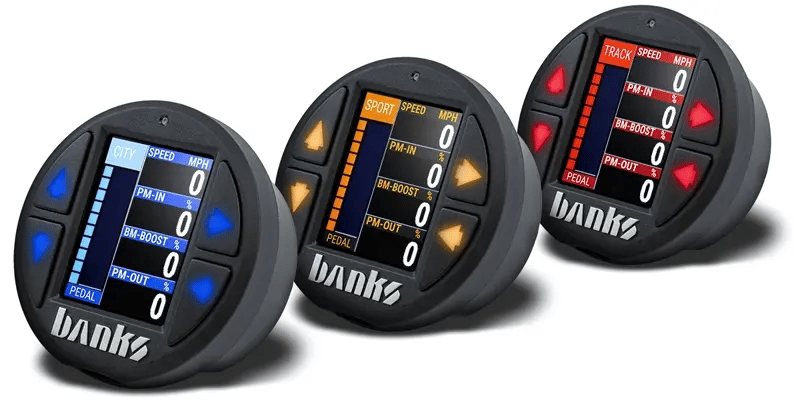

Tune Your Sensitivity

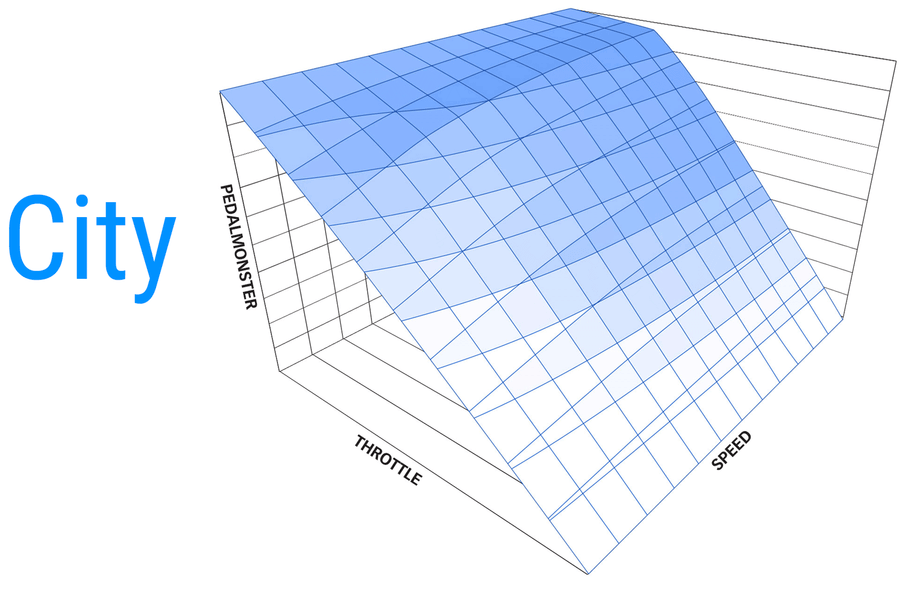

City: Provides a smooth driving experience with a linear throttle feel and is tuned for daily driving.
Sport: Adds more sensetivity in the throttles midrange for a sportier throttle contour feel.
Track: Lets you get into your power sooner with less throttle input, helping push through turbo spool lag or delay.
Realtime change in throttle contour shown with iDash Pro.

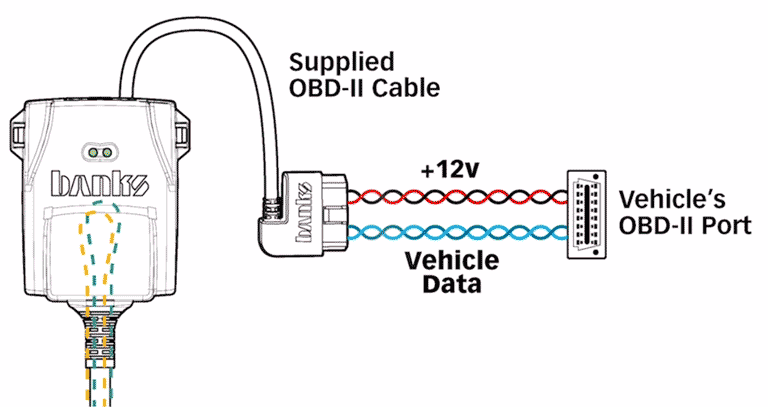

OBD-II Connectivity Brings Safety

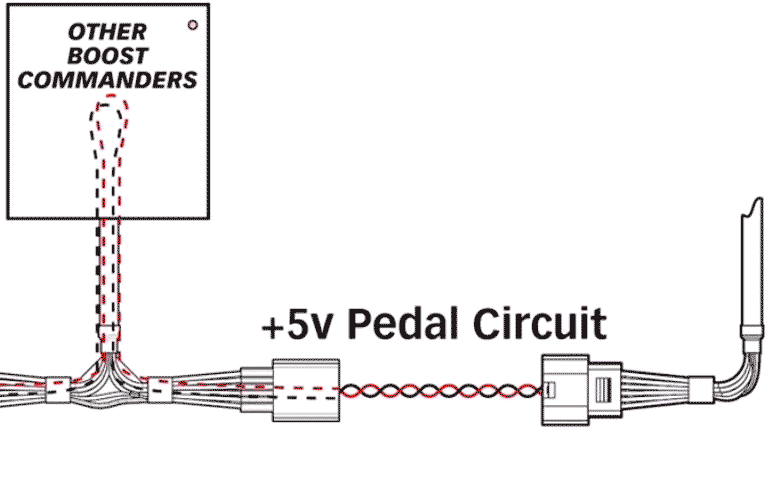

Other 'Boost Commanders' draw power from the accelerator pedal circuit itself, potentially overloading the circuit and leading to a dead pedal and an inoperable engine.
Every other throttle controller device has no clue what vehicle you are in, how fast you are going, and is unable to adapt dynamically to driving conditions.
Specifications:
- Adds +117 hp +225 lb-ft
- 6 power levels that can be changed on-the-fly via iDash. Each level adds approx. 23 hp

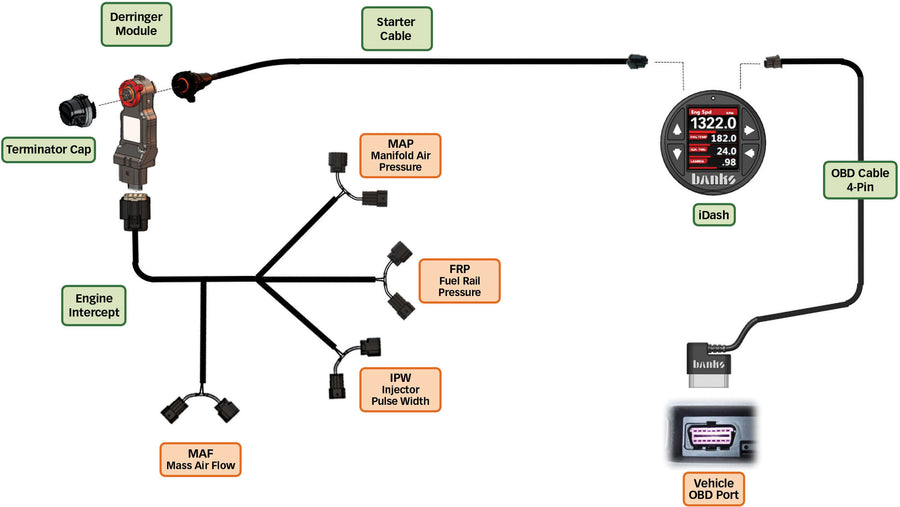

- Interfaces with OBD-II Port (On-Board Diagnostics) to communicate with vehicle's ECM
- Warranty friendly: no reflash required and no trace left in ECM after removal
- Works while in cruise-control
- AutoRate tunes in real time using vehicle diagnostics
- ActiveSafety protects engine/powertrain
- TransCommand protects transmission
- Real-time bar graph on iDash Data Pro displays Derringer's added power
- Update iDash and Derringer firmware wirelessly via Banks' intuitive mobile app.
