98.5-13 Dodge Ram 2500/3500 Synergy Heavy Duty Sway Bar Links
Lift Height (in.)
98.5-13 Dodge Ram 2500/3500 Synergy Heavy Duty Sway Bar Links
0-3"
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
overview
- Synergy Dodge 4x4 Heavy Duty Sway Bar Links
- Fits Dodge (06-08) Mega Cab 1500 4x4, (98.5-13) 2500/3500
- Available for 0-3" and 3.5-6" lifts
- Constructed from high quality 1020 CR Solid
- Clear zinc plated for maximum corrosion resistance
- Stem top adapter eliminates the problematic factory "pancake" bushing on the sway bar end
- OEM style bushing and sealed tie rod end provides a direct linkage to axle
- 100% bolt on components assures an easy, trouble-free installation with the use of basic hand tools **
- Made in USA
**Some early model trucks require minor drilling on axle mount for installation

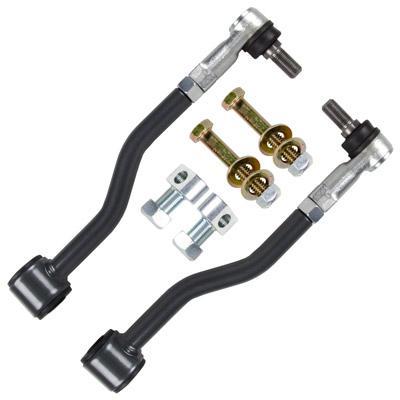

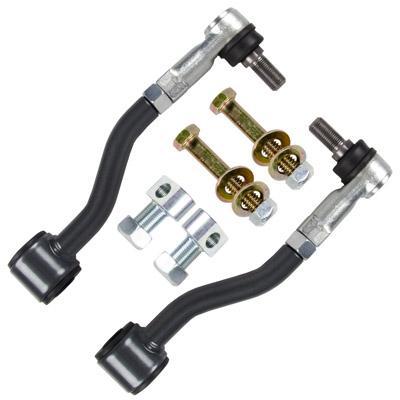

Includes:
- (2) 8515 sway bar links
- (2) Sway bar link ends (sealed tie rod ends)
- (2) ½-12 UNC jam nuts
- (2) 851501 stem top sway bar link adapter
- (2) 5/8-18 tapered nuts
- (2) ½-12 UNC x 3.0" long hex head bolt GR8
- (2) ½-12 UNC Stover nut
- (4) ½" flat washer GR8
Min/Max lengths measured from center of the lower bolt hole to the flat on the adapter: 8515-01
- Minimum Collapsed: 7 1/2"
- Maximum Extended: 8 1/2"
8515-02
- Minimum Collapsed: 10 7/16"
- Maximum Extended: 11 3/8"
Note:
- Model year 1998.5-2002 trucks require Synergy Heavy Duty Steering Kit 8525-02 for 2000 - 2002 Ram trucks and 8525-03 for 1994 - 1999 Ram trucks to be installed for the Sway Bar End link to properly clear the steering linkage.
- For the 8515-11 Heavy Duty Sway Bar Links to be used on a 1998-2002 Ram, part number 4006-01 must be used
- Model year 2003-2009 trucks may have clearance issues on passenger side if vehicle is equip with factory Y-link steering kit.
