Icon Vehicle Dynamics

'24+ LC250 1.25-3" LIFT STAGE 8 SUSPENSION SYSTEM

$4,906.12 $6,132.65
Save $1,226.53
SKU: K53368T
Upper Control Arms + Rear Lower Link Material:

Upper Control Arms + Rear Lower Link Material
Quantity:

'24+ LC250 1.25-3" LIFT STAGE 8 SUSPENSION SYSTEM

Tubular

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

KEY FEATURES:
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
  • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

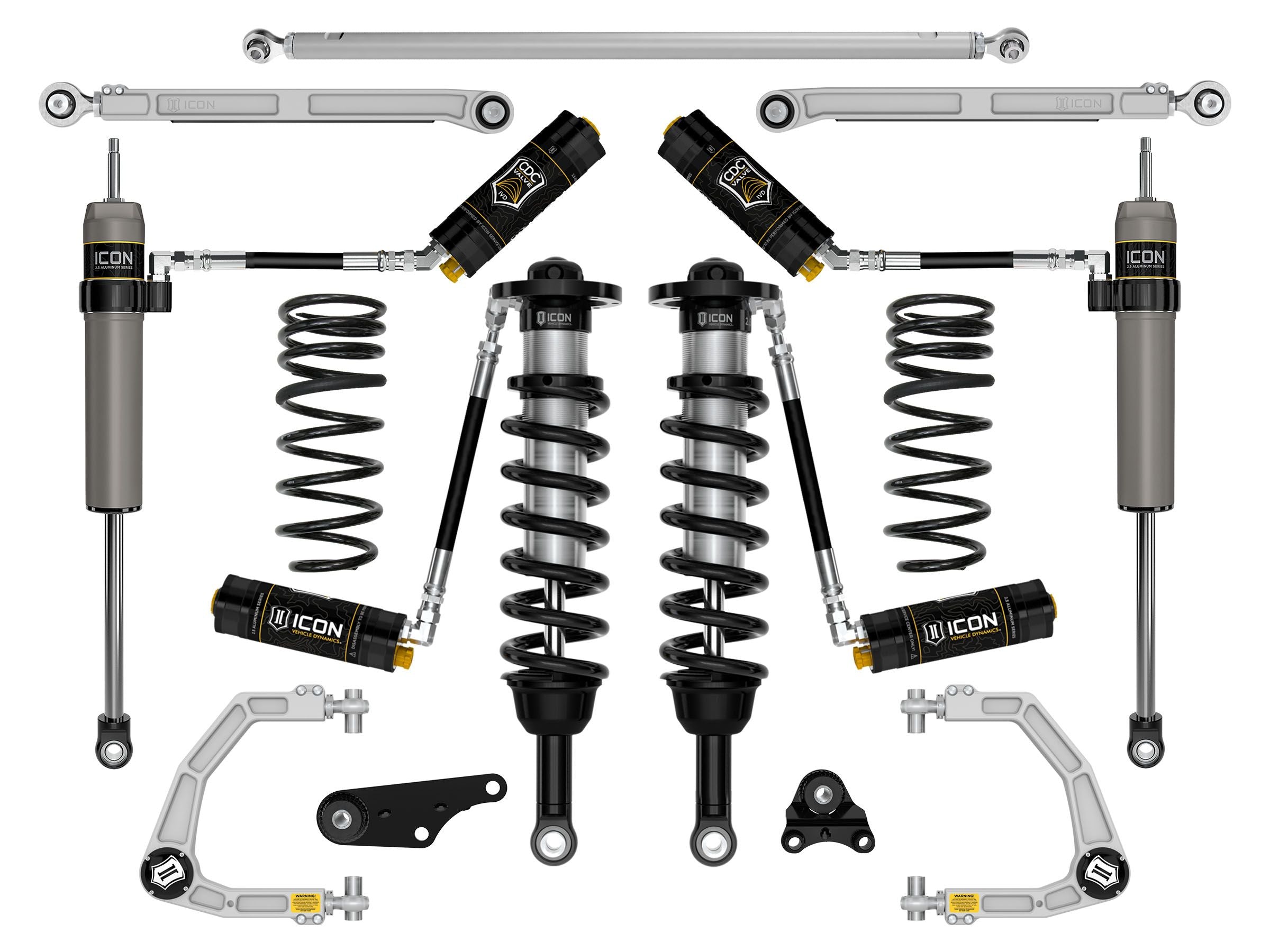

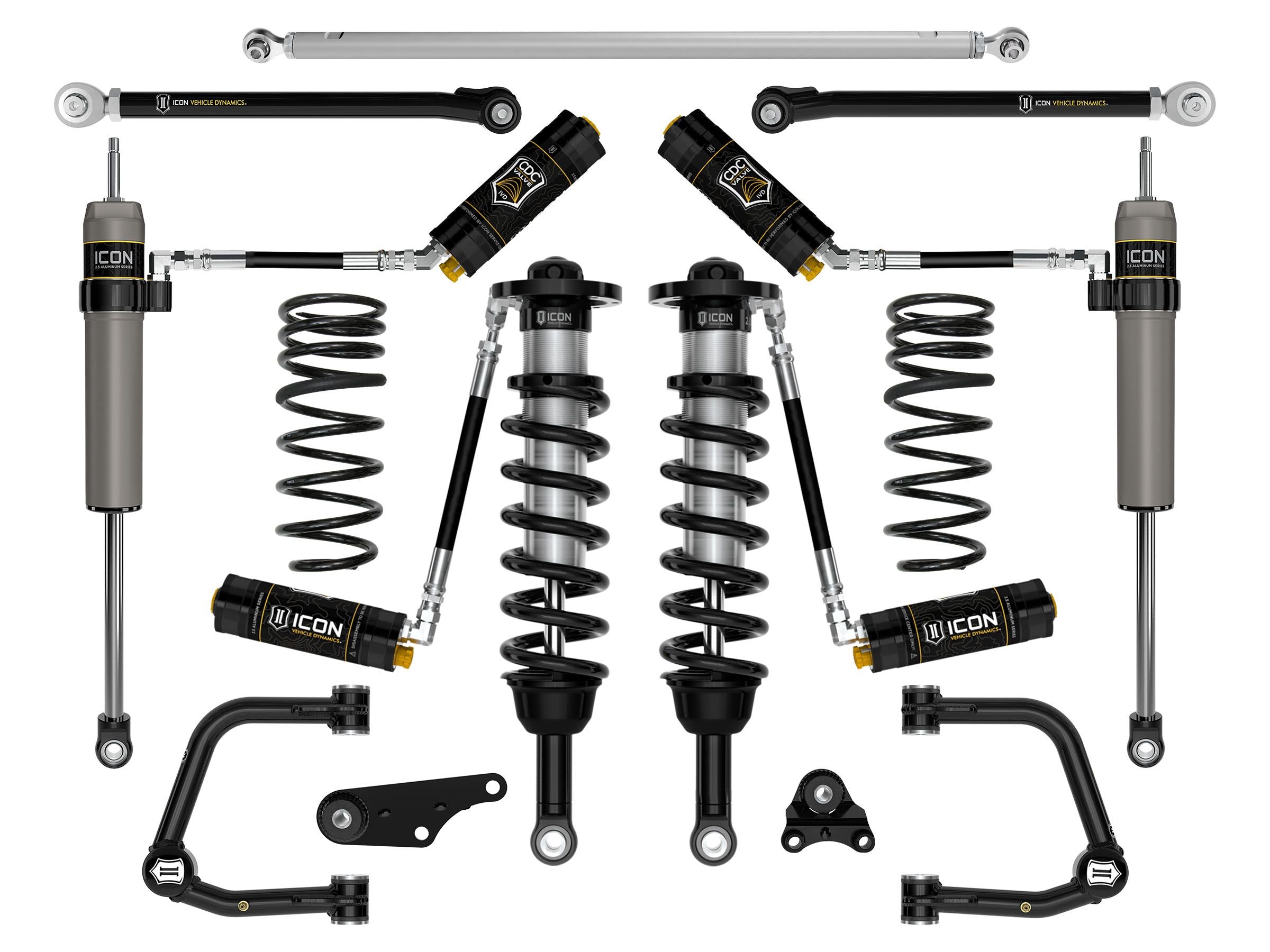

SYSTEM INCLUDES
  • 58791C: 24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDCV COILOVER KIT
  • 58452DJ: 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
     or 58552DJ: 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
  • 55160: 24 TACOMA/24 LC250 DIFF DROP KIT
  • 57870CP: 24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
  • 52752: 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
  • 54202: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
  • 54003T: 24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
     or 54003: 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
TECH NOTES
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
