Icon Vehicle Dynamics
'24+ GX550 1.25-3" STAGE 1 SUSPENSION SYSTEM
'24+ GX550 1.25-3" STAGE 1 SUSPENSION SYSTEM
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
KEY FEATURES:
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3" front lift height over stock
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

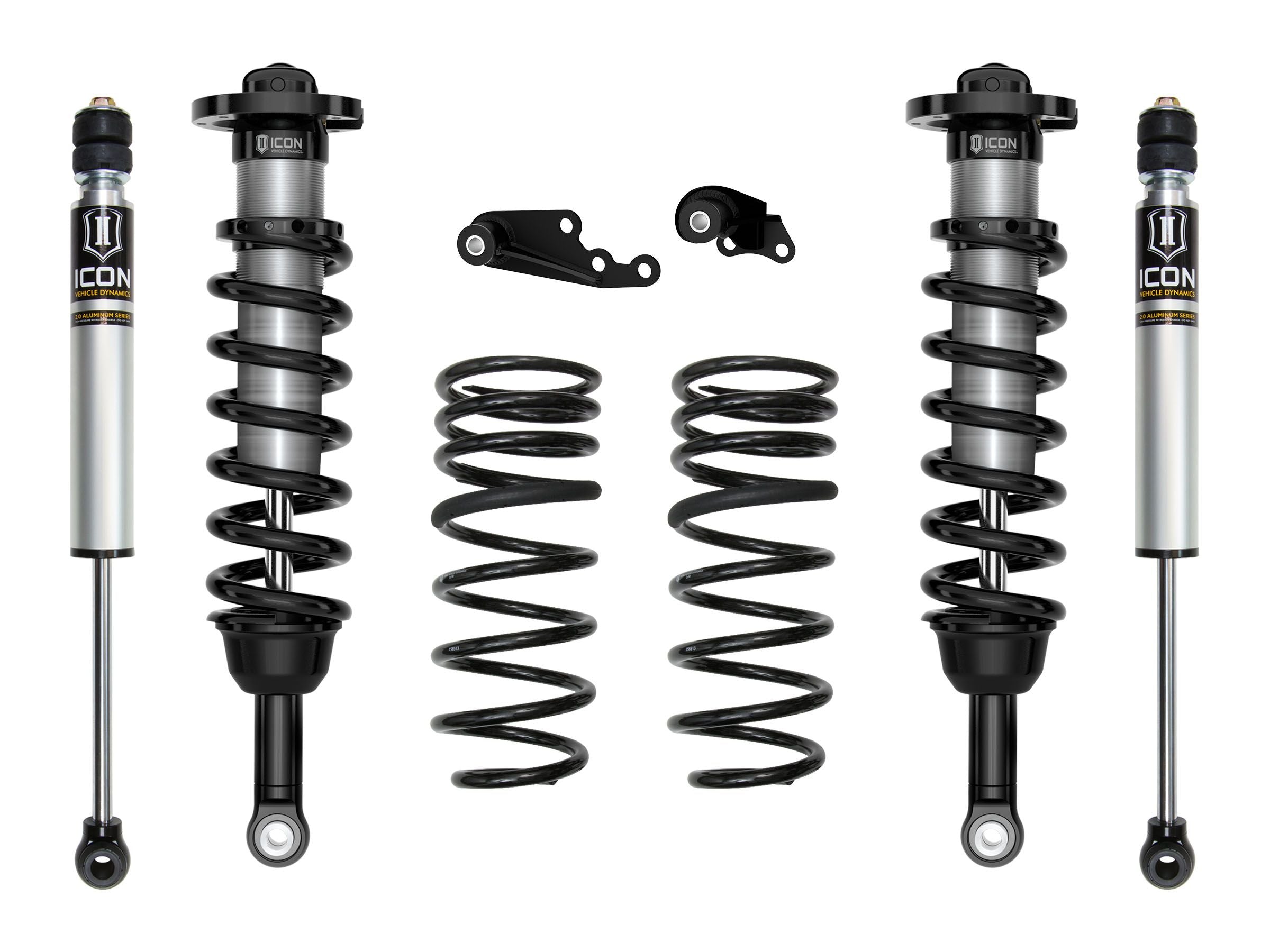

SYSTEM INCLUDES
- 58690: 24 GX550 FRONT 2.5 VS IR COILOVER KIT
- 55156: 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
- 52752: 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
- 56520: 24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
TECH NOTES
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
- Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #175: Will not fit GX550 Overtrail
- TECH NOTE (Stage 10): An iOS operated device is required to run ICON Intelligent Control App
