'24+ GX550 1.25-3" Lift 2.5 Coilover Kit w/ Remote Reservoirs & CDCV

Icon Vehicle Dynamics

'24+ GX550 1.25-3" Lift 2.5 Coilover Kit w/ Remote Reservoirs & CDCV

$1,759.96 $2,199.95
Save $439.99
SKU: 58790C
Quantity:

'24+ GX550 1.25-3" Lift 2.5 Coilover Kit w/ Remote Reservoirs & CDCV

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

overview

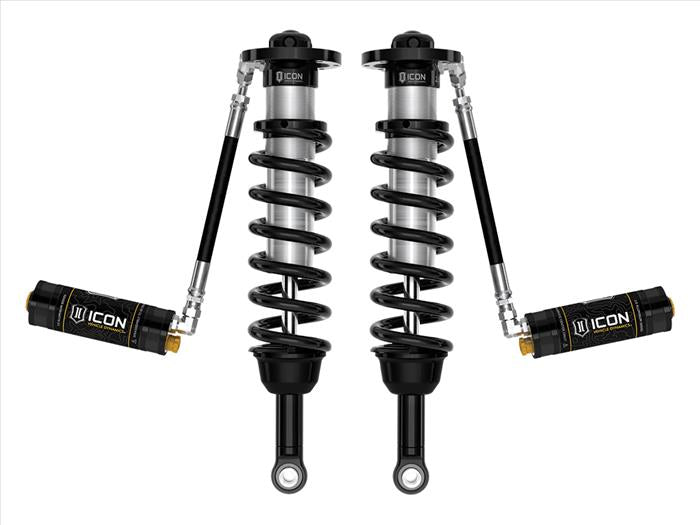

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.

features & Benefits
  • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
  • Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
  • Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
  • 2.5" diameter shock bodies with remote reservoirs
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
Tech Info:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
  • APPLICATION NOTE #175: Will not fit GX550 Overtrail
  • APPLICATION NOTE #177: 4WD/AWD models require front differential drop part # 55156
