King Off-Road Shocks

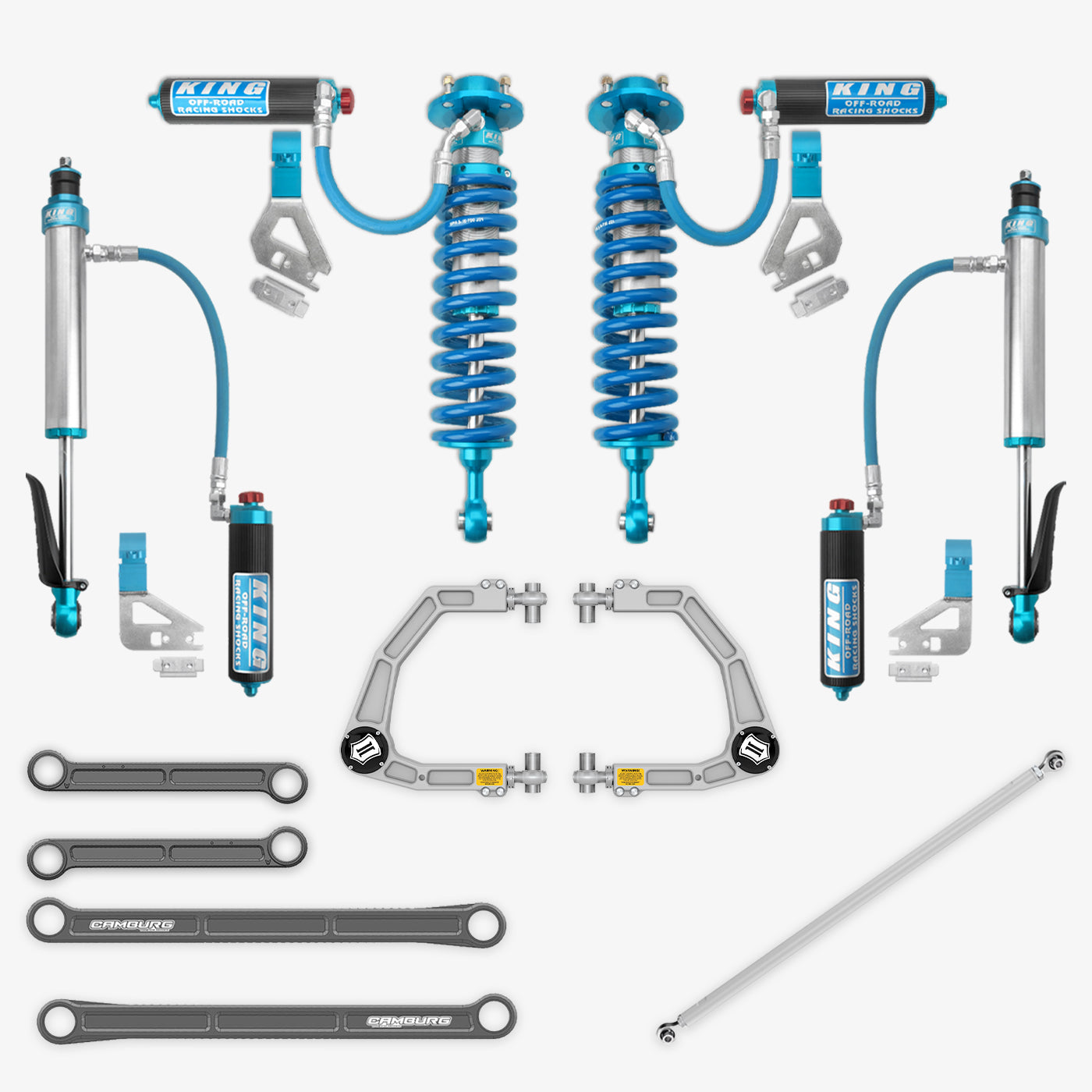

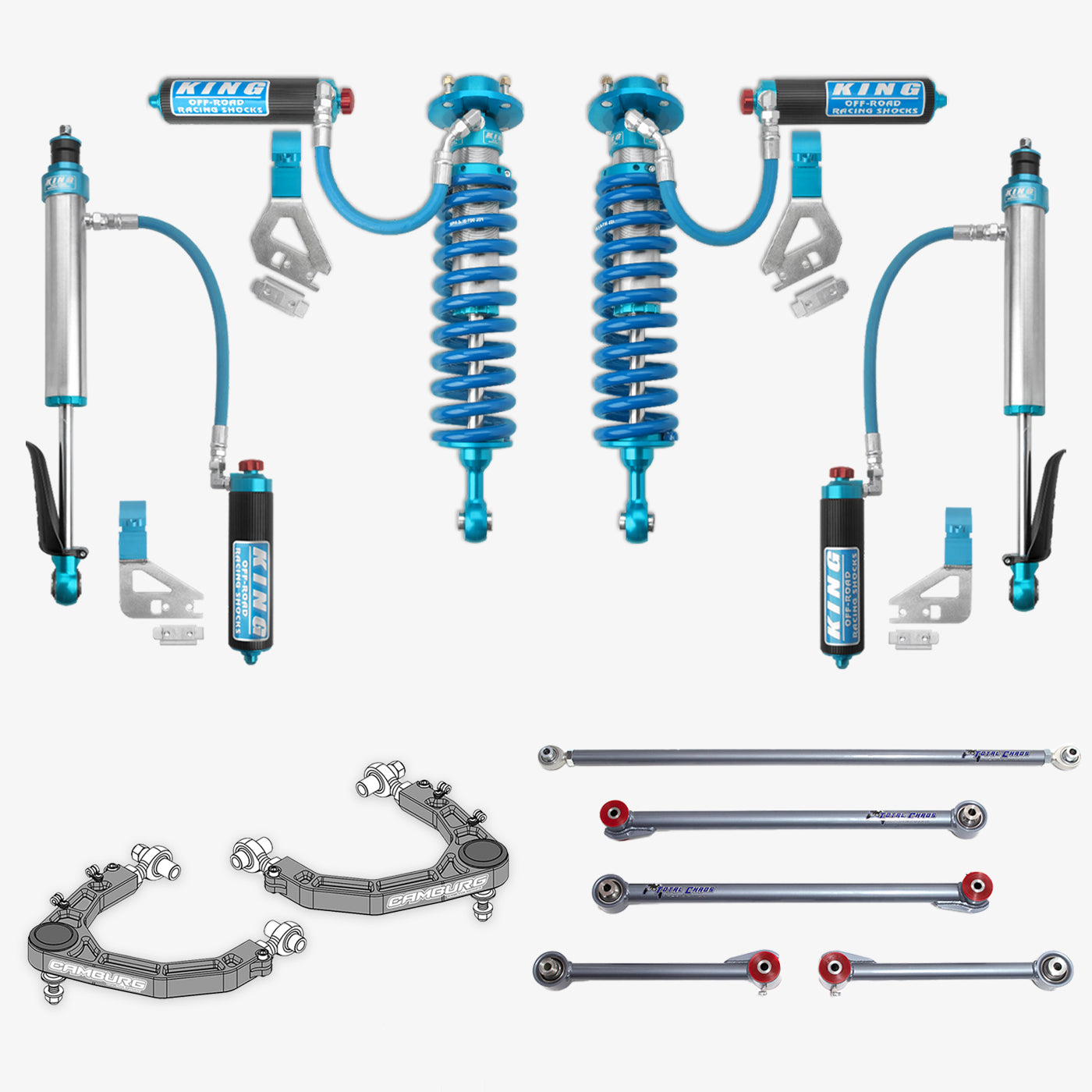

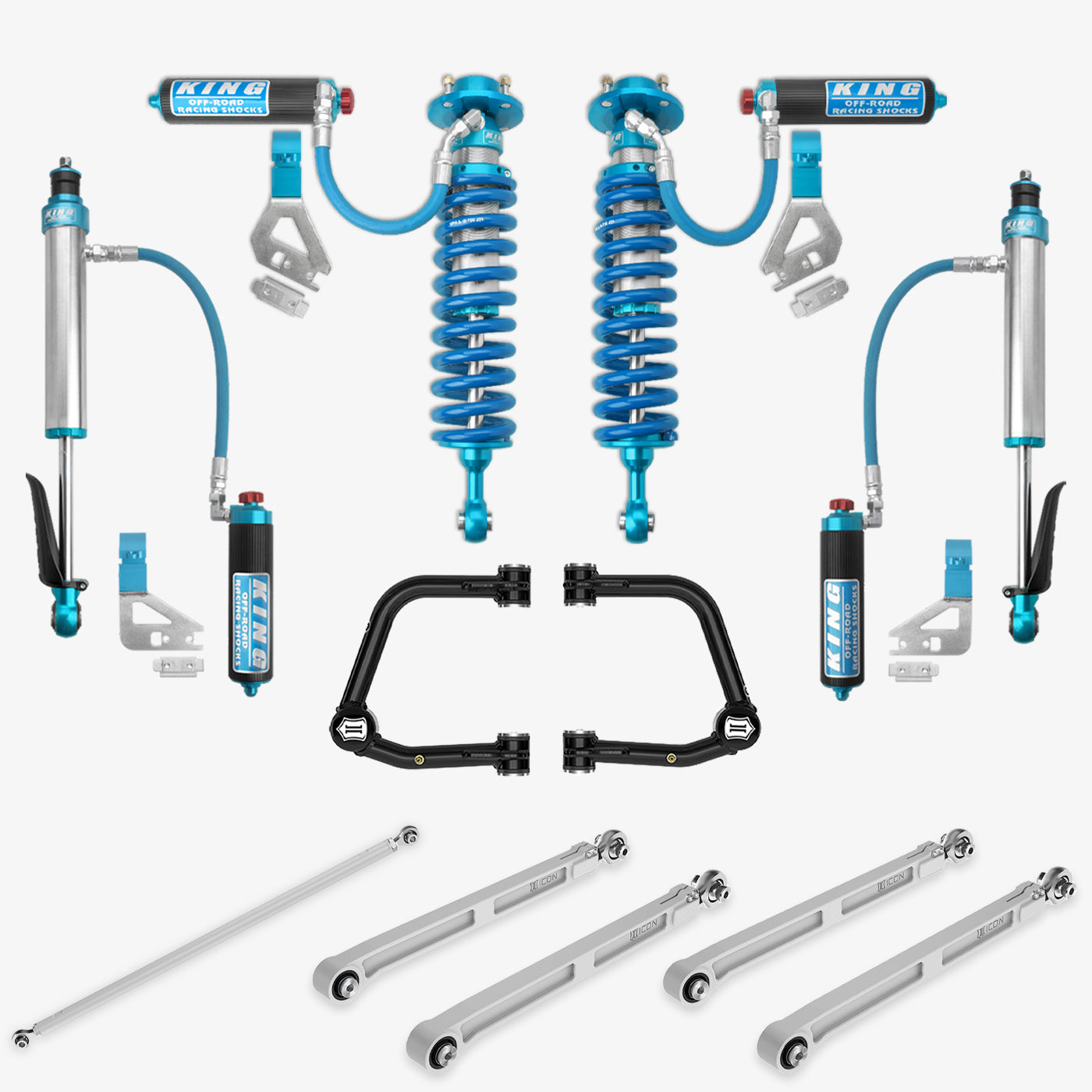

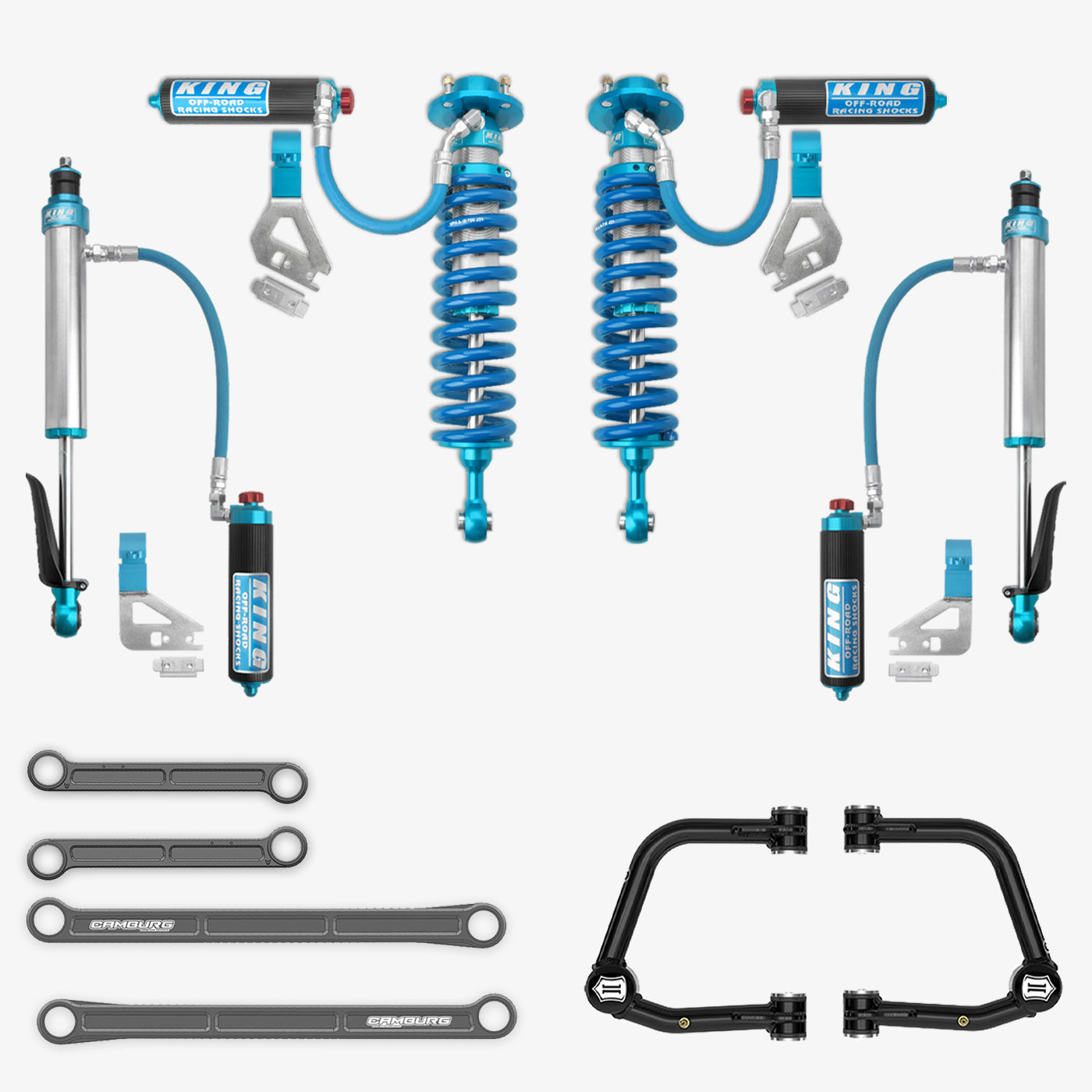

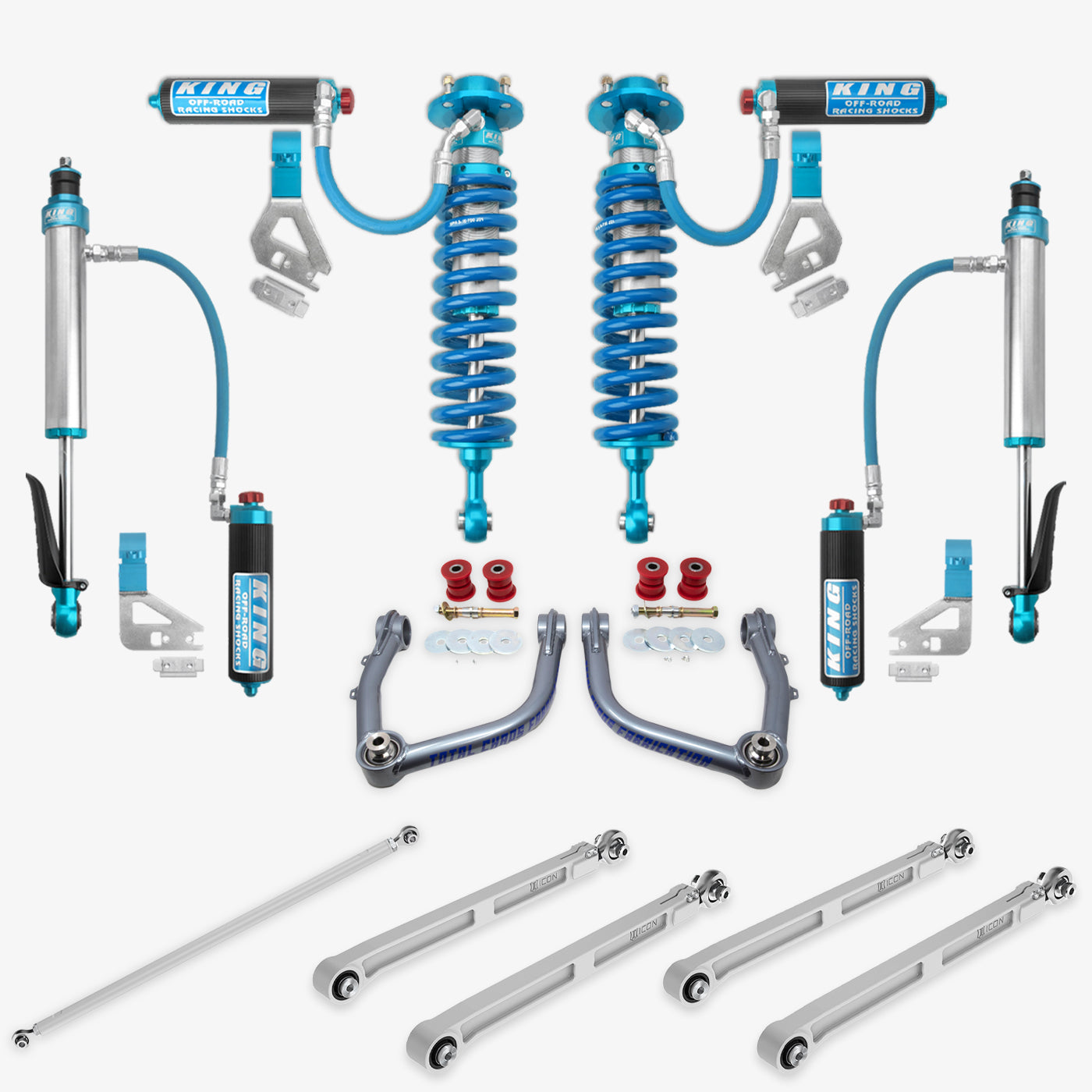

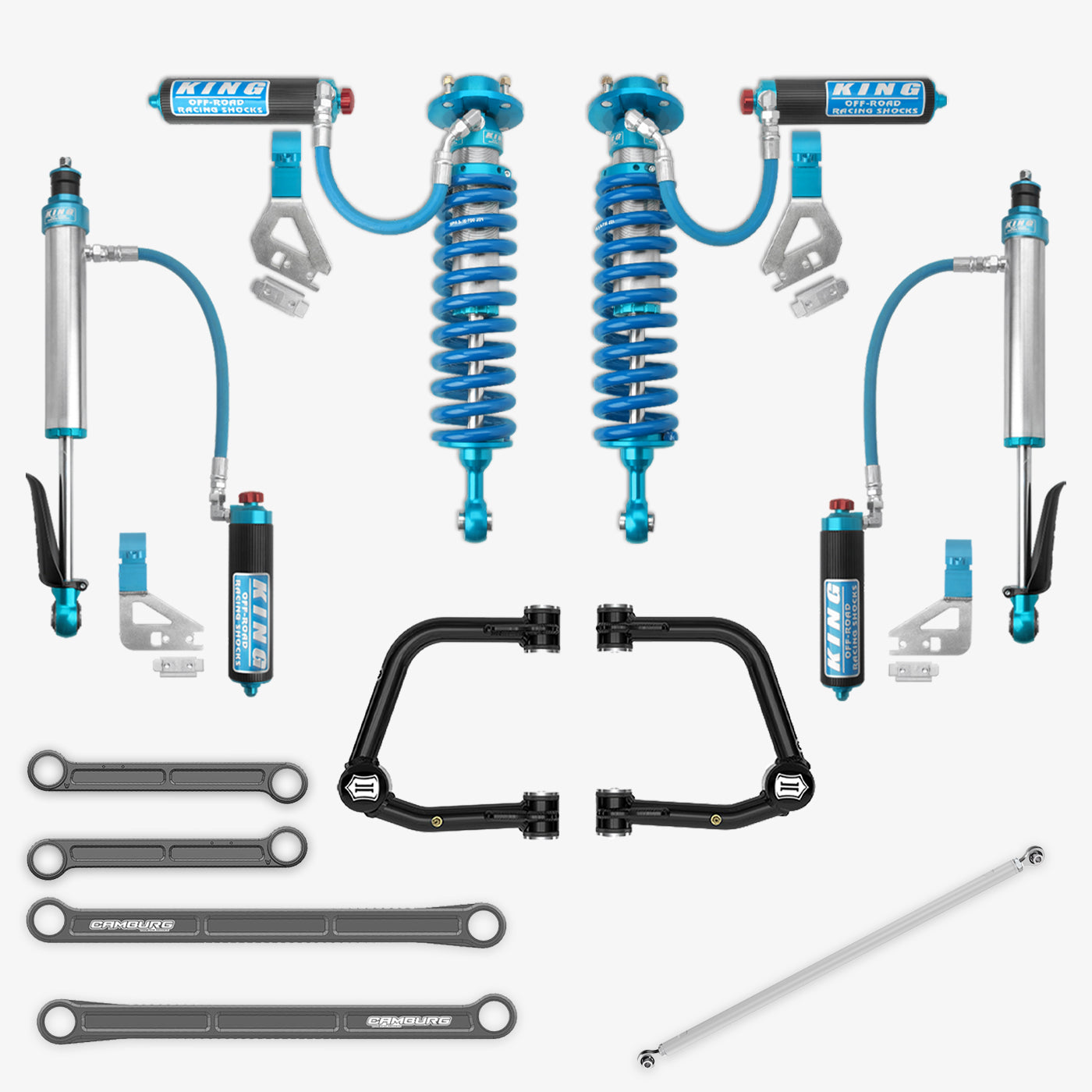

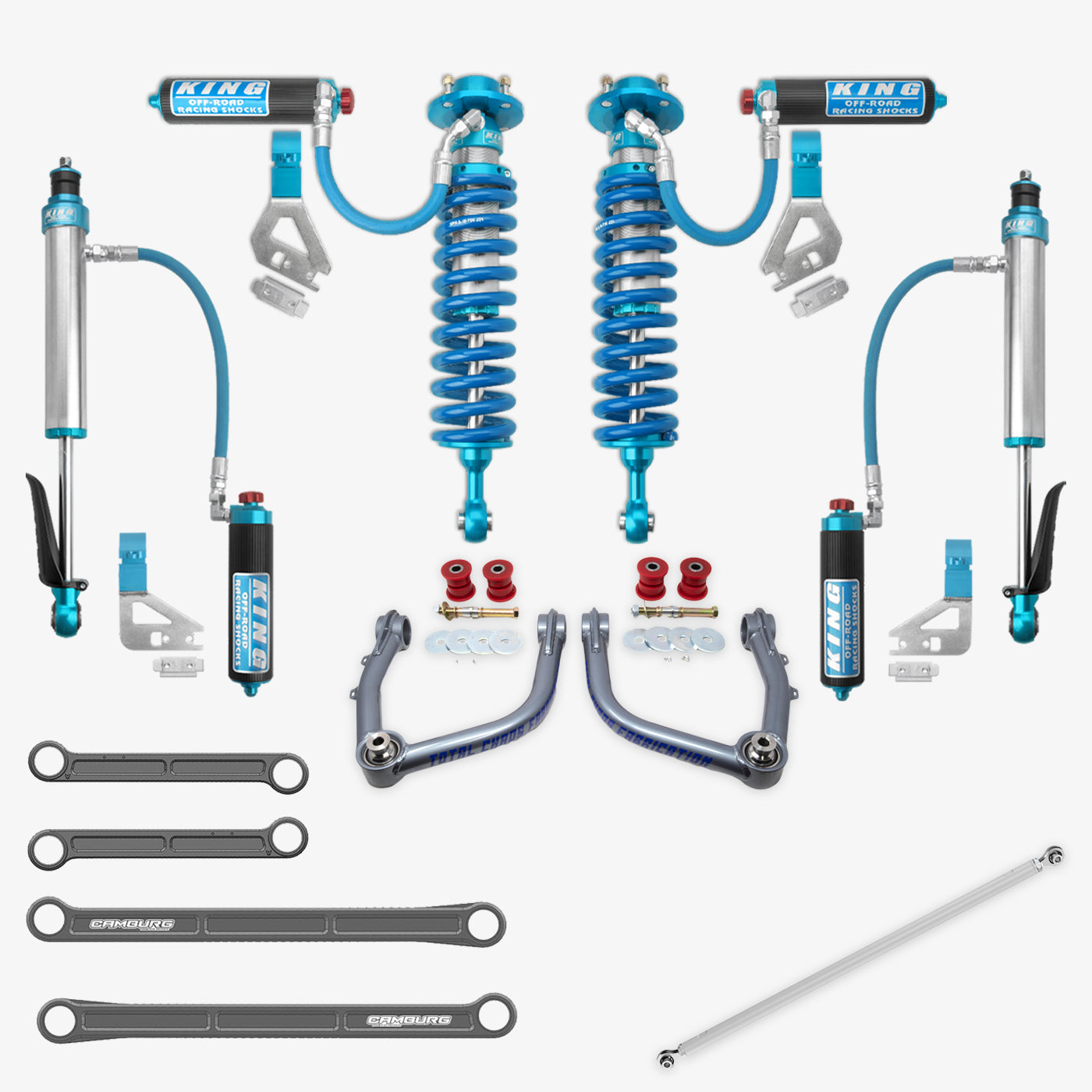

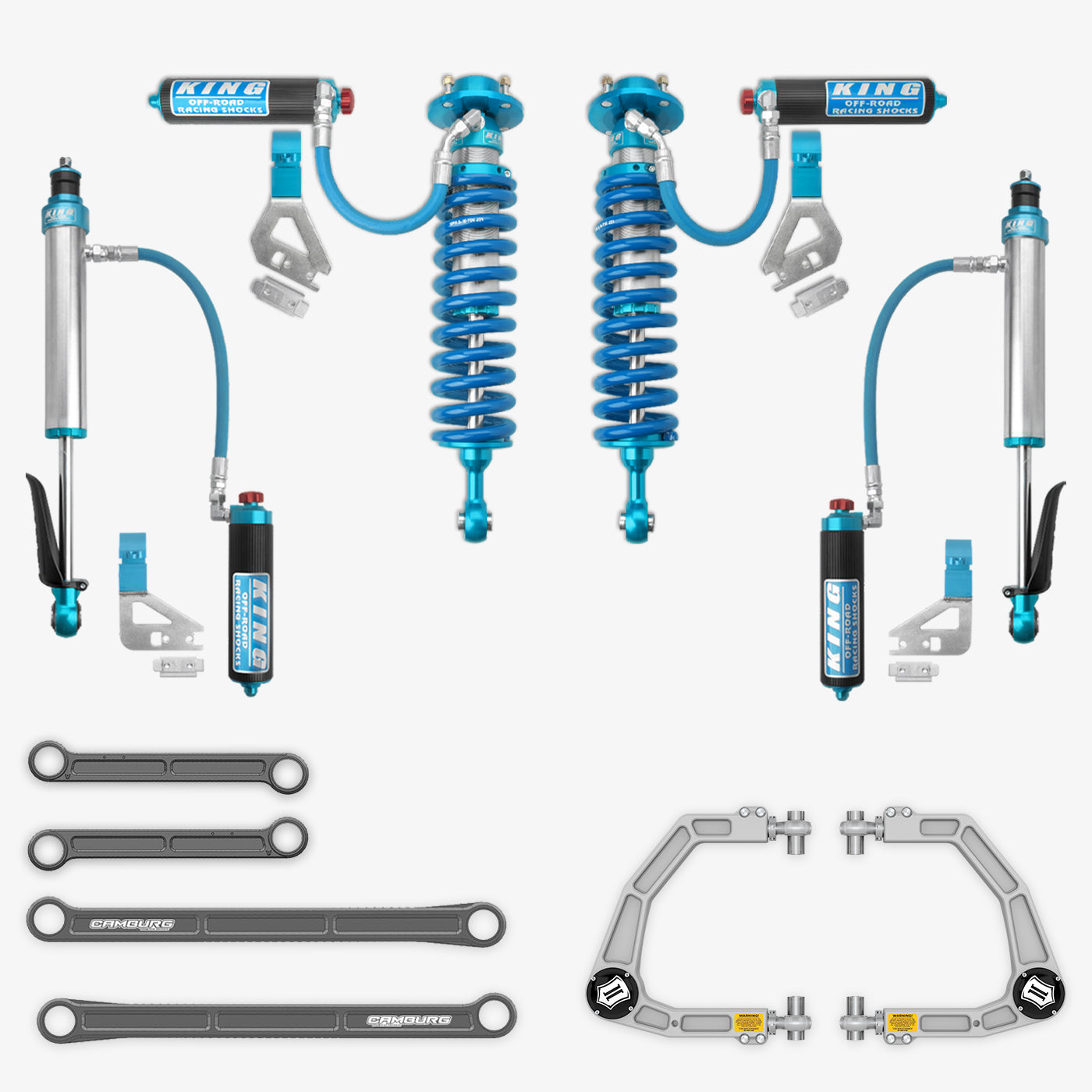

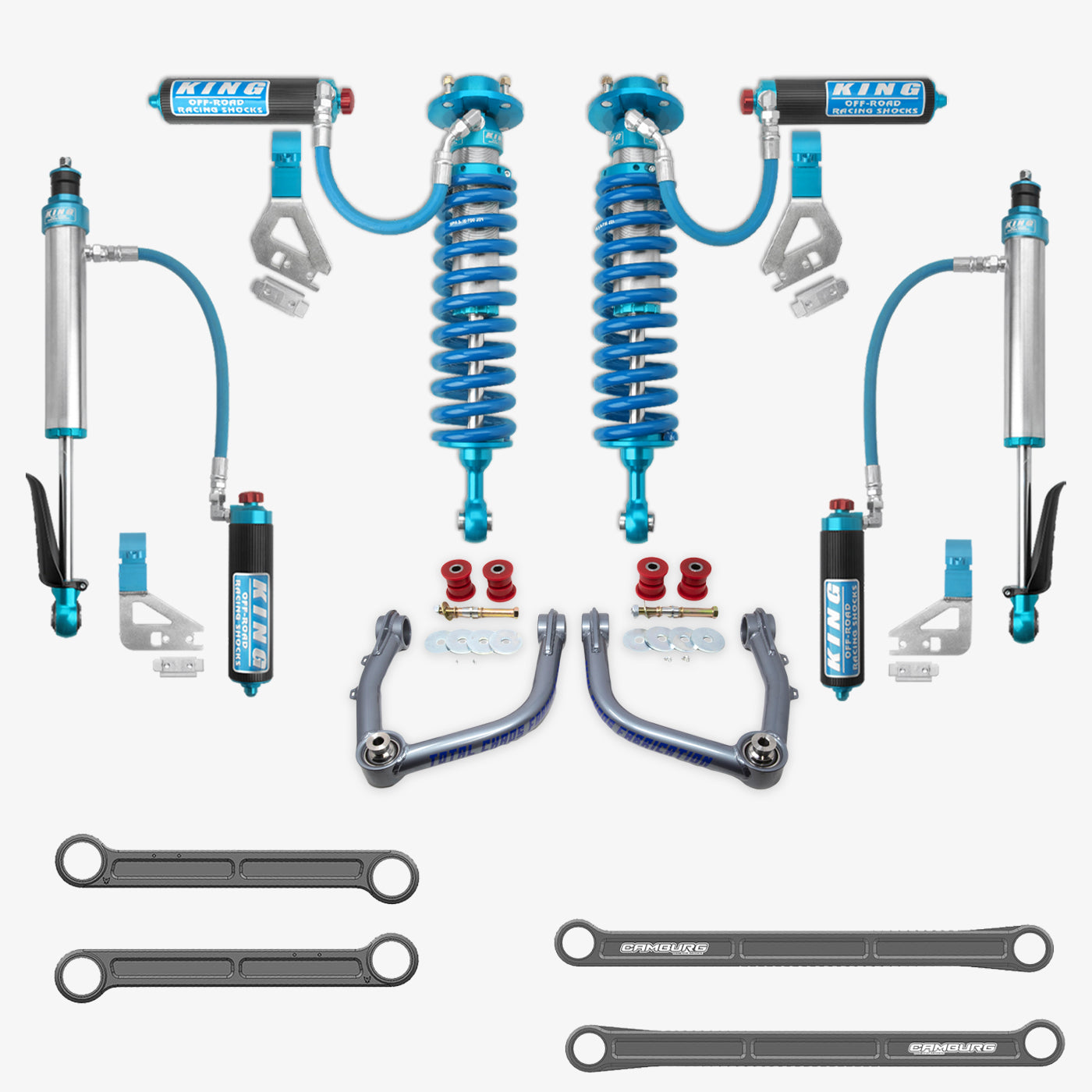

'22-Current Toyota Tundra King 2.5 RR Coilovers & Rear Shocks w/ Upper Arms & Trailing Arm Combo Kit

  • VENDOR: King Off-Road Shocks
  • PART#: 25001-396A-25001-397A-TCF-87502-TCF-88450
  • YOUR PRICE: Regular price $7,045.50
King Shocks Availability: In Stock Ready to Ship!
NOTE:
If you only want to order King Shocks for your Tundra we have that option available click on the link below to take you there

PRODUCT OVERVIEW:

This suspension combo kit for the 2022-Current Toyota Tundra includes everything you need to lift your 3rd Gen Toyota Tundra. This kit comes with King's 2.5 Finned Remote Reservoir Front and Rear Coilovers with Adjusters.

This kit also allows you to select what upper control and trailing arms you want to use to maintain OEM alignment specs and increase ground clearance.

VEHICLE FITMENT: 2022-Current Toyota Tundra

WHAT'S INCLUDED:

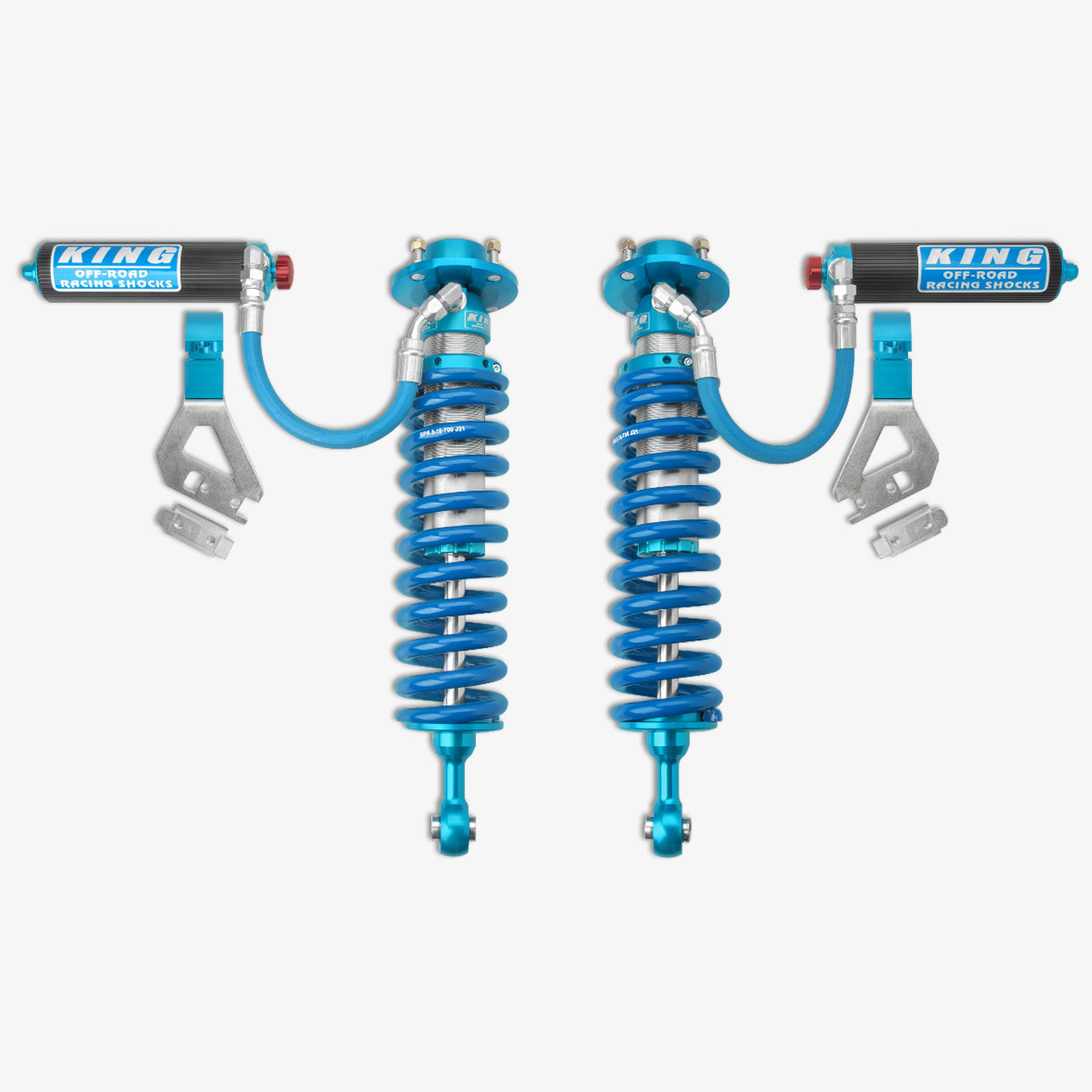

  • QTY 2. 2022-Current Toyota Tundra King 2.5 RR w/ Adjusters Coilover Kit-25001-396A

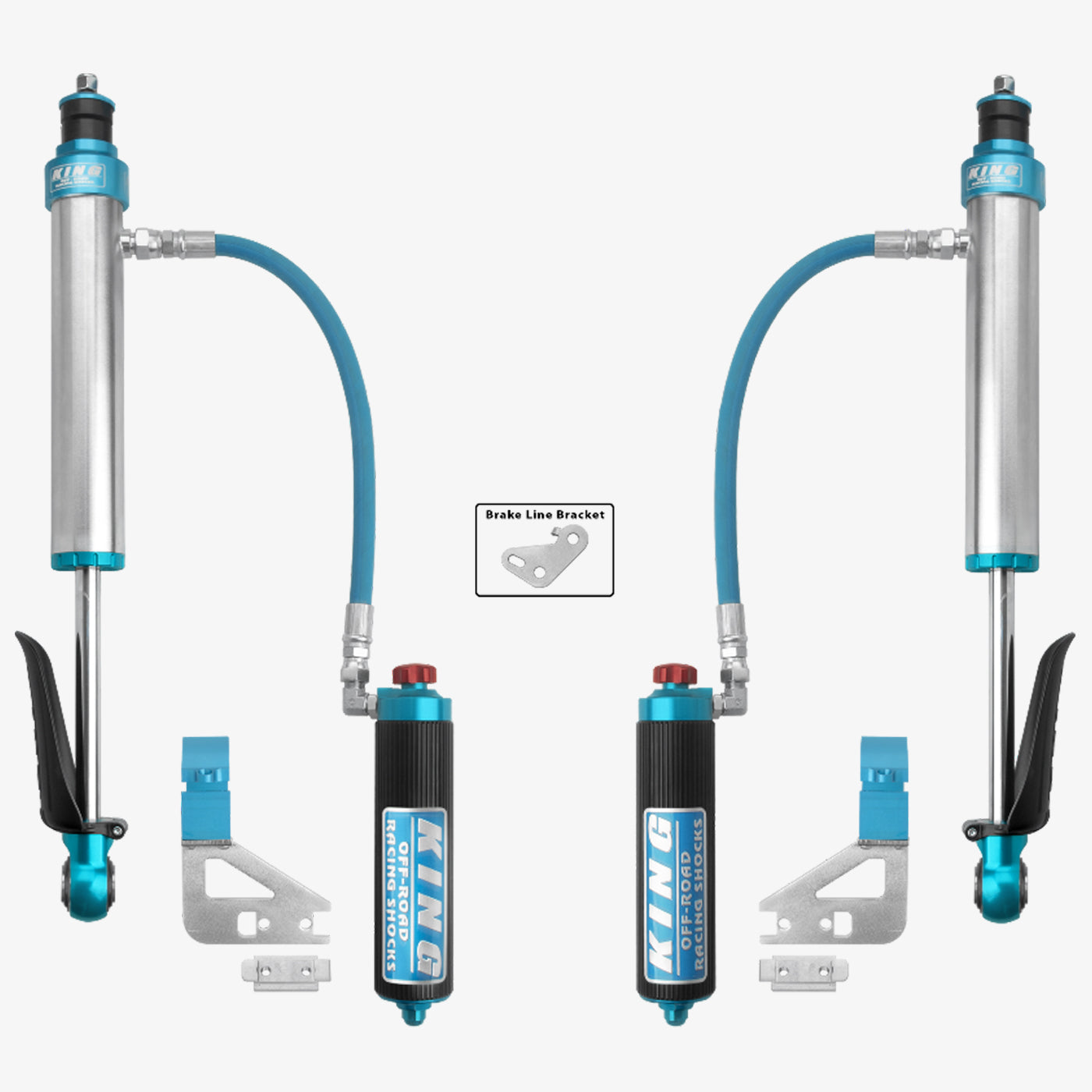

  • QTY 2. 2022-Current Toyota Tundra King 2.5 RR w/ Adjusters Rear Shocks-25001-397A
  • Your selection of Total Chaos Fabrication, Camburg, Icon Billet, or Icon Tubular upper control arms (required for purchase)
  • Total Chaos Fabrication, Camburg, Icon Vehicle Dynamics rear link kit (optional)
  • Icon Billet Rear Track Bar Kit (optional)

UPPER CONTROL ARM OPTIONS:

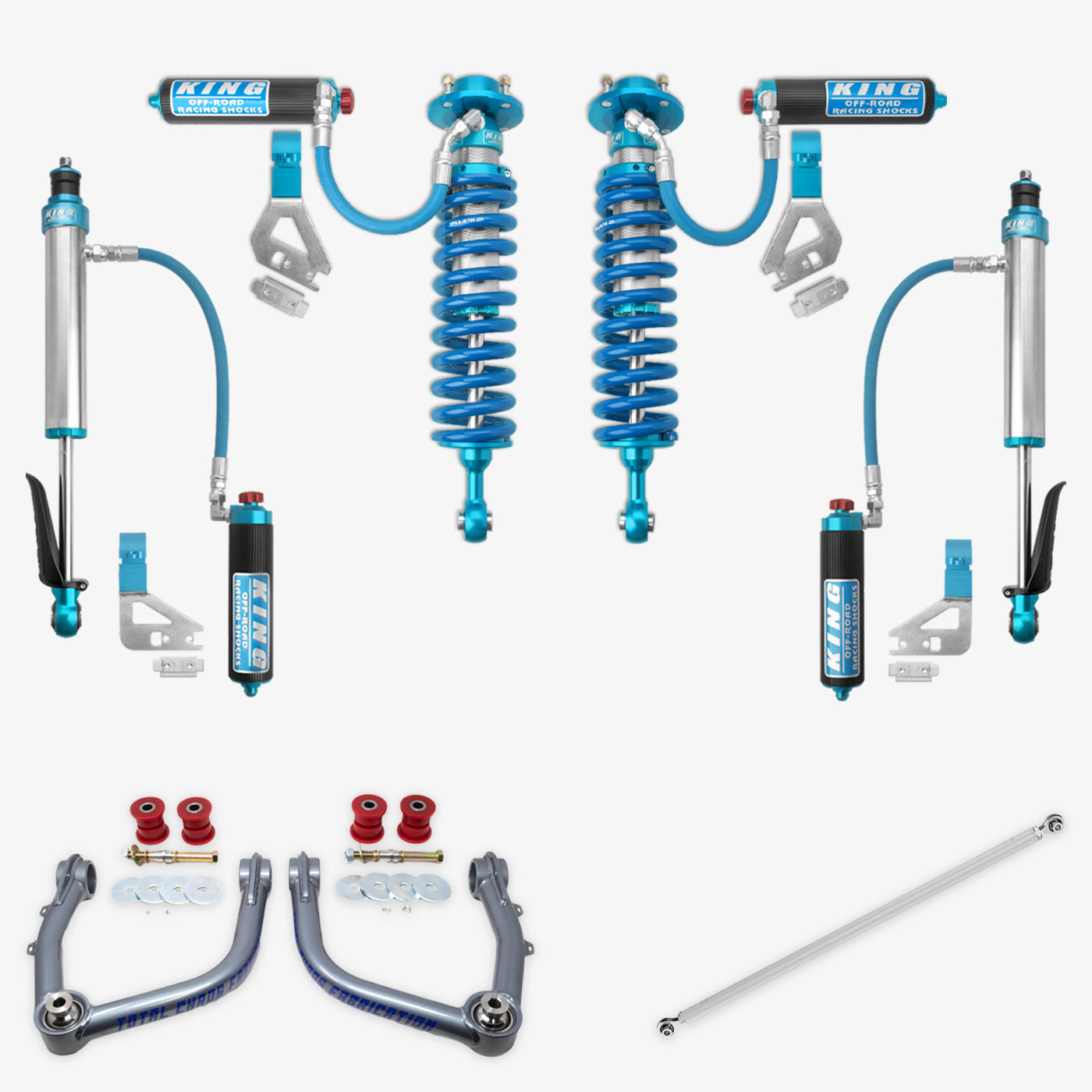

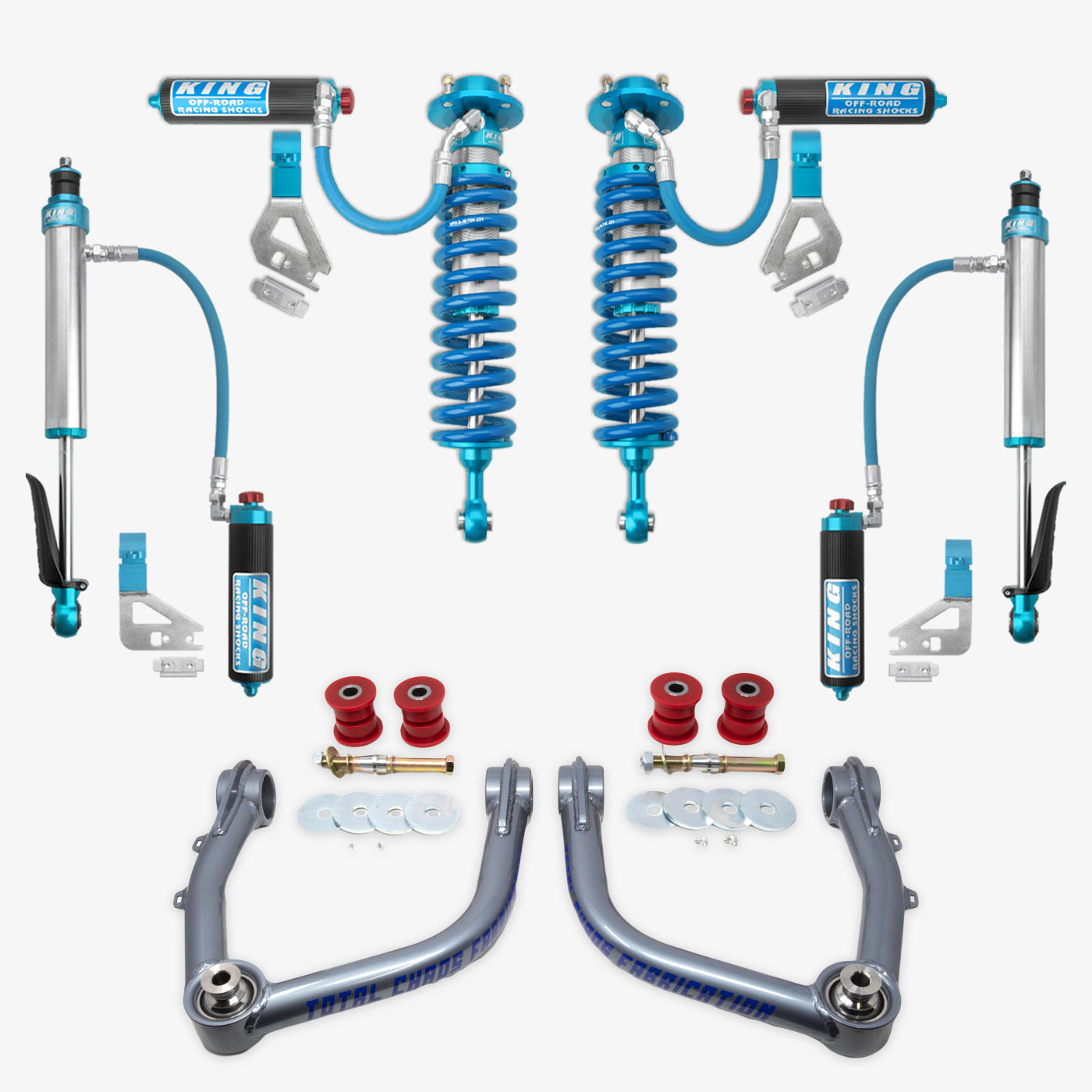

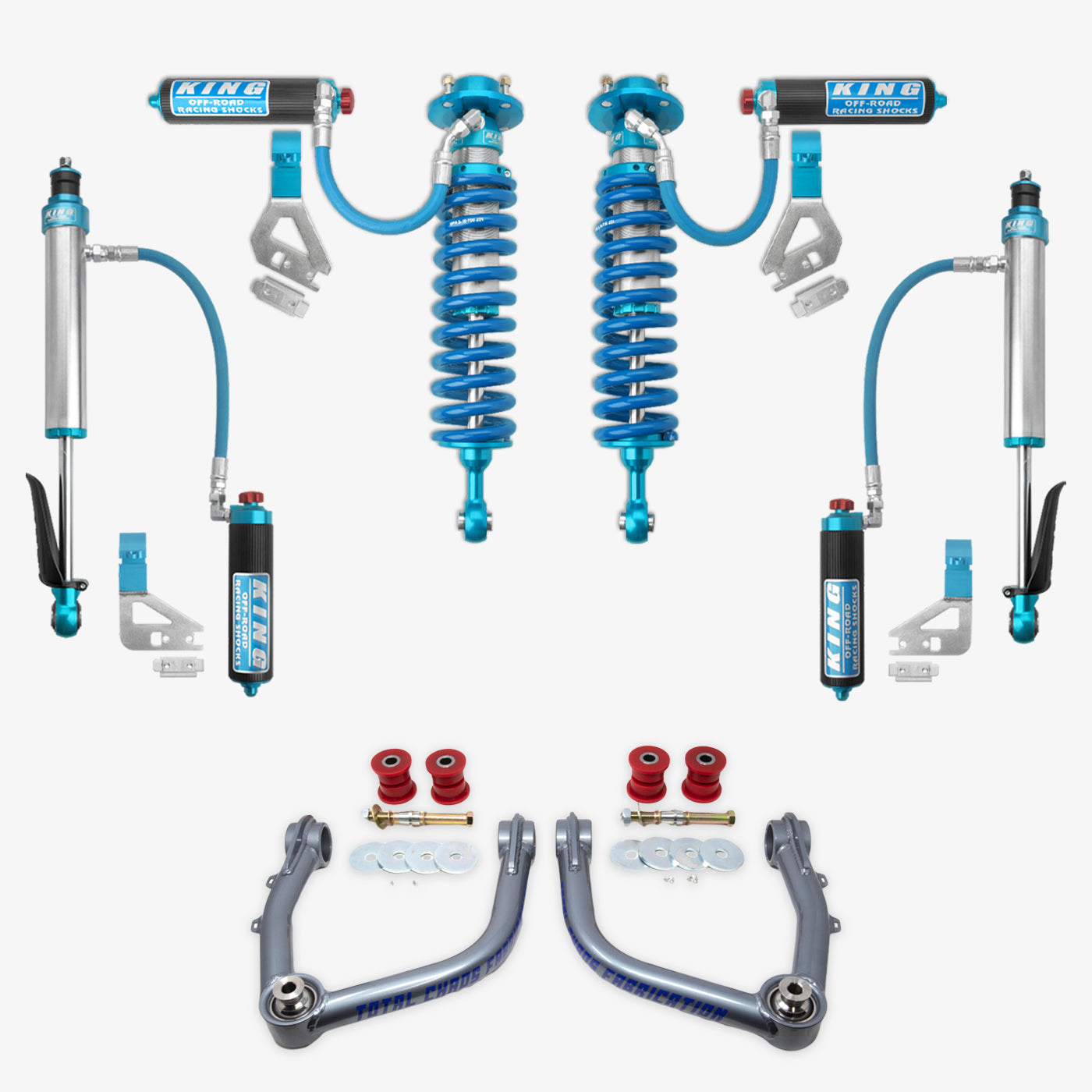

'22-Current Toyota Tundra Total Chaos Fabrication Upper Control Arms:

Total Chaos Fabrications upper arms for the 2022-Current Toyota Tundra add component durability and allow for individual parts to be replaced including bushings and uniballs. TC's Toyota Tundra arms allow ample clearance for aftermarket reservoir hoses needed when upgrading your shocks.

TC tubular Tundra arms provide more clearance and will allow a 3.0" diameter coil over shock to be installed.

WHEEL & TIRE FITMENT INFO:

  • 17" Wheel: 17" x 8.5" | 6" backspace Tire: 35x12.50R17

KEY FEATURES:

  • UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed
  • Urethane bushings reduce bushing deflection compared to stock rubber bushings
  • 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A
  • CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel
  • TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise
  • Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel
  • Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly
  • 3 stage powder coat process includes a durable clear coat to provide a long lasting finish
  • Complete Grade 8 hardware kit is included

'22-Current Toyota Tundra Icon Delta Joint Pro Billet Upper Control Arm Kit:

The ICON Billet Aluminum Upper Control Arm Kit for the 2022-Current Toyota Tundra is designed to improve the overall performance of the Toyota Tundra with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance.

WHEEL & TIRE FITMENT INFO:

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17" x 8.5" with 5.75" Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50"
  • TECH NOTE: Compatible with 0-3” of front lift over stock

KEY FEATURES:

  • CNC machined 6061 billet aluminum construction with satin anodized finish
  • Compatible with 0-3” of front lift over stock
  • Corrects suspension geometry and allows increased travel on lifted or stock height Tundras
  • Quick, precise, on-vehicle adjustment for both caster and camber
  • Delta Joint PRO allows maximum articulation without binding
  • Delta Joint PRO is 100% serviceable and rebuildable
  • FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • Built in O-ring sealed dust cover cap

'22-Current Toyota Tundra Icon Delta Joint Tubular Upper Control Arm Kit:

Improve the performance of your 2022-Current (3rd Gen) Toyota Tundra and maintain your OE alignment specs with ICON Vehicle Dynamics Delta Joint tubular upper control arm kit.

WHEEL & TIRE FITMENT INFO:

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17" x 8.5" with 5.75" Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50"
  • TECH NOTE: Compatible with 0-3” of front lift over stock

KEY FEATURES:

  • ICON Delta Joint
  • 1026 DOM Steel Construction
  • CNC Bent Tubing
  • Serviceable Dual Stage Bushings
  • CNC Machined Bushing Housings and Sleeves
  • Built-In Caster Correction
  • Black Semi-Gloss Powder Coat Finish

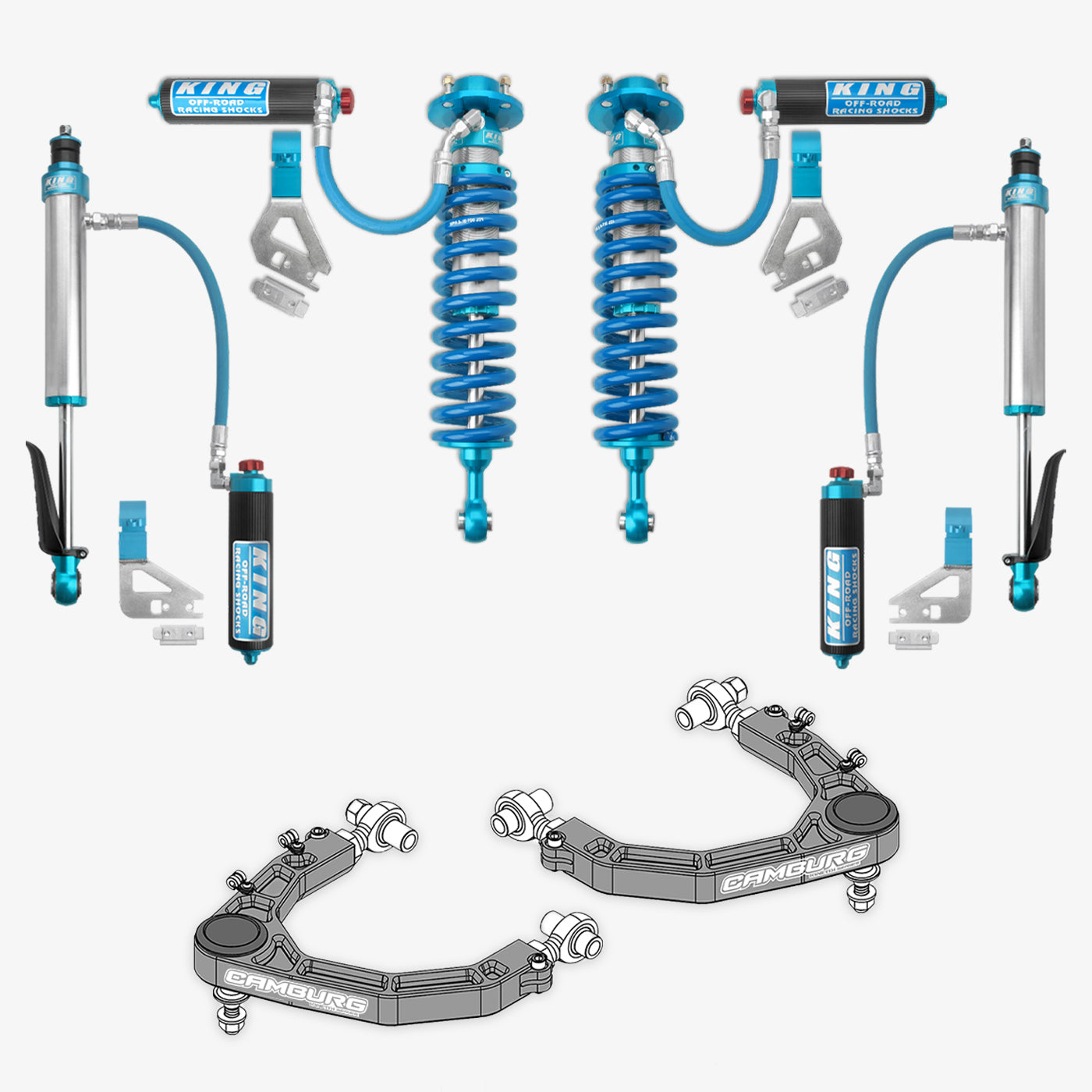

'22-Current Toyota Tundra Camburg Kinetik Billet Upper Control Arms:

Camburg Engineering's KINETIK Series billet uniball upper control arms for the 2022-Current Toyota Tundra are designed to increase your Tundra's usable wheel travel. These upper control arms will provide 1-3" of lift (when paired with an aftermarket coilover) while also maintaining your Tundra OEM alignment specs.

KEY FEATURES:

  • Increases usable wheel travel
  • Corrects camber and caster
  • Eliminates weak factory ball-joints
  • CNC machined 6061 billet aluminum
  • CAD/CAM engineered
  • FK 7/8″ heim joints for adjustable camber and caster
  • FK 1.25″ PTFE-lined uniballs pre-installed
  • Anodized and laser etched
  • All necessary hardware included and ready to install
  • Made in the USA
  • Designed for 1-3″ of lift

UPPER AND LOWER LINK OPTIONS:

'22-Current Toyota Tundra Total Chaos Fabrication Rear Link Kit:

Total Chaos Fabrication's Complete Rear Link Kit for the 2022-Current Toyota Tundra features urethane bushings that offer better on and off-road control and handling.
TC's lower links are stronger than stock and more capable of hard impacts on the trail. This kit allows you to firm up the ride and reduce some of the flex and vibration that is common with the factory rubber bushings.

Total Chaos Rear Link Kit includes the track bar

KEY FEATURES:

  • 100% bolt on
  • Lower links are constructed from 1.5".188 wall 4130 chromoly tubing for maximum strength and feature 1" stainless steel uniballs and urethane bushings
  • Upper links are constructed from 1.25" x .156 wall 4130 chromoly tubing with 1" uniballs and urethane bushings
  • Panhard bar is constructed from 1.25" x .250 wall 4130 chromoly tubing and uses 7/8" chromoly rod ends and can be adjusted if needed
  • Uppers and lowers include greaseable urethane pivot bushings. Link kit is fully rebuildable
  • Capable of more wheel travel with extended shocks
  • Hi-misalignment spacers included, re-uses factory mounting hardware
  • 3 stage powder coat process includes clear coat for long lasting finish

'22-Current Toyota Tundra Complete Icon Billet Rear Upper & Lower Link Kit:

Icon's Complete Icon Billet Rear Upper & Lower Link Kit for the 2022-Current (3rd Gen) Toyota Tundra is a great OEM replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality of the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms stand out when bolted up on the vehicle.

NOTE: ICON part number 55153 (22-UP TUNDRA AIR RIDE BRACKET KIT) is required for air ride equipped Tundras.

KEY FEATURES ICON BILLET REAR UPPER LINK KIT (ICON-54102):

  • On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
  • Vehicle specific, high clearance design for reduced link contact with obstacles
  • Replaceable Nylon Rock Slider to protect the link from damage
  • CNC machined 6061 aluminum construction
  • Maintenance free, dual durometer bushings for maximum angularity and noise isolation
  • On vehicle adjustment for different ride heights and pinion angles
  • FK JM16T-1 PTFE-lined rod ends
  • No grease dual durometer bushing for maximum angularity and noise isolation

KEY FEATURES ICON BILLET REAR LOWER LINK KIT (ICON-54002):

  • On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
  • Vehicle specific, high clearance design for reduced link contact with obstacles
  • Replaceable Nylon Rock Slider to protect the link from damage
  • CNC machined 6061 aluminum construction
  • Maintenance free, dual durometer bushings for maximum angularity and noise isolation
  • On vehicle adjustment for different ride heights and pinion angles
  • FK JM16T-1 PTFE-lined rod ends
  • No grease dual durometer bushing for maximum angularity and noise isolation

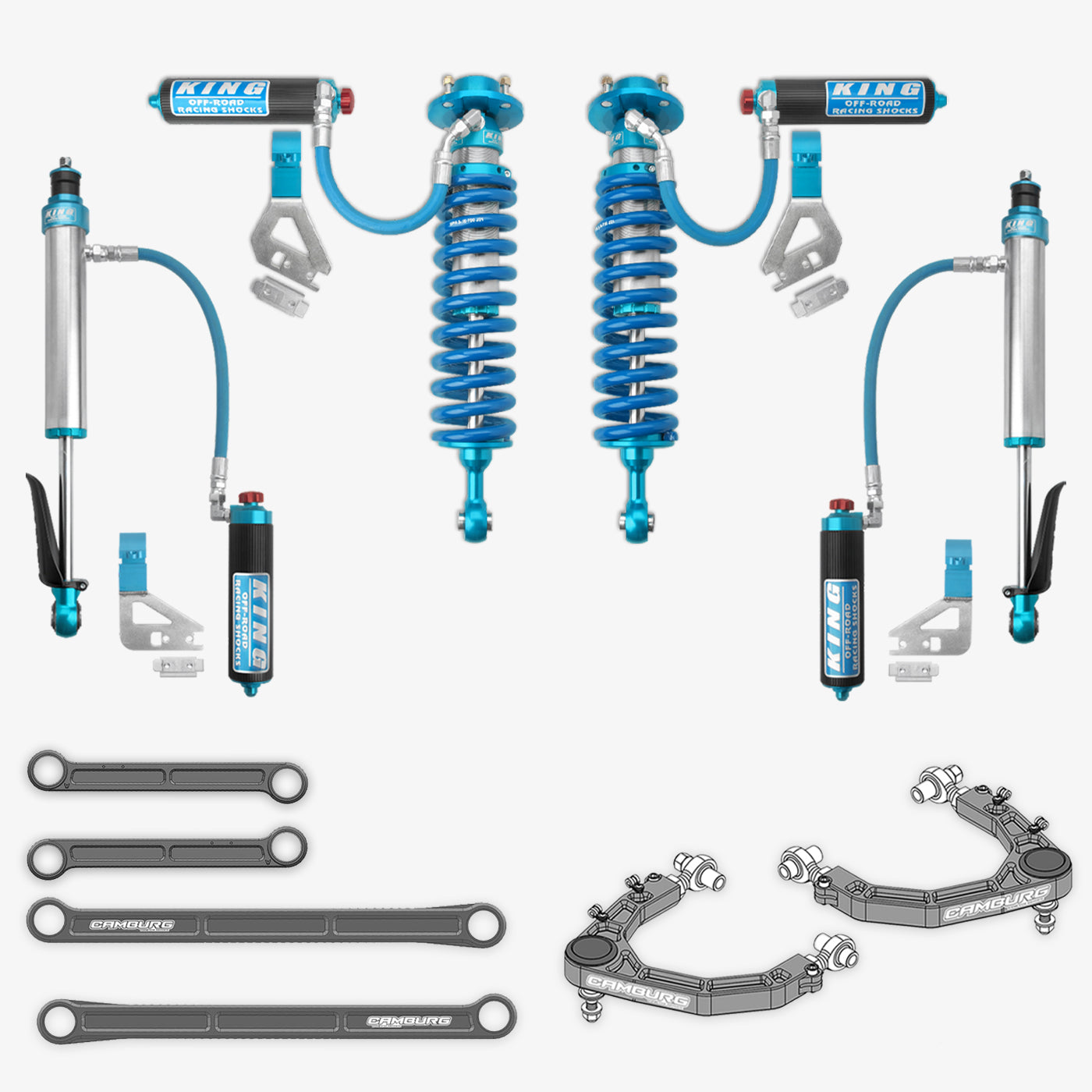

'22-Current Toyota Tundra Camburg Kinetik Billet Series Rear Trailing Arm Kit:

Camburg Engineering's KINETIK Series Rear Trailing Arm Kit for the 2022-Current Toyota Tundra will take your Toyota Tundra to the next level. Adding Camburg's trailing arm kit to your Tundra is an easy bolt-on project that will significantly improve off-road suspension performance and includes all the necessary hardware.

WHAT'S INCLUDED:

  • Billet uniball upper trailing arms (2)
  • Billet uniball lower trailing arms (2)
  • Stainless uniball spacers (16)
  • Delrin uniball pivot wobble stoppers (8)
  • Air suspension sensor bracket & hardware kit

KEY FEATURES:

  • FK 1″ uniball bearing pivots
  • CNC machined from 6061 aluminum
  • Maximum articulation & wheel travel
  • Designed for 0-3″ of rear lift

TRACK BAR OPTIONS:

'22-Current Toyota Tundra Icon Billet Rear Adjustable Track Bar Kit

The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-Current Toyota Tundra while freeing up suspension articulation. Massive PTFE-lined FK Rod End help to yield the maximum travel and articulation. Use of right- and left-handed rod end threads allows easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. Simply loosen the jam nuts then rotate the bar, using the machined wrench flats, to adjust link length.

KEY FEATURES:

  • CNC machined 6061 Aluminum bar anodized to match the look of the upper and lower links
  • On vehicle adjustable for precise track alignment using left and right rod ends Vehicle specific design
  • FK RSMX12T PTFE-lined rod end
  • Helps to free rear suspension from binding

TECH INFO:

  • Compatible with 0-2” of rear lift over stock on rear coil equipped Tundras
  • Compatible with 0-4" of rear lift over stock on rear air equipped Tundras

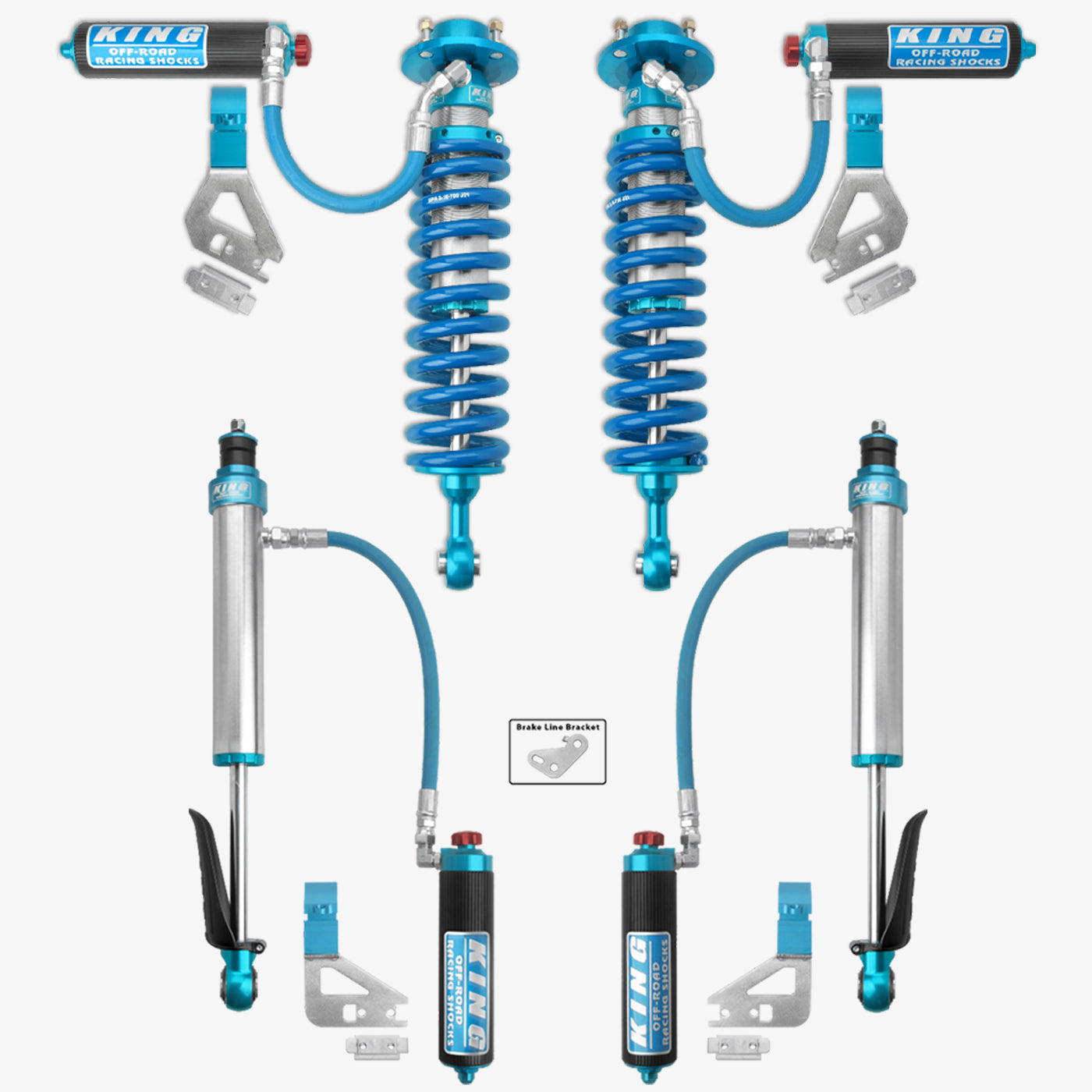

'22-Current Toyota Tundra King 2.5 RR Coilovers & Rear Shocks:

King's 2.5 Remote Reservoir Coilovers and rear shocks for the 2022-Current Toyota Tundra is a great starting point to improve your Tundra's suspension performance. These aftermarket coilovers and rear shocks have been factory-tuned by King for optimal ride quality and are 100% bolt-on.

KEY FEATURES:

  • 100% bolt-on performance
  • These coilovers and rear shocks will increase overall wheel travel.
  • Large 2.5” shock bodies increase fluid capacity for smoother, cooler running shocks.
  • Factory tuned for optimal ride quality.
  • Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Toyota.
  • Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
  • Fully rebuildable, serviceable and tunable.

FINNED RESERVOIR FEATURES:

Why do I need finned remote reservoirs?
External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.

COMPRESSION ADJUSTER FEATURES:
  • King's Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.
  • External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
  • Reservoir Mounts that will securely hold your coilover's reservoir.
  • All new threaded end cap design with new Schrader valve protective cap.
  • Made from extruded 6061-T6 aluminum.
