22-23 Toyota Tundra Icon 2.5 Front EXP Coilover Kit

Icon Vehicle Dynamics

22-23 Toyota Tundra Icon 2.5 Front EXP Coilover Kit

$419.96 $524.95
Save $104.99
SKU: 58671
Quantity:

22-23 Toyota Tundra Icon 2.5 Front EXP Coilover Kit

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

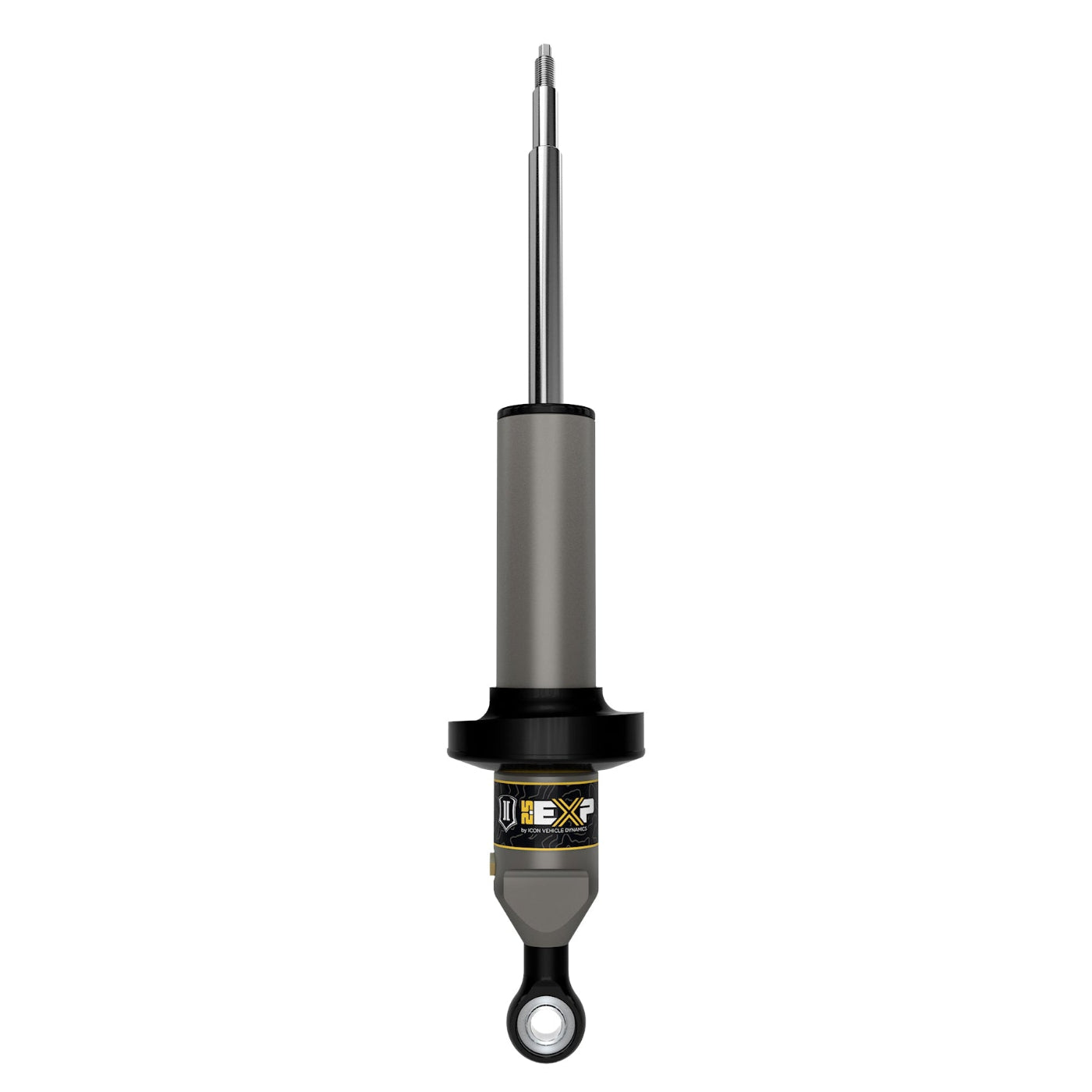

The 2022-2023 Toyota Tundra EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tundra’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts.

The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the Tundra’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3” of lift over stock.

EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.

FITMENT DETAILS:
  • VEHICLE FITMENT: 2022-2023 2WD/4WD Toyota Tundra
  • TECH NOTE: Lift heights above 2.25” over stock require aftermarket front UCAs to maintain proper alignment
  • TECH NOTE: Lift heights above 2.25” require sway bar drop bracket kit part number 55154
  • TECH NOTE: 2022 Tundra SR5 equipped with TRD Sport packages will have lift height range of .5-3” over stock
  • TECH NOTE: Not compatible with Tundras equipped with Adaptive Variable Suspension (AVS)
  • TECH NOTE: Not compatible with Tundra TRD Pro
KEY FEATURES:
  • Vehicle specific design for 2022-2023 Toyota Tundra
  • Vehicle specific tuned for superior shock damping and control
  • 2.5 Aluminum Series Shock with Internal Reservoir
  • Adjustable ride heights from 0-3” of front lift over stock with the use of snap ring Utilizes factory coil and coil hardware
  • Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
  • Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearing for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
WHEEL & TIRE FITMENT INFO:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
