'22-Current 300 Series Toyota Land Cruiser Total Chaos Fabrication Upper Control Arms
'22-Current 300 Series Toyota Land Cruiser Total Chaos Fabrication Upper Control Arms
'22-Current 300 Series Toyota Land Cruiser Total Chaos Fabrication Upper Control Arms

Total Chaos Fabrication

'22-23 300 Series Toyota Land Cruiser Total Chaos Fabrication Upper Control Arms

$1,089.88
SKU: TCF-89500
Quantity:

'22-23 300 Series Toyota Land Cruiser Total Chaos Fabrication Upper Control Arms

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

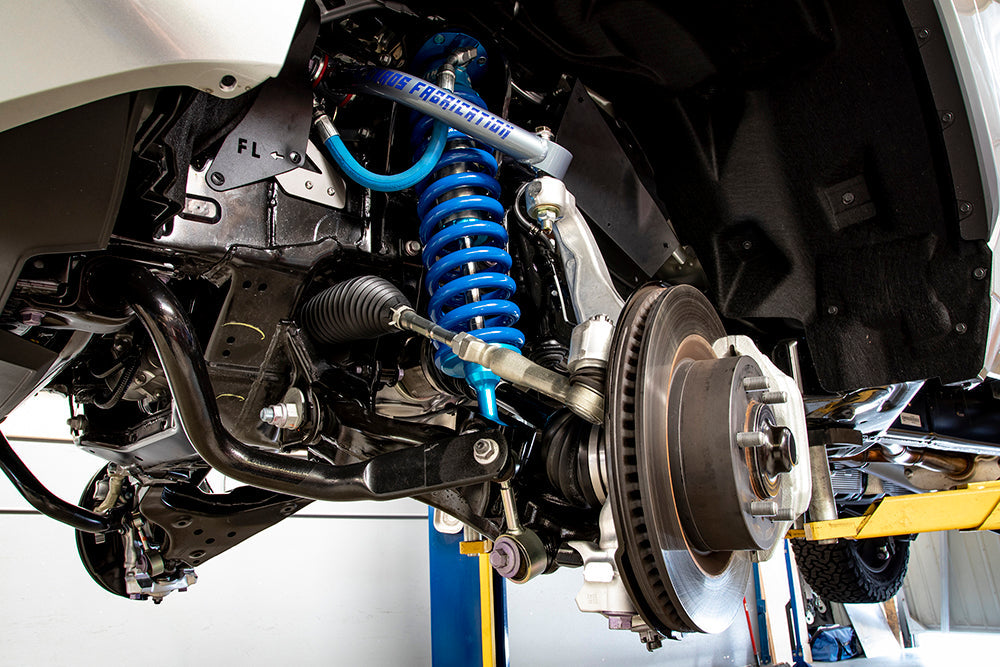

Lifting the front of a vehicle with a set of coilovers may be step one in gaining more off-road performance, however installing just an aftermarket shock can cause limitations without upgrading the Upper Control Arm too. Total Chaos Fabrications' upper arms for the 2022-Current 300 Series Toyota Land Cruiser add component durability and allow for individual parts to be replaced including bushings and uniballs. TC's Toyota Land Cruiser Upper Control Arms allow ample clearance for aftermarket reservoir hoses needed when upgrading your shocks.

These tubular upper control arms provide more clearance and are necessary to retain your Land Cruiser OEM alignment specs when you lift your Land Cruiser.

VEHICLE FITMENT:

2022-Current 300 Series Toyota Land Cruiser

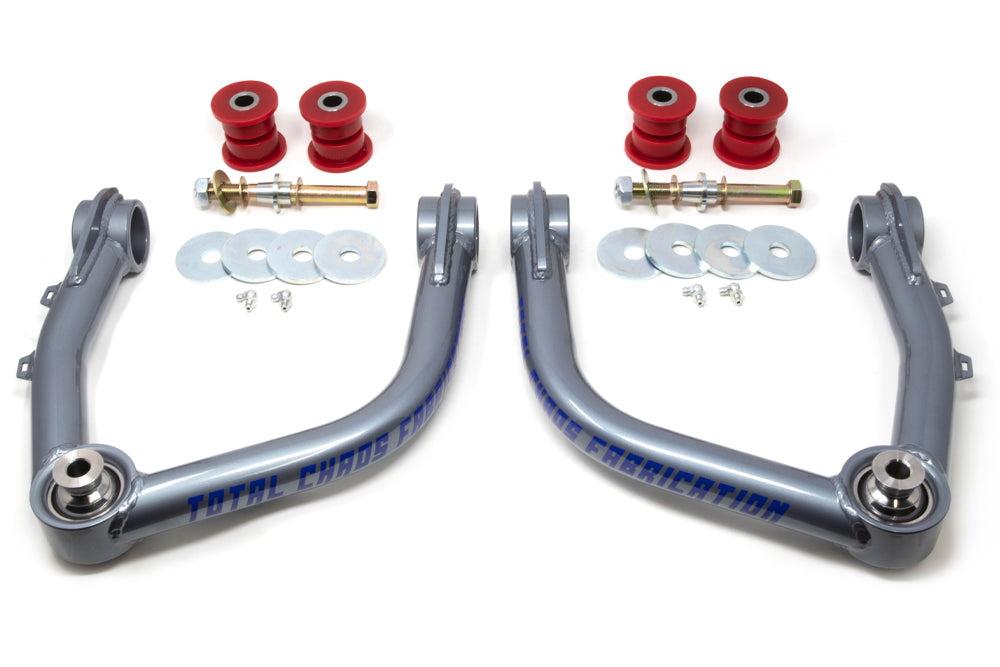

KEY FEATURES:
  • UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5''-3'' lift kits are installed
  • Urethane bushings reduce bushing deflection compared to stock rubber bushings
  • 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A
  • CNC tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel
  • TOTAL CHAOS includes 1" I.D. uniballs that feature a heat-treated stainless-steel ball & heat-treated stainless-steel race for maximum corrosion resistance and component longevity. These uniballs also feature a military grade PTFE woven fabric liner that helps prevent noise
  • Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel
  • Control arm pivots include zerk fittings to grease the bushings and inner sleeves without disassembly
  • 3 stage powder coat process includes a durable clear coat to provide a long lasting finish
  • Complete Grade 8 hardware kit is included
