'21-Current Ford Bronco Sasquatch Icon Stage 3 Tubular Suspension System

  • VENDOR: Icon Vehicle Dynamics
  • PART#: K40013T
  • MSRP: Regular price $4,357.34
  • YOUR PRICE: $4,149.85

PRODUCT OVERVIEW:

Icon Vehicle Dynamics Stage 3 Tubular Suspension System for the 2021-Current Ford Bronco (Sasquatch Models) features ICON's Internal Reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road.

Icon's coil springs are custom engineered specifically for Bronco. To accommodate the increased travel afforded by the ICON Coilovers, Stage 3 comes with Tubular Upper Control Arms which provide caster correction and feature Icon's patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel possible.

FITMENT DETAILS:

  • VEHICLE FITMENT: 2021-Current Ford Bronco
  • SASQUATCH MODELS
  • Two door models will sit taller than 4 door models
  • ABOUT LIFT HEIGHTS: All trims WITH Sasquatch, including WildTrak and First Edition, will get approximately 2 inches of lift. Note that lift figures may vary depending on the weight of optional and aftermarket accessories and payload.

KEY FEATURES:

  • Improved suspension performance and ride quality over stock
  • 14" Rear Travel; 11.5" Front Travel with 35" tires
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 3-4" of lift height (factory set at 2-3")
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Tubular UCA for added strength, durability and an additional degree of caster for better drivability
  • UCAs feature the Delta Joint Pro with 90 degrees of total articulation
  • Featuring a rear triple rate coil design
  • Rear coilovers are in a shaft up configuration for maximum travel

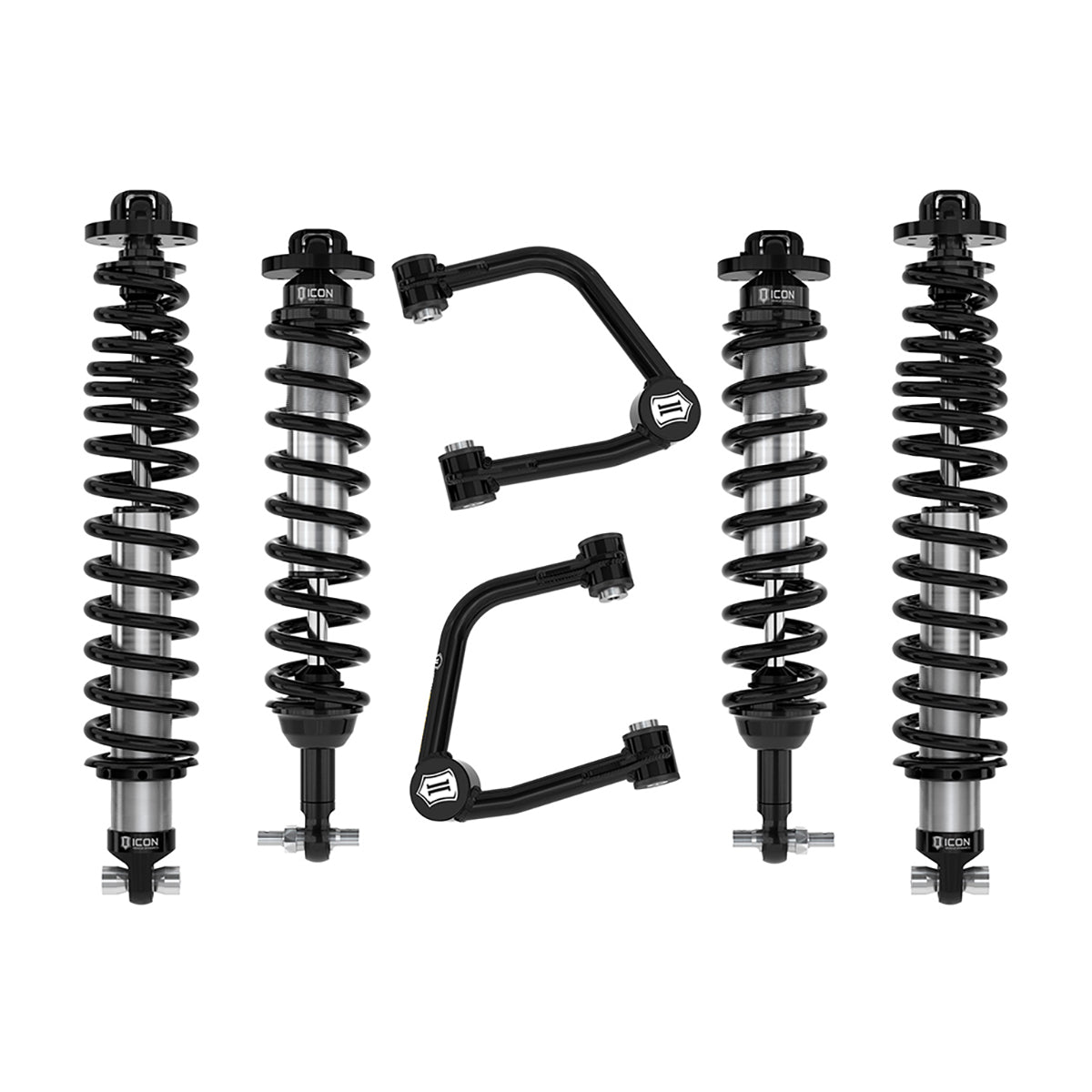

SYSTEM COMPONENTS:

  • QTY 1. 48600 - 21-UP BRONCO FRONT 2.5 VS IR COILOVER KIT
  • QTY 1. 48400DJ - 21-UP BRONCO TUBULAR UCA DJ PRO KIT
  • QTY 1. 48610 - 21-UP BRONCO REAR 2.5 VS IR COILOVER KIT

WHEEL AND TIRE INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset for sasquatch equipped vehicles
  • Recommended Aftermarket Tires for Sasquatch-equipped vehicles: 35" x 12.50"

TECH INFO:

  • SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS
  • WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611075 IN THE FRONT
  • WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR
  • RECOMMENDED CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
  • WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED

ICON DELTA JOINT PRO OVERVIEW:

Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.
