21-23 Ford Bronco Non-Sasquatch Icon Stage 7 Billet Suspension System

Icon Vehicle Dynamics

21-23 Ford Bronco Non-Sasquatch Icon Stage 7 Billet Suspension System

$7,351.76 $9,189.70
Save $1,837.94
SKU: K40007
Quantity:

21-23 Ford Bronco Non-Sasquatch Icon Stage 7 Billet Suspension System

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Icon Vehicle Dynamics Stage 7 Billet Suspension System for the 2021-2023 Ford Bronco (Non-Sasquatch) is designed to improve the Bronco's suspension performance on-road and off-road. This aftermarket suspension kit includes front coilovers, rear coilovers, a billet lower link kit, upper lower links, an adjustable track bar and a billet upper control arm.

The Icon Billet Stage 7 suspension system builds on Icon's CDCV system by adding the complete rear link kit including billet upper links and ICON's Adjustable Rear Track Bar. The added upper links have been designed for clearance from the fuel tank during maximum articulation. The Adjustable Track Bar features our dual-durometer greaseless bushing and FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height.

FITMENT DETAILS:

  • VEHICLE FITMENT: 2021-2023 Ford Bronco
  • NON-SASQUATCH MODELS
  • Two door models will sit taller than 4 door models
  • ABOUT LIFT HEIGHTS: *3-inch lift height pertains to Base, Big Bend, Outer Banks and Black Diamond trims WITHOUT Sasquatch. Badlands WITHOUT Sasquatch will get approximately 2.5" of lift.

KEY FEATURES:

  • Improved suspension performance and ride quality over stock
  • 14" Rear Travel; 11.5" Front Travel with 35" tires
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 3-4" of lift height (factory set at 2-3")
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Billet UCA for added strength, durability and an additional degree of caster for better drivability
  • UCAs feature the Delta Joint Pro with 90 degrees of total articulation
  • Featuring a rear triple rate coil design
  • Rear coilovers are in a shaft up configuration for maximum travel

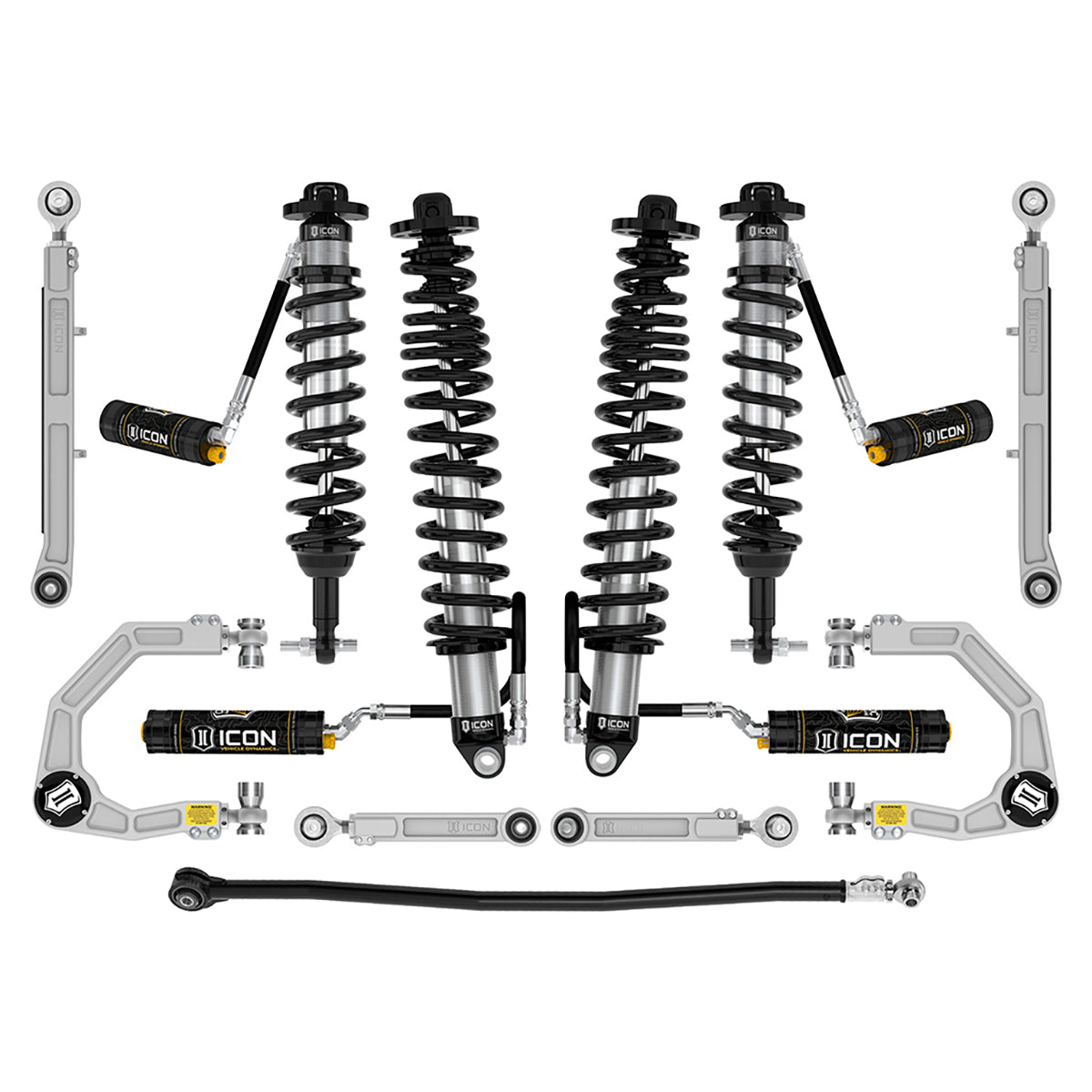

SYSTEM COMPONENTS:

  • QTY 1. 48700C - 21-UP BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT
  • QTY 1. 48500DJ - 21-UP BRONCO BILLET UCA DJ PRO KIT
  • QTY 1. 44000 - 21-UP BRONCO BILLET REAR LOWER LINK KIT
  • QTY 1. 44100 - 21-UP BRONCO BILLET REAR UPPER LINK KIT
  • QTY 1. 44200T - 21-UP BRONCO REAR ADJ TRACK BAR KIT
  • QTY 1. 48710C - 21-UP BRONCO REAR 2.5 VS RR CDCV COILOVER KIT

TECH INFO:

  • SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS
  • WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611075 IN THE FRONT
  • WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR
  • RECOMMENDED CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
  • WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED

ICON DELTA JOINT PRO OVERVIEW:

Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.

Icon Delta Joint Pro Billet Upper Control Arm Kit

ICON CDC VALVE OVERVIEW:

The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

ICON CDC VALVE FEATURES:

  • CDC Valve shocks are application specific tuned like all ICON shocks
  • Internally calibrated per application based on motion ratio, shaft diameter, and vehicle weights
  • 10 detented stops and large adjuster knob provide easy-to-feel adjustments
  • Allows the end user to optimize vehicle's ride specific to his/her liking on all types of terrain
  • Clearly engraved knob for direct reading of current setting
