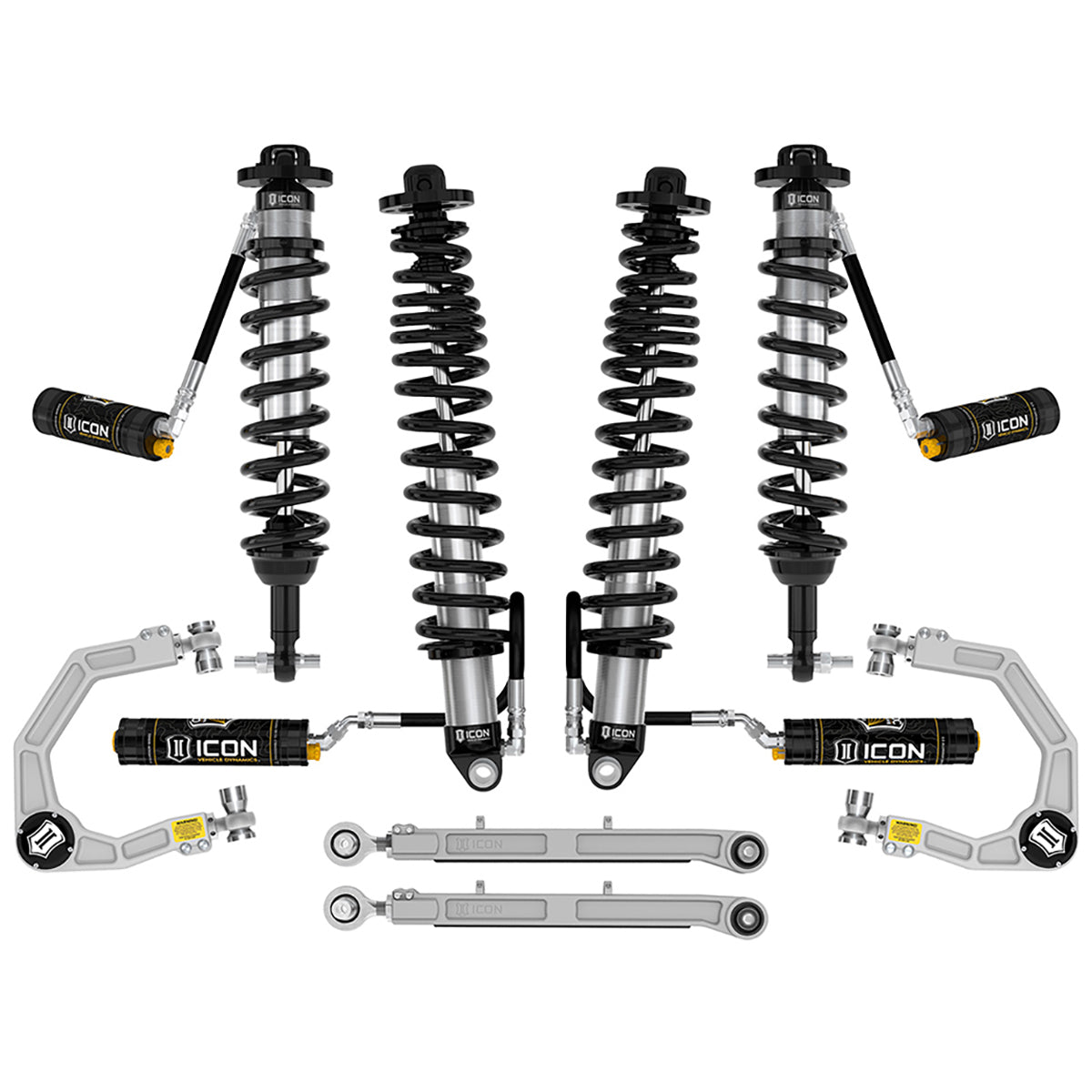

'21-Current Ford Bronco Non-Sasquatch Icon Stage 6 Billet Suspension System

  • VENDOR: Icon Vehicle Dynamics
  • PART#: K40006
  • MSRP: Regular price $8,084.79
  • YOUR PRICE: $7,699.80

PRODUCT OVERVIEW:

Icon Vehicle Dynamics Stage 6 Billet Suspension System for the 2021-Current Ford Bronco (Non-Sasquatch) will improve your Bronco's on-road and off-road ride quality. This aftermarket suspension kit includes front coilovers, rear coilovers, a billet lower link kit and billet upper control arm.

This Stage 6 suspension system features ICON's exclusive Compression Damping Control Valves= (CDCV) for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

FITMENT DETAILS:

  • VEHICLE FITMENT: 2021-Current Ford Bronco
  • NON-SASQUATCH MODELS
  • Two door models will sit taller than 4 door models
  • ABOUT LIFT HEIGHTS: *3-inch lift height pertains to Base, Big Bend, Outer Banks and Black Diamond trims WITHOUT Sasquatch. Badlands WITHOUT Sasquatch will get approximately 2.5" of lift.

KEY FEATURES:

  • Improved suspension performance and ride quality over stock
  • 14" Rear Travel; 11.5" Front Travel with 35" tires
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 3-4" of lift height (factory set at 2-3")
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Billet UCA for added strength, durability and an additional degree of caster for better drivability
  • UCAs feature the Delta Joint Pro with 90 degrees of total articulation
  • Featuring a rear triple rate coil design
  • Rear coilovers are in a shaft up configuration for maximum travel

SYSTEM COMPONENTS:

  • QTY 1. 48700C - 21-UP BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT
  • QTY 1. 48500DJ - 21-UP BRONCO BILLET UCA DJ PRO KIT
  • QTY 1. 44000 - 21-UP BRONCO BILLET REAR LOWER LINK KIT
  • QTY 1. 48710C - 21-UP BRONCO REAR 2.5 VS RR CDCV COILOVER KIT

TECH INFO:

  • SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS
  • WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611075 IN THE FRONT
  • WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR
  • RECOMMENDED CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
  • WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED

ICON DELTA JOINT PRO OVERVIEW:

Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.

Icon Delta Joint Pro Billet Upper Control Arm Kit

ICON CDC VALVE OVERVIEW:

The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

ICON CDC VALVE FEATURES:

  • CDC Valve shocks are application specific tuned like all ICON shocks
  • Internally calibrated per application based on motion ratio, shaft diameter, and vehicle weights
  • 10 detented stops and large adjuster knob provide easy-to-feel adjustments
  • Allows the end user to optimize vehicle's ride specific to his/her liking on all types of terrain
  • Clearly engraved knob for direct reading of current setting
