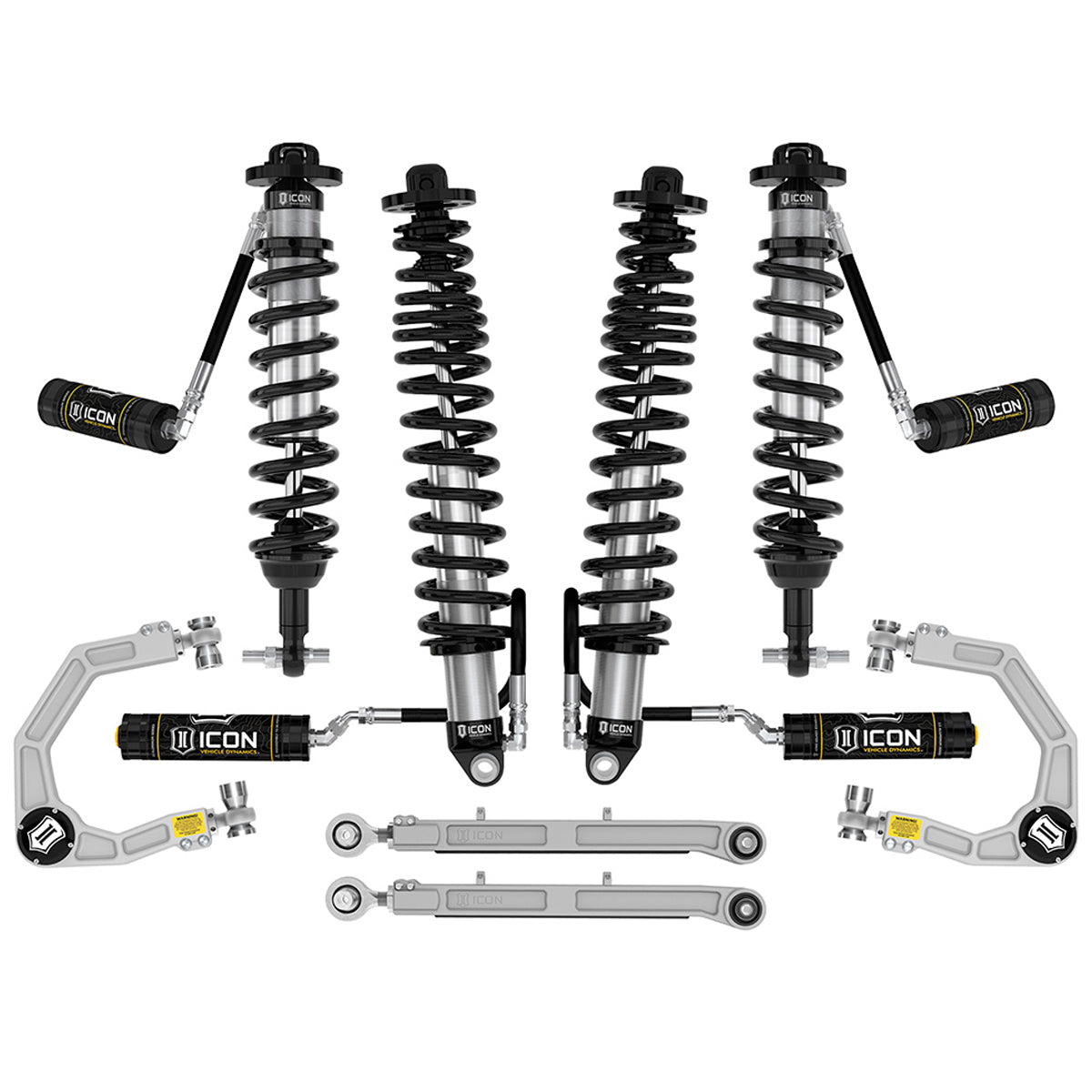

Icon Vehicle Dynamics Stage 5 Billet Suspension System for the 2021-Current Ford Bronco (Non-Sasquatch) is designed to improve the suspension performance and ride quality of your Ford Bronco.
This suspension kit includes Icon's billet lower link kit this link kit allows for increased suspension travel and articulation. This aftermarket suspension system will give your Bronco clearance and confidence while on the trail!
- VEHICLE FITMENT: 2021-Current Ford Bronco
- ABOUT LIFT HEIGHTS: *3-inch lift height pertains to Base, Big Bend, Outer Banks and Black Diamond trims WITHOUT Sasquatch. Badlands WITHOUT Sasquatch will get approximately 2.5" of lift.
- Improved suspension performance and ride quality over stock
- 14" Rear Travel; 11.5" Front Travel with 35" tires
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers from 3-4" of lift height (factory set at 2-3")
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Billet UCA for added strength, durability and an additional degree of caster for better drivability
- UCAs feature the Delta Joint Pro with 90 degrees of total articulation
- Featuring a rear triple rate coil design
- Rear coilovers are in a shaft up configuration for maximum travel
WHEEL AND TIRE INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset for non-sasquatch equipped vehicles
- Recommended Aftermarket Tires for non-Sasquatch equipped vehicles: 35" x 12.50" (High Clearance Crash Bar Kit p/n 42000 recommended)
- QTY 1. 48700 - 21-UP BRONCO FRONT 2.5 VS RR COILOVER KIT
- QTY 1. 48500DJ - 21-UP BRONCO BILLET UCA DJ PRO KIT
- QTY 1. 44000 - 21-UP BRONCO BILLET REAR LOWER LINK KIT
- QTY 1. 48710 - 21-UP BRONCO REAR 2.5 VS RR COILOVER KIT
- SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS
- WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611075 IN THE FRONT
- WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR
- RECOMMENDED CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
- WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED
ICON DELTA JOINT PRO OVERVIEW:
Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.
