'21-26 RAPTOR COMPLETE SWITCH PROS KIT - SUNGLASS CONVERSION KEYPAD MOUNT
Kit Option
'21-26 RAPTOR COMPLETE SWITCH PROS KIT - SUNGLASS CONVERSION KEYPAD MOUNT
SP9100
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
This SDHQ Built product is currently out of stock. However, it is already in production here at SDHQ in Gilbert, AZ. Our expected completion date for this run is +/- 3-5 weeks from 1/21/2026. Any order placed will have a unit allocated to ship immediately as production finishes. We appreciate your patience and look forward to getting you your American-made SDHQ-quality parts as soon as possible!

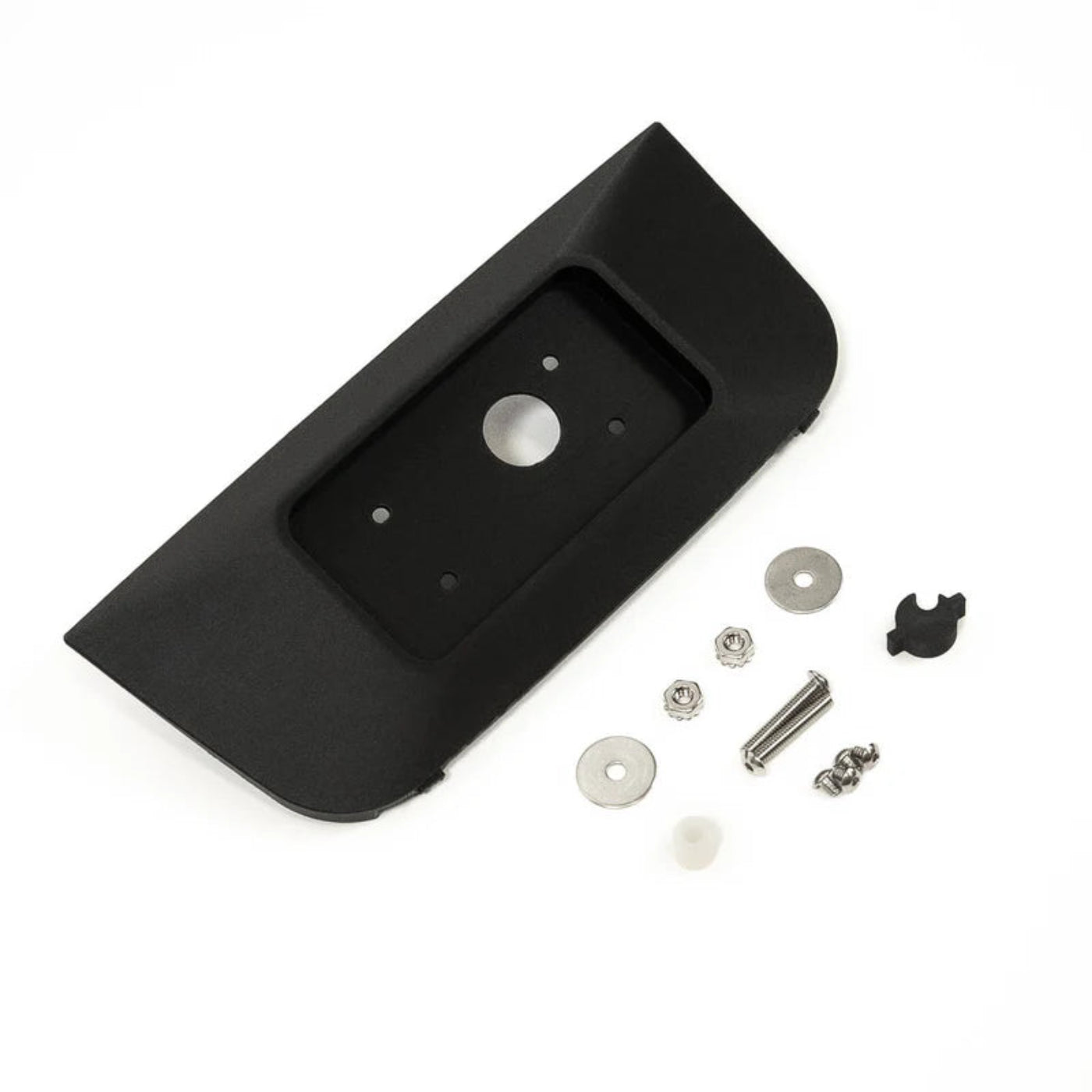

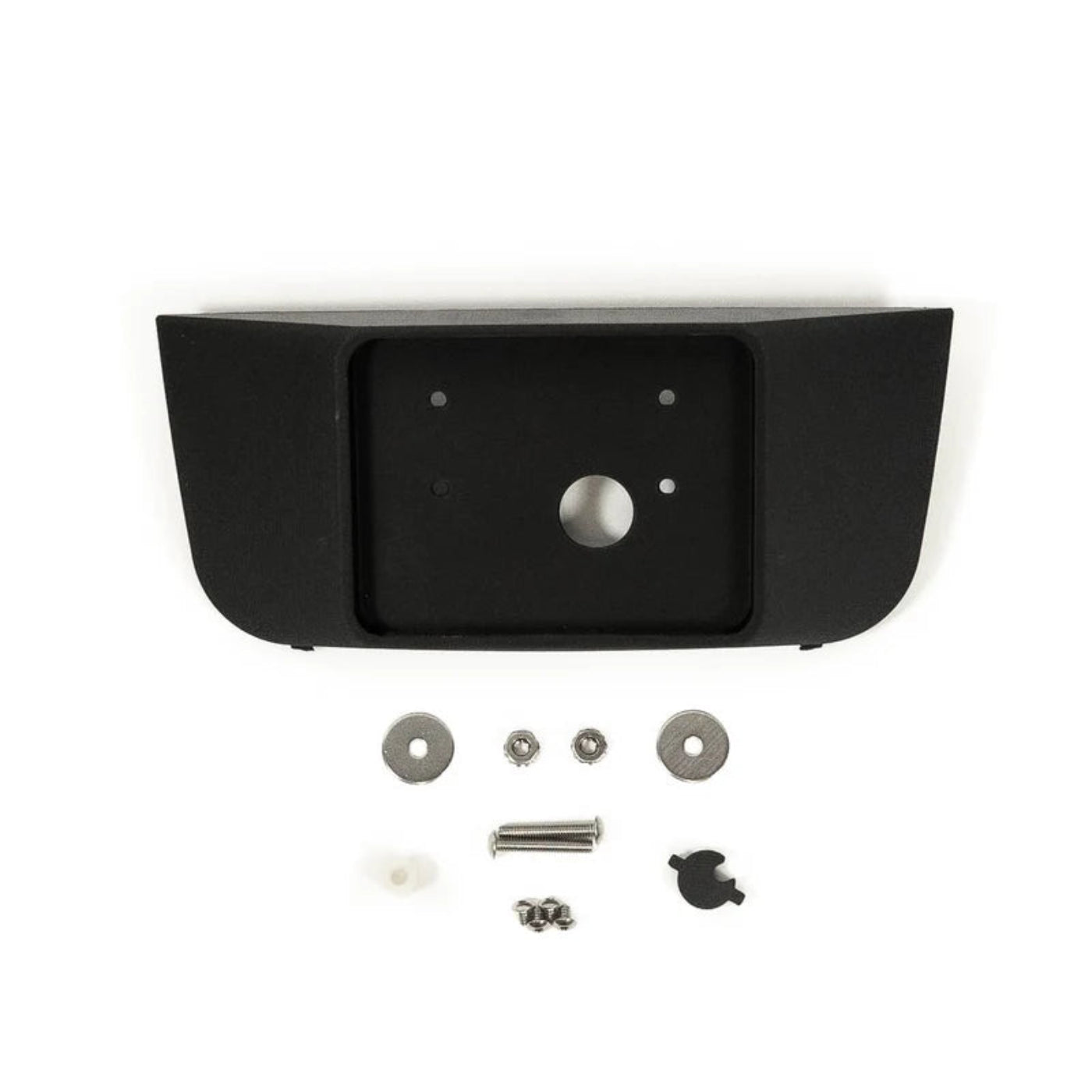

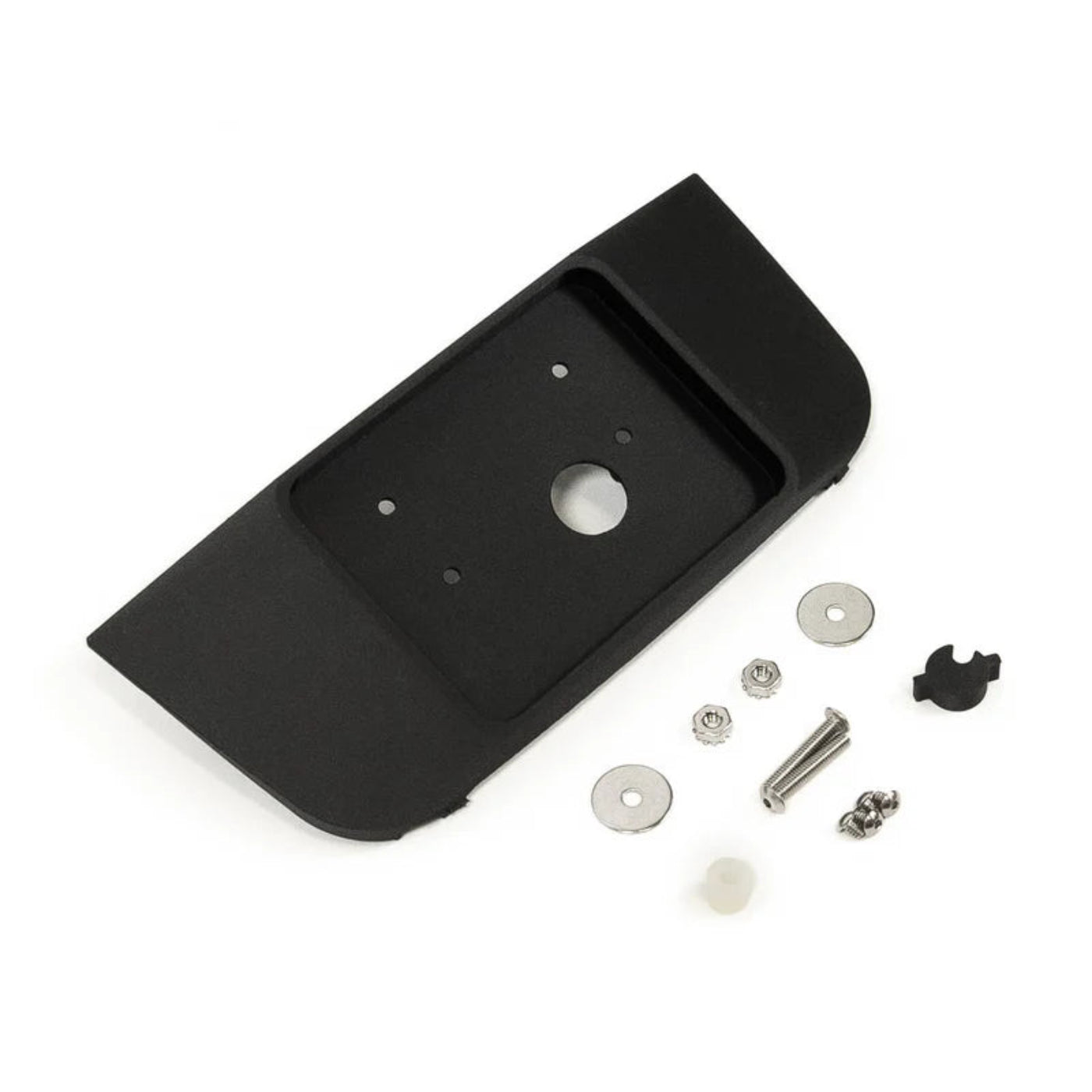

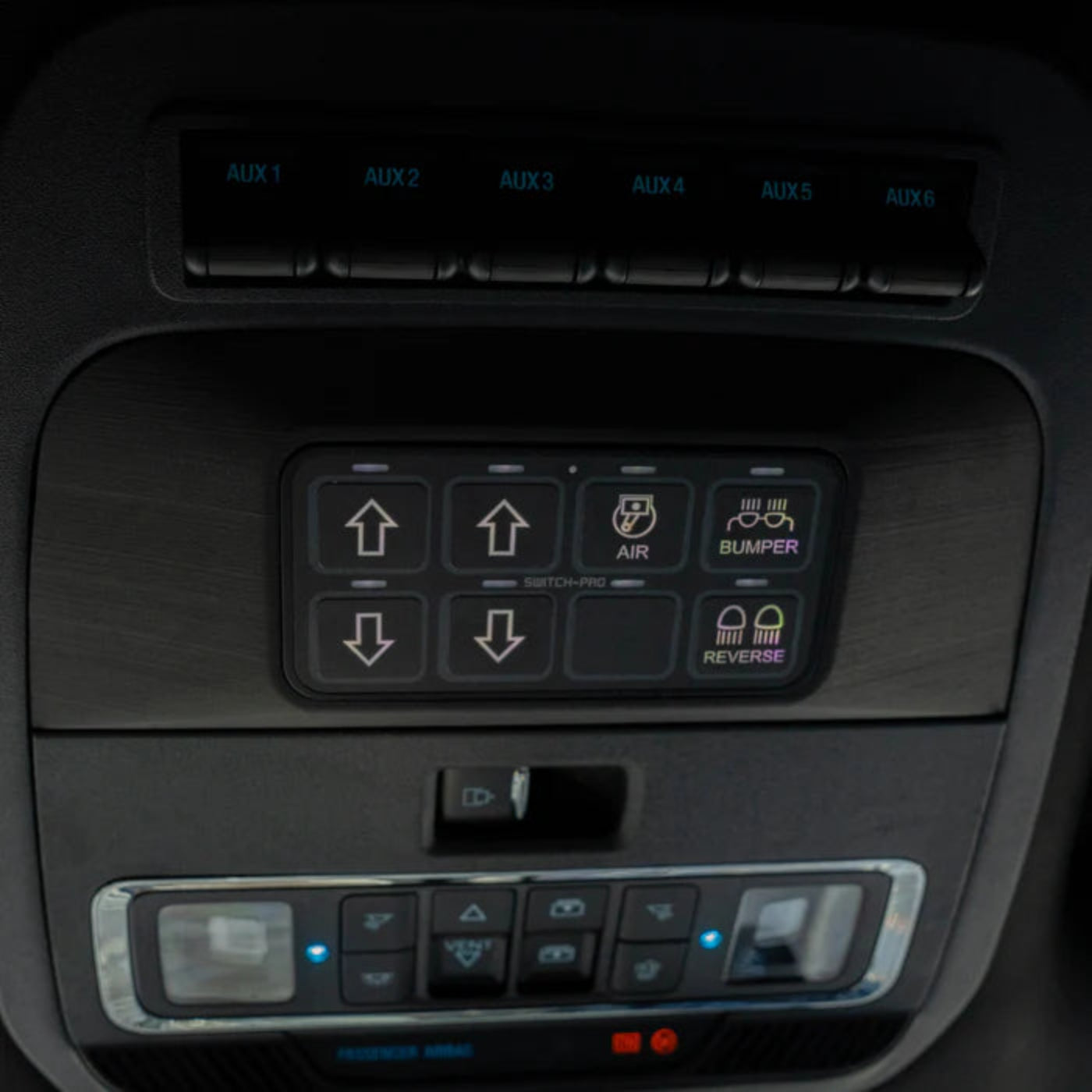

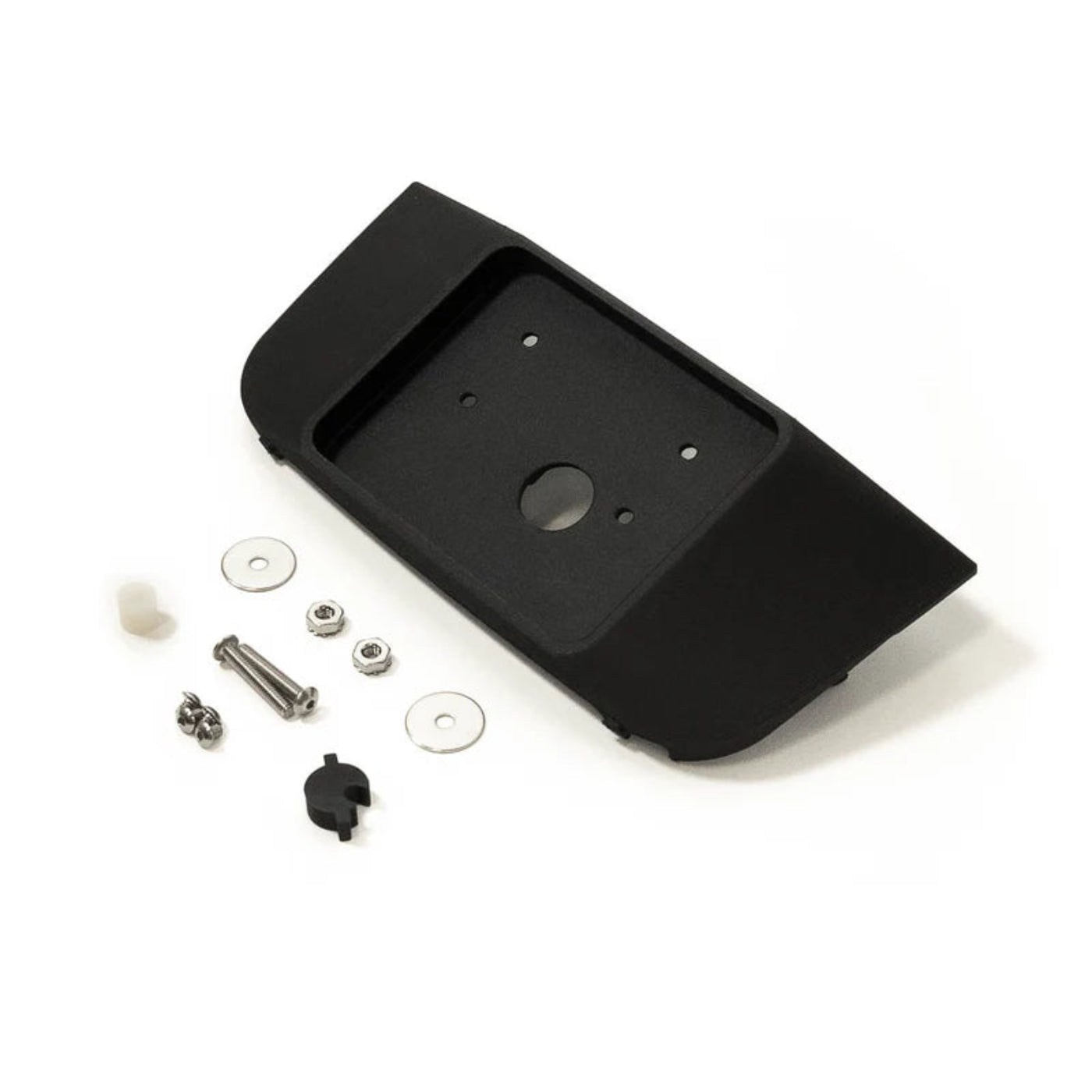

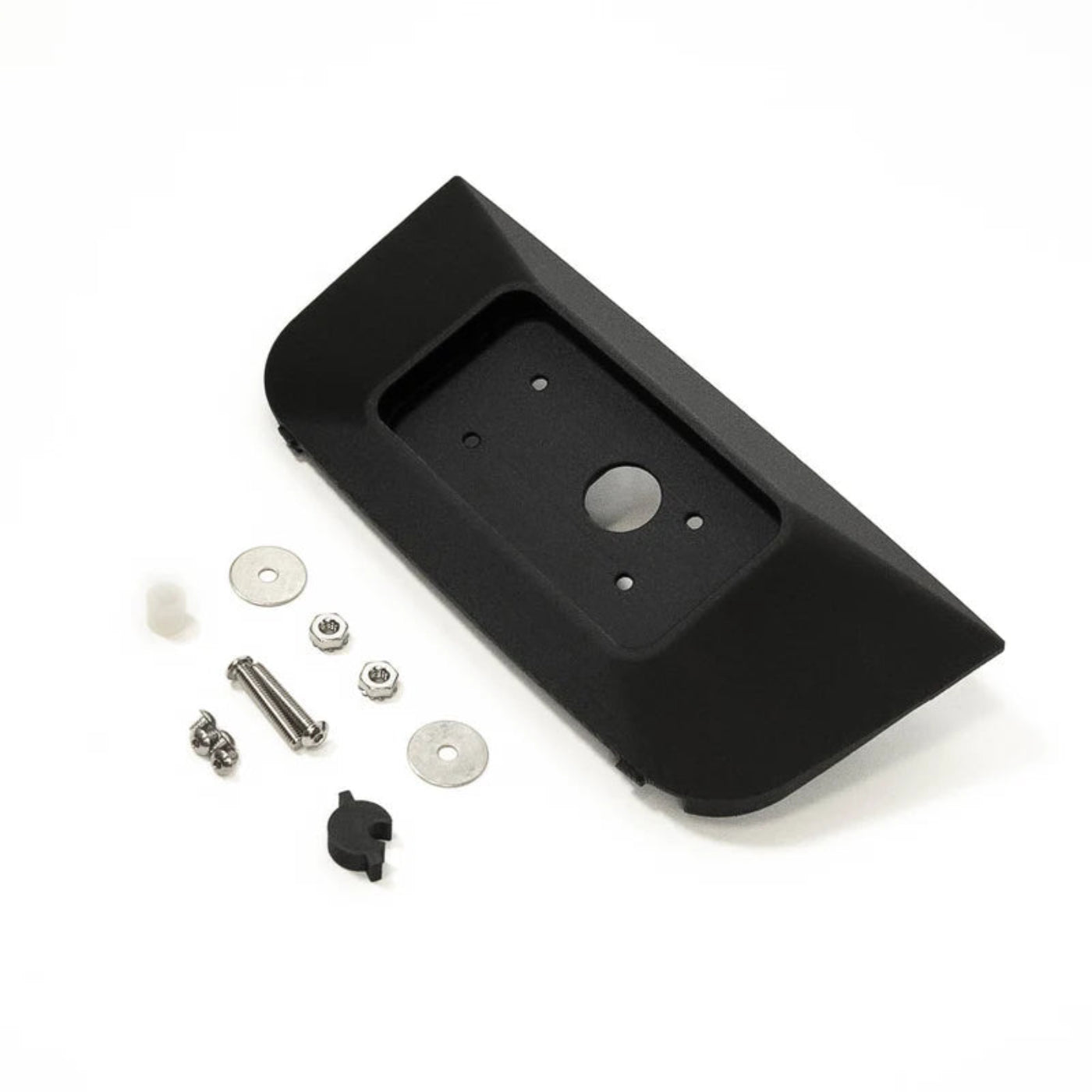

INTERIOR MOUNT OVERVIEW

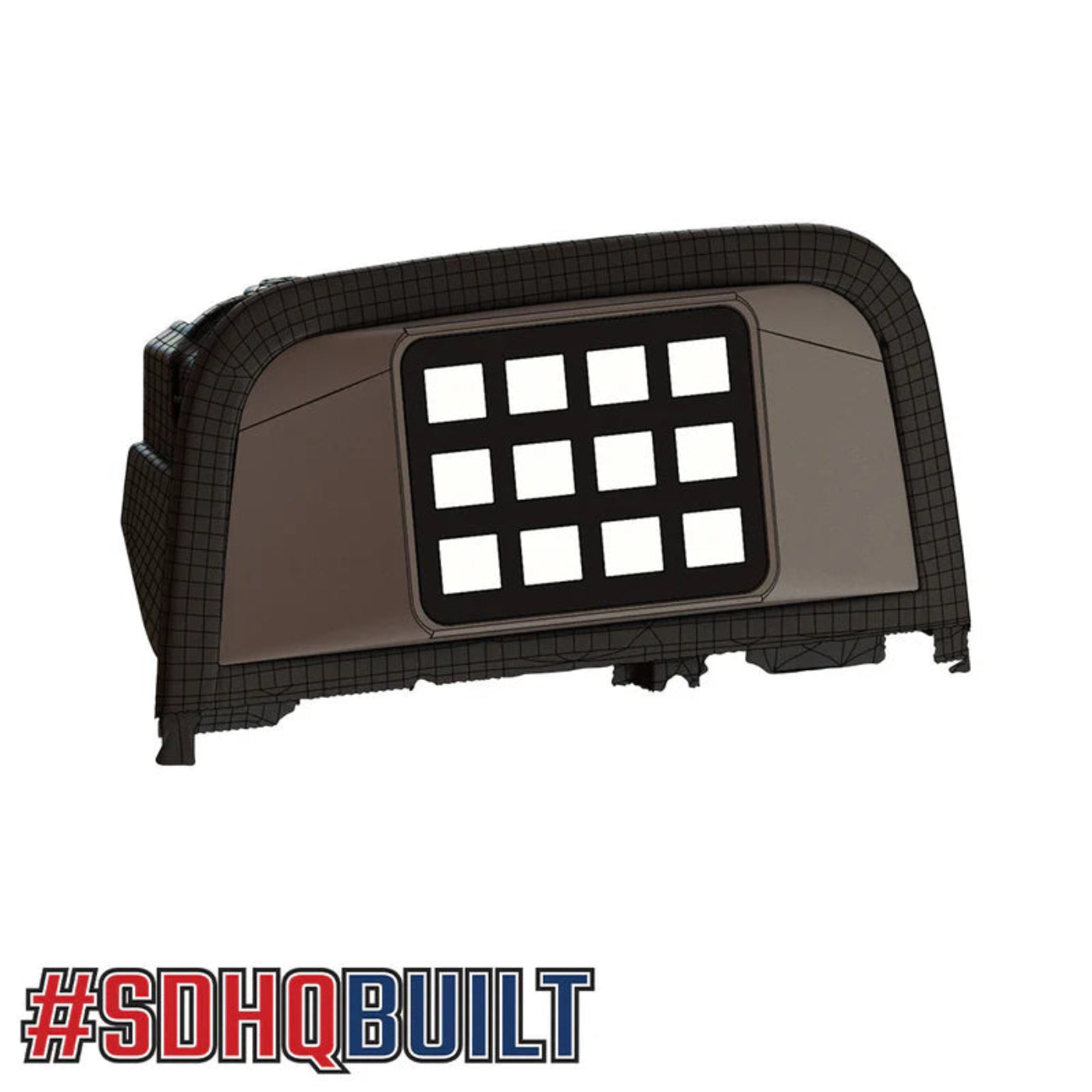

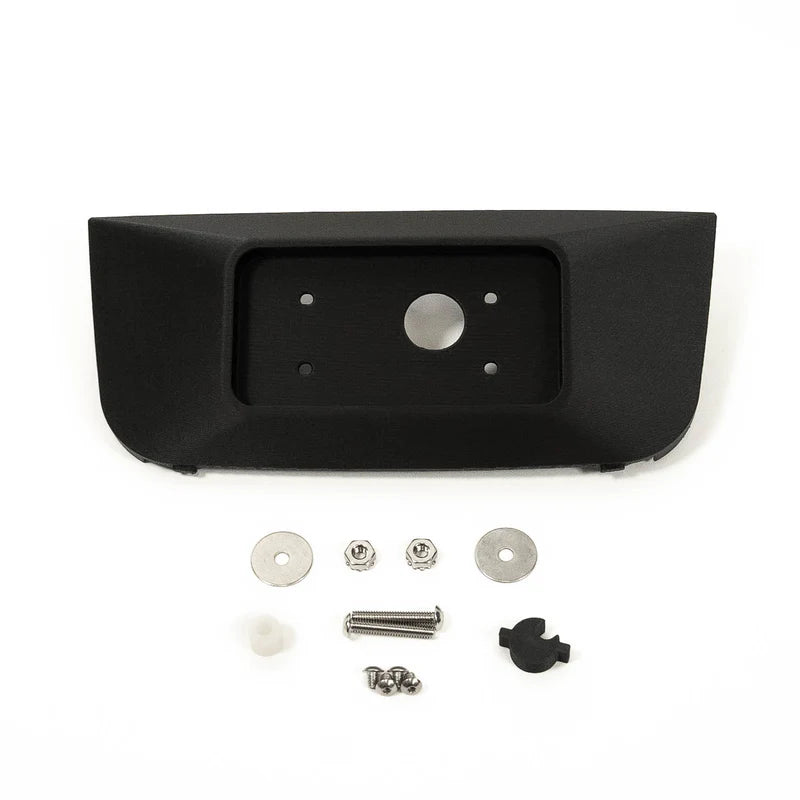

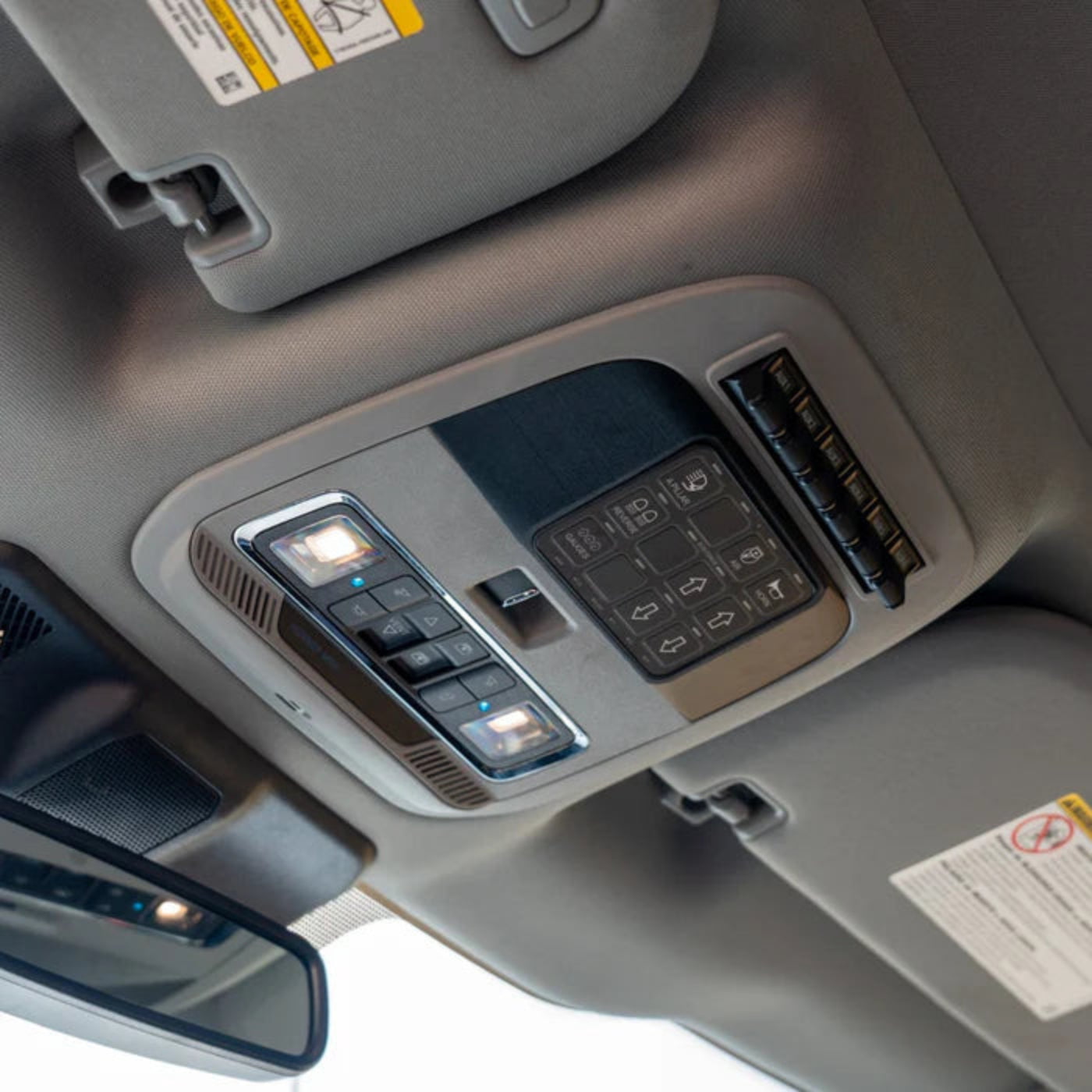

Our SDHQ Built Switch-Pros Keypad Keypad Conversion Mount for the 2021+ Ford F150/Raptor allows you to convert the sunglass holder into a mount for the keypad component of the Switch-Pros SP-9100 or RCR-Force-12 in a secure and easy-to-reach location, allowing you to control your off-road lighting and accessories with ease.

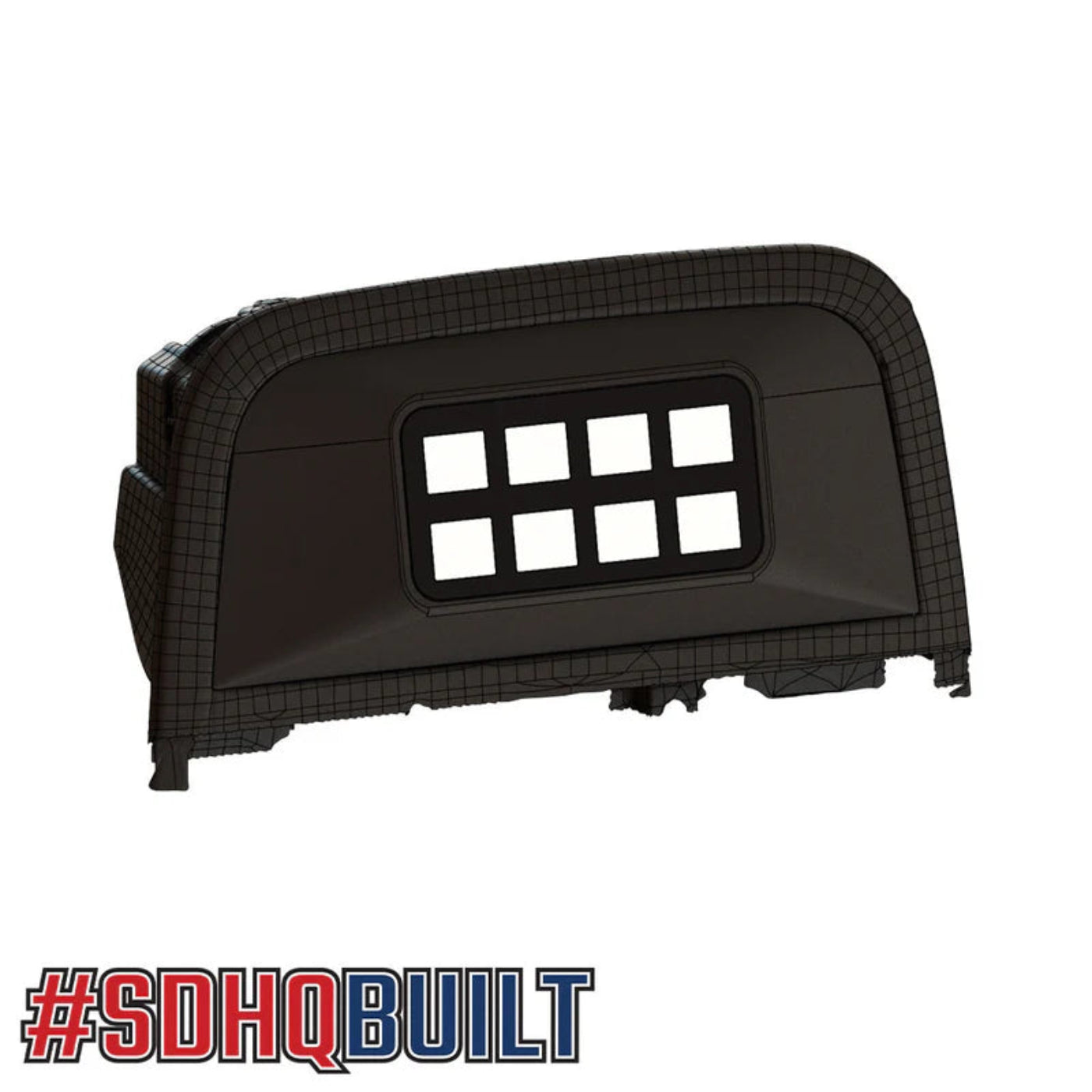

This SDHQ Built keypad mount is 3D printed, giving this keypad mount a direct from the factory level of fitment and quality. *Switch-Pros Not Included*
KEY FEATURES:
- 3D CAD Designed for a precise fit and finish.
- Fits both non-upfitters and upfitters overhead consoles
- Fits: 21-24 Ford Raptor/Raptor-R
- Fitments allow for 9100 and RCR12
- Direct replacement of overhead sunglass holder.
- Drilling ¾” hole required to route switch pro wire
🔧 INSTALL INSTRUCTIONS 🔧

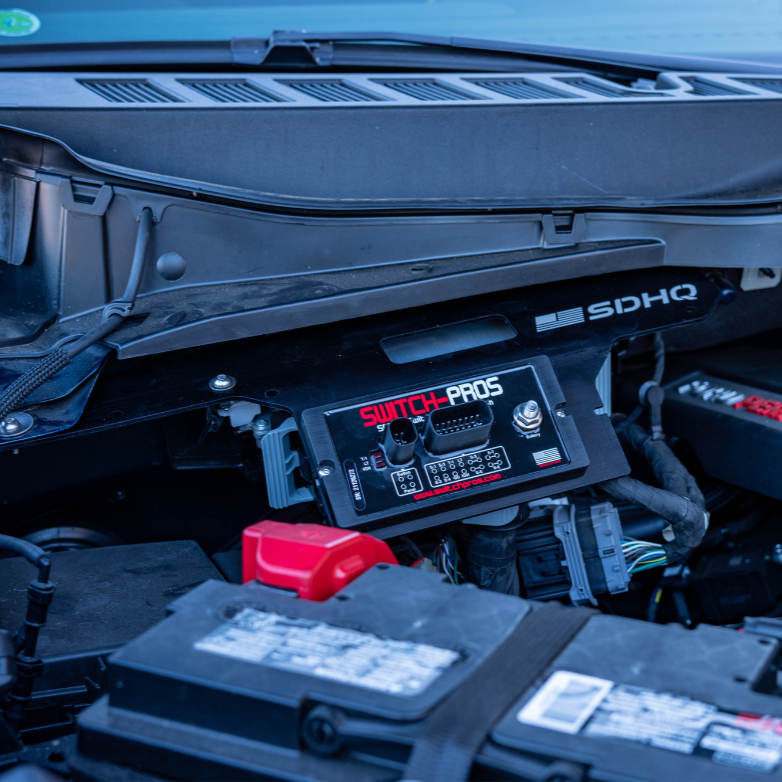

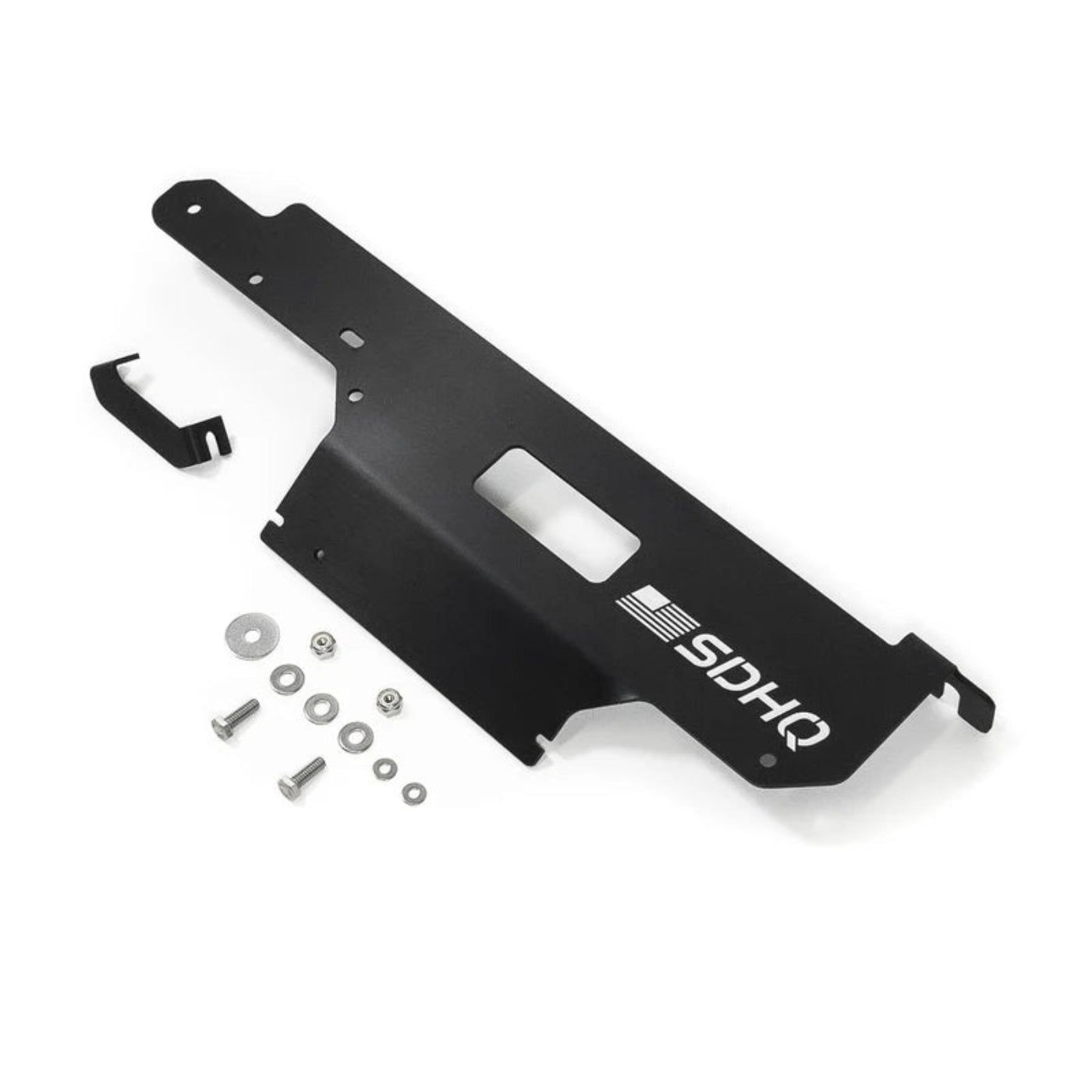

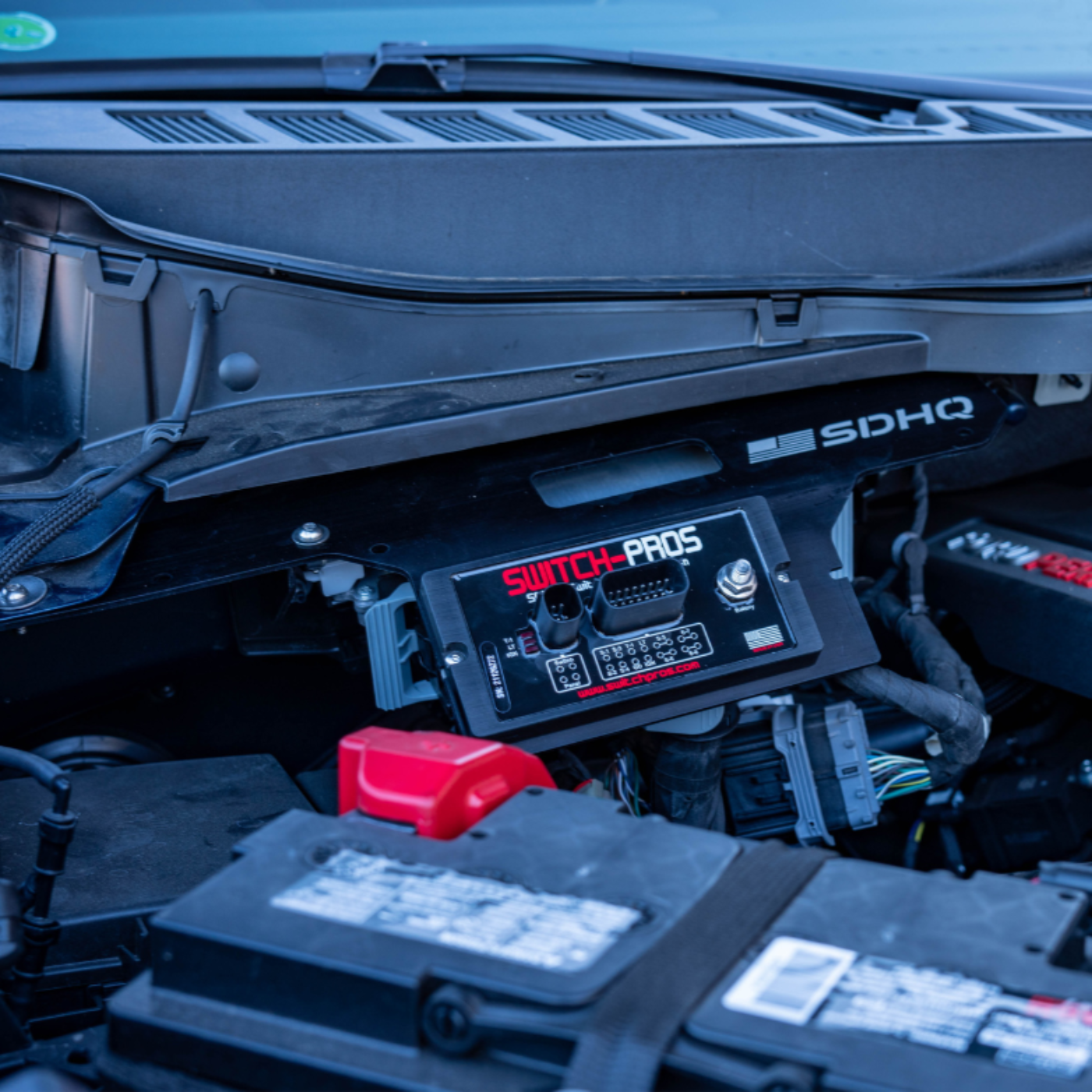

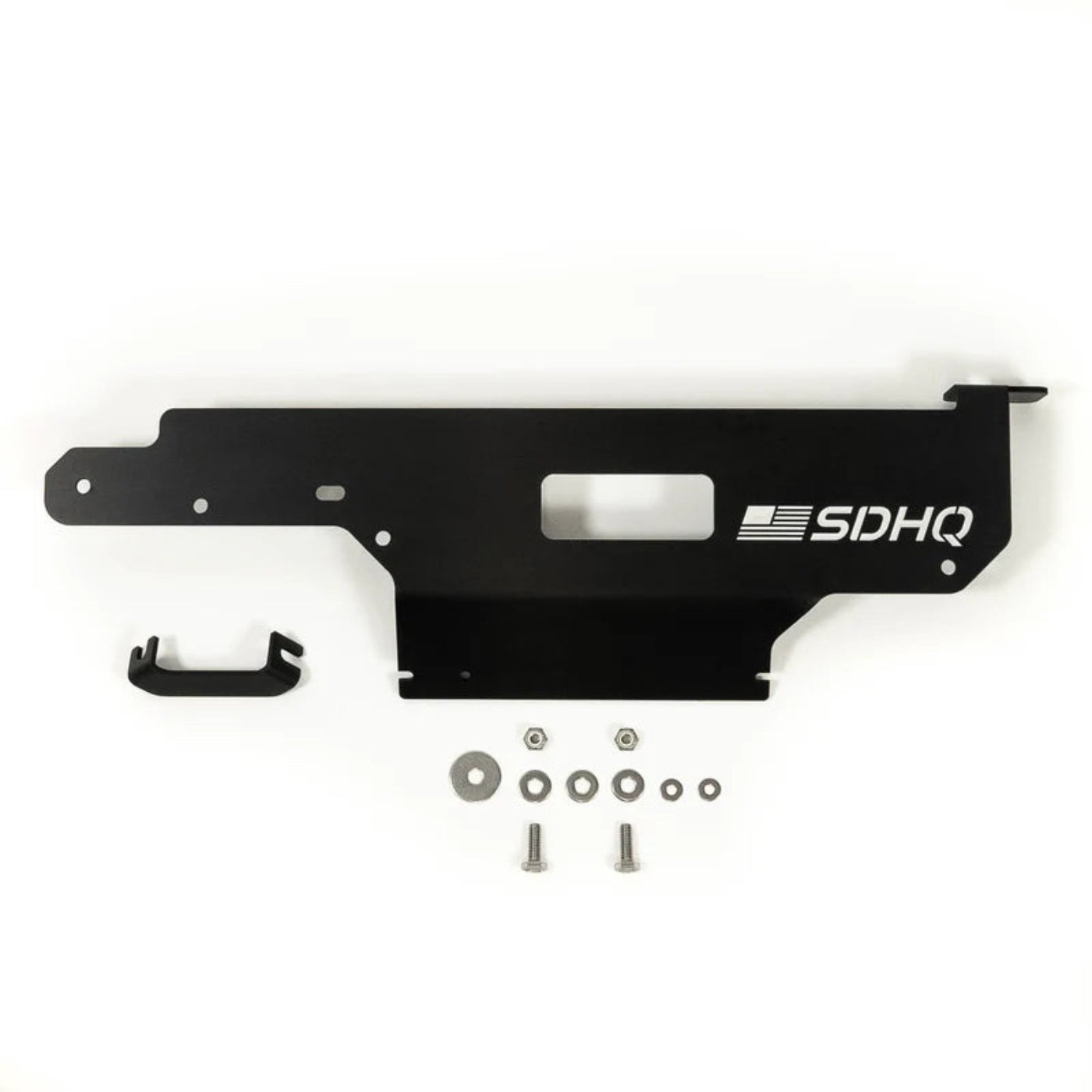

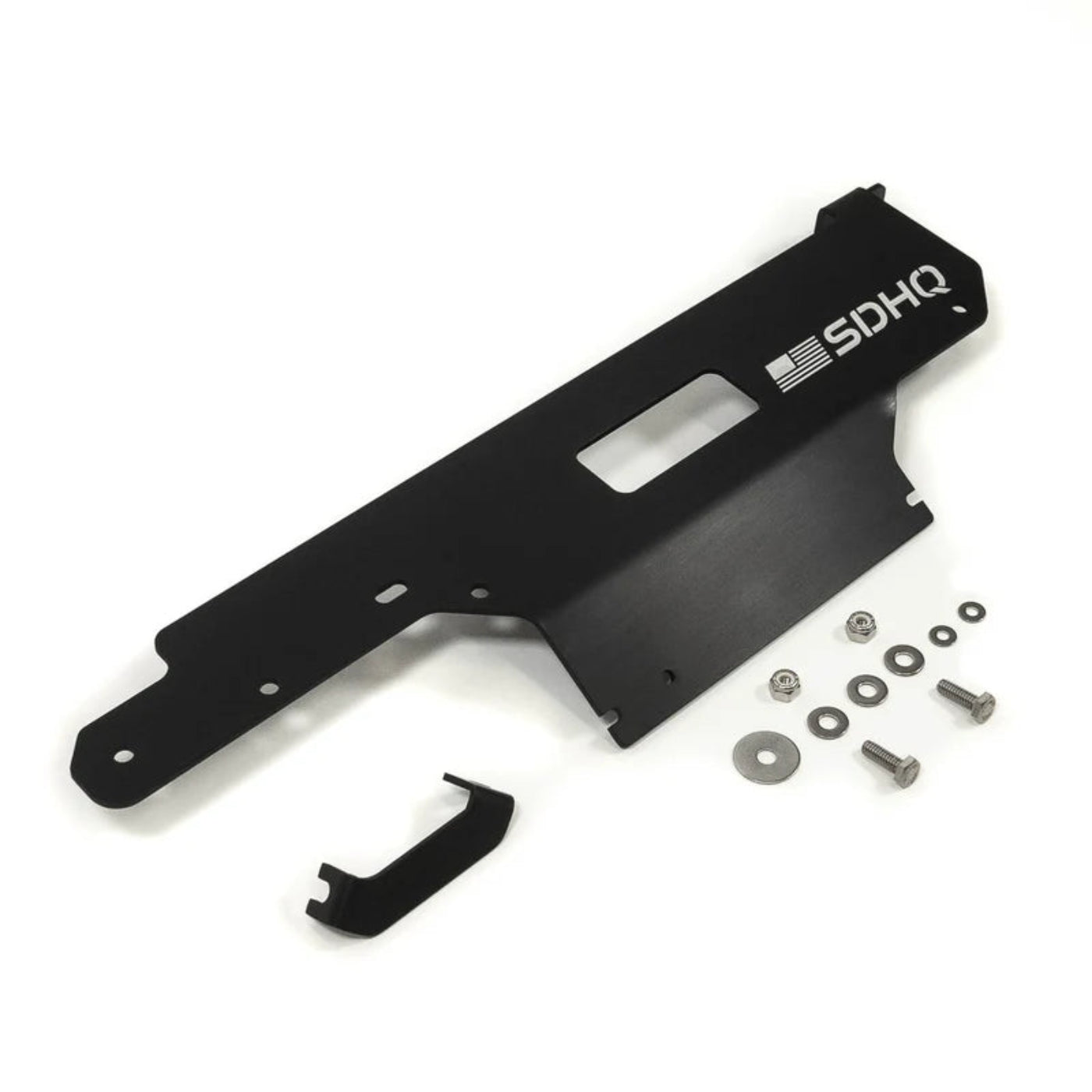

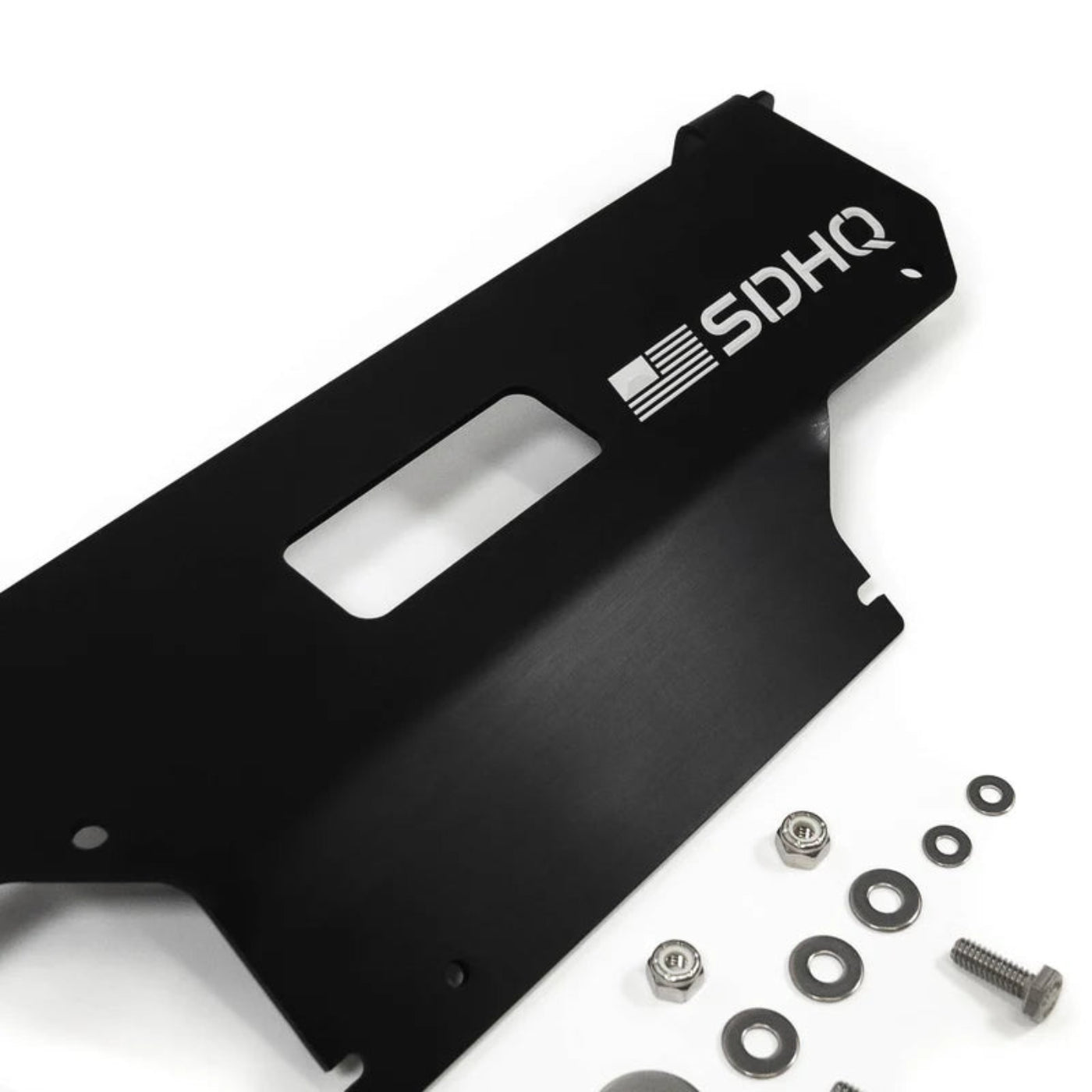

UNDER HOOD POWER MODULE MOUNT OVERVIEW

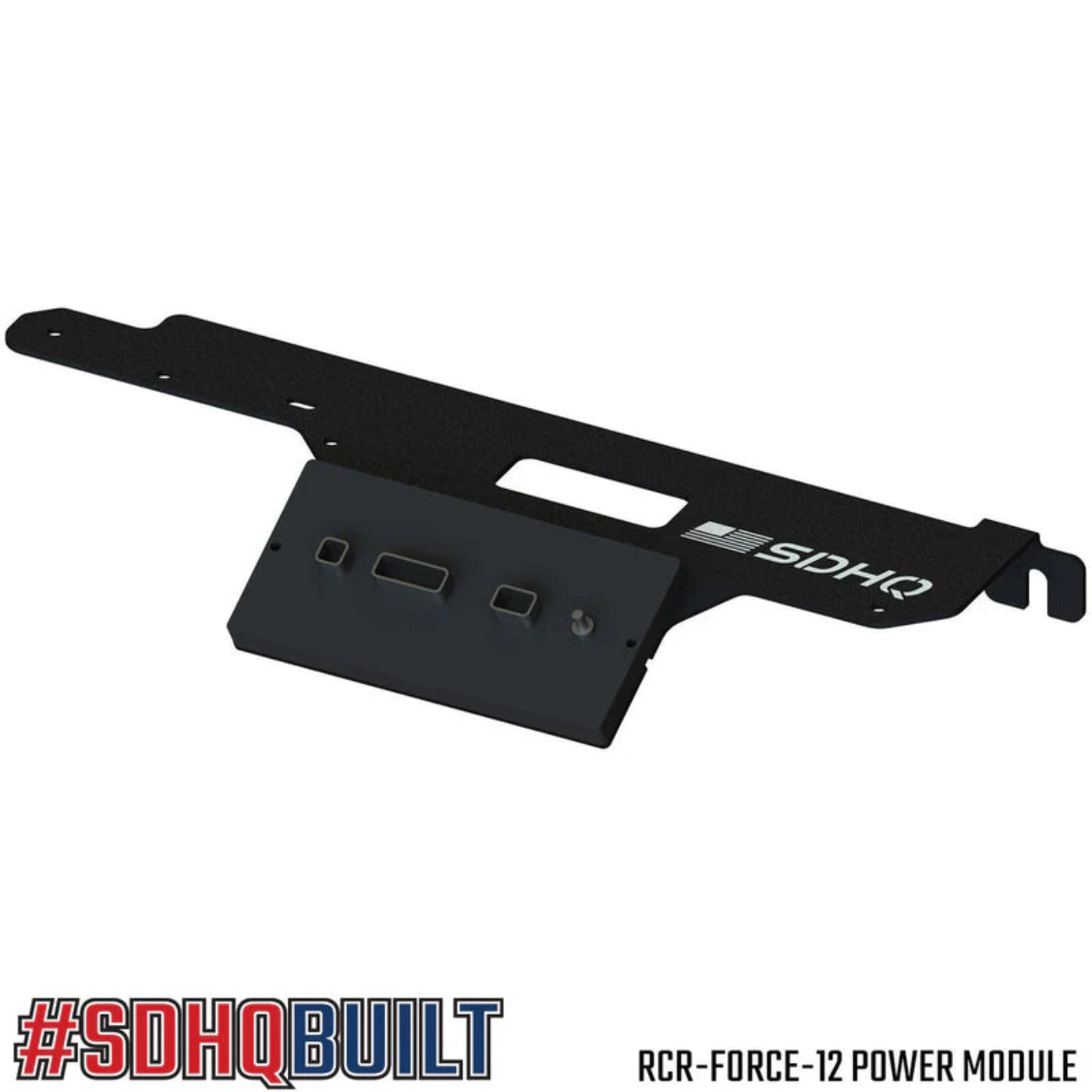

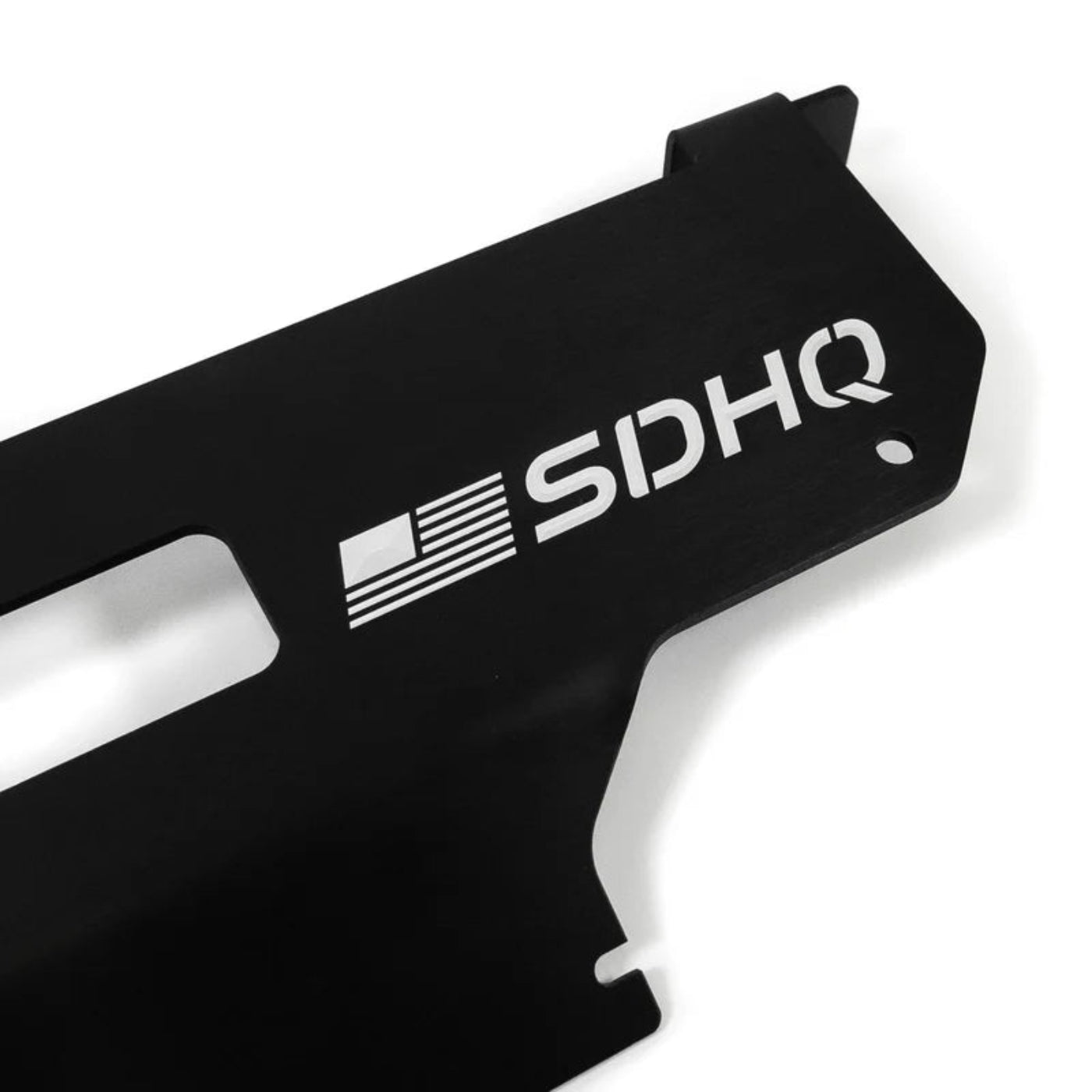

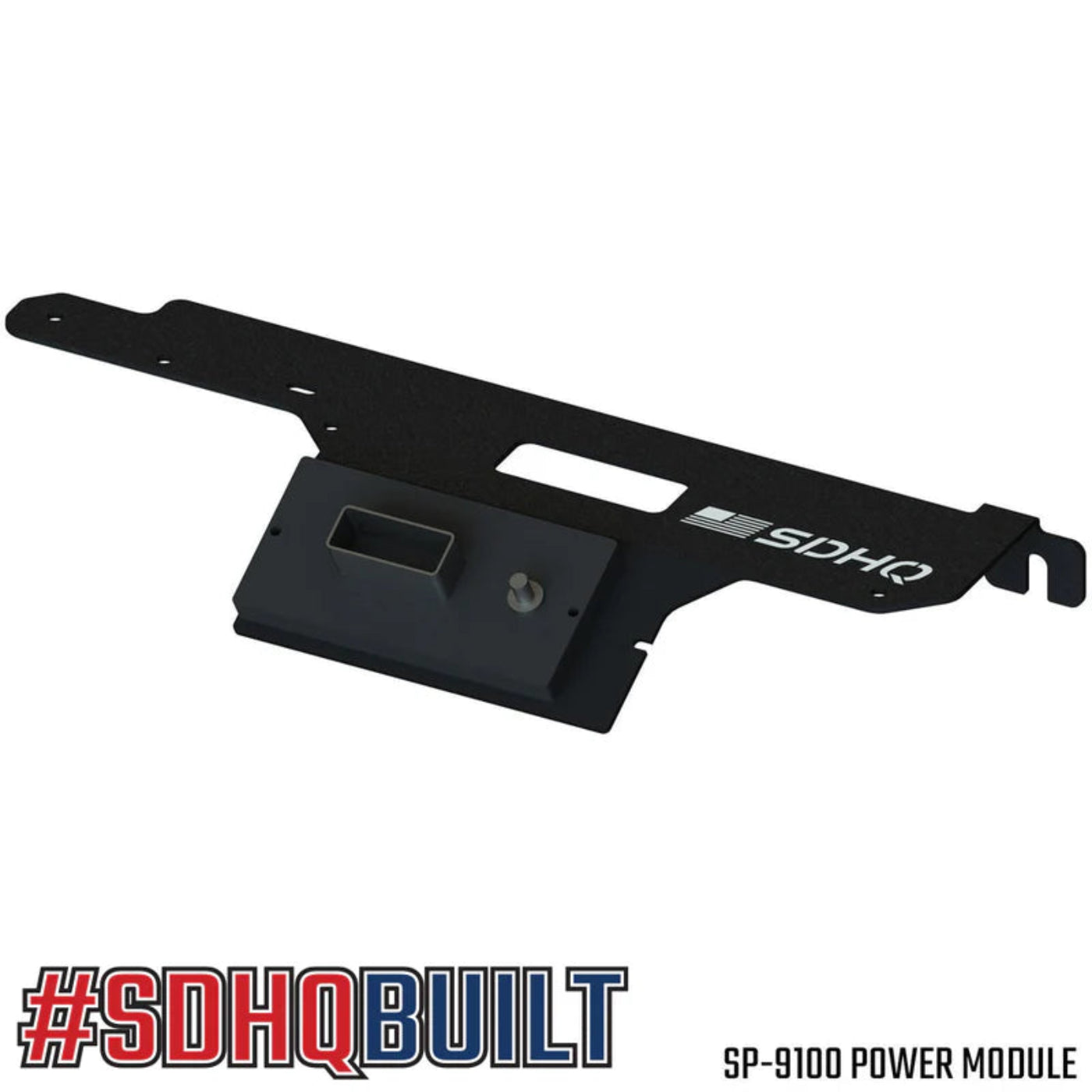

The SDHQ Built under the hood power module mount for the 2017-2023 Ford Raptor is engineered for a straightforward and elegant integration of the Switch-Pros systems into the Raptor's existing framework. This ensures that owners can upgrade their vehicle's control system without the hassle of an invasive installation process.
Vehicle Fitment:
- 2017-2020 (2nd Gen) Ford Raptor: Tailored to fit the second generation without any modifications.
- 2021-2024 (3rd Gen) Ford Raptor: Also designed to fit the newest generation Raptors, ensuring compatibility across several model years.
Key Features:
- Custom Design: The mount is designed with 3D CAD software, ensuring a perfect fit specific to the second and third-generation Ford Raptors.
- Preservation of Vehicle Integrity: The mount requires no cutting or drilling for installation, maintaining the vehicle’s structural integrity and resale value.
- Optimal Location: It is positioned above the PCM to provide ease of access and simplicity in wiring, allowing a clean and organized setup.
- Hardware Compatibility: It utilizes Switch Pros hardware, which ensures a secure fit and is designed to work with the system's components.
- Finish and Durability: The black anodized finish not only looks clean but also offers additional protection against corrosion.
Compatible Switch-Pros Products:
- Switch-Pros SP-9100: Fits the 8-button keypad system.
- Switch-Pros RCR-Force-12: Also accommodates the larger 12-button keypad system for those needing more controls.
Tech Info:
- Exclusion of Components: Note that the Switch-Pros components are not included with the mount and must be purchased separately.
- Dedicated Design: It is exclusively designed to work with Switch-Pros SP-9100 and RCR-Force-12 systems.
This mounting solution by SDHQ Built offers Ford Raptor owners a custom-fit, no-compromise option for enhancing their vehicle with Switch-Pros systems. By avoiding the need for any permanent alterations and providing a clean, organized installation, this mount is a compelling choice for those looking to maintain their vehicle's aesthetics while adding functional upgrades.
🔧 INSTALL INSTRUCTIONS 🔧
SWITCH PROS SP9100 Features
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOs or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting on power module
Specifications
- 125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H
- Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module

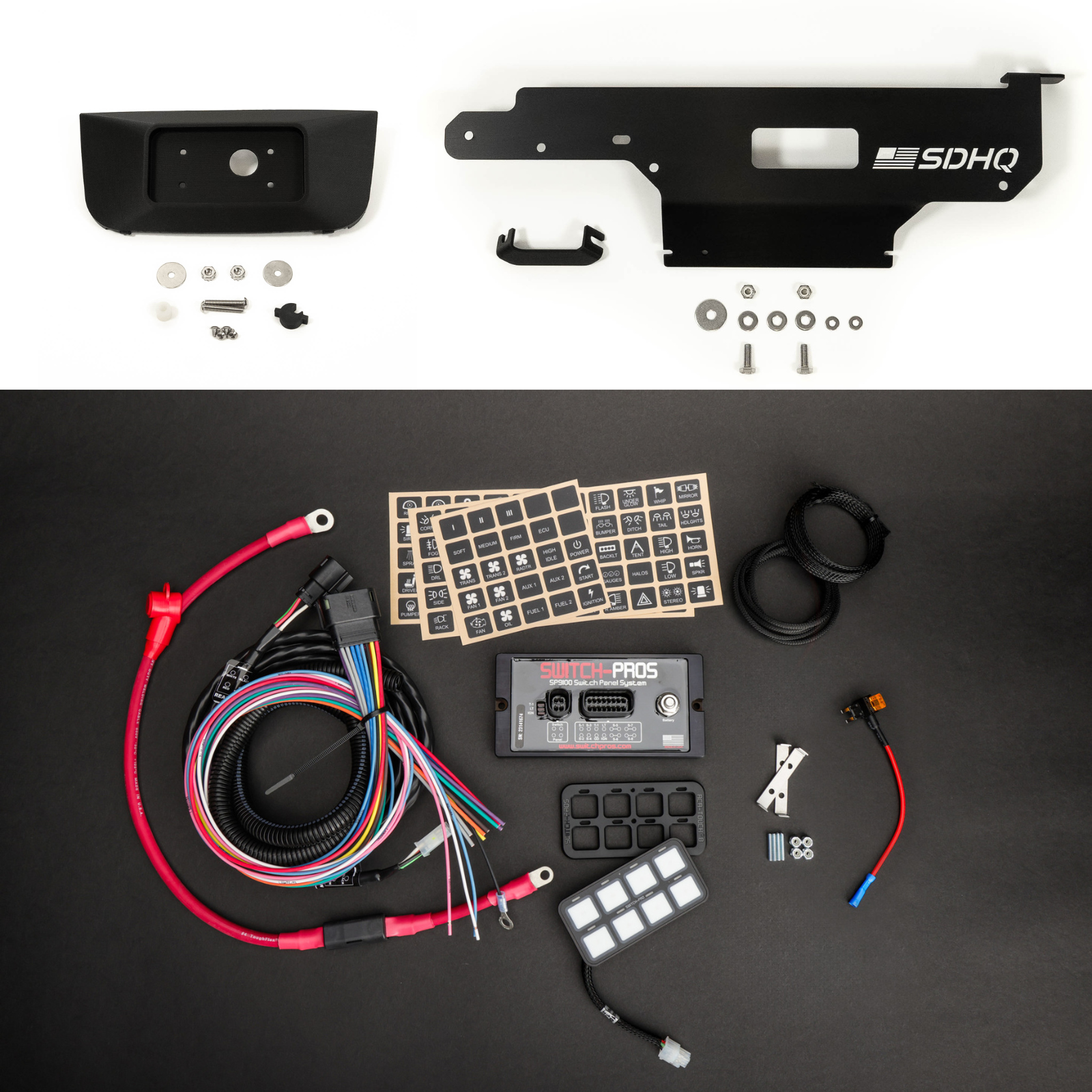

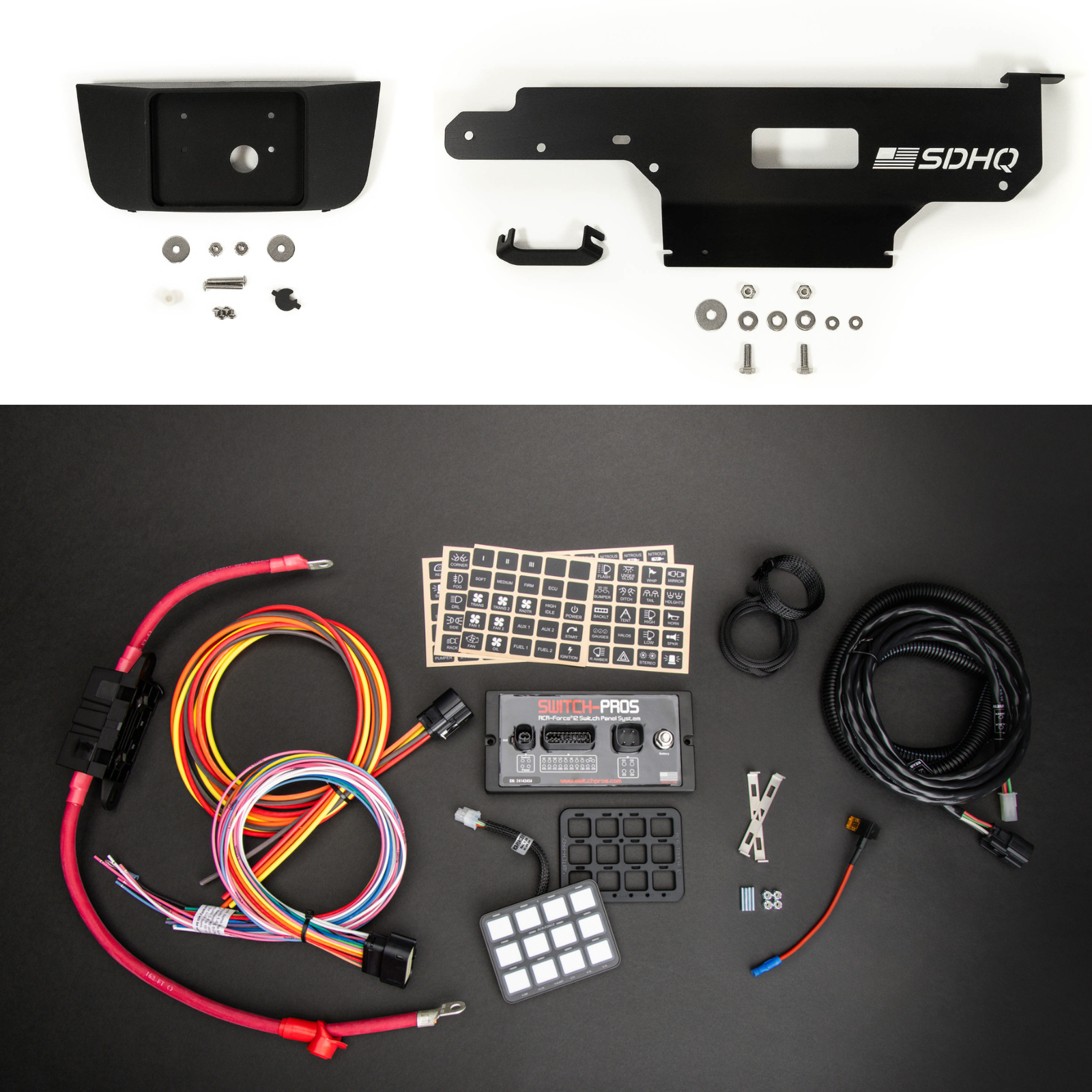

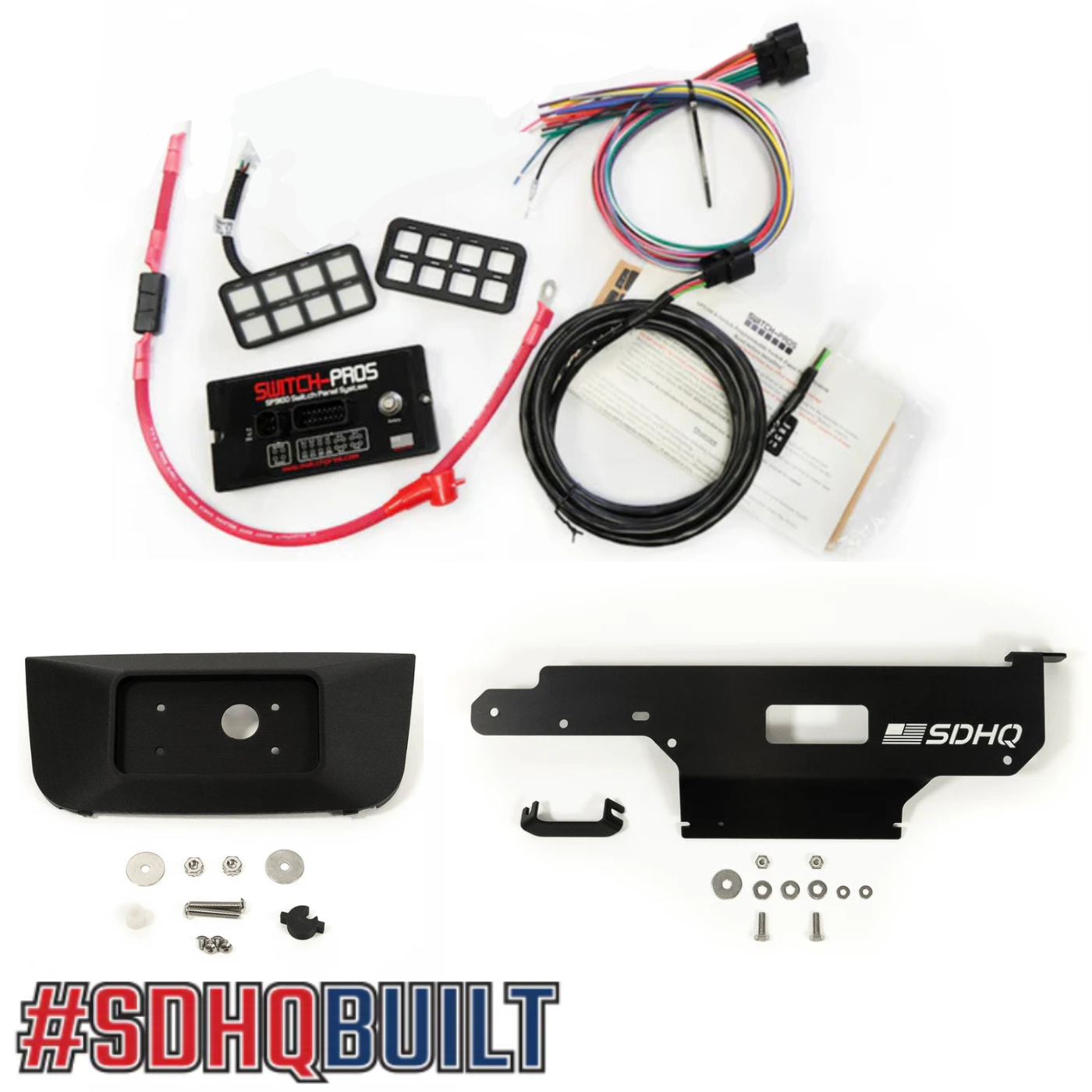

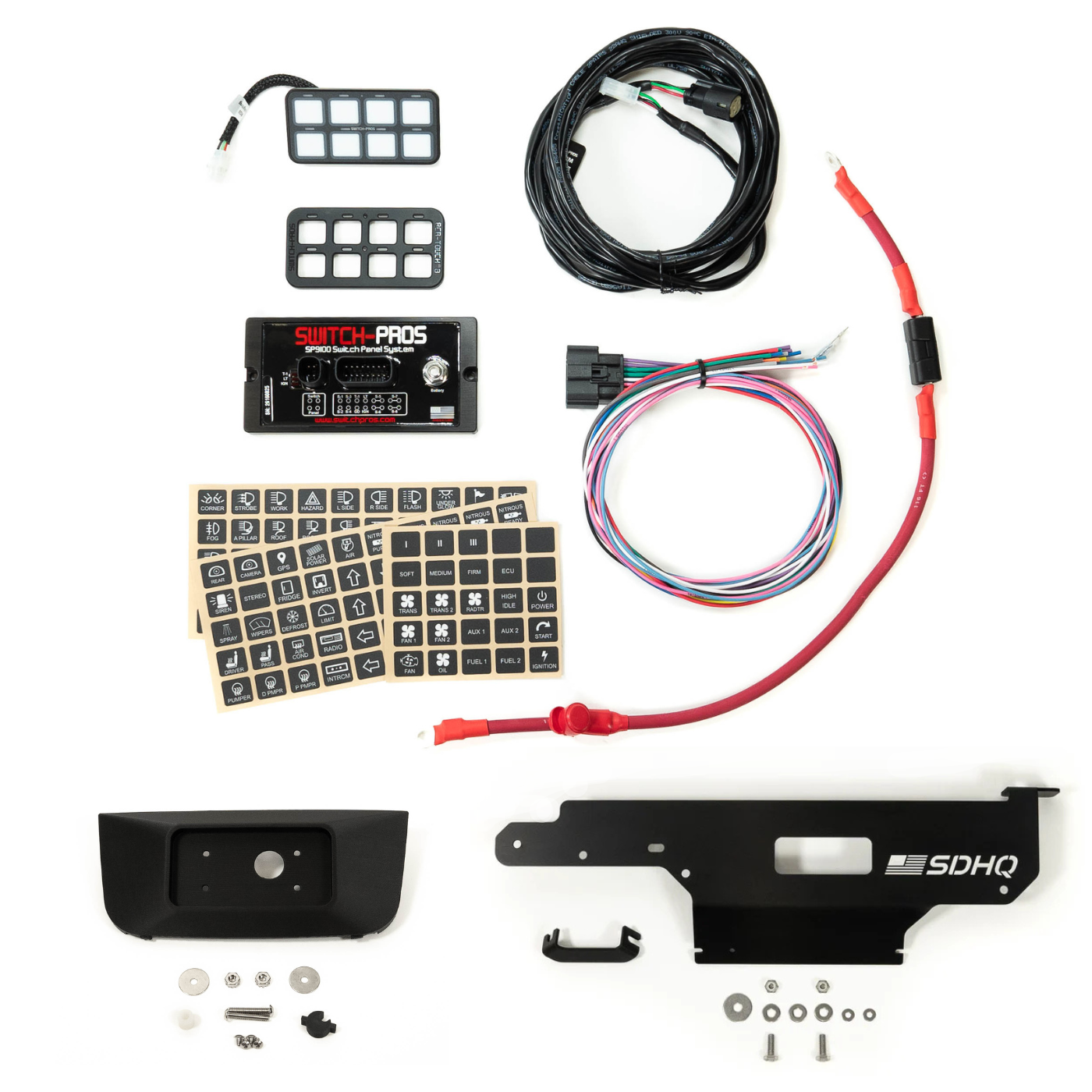

What’s Included?
- Switch Panel and Power Module
- RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide
