21-24 FORD F150 RAPTOR 2-2.25" STAGE 2 SUSPENSION SYSTEM

OVERVIEW:

Transform your 2021-2024 Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 2 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality.

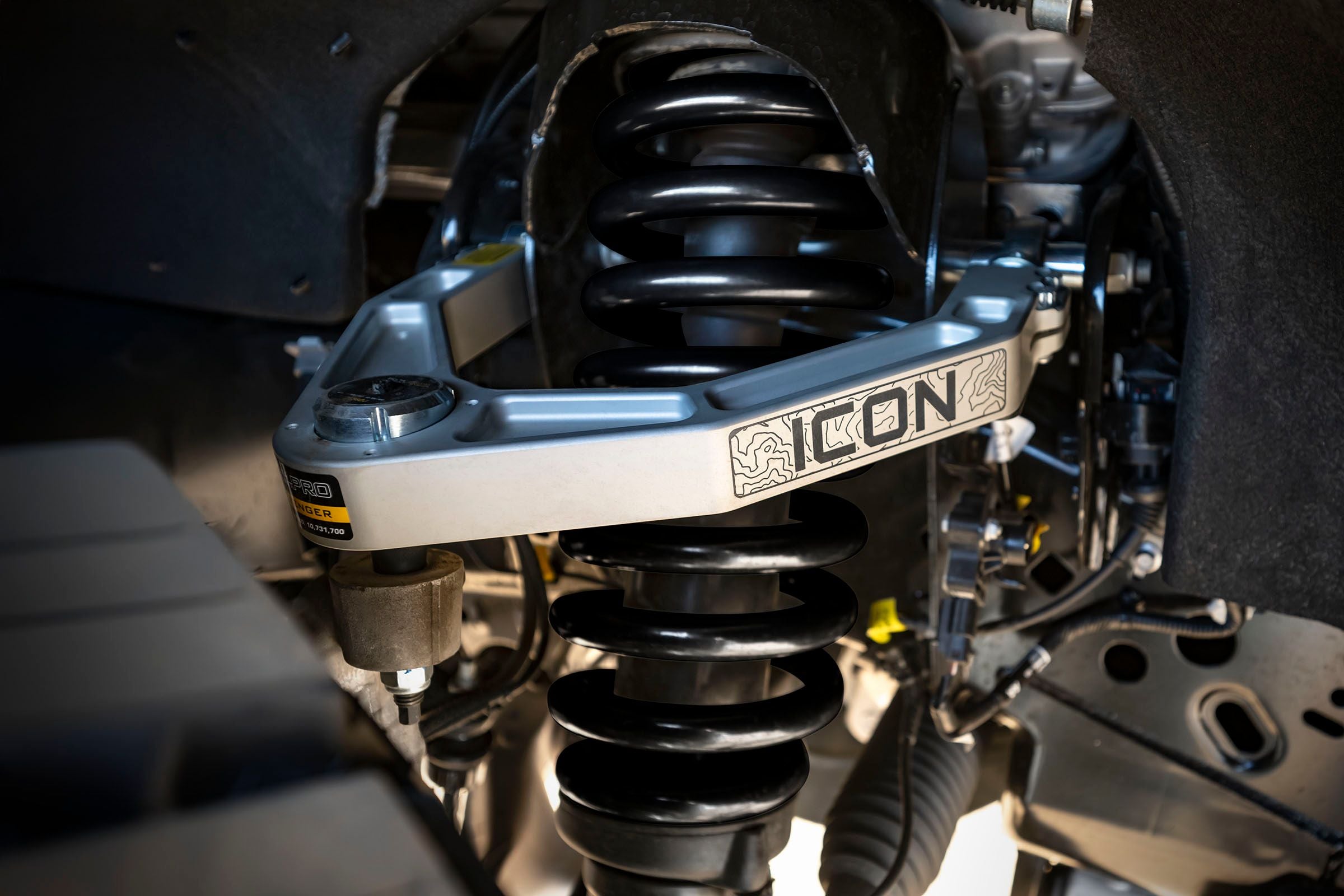

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-2024 Ford F-150 Raptor with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

The standard Stage 2 configuration features triple-rate rear coil springs tailored to deliver a 1" of rear lift on Raptors without additional rear weight. The "Overland" version of Stage 2 is configured for more upfitted Raptors that have constant load in the bed, with triple-rate rear coil springs tailored to deliver a 1" rear lift on Raptors with approximately 300lbs of additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability.

Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.

KEY FEATURES:

• Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
• Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
• Compatible with all versions of available OE shock absorbers
• Maintains electronic shock functionality
• Linear rate front coil springs
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Standard rear springs yield 1" rear lift height over stock on Raptors without additional weight in the rear
• Overland rear springs yield 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
• Tapered wire rear coil design achieves maximum travel and efficiency
• Significantly improves on- and off-road ride quality and performance over stock
• Bolt-on installation with no cutting required
• Dual stage powder coating for maximum corrosion resistance
• Lifetime guarantee against sagging/breakage

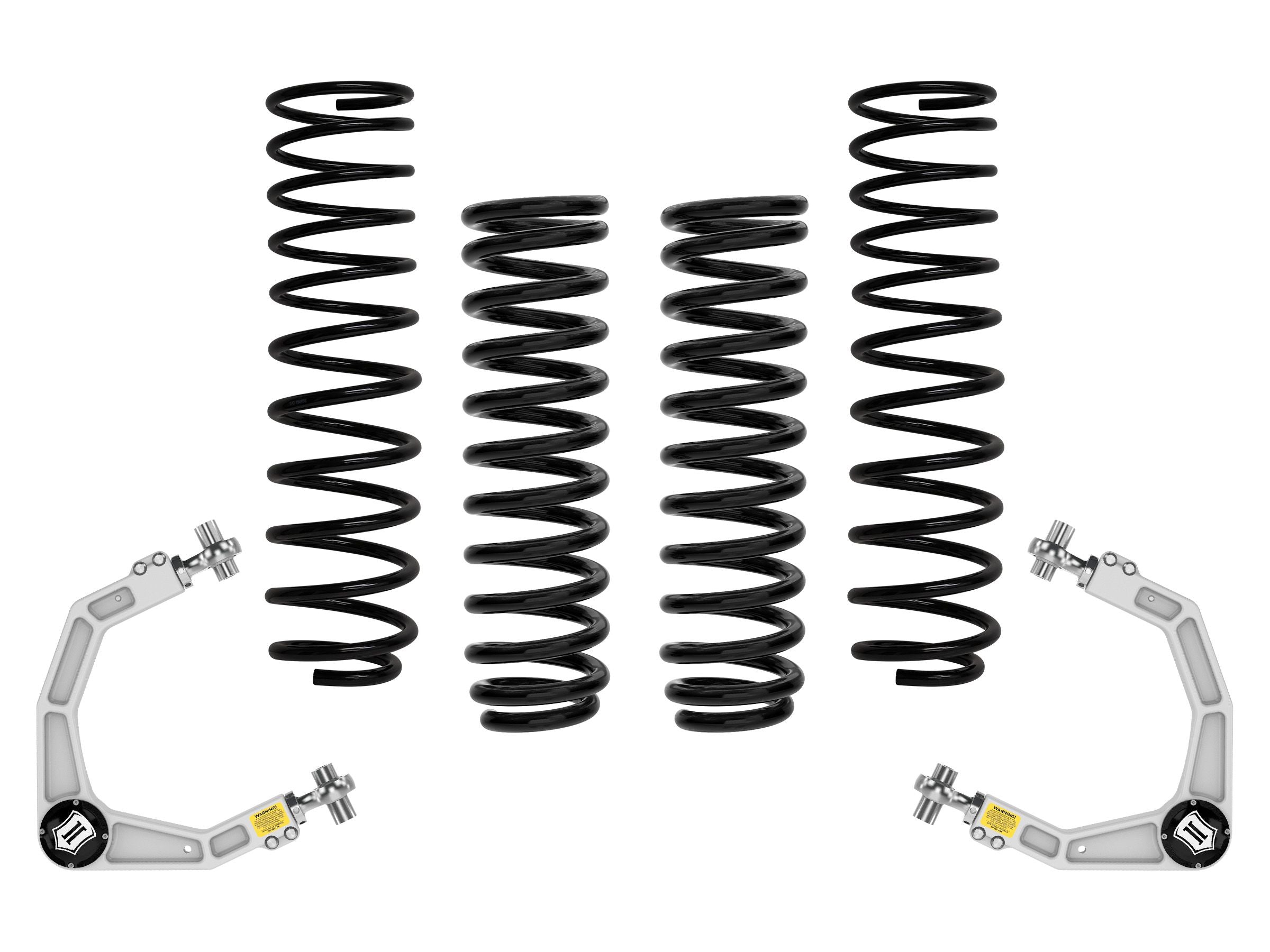

SYSTEMS INCLUDE:

• 95232: 21-24 F-150 RAPTOR FRONT SPRING KIT
• 98564DJ: 21-24 F-150 RAPTOR BILLET UCA DJ PRO KIT
• 95230: 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
   or  95231: 21-24 F-150 RAPTOR TRIPLE RATE OVERLAND REAR COIL SPRING KIT


TECH NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
• APPLICATION NOTE #181 (for "Overland" Rear Coil Springs): Advertised lift height ranges are for a vehicle with approx 300lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers.
• TECH NOTE: Provides 2.25" of front lift over stock on F-150 Raptor
• TECH NOTE: Provides 2" of front lift over stock on F-150 Raptor R
